Homtime C1 Pro Alarm Clock User Manual

పరిచయం

The Homtime C1 Pro is an advanced electronic alarm clock designed for modern bedrooms, offering a blend of essential features and convenient functionalities. It integrates a Bluetooth speaker, dual USB charging ports, a large dimmable LCD screen, and a built-in thermometer. This manual provides detailed instructions to help you set up, operate, and maintain your C1 Pro alarm clock.

పెట్టెలో ఏముంది

• 1 x Homtime C1 Pro Main Unit
• 1 x పవర్ అడాప్టర్
• 1 x వినియోగదారు మాన్యువల్

కీ ఫీచర్లు

• సాధారణ సెట్టింగ్‌లు: Unique rotary button and alarm setting button for easy time and alarm adjustment.
• Adjustable LCD Display: 4-level dimmable screen (High, Medium, Low, Off) for optimal visibility day or night. Displays time (12H/24H), temperature (°F/°C), charging status, and alarm time.
• Melody Alarm: Customize your ringtone using an SD card. Alarm volume increases gradually.
• తాత్కాలికంగా ఆపివేయి ఫంక్షన్: 9-minute interval snooze.
• డ్యూయల్ USB ఛార్జింగ్ పోర్ట్‌లు: Two 5V/3A universal USB ports for simultaneous charging of two devices.
• బ్లూటూత్ స్పీకర్: Compact speaker with balanced bass for wireless audio streaming.
• Aux-in Connection: Built-in 3.5mm aux cable for wired music playback.
• బ్యాటరీ బ్యాకప్: Requires 3 AAA batteries (not included) to maintain alarm settings during power outages.

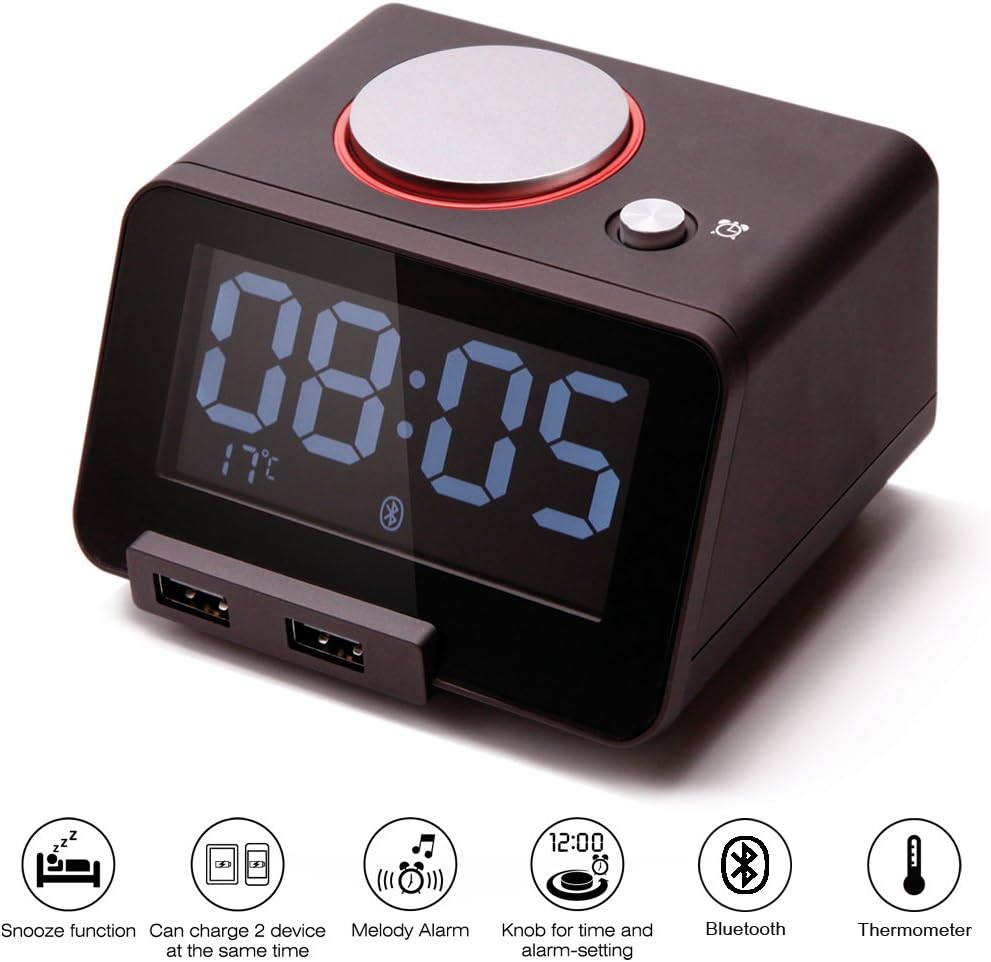

Figure 1: Homtime C1 Pro highlighting its main features.

సెటప్

1. పవర్ కనెక్షన్: Connect the provided power adapter to the DC 5V port on the back of the C1 Pro and plug it into a wall outlet. The display will light up.
2. Install Backup Batteries (Optional but Recommended): Open the battery compartment on the bottom and insert 3 AAA batteries (not included). This ensures time and alarm settings are retained during power interruptions.
3. ప్రారంభ సమయ సెట్టింగ్: The clock typically displays 00:00 upon first power-up. To set the time, gently rotate the large silver knob on top of the clock. Press the knob to confirm the hour, then rotate to set minutes, and press again to confirm.
4. అలారం సమయాన్ని సెట్ చేయండి: Press the small alarm button next to the rotary knob. The alarm time will flash. Rotate the large knob to set the desired alarm hour and minutes, pressing the knob to confirm each. Press the alarm button again to save.
5. Insert Micro SD Card (for Custom Ringtones): If you wish to use custom alarm melodies, store your favorite songs onto a Micro SD card. Insert the Micro SD card into the card slot located at the back of the unit.

Figure 2: Labeled components of the Homtime C1 Pro for easy setup.

Figure 3: Inserting a Micro SD card for custom alarm melodies.

ఆపరేటింగ్ సూచనలు

1. డిస్‌ప్లే ప్రకాశాన్ని సర్దుబాటు చేస్తోంది: Press the large rotary knob on top of the clock to cycle through four brightness levels: High, Medium, Low, and Off. This allows you to adjust the display to your preference, especially for nighttime use.


Figure 4: Adjusting the LCD display brightness.

2. తాత్కాలికంగా ఆపివేయి ఫంక్షన్: When the alarm sounds, press the large rotary knob to activate the snooze function. The alarm will pause for 9 minutes and then sound again.
3. Canceling Alarm: To completely turn off the alarm, press the small alarm button next to the rotary knob.
4. ఉష్ణోగ్రత ప్రదర్శన: The current room temperature is displayed on the bottom left of the LCD screen. To switch between Celsius (°C) and Fahrenheit (°F), locate the small button on the back of the unit labeled 'C/F' and press it.
5. 12H/24H Time Format: To switch between 12-hour and 24-hour time formats, locate the button on the back of the unit labeled '12H/24H' and press it.
6. బ్లూటూత్ కనెక్టివిటీ:
   • మీ మొబైల్ పరికరంలో బ్లూటూత్ ప్రారంభించబడిందని నిర్ధారించుకోండి.
   • On your device, search for Bluetooth devices and select "C1pro" from the list.
   • Once connected, you can play audio from your device through the C1 Pro's speaker.

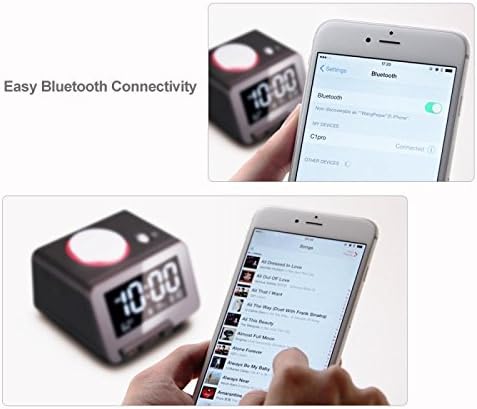

Figure 5: Connecting your device via Bluetooth.
7. USB ఛార్జింగ్: The two USB ports on the front of the unit provide 5V/3A output for charging. Simply connect your device's USB charging cable to one of the ports. The C1 Pro can charge two devices simultaneously.

నిర్వహణ

• శుభ్రపరచడం: Use a soft, dry cloth to clean the surface of the alarm clock. Do not use liquid cleaners or abrasive materials.
• బ్యాటరీ భర్తీ: If using backup batteries, replace them periodically (e.g., annually) to ensure continuous functionality during power outages.
• నిల్వ: If storing the unit for an extended period, remove the AAA backup batteries to prevent leakage.

ట్రబుల్షూటింగ్

• ప్రదర్శన ఖాళీగా ఉంది: Ensure the power adapter is securely connected to both the clock and a working power outlet. Check if the display brightness is set to 'Off' by pressing the large rotary knob.
• అలారం మోగడం లేదు: Verify the alarm time is set correctly. Ensure the alarm is enabled (check the alarm indicator on the display). Check if the volume is set to an audible level. If using an SD card, ensure it is properly inserted and contains playable audio files.
• Cannot set time/alarm: Ensure the rotary knob is functioning correctly. Refer to the 'Setup' section for detailed instructions on time and alarm setting.
• USB charging not working: Ensure the C1 Pro is powered on. Try a different USB cable or device to rule out cable/device issues.
• బ్లూటూత్ కనెక్ట్ కావడం లేదు: Ensure Bluetooth is enabled on your device and the C1 Pro is within range. Try restarting both the C1 Pro and your mobile device.
• ఉష్ణోగ్రత రీడింగ్ తప్పుగా కనిపిస్తోంది: Ensure the clock is placed in an area with good air circulation, away from direct heat sources or drafts.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

Homtime products are designed for reliability and performance. The manufacturer, All Best Technology Limited, typically provides a warranty for their products. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty duration and contact information for support. For general inquiries or technical assistance, you may visit the official Homtime store on Amazon or contact their customer service as per the details provided in your product packaging.
