Spektrum H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo

1. పరిచయం

The Spektrum H6050 is a digital cyclic servo designed for helicopter models up to 500 size. It features a powerful coreless motor and a durable full metal gear train, providing precise control and reliability for various RC applications.

ముఖ్య లక్షణాలు:

• Standard size servo, suitable for 500 size helicopter models and smaller.
• Provides 160oz of torque and a speed of 0.103 seconds at 6.0V.
• 4.8V-6.0V ఇన్‌పుట్ వాల్యూమ్‌కు మద్దతు ఇస్తుందిtage.
• Equipped with a long 10-inch (255mm) connector wire, reducing the need for extensions.
• Features a 23-tooth spline and bearing-supported output spline for enhanced durability.

2. భద్రతా సమాచారం

WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property, and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation, and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.

3. ఉత్పత్తి ముగిసిందిview

The Spektrum H6050 servo is engineered for performance and durability in demanding RC helicopter environments. Its robust construction and precise digital control ensure reliable operation.

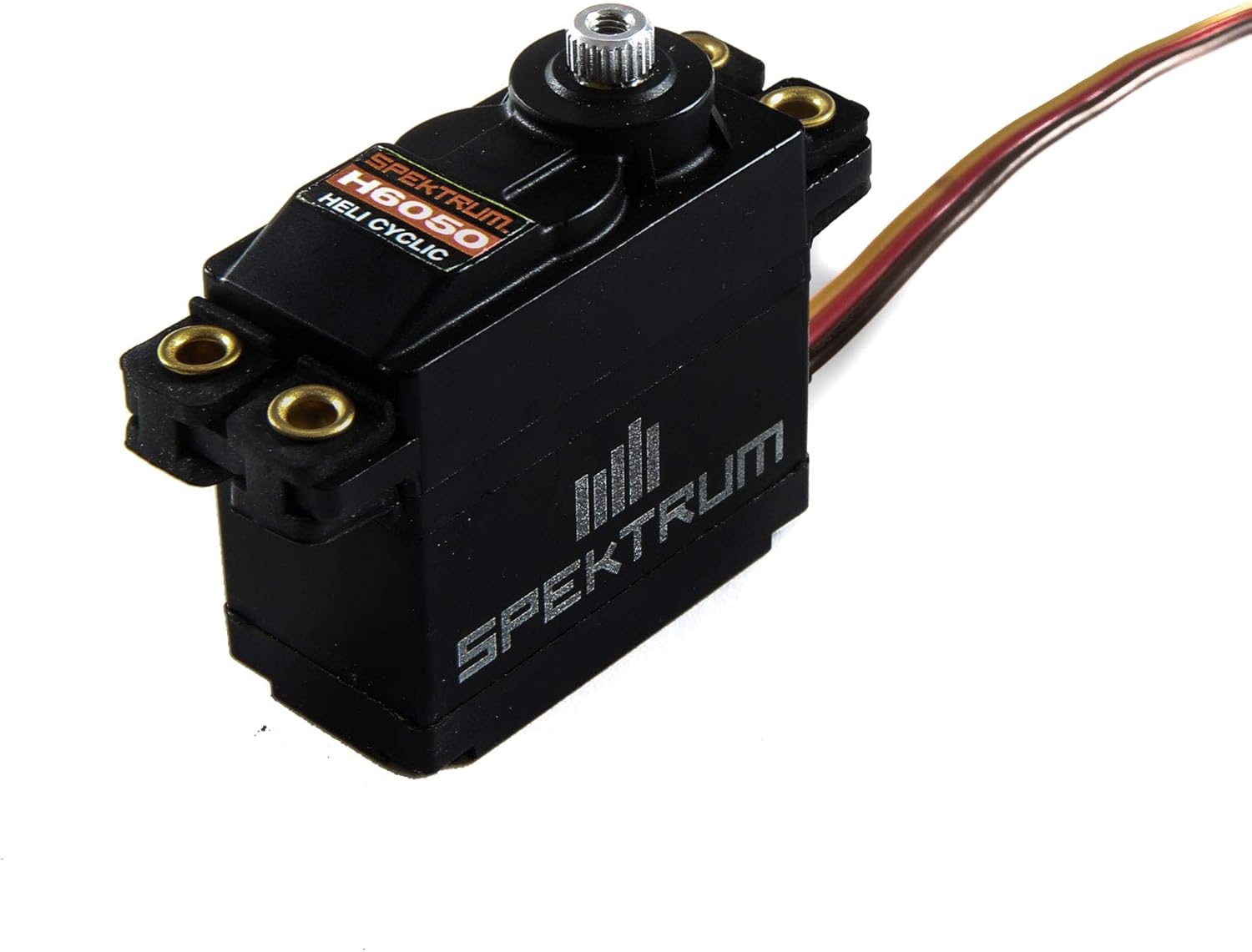

Figure 1: Spektrum H6050 servo, top-down view, showing the output spline and mounting tabs.

Figure 2: Spektrum H6050 servo with included mounting hardware and various servo horns.

The servo's metal gear train is designed to withstand the stresses of high-performance cyclic applications, while the coreless motor provides consistent power and quick response times. The standard size ensures compatibility with a wide range of models.

4. సెటప్

4.1. Mounting the Servo

1. Identify the designated servo mounting location in your RC model.
2. Secure the servo using the provided mounting screws and rubber grommets (if applicable) to minimize vibration. Ensure the servo is firmly seated but not overtightened.
3. Attach the appropriate servo horn to the 23-tooth output spline. Ensure the horn is centered before tightening the retaining screw.

4.2. వైరింగ్ కనెక్షన్

1. Connect the 10-inch (255mm) servo connector wire to the corresponding channel on your receiver or flight controller.
2. Ensure the polarity is correct (typically brown/black for ground, red for positive, orange/yellow/white for signal). Refer to your receiver's manual for specific wiring diagrams.
3. Verify that the power supply to the receiver is within the servo's operating voltage పరిధి 4.8V-6.0V.

5. ఆపరేషన్

5.1. ప్రాథమిక ఫంక్షన్

The H6050 servo translates electrical signals from your receiver into mechanical motion, controlling the cyclic surfaces of your helicopter. When power is applied and a signal is received, the servo's output shaft will rotate to a commanded position.

5.2. Centering and Travel Adjustment

1. Before initial flight, ensure the servo is properly centered. This can typically be done through your transmitter's sub-trim or servo centering functions.
2. Adjust the servo travel (endpoints) on your transmitter to achieve the desired range of motion for your helicopter's cyclic controls without binding or over-stressing the servo or linkages.

6. నిర్వహణ

Regular maintenance helps ensure the longevity and optimal performance of your Spektrum H6050 servo.

• శుభ్రముగా ఉంచు: Periodically clean the servo case to prevent dirt and debris from entering the internal mechanisms.
• గేర్‌లను తనిఖీ చేయండి: Check the metal gear train for any signs of wear, damage, or excessive play. Replace gears if necessary.
• వైరింగ్ తనిఖీ చేయండి: Ensure the servo wire and connector are free from cuts, pinches, or corrosion.
• సరళత: The internal gears are pre-lubricated. Avoid excessive external lubrication unless specifically recommended by the manufacturer for specific conditions.
• నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా పొడి, చల్లని వాతావరణంలో సర్వోను నిల్వ చేయండి.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Spektrum H6050 servo, consider the following common troubleshooting steps:

• కదలిక లేదు:
  • అన్ని వైరింగ్ కనెక్షన్లు సురక్షితంగా మరియు సరిగ్గా ధ్రువణమై ఉన్నాయని నిర్ధారించుకోవడానికి వాటిని తనిఖీ చేయండి.
  • Verify that the receiver and servo are receiving adequate power.
  • Test with a different servo or receiver channel to isolate the problem.
• Erratic Movement or Glitching:
  • Ensure there is no interference from other electronic components.
  • వదులుగా ఉన్న కనెక్షన్‌లు లేదా దెబ్బతిన్న వైరింగ్ కోసం తనిఖీ చేయండి.
  • Verify that the servo horn and linkages are not binding.
• సందడి చేయడం లేదా హమ్మింగ్ చేయడం:
  • A slight buzz is normal for digital servos, especially when holding a position.
  • Excessive buzzing might indicate mechanical binding in the linkages or an overloaded servo. Check for free movement of control surfaces.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or service inquiries regarding your Spektrum H6050 servo, please refer to the official Spektrum webసైట్ లేదా వారి కస్టమర్ సర్వీస్‌ను నేరుగా సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.

మీరు సందర్శించవచ్చు స్పెక్ట్రమ్ స్టోర్ వారి ఉత్పత్తుల గురించి మరింత సమాచారం కోసం.
