1. పరిచయం మరియు ఓవర్view
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Terma Split TS1 Heating Element. This product is designed to provide heating for compatible systems, typically radiators or towel warmers. Please read this manual thoroughly before installation and use, and retain it for future reference.
2. భద్రతా సూచనలు
హెచ్చరిక: Failure to follow these safety instructions may result in electric shock, fire, serious injury, or death.
- Installation and maintenance must be performed by a qualified electrician or authorized service personnel in accordance with all local and national electrical codes.
- Ensure the power supply is disconnected before performing any installation, maintenance, or troubleshooting.
- Do not operate the heating element if it is damaged or if the power cord is frayed or broken.
- This heating element is designed for specific applications. Do not use it for purposes other than its intended use.
- The heating element will become hot during operation. Avoid direct contact to prevent burns.
- Keep children and pets away from the heating element during operation.
- Ensure proper grounding of the electrical system.
- Do not immerse the electrical connection part of the element in water or other liquids.
3. ఉత్పత్తి భాగాలు మరియు అంతకంటే ఎక్కువview
The Terma Split TS1 Heating Element consists of a heating rod and an integrated electrical connection point. Below are images illustrating the product and its key features.
మూర్తి 3.1: Close-up of the Terma Split TS1 heating element's electrical connection and threaded base. This image highlights the brass-colored threaded section for secure installation and the multi-pin electrical connector at the end.
మూర్తి 3.2: పూర్తి పొడవు view of the Terma Split TS1 heating element. This image shows the entire length of the metallic heating rod, designed to be inserted into a compatible radiator or towel warmer, with the electrical connection visible at the bottom.

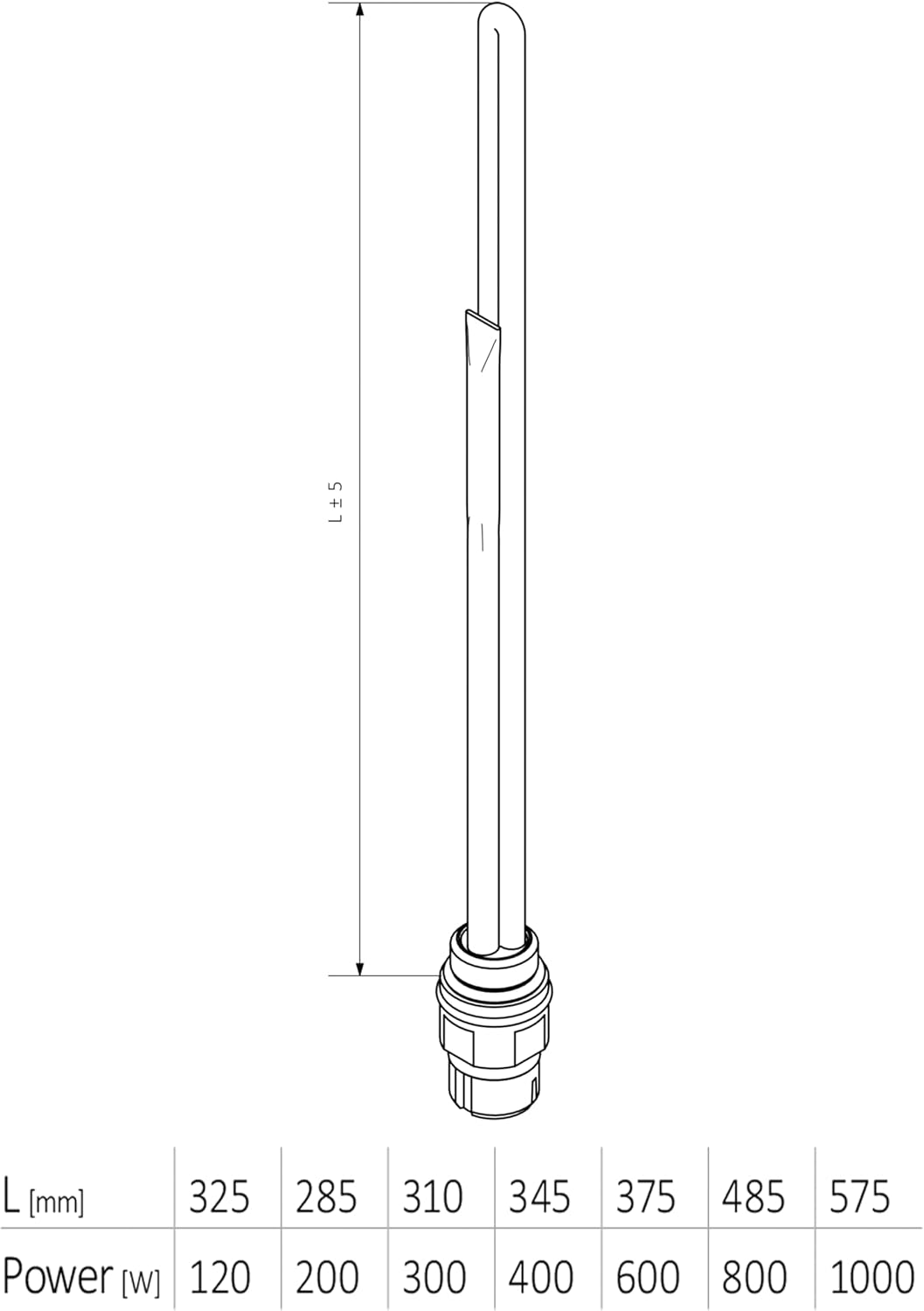

మూర్తి 3.3: Technical drawing of the Terma Split TS1 heating element, illustrating its dimensions (L ± 5 mm) and a table correlating length (L [mm]) with power (Power [W]). For this specific model, the length is 310 mm and the power is 300 W.
4. సెటప్ మరియు ఇన్స్టాలేషన్
The Terma Split TS1 Heating Element is designed for integration into compatible heating systems. Professional installation is highly recommended to ensure proper function and safety.
4.1 ప్రీ-ఇన్స్టాలేషన్ తనిఖీలు
- Verify that the heating element's specifications (voltagఇ, వాట్tage) match your system's requirements. This model operates at 230 Volts and 300 Watts.
- Ensure the radiator or towel warmer is compatible with the heating element's dimensions (310 mm length).
- Confirm that the electrical circuit has appropriate overcurrent protection.
- Inspect the heating element for any visible damage before installation.
4.2 సంస్థాపనా విధానం
- పవర్ డిస్కనెక్ట్ చేయండి: Ensure the main power supply to the installation area is completely disconnected at the circuit breaker.
- Prepare Radiator/Towel Warmer: If installing into an existing system, drain the radiator or towel warmer completely.
- Insert Element: Carefully insert the heating element into the designated opening of the radiator or towel warmer. The threaded section should align with the opening.
- సురక్షిత మూలకం: Tighten the heating element securely into place. Use appropriate tools, but do not overtighten to avoid damaging the threads or seals.
- విద్యుత్ కనెక్షన్: Connect the heating element to the electrical supply according to local wiring regulations. Ensure all connections are secure and properly insulated. This typically involves connecting live, neutral, and ground wires.
- Fill System (if applicable): If the system was drained, refill it with the appropriate heating fluid (e.g., water or glycol mixture) as per the radiator/towel warmer manufacturer's instructions. Bleed any air from the system.
- పరీక్ష: Once installation is complete and all connections are verified, restore power and test the heating element's operation.
5. ఆపరేటింగ్ సూచనలు
The Terma Split TS1 Heating Element operates by converting electrical energy into heat. Once properly installed and connected to a power source, it will begin to heat the fluid within the radiator or towel warmer.
- పవర్ ఆన్: Activate the power supply to the heating element via its dedicated switch or circuit breaker.
- తాపన చక్రం: The element will begin to heat. The time required to reach the desired temperature will depend on the volume of fluid and the ambient conditions.
- పవర్ ఆఫ్: To turn off the heating element, deactivate the power supply.
- ఉష్ణోగ్రత నియంత్రణ: If your system includes a thermostat or control unit, refer to its specific manual for temperature adjustment and programming. This heating element itself does not have integrated temperature controls.
6. నిర్వహణ
Regular maintenance ensures the longevity and efficient operation of your heating element.
- పవర్ డిస్కనెక్ట్: ఏదైనా నిర్వహణ చేసే ముందు ఎల్లప్పుడూ పవర్ డిస్కనెక్ట్ చేయండి.
- శుభ్రపరచడం: Periodically clean the exterior of the heating element (if accessible) and the surrounding area to prevent dust and debris buildup. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
- దృశ్య తనిఖీ: Regularly inspect the power cord and connections for any signs of wear, damage, or loose connections.
- System Fluid: Ensure the heating system fluid level is adequate and that the fluid quality is maintained according to the radiator/towel warmer manufacturer's recommendations.
- ప్రొఫెషనల్ చెక్: It is recommended to have a qualified technician inspect the heating system and element periodically, especially if you notice any changes in performance.
7. ట్రబుల్షూటింగ్
If you encounter issues with your Terma Split TS1 Heating Element, refer to the following common troubleshooting steps. For complex issues, contact a qualified technician.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Heating element does not heat. |
|
|
| System not heating sufficiently. |
|
|
| Unusual noises from the system. |
|
|
8. స్పెసిఫికేషన్లు
| గుణం | విలువ |
|---|---|
| బ్రాండ్ | టెర్మా |
| మోడల్ సంఖ్య | WETS103KD |
| తయారీదారు | Armacell GmbH |
| కొలతలు (L x W x H) | 0.22 x 0.22 x 3.4 cm (element length 310 mm) |
| బరువు | 150 గ్రాములు |
| వాల్యూమ్tage | 230 వోల్ట్లు |
| శక్తి (వాట్tage) | 300 వాట్స్ |
| వస్తువుల పరిమాణం | 1 |
| బ్యాటరీలు అవసరం | నం |
| ASIN | B07JRDP1N |
| మొదట అందుబాటులో ఉన్న తేదీ | జనవరి 27, 2019 |
9. వారంటీ మరియు మద్దతు
Specific warranty information for the Terma Split TS1 Heating Element may vary by region and retailer. Please refer to your purchase documentation or contact your point of sale for detailed warranty terms and conditions.
For technical support or inquiries regarding this product, please contact Terma customer service or your authorized distributor. Ensure you have your product model number (WETS103KD) and purchase details available when contacting support.
Note: Information regarding spare parts availability is not provided in the product specifications.
