1. పరిచయం
This manual provides essential instructions for the safe and proper installation, operation, and maintenance of your RH Peterson Real Fyre G19A Series Foothill Oak Gas Log Set, model FTO-24. This product is designed to enhance the aesthetic appeal of your fireplace with realistic oak log aesthetics. Please read this manual thoroughly before attempting any installation or operation.
2. భద్రతా సమాచారం
హెచ్చరిక: సరికాని సంస్థాపన, సర్దుబాటు, మార్పు, సేవ లేదా నిర్వహణ గాయం లేదా ఆస్తి నష్టానికి కారణం కావచ్చు. ఈ మాన్యువల్ని చూడండి. సహాయం లేదా అదనపు సమాచారం కోసం, అర్హత కలిగిన ఇన్స్టాలర్, సర్వీస్ ఏజెన్సీ లేదా గ్యాస్ సరఫరాదారుని సంప్రదించండి.
- This gas log set must be installed by a qualified professional in accordance with all local codes and the National Fuel Gas Code ANSI Z223.1/NFPA 54.
- Ensure adequate ventilation in the area where the log set is installed.
- గ్యాసోలిన్ లేదా ఇతర మండే ఆవిరి మరియు ద్రవాలను ఈ లేదా మరే ఇతర ఉపకరణం సమీపంలో నిల్వ చేయవద్దు లేదా ఉపయోగించవద్దు.
- Keep children and pets away from the hot appliance.
- Never burn solid fuels in a fireplace equipped with a gas log set.
- Always ensure the fireplace damper is fully open during operation.
3. ప్యాకేజీ విషయాలు
మీ ప్యాకేజీలో ఈ క్రింది భాగాలు ఉండాలి:
- Real Fyre Foothill Oak Gas Logs (various pieces)
- Lava Granules (for burner coverage)
గమనిక: The G19A Burner is required for operation and is sold separately. This log set is designed specifically for use with the G19A Burner.
4. సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the gas log set requires careful placement of the logs onto the compatible G19A burner. Refer to the G19A Burner instruction manual for detailed burner installation and gas connection procedures. Ensure the burner is correctly installed and tested before placing the logs.
- Burner Placement: Position the G19A burner (sold separately) in your fireplace according to its specific instructions. Ensure all gas connections are secure and leak-tested by a qualified professional.
- Lava Granules: Distribute the provided lava granules evenly over the burner pan, ensuring not to block any burner ports or pilot light assembly. The granules help create a realistic ember bed effect.
- లాగ్ ప్లేస్మెంట్: Carefully arrange the Foothill Oak gas logs onto the burner grate. Follow the specific log stacking pattern provided in the G19A Burner manual or a diagram if available, to ensure proper flame distribution and prevent sooting. Incorrect log placement can affect performance and safety.
- తుది తనిఖీ: After log placement, ensure no logs are directly blocking the pilot light or any burner ports. There should be adequate space for flames to develop naturally.

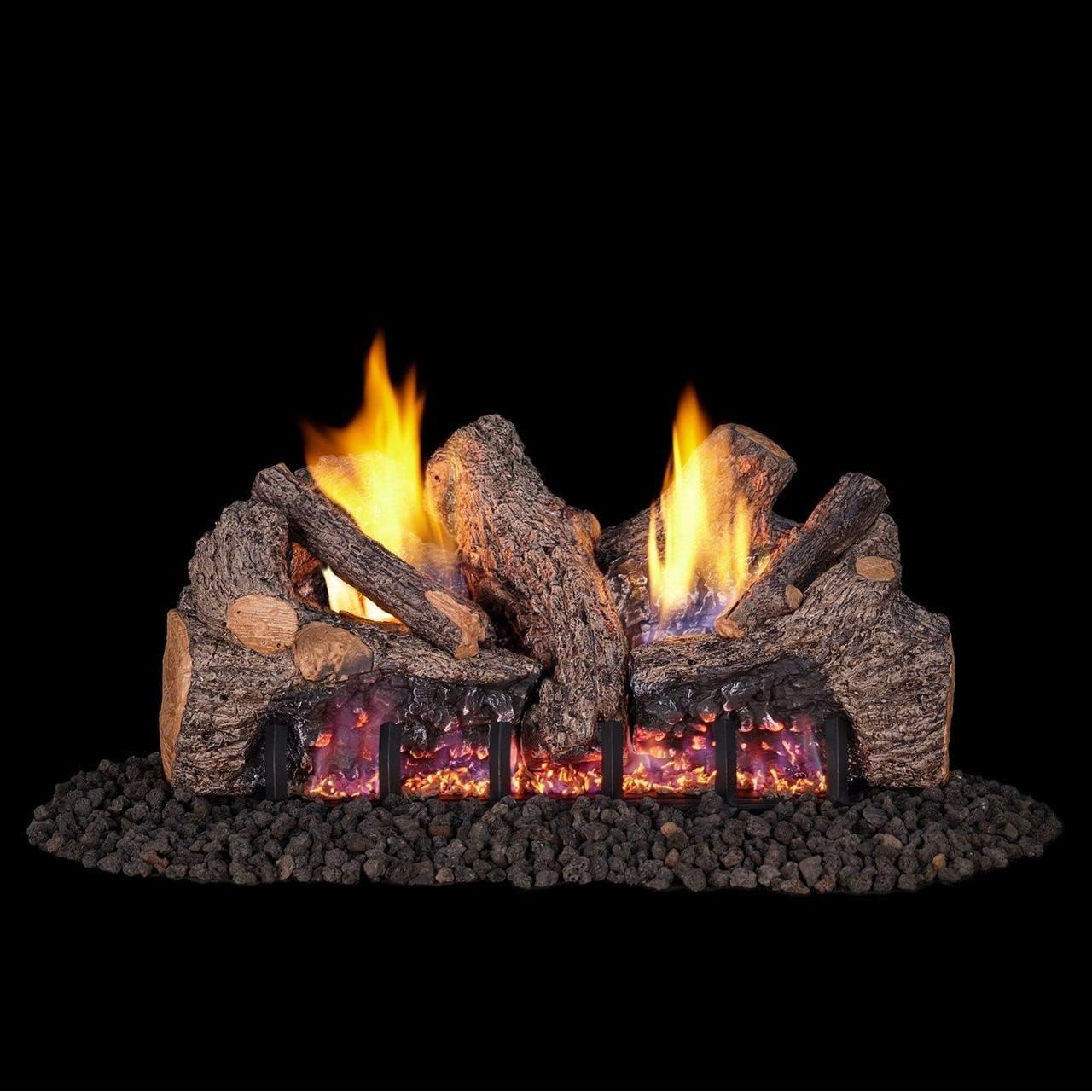

An image showing the Real Fyre G19A Series Foothill Oak Gas Log Set installed, with realistic flames emanating from the base, surrounded by dark lava rocks. This illustrates the typical appearance of the log set in operation.
5. ఆపరేటింగ్ సూచనలు
Refer to the G19A Burner instruction manual for specific lighting and operating procedures. General steps include:
- లైటింగ్ ముందు: Ensure the fireplace damper is fully open. Check for any obstructions in the fireplace or around the log set.
- పైలట్ లైటింగ్: Follow the instructions in your G19A burner manual to light the pilot light.
- Igniting Main Burner: Once the pilot is lit, turn the main gas valve to the "ON" position. The main burner should ignite. Adjust the flame height as desired using the control knob.
- షట్ డౌన్: To turn off, turn the main gas valve to the "OFF" position. The pilot light may remain lit, depending on your burner model. If you wish to turn off the pilot, follow the instructions in your burner manual.
ముఖ్యమైన: Never leave the appliance unattended while operating. Allow the log set to cool completely before handling.
6. నిర్వహణ
Regular maintenance ensures the longevity and safe operation of your gas log set.
- శుభ్రపరచడం: Periodically, when the logs are completely cool, gently brush off any dust or soot accumulation. Use a soft brush; do not use abrasive cleaners or water directly on the logs.
- తనిఖీ: Annually, or more frequently if used often, inspect the logs for any signs of cracking or deterioration. Inspect the burner and gas connections for leaks or damage.
- వృత్తిపరమైన సేవ: It is recommended to have your gas log set and burner inspected by a qualified service technician at least once a year.
7. ట్రబుల్షూటింగ్
If you encounter issues, refer to the troubleshooting section of your G19A Burner manual first, as most operational problems relate to the burner system. Common issues related to the log set itself are rare but can include:
- Excessive Sooting: This can be caused by incorrect log placement, a dirty burner, or improper gas pressure. Review log placement according to the burner manual. Clean the burner if necessary. Consult a professional if the issue persists.
- Logs Appear Damaged: If logs show signs of significant cracking or breakage, they may need replacement. Contact RH Peterson customer support or your dealer.
For any issues not resolved by these steps, contact a qualified service technician.
8. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | RH Peterson |
| మోడల్ సంఖ్య | FTO-24 |
| ఉత్పత్తి కొలతలు | 38 x 17.5 x 9.5 అంగుళాలు |
| వస్తువు బరువు | 57.5 పౌండ్లు |
| మెటీరియల్ | Superior Refractory Ceramics (designed for high temperatures, with realistic oak wood appearance) |
| ఉపబలము | Steel Rods inserted in each Log (for maximum reinforcement) |
| Required Burner | G19A Burner (Sold Separately) |
| UPC | 619655182735 |
9. వారంటీ సమాచారం
Specific warranty details for the RH Peterson Real Fyre G19A Series Foothill Oak Gas Log Set are not provided in this document. Please refer to the warranty information included with your G19A Burner or contact RH Peterson customer service or your authorized dealer for comprehensive warranty terms and conditions.
10. కస్టమర్ మద్దతు
For technical assistance, replacement parts, or further inquiries regarding your RH Peterson Real Fyre G19A Series Foothill Oak Gas Log Set, please contact your authorized RH Peterson dealer or visit the official RH Peterson website for customer service contact information. Always provide your model number (FTO-24) when seeking support.
