KLH Story Center Channel Speaker Instruction Manual

1. పరిచయం

The KLH Story 2-Way Bass Reflex Center Channel Speaker is designed to deliver clear and detailed audio, especially dialogue, for your home theater system. Crafted with quality materials and precision engineering, it integrates seamlessly with other KLH speakers for an immersive surround sound experience.

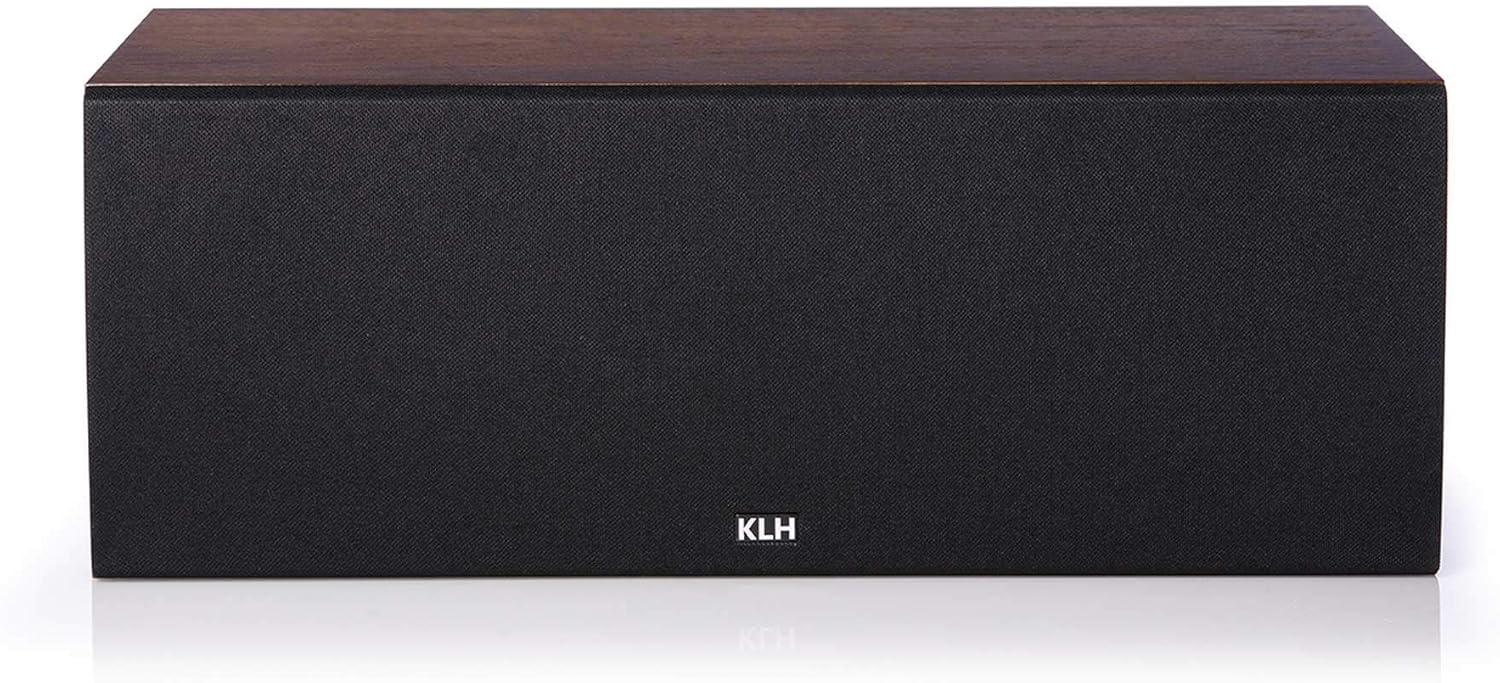

మూర్తి 1: ముందు view of the KLH Story Center Channel Speaker in American Walnut finish.

2 కీ ఫీచర్లు

• 2-Way bass reflex system with dual 5.25” Woven Kevlar bass/mid drivers.
• High-performance 1” Anodized Aluminum tweeter with a linear response faceplate.
• Butyl rubber surrounds and braided tinsel leads on all drivers for durability.
• MDF construction featuring custom-designed internal low resonance driver chambers and bracing.
• Powder-coated die-cast aluminum driver baskets with oversized magnets for superior control and output.
• Brushed aluminum tweeter faceplate and driver fascia for aesthetic appeal.
• Real wood veneer finish.

3. స్పెసిఫికేషన్లు

4. అన్ప్యాకింగ్ మరియు కంటెంట్‌లు

Carefully remove the speaker from its packaging. Ensure all components are present and undamaged. Retain the packaging for future transport or storage.

పెట్టెలో ఏముంది:

• KLH Story Center Channel Speaker
• మాగ్నెటిక్ గ్రిల్
• Binding Posts (pre-installed)

Figure 2: KLH Story Center Channel Speaker with its magnetic grille.

5. సెటప్ మరియు కనెక్షన్

5.1 ప్లేస్‌మెంట్

The center channel speaker is crucial for dialogue and central sound effects in a surround sound system. For optimal performance, place the KLH Story speaker directly above or below your television or projection screen, centered horizontally. Ensure it is positioned at or near ear level when seated in your primary listening position.

Figure 3: Dimensions of the KLH Story Center Channel Speaker for placement planning.

5.2 కనెక్షన్లు

The KLH Story speaker features four binding posts on the rear, allowing for various connection options:

• Full-Range Hookup: Use the pre-installed jumpers to connect the upper (tweeter) and lower (woofer) terminals. Connect your speaker wire from your amplifier/receiver to either the upper or lower set of binding posts.
• Bi-Wiring: Remove the jumpers. Connect one set of speaker wires from your amplifier/receiver to the upper terminals (for the tweeter) and another set of speaker wires to the lower terminals (for the woofers). This requires an amplifier/receiver with two sets of speaker outputs per channel or two separate ampలైఫైయర్ ఛానెల్‌లు.
• ద్వి-Amping: Similar to bi-wiring, but each set of terminals is driven by a separate amplifier channel. This provides maximum control and performance.

Ensure correct polarity (+ to + and – to –) when connecting speaker wires to avoid phase issues.

చిత్రం 4: వెనుక view illustrating the binding posts and bass reflex ports.

5.3 Video Guide: Connecting Your Speaker

6. ఆపరేటింగ్ సూచనలు

Once connected to your audio system, the KLH Story speaker will reproduce the center channel audio. Adjust the volume and sound settings on your amplifier or receiver to achieve your desired listening experience. This speaker is particularly effective at enhancing dialogue clarity in movies and TV shows.

7. నిర్వహణ

To maintain the appearance and performance of your KLH Story speaker:

• మృదువైన, పొడి గుడ్డతో క్యాబినెట్‌ను తుడవండి. రాపిడి క్లీనర్‌లు లేదా ద్రావకాలను ఉపయోగించవద్దు.
• The magnetic grille can be removed for cleaning or if you prefer the aesthetic of the exposed drivers.
• Keep the speaker away from direct sunlight, heat sources, and excessive moisture.
• స్పీకర్ చుట్టూ తగినంత వెంటిలేషన్ ఉండేలా చూసుకోండి.

8. ట్రబుల్షూటింగ్

9. వారంటీ మరియు మద్దతు

The KLH Story Center Channel Speaker is designed and engineered in the USA and carries a 10-year warranty. For technical support, service, or warranty claims, please contact KLH customer service or visit their official webసైట్.

Note: Warranty terms and conditions may vary by region. Please refer to the official KLH warranty documentation for complete details.
