పరిచయం
This user manual provides comprehensive instructions for the installation, operation, and maintenance of the Dynavin E46 Double DIN Stereo Dash Kit. This kit is specifically designed for BMW 3-Series E46 models manufactured between 1998 and 2006 that do not have a factory monitor. Its primary function is to facilitate the installation of an aftermarket double DIN radio by providing a dedicated space and enabling the relocation of the factory HVAC controls.
The kit also integrates convenient USB ports for both charging and multimedia connectivity, enhancing the functionality of your vehicle's audio system.
ఉత్పత్తి ముగిసిందిview
The Dynavin E46 Double DIN Stereo Dash Kit is a custom-fit solution for integrating aftermarket double DIN head units into your BMW E46. It features a durable matte black finish that blends seamlessly with your vehicle's interior.
కీలక భాగాలు:
- Main dash kit frame for double DIN radio.
- Integrated housing for relocating factory climate control (HVAC).
- One 3A USB port for charging mobile devices.
- One USB port for multimedia connectivity to an aftermarket radio.
- Necessary wiring for USB power and data connections.
మూర్తి 1: ముందు view of the Dynavin E46 Double DIN Stereo Dash Kit, showcasing the matte black finish and integrated USB ports.
Figure 2: The dash kit shown with the included USB charging and multimedia cables, ready for connection.
సెటప్ మరియు ఇన్స్టాలేషన్
Proper installation of the Dynavin E46 Dash Kit is crucial for optimal performance and a seamless fit. This kit requires the relocation of your vehicle's factory climate control unit.
ప్రీ-ఇన్స్టాలేషన్ చెక్లిస్ట్
- Ensure your BMW E46 is from the 1998-2006 model year and does not have a factory monitor.
- Gather necessary tools: trim removal tools, screwdrivers (Phillips and flathead), wire cutters/strippers, electrical tape or heat shrink tubing.
- Confirm compatibility of your aftermarket double DIN radio with the kit dimensions.
- ఏదైనా విద్యుత్ పనిని ప్రారంభించే ముందు వాహనం యొక్క బ్యాటరీని డిస్కనెక్ట్ చేయండి.
సంస్థాపనా దశలు
- Remove Factory Components: Carefully remove the factory radio, trim pieces, and climate control unit from the dashboard. Refer to your vehicle's service manual for specific instructions on trim removal.
- Relocate HVAC Controls: Install the factory climate control unit into the designated lower slot of the Dynavin dash kit. Ensure it snaps securely into place.
- Connect USB Charging Port: The power for the 3A USB charging port is sourced from the vehicle's cigar lighter circuit. Connect the provided wiring harness from the dash kit to the cigar lighter wiring. This connection does not require cutting any factory cables.
- Connect Multimedia USB Port: Connect the multimedia USB cable from the dash kit directly to the multimedia USB input of your aftermarket double DIN radio.
- Install Aftermarket Radio: Mount your aftermarket double DIN radio into the upper opening of the Dynavin dash kit. Secure it using the radio's mounting brackets.
- Integrate Dash Kit: Carefully slide the assembled Dynavin dash kit with the radio and relocated HVAC controls into the vehicle's dashboard opening. Ensure all clips and mounting points align.
- సురక్షితం మరియు పరీక్ష: Secure the dash kit in place. Reconnect the vehicle's battery and test all functions of the aftermarket radio, HVAC controls, and both USB ports.
Figure 3: Wiring diagram illustrating the connections for the aftermarket stereo and the integrated USB ports. Note the two connection methods for aftermarket stereos (with 2 USB ports or 1 USB port).
చిత్రం 4: ఉదాample of the Dynavin E46 Dash Kit installed in a BMW E46 interior, showing the integrated aftermarket stereo and relocated HVAC controls.

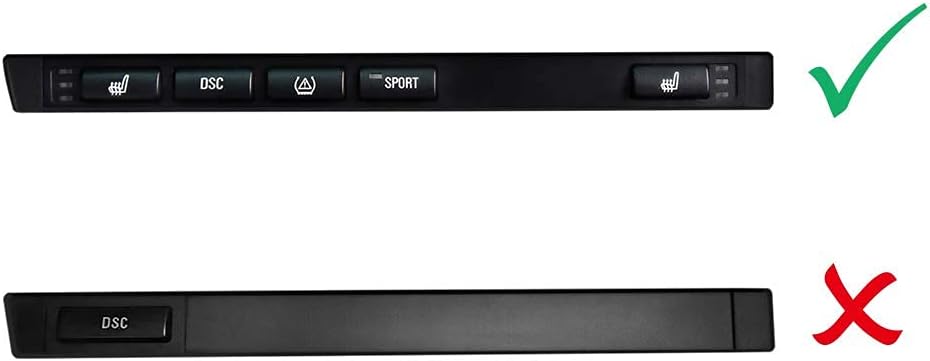

Figure 5: Visual guide for compatible (top, with multiple buttons) and incompatible (bottom, single button) factory button styles for the E46 dash kit. Ensure your vehicle's button style matches the compatible example for proper fitment.
ఆపరేటింగ్ సూచనలు
Once installed, the Dynavin E46 Dash Kit functions primarily as a housing for your aftermarket radio and relocated HVAC controls. Its integrated USB ports provide additional utility:
- USB Charging Port (3A): This port provides a dedicated 3-amp power output for fast charging of compatible mobile phones, tablets, and other USB-powered devices. Simply connect your device's USB charging cable to this port.
- Multimedia USB Port: This port is designed to connect directly to the multimedia USB input of your aftermarket radio. Use it to connect USB flash drives, external hard drives, or other compatible storage devices containing audio or video files that your aftermarket radio can play.
The operation of your aftermarket radio and HVAC controls will follow their respective manufacturer's instructions.
నిర్వహణ
The Dynavin E46 Dash Kit is designed for durability and requires minimal maintenance. To keep it in optimal condition:
- శుభ్రపరచడం: ఒక మృదువైన ఉపయోగించండి, డిamp cloth to wipe down the matte black surface. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- USB పోర్ట్లు: Ensure the USB ports remain free of dust and debris. Use a can of compressed air to gently clear any obstructions if necessary. Avoid inserting foreign objects into the ports.
- సాధారణ సంరక్షణ: Periodically check that the dash kit remains securely fitted in the dashboard and that all connections are snug.
ట్రబుల్షూటింగ్
If you encounter issues with your Dynavin E46 Dash Kit, refer to the following common troubleshooting steps:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| USB ఛార్జింగ్ పోర్ట్ పనిచేయడం లేదు. | Loose connection to cigar lighter power source; faulty cable; device incompatibility. | Check the connection to the cigar lighter wiring. Ensure the cigar lighter itself is functional. Try a different USB cable and device. |
| Multimedia USB port not recognized by radio. | Loose connection to aftermarket radio; radio settings; incompatible USB device format. | Verify the USB cable is securely connected to both the dash kit and the aftermarket radio. Check your radio's settings for USB input. Ensure the USB device is formatted correctly and contains compatible media files. |
| Dash kit does not fit perfectly. | Incorrect vehicle model year; factory components not fully removed; minor manufacturing variations. | Double-check your BMW E46 model year (1998-2006). Ensure all factory trim and components are completely removed. Some users have reported minor adjustments (e.g., dremeling tabs for the OEM cigarette lighter) may be needed for a perfect fit. |
| HVAC controls do not fit into the relocation slot. | Improper alignment; obstructions. | Ensure the HVAC unit is oriented correctly and gently apply even pressure to snap it into place. Check for any debris or plastic burrs preventing a smooth fit. |
ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి కస్టమర్ మద్దతును సంప్రదించండి.
స్పెసిఫికేషన్లు
| గుణం | వివరాలు |
|---|---|
| బ్రాండ్ | డైనవిన్ |
| మోడల్ సంఖ్య | DVN-E46HRS12V |
| అనుకూల వాహనాలు | BMW 3 Series E46 (1998-2006) without factory monitor |
| మెటీరియల్ | Plastic (Matte Black finish) |
| USB Charging Port Output | 3A (powered by cigar lighter) |
| Multimedia USB Port | Direct connection to aftermarket radio |
| పార్శిల్ కొలతలు | 26.11 x 24 x 8.31 సెం.మీ |
| వస్తువు బరువు | 372 గ్రా |
| ASIN | B07MPTLSNF |
వారంటీ సమాచారం
Specific warranty terms and conditions for the Dynavin E46 Double DIN Stereo Dash Kit are provided by the manufacturer, Dynavin. Please refer to the documentation included with your purchase or visit the official Dynavin website for detailed warranty information, including coverage period and claim procedures.
కస్టమర్ మద్దతు
For technical assistance, installation queries, or warranty claims, please contact Dynavin North America, the official seller of this product. Their contact information can typically be found on their official webసైట్ లేదా ఉత్పత్తిని కొనుగోలు చేసిన రిటైలర్ ద్వారా.
When contacting support, please have your product model number (DVN-E46HRS12V) and purchase details readily available to expedite assistance.
