ACOPOWER 35W 5A 12V Polycrystalline Solar Charge Kit User Manual

1. పరిచయం

This manual provides essential instructions for the safe and efficient use of your ACOPOWER 35W 5A 12V Polycrystalline Solar Charge Kit. This kit is designed for off-grid applications, offering a reliable power source for RVs, trailers, boats, sheds, and camping setups. Please read this manual thoroughly before installation and operation to ensure proper functionality and longevity of your solar kit.

The kit includes a 35W polycrystalline solar panel and a 5A PWM charge controller, along with necessary cables and connectors for a basic setup.

చిత్రం 1.1: ముగిసిందిview of the ACOPOWER 35W 5A 12V Solar Charge Kit, showing the solar panel, charge controller, and connection cables with alligator clips.

2. ఉత్పత్తి ముగిసిందిview

2.1 చేర్చబడిన భాగాలు

• 1 x 35W Polycrystalline Solar Panel (Model: HY035-12P)
• 1 x 5A PWM Solar Charge Controller (Model: LS0512EU)
• 1 x 15ft Cable with SAE adapter and Alligator Clips
• 1 x 5A ఫ్యూజ్
• వినియోగదారు మాన్యువల్లు

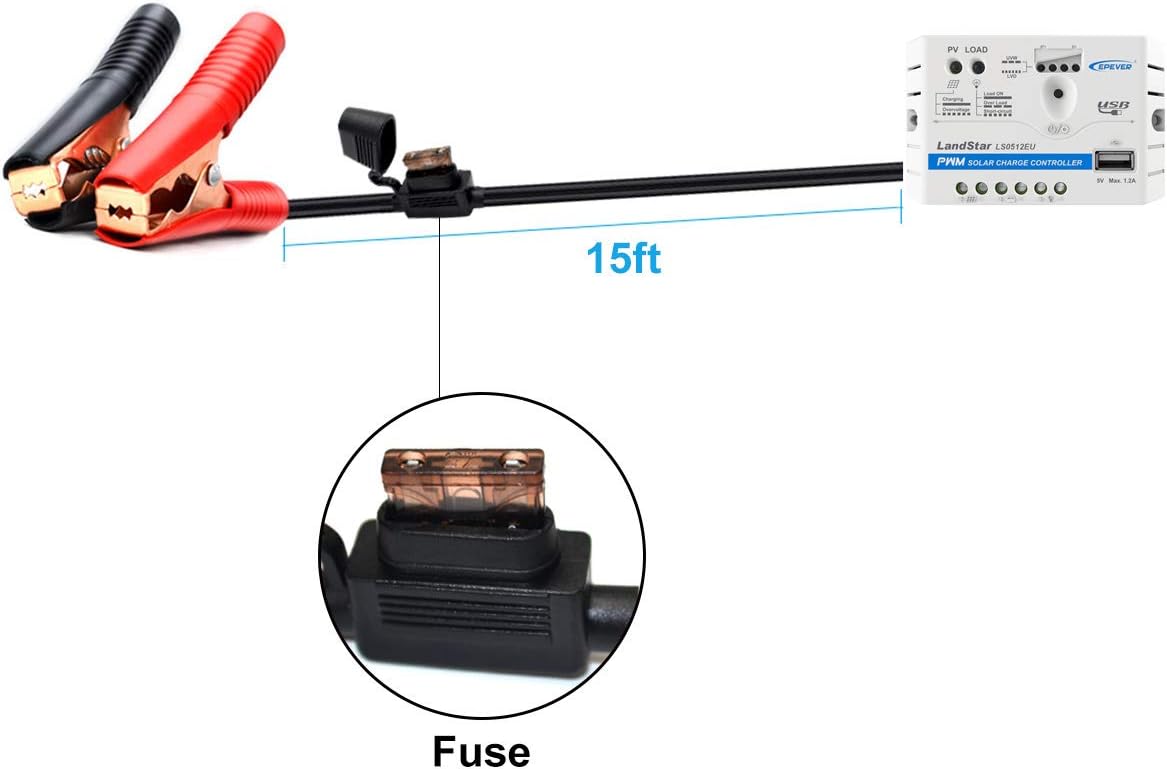

Image 2.1: The 15-foot cable assembly, featuring an inline 5A fuse and alligator clips for secure battery connection.

2.2 Solar Panel Features

The 35W polycrystalline solar panel is designed for high conversion efficiency and durability. It features a lightweight anodized aluminum frame and reinforced safety glass, making it suitable for various outdoor conditions.

Image 2.2: Diagram showing the multi-layered construction of the solar panel, highlighting its weather-proof design and high efficiency.

Image 2.3: Visual representation of the solar panel's key attributes, including its polycrystalline cell type, ease of installation, high conversion efficiency, and lightweight anodized aluminum frame.

2.3 Charge Controller Features

The 5A PWM charge controller manages the power flow from the solar panel to the battery, preventing overcharging and ensuring battery protection. It includes a 5V/1.2A USB output for charging small electronic devices.

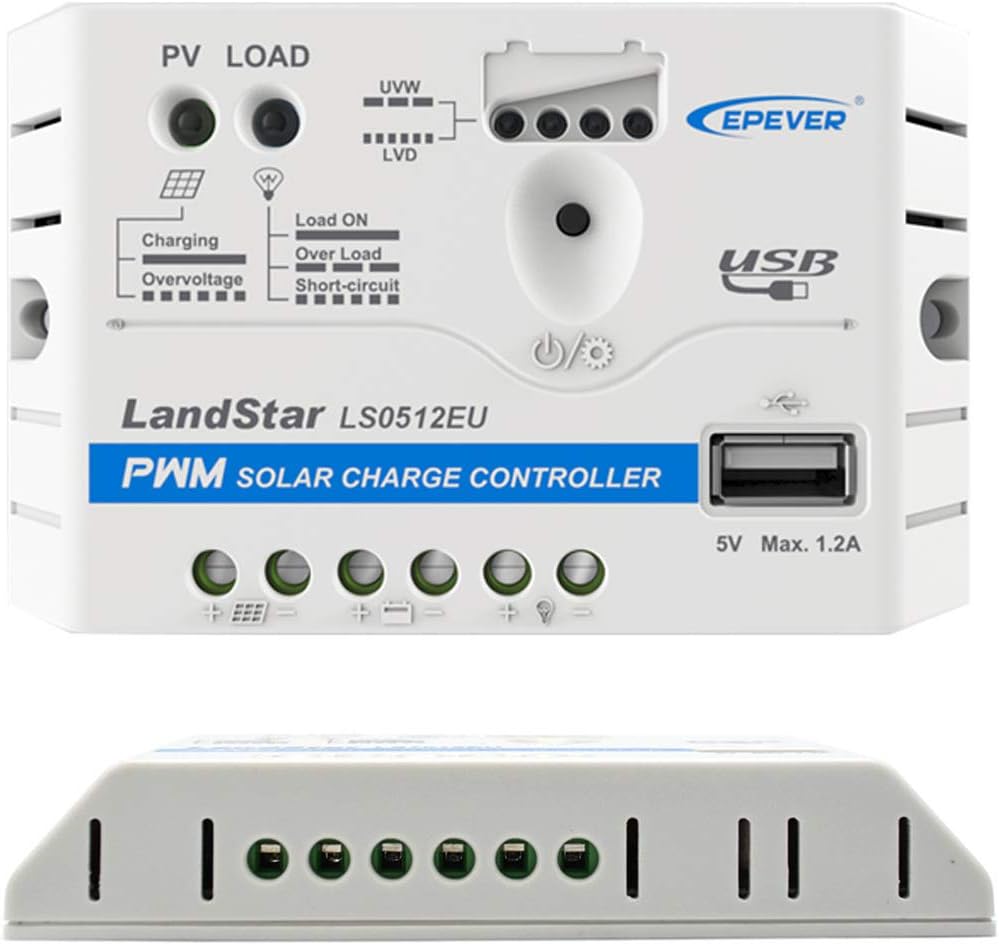

చిత్రం 2.4: వివరణాత్మకమైనది view of the LandStar LS0512EU PWM Solar Charge Controller, showing its input/output terminals, indicator lights, and USB charging port.

3. సెటప్ మరియు ఇన్‌స్టాలేషన్

3.1 భద్రతా జాగ్రత్తలు

• Always connect the charge controller to the battery మొదటి.
• Ensure all connections are secure and correct polarity is observed (positive to positive, negative to negative).
• Avoid touching exposed wires or terminals when the solar panel is exposed to sunlight.
• ఎలిగేటర్ clamps are designed to prevent voltage and current until a proper battery connection is made, minimizing accidental contact risks.

3.2 కనెక్షన్ దశలు

1. బ్యాటరీకి కనెక్ట్ చేయండి: Connect the positive (+) and negative (-) terminals of the charge controller to your 12V lead-acid battery (Sealed, Gel, Flooded, or AGM). Use the provided cable with alligator clips.
2. సోలార్ ప్యానెల్‌కి కనెక్ట్ చేయండి: Connect the positive (+) and negative (-) terminals of the solar panel to the corresponding solar input terminals on the charge controller.
3. లోడ్‌కు కనెక్ట్ చేయండి (ఐచ్ఛికం): If you have a 12V DC load (e.g., a light bulb), connect its positive (+) and negative (-) terminals to the load output terminals on the charge controller.

Once all connections are made, the charge controller will automatically begin managing the charging process.

Image 3.1: Diagram illustrating the correct wiring sequence: solar panel connects to the charge controller, which then connects to the battery. Optional load and USB device connections are also shown.

4. ఆపరేటింగ్ సూచనలు

4.1 ఛార్జింగ్ ప్రక్రియ

The 5A PWM charge controller automatically regulates the charging of your 12V lead-acid battery. It will stop charging once the battery is full and resume when the voltage drops, ensuring optimal battery health.

4.2 USB అవుట్‌పుట్

The charge controller features a 5V/1.2A USB terminal output, allowing you to charge compatible USB-powered devices such as smartphones or tablets directly from the controller.

5. నిర్వహణ

5.1 Solar Panel Cleaning

Regularly clean the surface of the solar panel to remove dust, dirt, leaves, or other debris that may reduce its efficiency. Use a soft cloth and mild, non-abrasive cleaning solution with water. Avoid harsh chemicals or abrasive materials that could scratch the panel surface.

5.2 కనెక్షన్ తనిఖీలు

Periodically inspect all electrical connections for tightness and corrosion. Loose or corroded connections can lead to power loss or system malfunction. Ensure the fuse is intact and functional.

5.3 బ్యాటరీ ఆరోగ్యం

Monitor your battery's condition according to its manufacturer's guidelines. The charge controller helps maintain battery health, but regular checks are recommended, especially for flooded batteries that may require water level maintenance.

6. ట్రబుల్షూటింగ్

6.1 No Charging Indication

• Check Sunlight: Ensure the solar panel is receiving direct, unobstructed sunlight.
• కనెక్షన్‌లను ధృవీకరించండి: Confirm all connections between the solar panel, charge controller, and battery are secure and correctly polarized.
• ఫ్యూజ్‌ని తనిఖీ చేయండి: Check the inline 5A fuse on the battery cable for continuity. Replace if blown.
• బ్యాటరీ వాల్యూమ్tage: బ్యాటరీ తగినంత వాల్యూమ్ కలిగి ఉందని నిర్ధారించుకోండిtage for the controller to recognize it. The controller may not initiate charging if the battery is completely depleted.

6.2 తక్కువ పవర్ అవుట్‌పుట్

• ప్యానెల్ శుభ్రత: Clean the solar panel surface as described in the Maintenance section.
• షేడింగ్: Even partial shading can significantly reduce solar panel output. Reposition the panel if possible.
• కేబుల్ పొడవు/గేజ్: While the provided cable is suitable, excessively long or thin cables in other parts of your system can cause voltagఇ డ్రాప్.

6.3 USB Device Not Charging

• బ్యాటరీ ఛార్జ్ స్థాయి: Ensure the battery connected to the controller has sufficient charge.
• USB Cable/Device: Test with a different USB cable or device to rule out issues with the peripheral.

7. స్పెసిఫికేషన్లు

7.1 ACOPOWER 35W Polycrystalline Solar Panel (HY035-12P)

Image 7.1: Detailed dimensions of the 35W solar panel, showing measurements in inches for length, width, and frame thickness.

7.2 5A PWM Charge Controller (LS0512EU)

8. వారంటీ మరియు మద్దతు

8.1 ఉత్పత్తి వారంటీ

• సౌర ఫలకాలు: 5 years material and workmanship warranty, and 25 years power output warranty.
• Accessories (Charge Controller, Cables, etc.): 1 year material and workmanship warranty.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.

8.2 కస్టమర్ మద్దతు

For technical support, troubleshooting assistance, or warranty inquiries, please contact ACOPOWER customer service. Refer to the contact information provided with your product packaging or visit the official ACOPOWER webఅత్యంత తాజా మద్దతు వివరాల కోసం సైట్.
