MINIX Magnetic M.2 2230 NVMe SSD Enclosure - Instruction Manual

ఉత్పత్తి ముగిసిందిview

The MINIX Magnetic M.2 2230 NVMe SSD Enclosure (Model MSE01) is a versatile external storage solution designed for high-speed data transfer and expanded storage capacity across various devices. It features magnetic attachment for convenience and multi-port connectivity for enhanced functionality.

ముఖ్య లక్షణాలు:

• 10Gbps డేటా బదిలీ: Equipped with a USB3.2 Gen2 Type-C port, supporting read/write speeds up to 1000-1200MB/s for efficient data transfer and 4K ProRes video recording.
• Broad SSD Compatibility: Supports NVMe (B+M Key/M Key) and SATA protocol SSDs in sizes 2230/2242/2260/2280mm, with capacity expansion up to 2TB (4TB for Windows laptops).
• మల్టీ-పోర్ట్ కనెక్టివిటీ: Includes a USB-C PD3.0 port (up to 60W), a USB-C 2.0 port for data/audio/mic, and a 3.5mm audio jack.
• విస్తృత పరికర అనుకూలత: Compatible with iPhone 15 Pro/Pro Max, iPad Pro, MacBook Pro/Air, and Windows laptops.
• Secure Magnetic Suction: Features built-in magnets for secure attachment to compatible devices, preventing accidental falls.

పెట్టెలో ఏముంది

• MINIX Magnetic M.2 SSD Enclosure (MSE01)
• వినియోగదారు మాన్యువల్
• USB-C నుండి USB-C కేబుల్
• Heat Dissipation Silicone x 2
• స్క్రూ
• స్క్రూడ్రైవర్

Image: Contents of the MINIX SSD Enclosure retail box, showing the enclosure, USB-C cable, heat dissipation pads, screw, and screwdriver.

Setup and SSD Installation

మీ M.2 SSDని ఎన్‌క్లోజర్‌లో ఇన్‌స్టాల్ చేయడానికి ఈ దశలను అనుసరించండి:

1. ఎన్‌క్లోజర్ తెరవండి: Gently slide open the enclosure to reveal the internal M.2 slot.
2. SSD ని చొప్పించండి: Carefully insert your M.2 NVMe or SATA SSD (2230/2242/2260/2280mm) into the designated slot. Ensure it is properly seated.
3. సురక్షితమైన SSD: Use the provided screw and screwdriver to secure the SSD in place.
4. థర్మల్ ప్యాడ్ అప్లై చేయండి: Place the heat dissipation silicone pad on top of the installed SSD to aid in cooling.
5. క్లోజ్ ఎన్‌క్లోజర్: Slide the enclosure cover back until it clicks securely into place.

చిత్రం: పేలింది view of the MINIX SSD Enclosure demonstrating SSD installation, showing compatibility with M Key and B+M Key SSDs in 2230, 2242, 2260, and 2280mm sizes.

Image: Visual guide for formatting a new SSD on a Windows operating system using the Disk Management tool, showing steps to create a new simple volume and format it with exFAT.

ఆపరేటింగ్ సూచనలు

పరికరాలకు కనెక్ట్ చేస్తోంది:

• For iPhone 15 Pro/Pro Max: Use the provided USB-C to USB-C cable to connect the enclosure to your iPhone. The magnetic feature allows for secure attachment to the back of the phone.
• For iPad Pro/MacBook/Laptops: Connect the enclosure using the USB-C to USB-C cable to the appropriate USB-C port on your device.
• పవర్ డెలివరీ: If using high-capacity SSDs or requiring simultaneous charging, connect an additional Type-C charging cable to the PD 60W port on the enclosure.

డేటా బదిలీ మరియు నిల్వ:

• Once connected, your device should recognize the SSD enclosure as external storage.
• You can directly record 4K ProRes videos from compatible iPhones to the SSD, saving internal device storage.
• బదిలీ చేయండి files between the SSD and your computer/tablet as needed.

ఆడియో కార్యాచరణ:

• The enclosure includes a 3.5mm audio jack and a USB-C 2.0 audio port for connecting headphones or microphones.

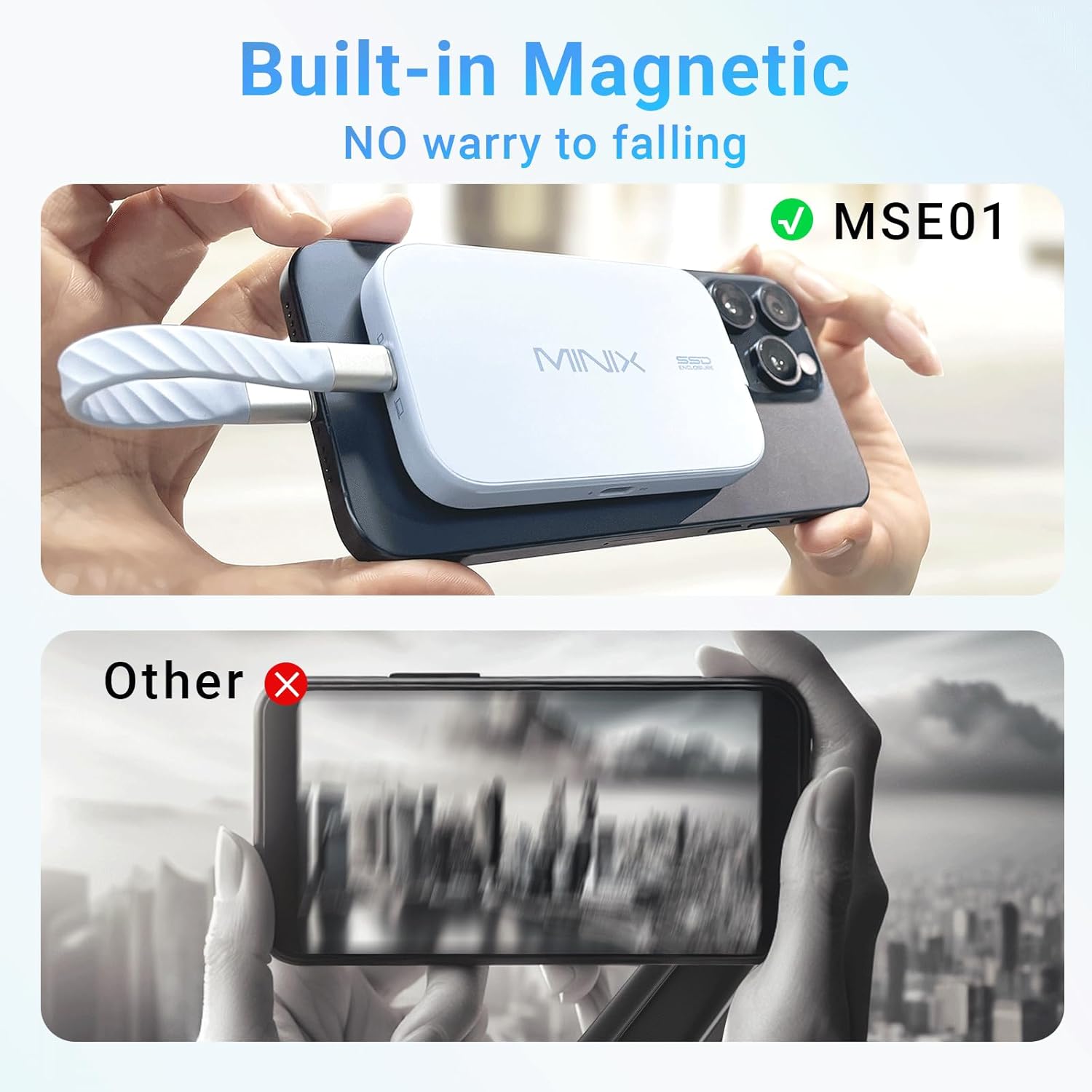

Image: The MINIX SSD Enclosure magnetically attached to the back of an iPhone 15 Pro Max, with its short USB-C cable connected to the phone's port, illustrating direct storage for ProRes video.

Image: The MINIX SSD Enclosure connected to a MacBook, with blue light trails indicating high-speed data transfer, showing read and write speeds of approximately 915 MB/s.

Image: The MINIX SSD Enclosure connected to an iPhone, with a separate USB-C cable plugged into its PD 60W port, indicating simultaneous device charging while in use.

అధికారిక ఉత్పత్తి వీడియోలు:

స్పెసిఫికేషన్లు

ట్రబుల్షూటింగ్

• పరికరం SSDని గుర్తించదు:
  • SSD సరిగ్గా ఇన్‌స్టాల్ చేయబడిందని మరియు ఎన్‌క్లోజర్ లోపల సురక్షితంగా ఉందని నిర్ధారించుకోండి.
  • Verify the USB-C cable is securely connected to both the enclosure and your device.
  • For new SSDs, ensure it is formatted correctly (e.g., exFAT for broad compatibility). Refer to the "Setup and SSD Installation" section for Windows formatting steps.
  • If using with an iPhone, ensure it is an iPhone 15 Pro/Pro Max model or newer, as older models may not support external recording or high-speed data transfer.
  • If using a high-capacity SSD (e.g., 2TB or more), ensure external power is supplied to the enclosure via the PD port.
• నెమ్మది డేటా బదిలీ వేగం:
  • Ensure your device's USB-C port supports USB 3.2 Gen 2 (10Gbps) speeds.
  • Use the provided high-quality USB-C to USB-C cable.
  • Check if other applications or processes are consuming significant bandwidth on your device.
• అయస్కాంత అటాచ్‌మెంట్ సమస్యలు:
  • Ensure your device or phone case is MagSafe compatible for optimal magnetic hold.
  • Clean the magnetic surfaces on both the enclosure and your device/case to ensure a strong connection.

నిర్వహణ

• శుభ్రపరచడం: Use a soft, dry cloth to clean the exterior of the enclosure. Avoid liquid cleaners.
• నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో ఆవరణను నిల్వ చేయండి.
• నిర్వహణ: While durable, avoid dropping or subjecting the enclosure to strong impacts to protect the internal SSD.

వారంటీ మరియు మద్దతు

For warranty information, technical support, or further assistance, please refer to the official MINIX website or contact MINIX customer service directly.
