1. ఉత్పత్తి ముగిసిందిview
The Fadini Hindi 880 Evo is a robust hydraulic piston designed for automating swing gates. This model features a 280 mm stroke and is suitable for both residential and industrial installations. It is engineered to withstand various weather conditions and is CE certified, ensuring compliance with European safety standards. The Hindi 880 Evo replaces previous models such as the Hongi 83 and Hindi 880, offering enhanced performance and reliability.
Figure 1: Fadini Hindi 880 Evo Hydraulic Piston. A grey hydraulic piston unit, designed for automating swing gates, shown from an angled perspective.
Key features include a customizable locking mechanism and an opening time of approximately 17 seconds for gates over 2 meters in width. It is designed for gates up to a maximum width of 2.8 meters.
2. భద్రతా సమాచారం
WARNING: Improper installation or use can lead to serious injury or property damage. Read all instructions carefully before installation and operation.
- Installation should only be performed by qualified personnel in compliance with local electrical and safety regulations.
- Ensure the power supply is disconnected before performing any installation, maintenance, or repair work.
- ఆపరేషన్ సమయంలో పిల్లలు మరియు పెంపుడు జంతువులను గేట్ ప్రాంతం నుండి దూరంగా ఉంచండి.
- Do not attempt to repair the hydraulic piston yourself. Contact a qualified technician for service.
- Regularly inspect the gate and its components for signs of wear or damage.
3. ప్యాకేజీ విషయాలు
దయచేసి ఇన్స్టాలేషన్తో కొనసాగే ముందు అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:
- 1 x Fadini Hindi 880 Evo Hydraulic Piston
- Mounting Brackets and Hardware (screws, pins, etc. - specific items may vary)
- వినియోగదారు మాన్యువల్ (ఈ పత్రం)
ఏవైనా వస్తువులు తప్పిపోయినా లేదా దెబ్బతిన్నా, దయచేసి వెంటనే మీ సరఫరాదారుని సంప్రదించండి.
4. సంస్థాపన మరియు సెటప్
Professional installation is highly recommended for the Fadini Hindi 880 Evo to ensure optimal performance and safety. Refer to the detailed technical diagrams and specifications provided for precise measurements and mounting instructions.

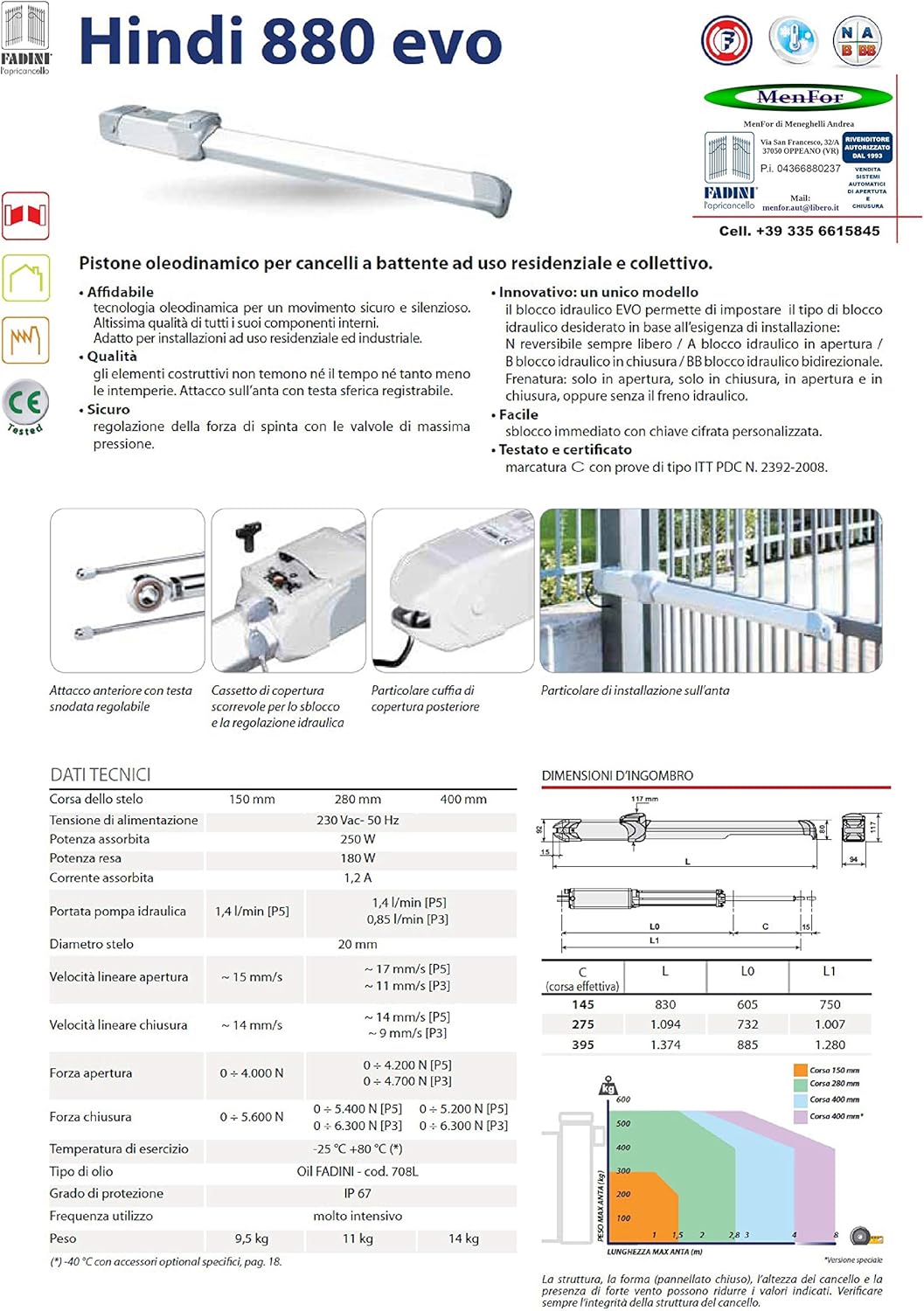

Figure 2: Technical Data and Dimensions. A detailed technical sheet showing various specifications, including stroke length, power, current, and a dimensional drawing of the hydraulic piston with measurements.
4.1 ప్రీ-ఇన్స్టాలేషన్ తనిఖీలు
- Ensure the gate structure is sound and capable of supporting the motor's operation.
- Verify the gate's maximum width does not exceed 2.8 meters.
- For gates exceeding 2 meters, the purchase of an electric lock is recommended for enhanced security and stability.
- Confirm the availability of appropriate electrical supply at the installation site.
4.2 Mounting the Piston
Follow the dimensional drawings in Figure 2 for precise mounting point measurements. Securely attach the piston to the gate post and gate leaf using the provided mounting hardware. Ensure the piston is level and aligned correctly to allow for smooth gate movement.
4.3 విద్యుత్ కనెక్షన్లు
Connect the motor to the control unit and power supply according to the wiring diagram provided in the full installation manual (not included in this general overview). All electrical connections must be made by a certified electrician.
4.4 ప్రారంభ కాన్ఫిగరేషన్
The Hindi 880 Evo is available in "normal" or "slow" speed versions. Ensure the correct model has been supplied for your specific needs. The control unit will require programming to set opening/closing limits and any desired operational parameters, including the customizable blocking feature.
5. ఆపరేషన్
Once installed and configured, the Fadini Hindi 880 Evo operates automatically via its control unit, typically activated by a remote control, push button, or other access control systems.
- తెరవడం: Activate the system to initiate the gate opening cycle. The gate will open smoothly to its programmed limit.
- మూసివేయడం: Activate the system again to close the gate. The gate will close to its programmed limit, engaging the customizable blocking mechanism.
- అత్యవసర విడుదల: In case of power failure or malfunction, locate and use the manual release mechanism (refer to the full installation manual for its specific location and operation) to operate the gate manually.
Observe the gate's movement during the first few operations to ensure it functions correctly and without obstruction.
6. నిర్వహణ
Regular maintenance is crucial for the longevity and reliable operation of your Fadini Hindi 880 Evo hydraulic piston. While the unit is designed to be robust and weather-resistant, periodic checks are recommended.
- వార్షిక తనిఖీ: Have a qualified technician inspect the hydraulic system annually. This includes checking hydraulic fluid levels, inspecting for leaks, and assessing the condition of seals and hoses.
- Mechanical Check: Periodically check all mounting bolts and connections to ensure they are tight and secure. Lubricate moving parts as recommended by the manufacturer (refer to the full manual).
- పరిశుభ్రత: Keep the piston body and surrounding area clean from debris, dirt, and vegetation that could impede movement or cause damage.
- భద్రతా పరికరాలు: Test any installed safety devices (e.g., photocells, safety edges) regularly to ensure they are functioning correctly.
7. ట్రబుల్షూటింగ్
If you encounter issues with your Fadini Hindi 880 Evo, consult the following basic troubleshooting guide. For complex problems, always contact a qualified technician.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Gate does not respond to command. | No power, remote control battery dead, safety device activated. | Check power supply. Replace remote battery. Check safety sensors for obstructions. |
| గేట్ పాక్షికంగా తెరుచుకుంటుంది/మూసుకుంటుంది. | Obstruction, incorrect limit settings, low hydraulic fluid. | Remove obstructions. Consult technician to re-adjust limits or check fluid. |
| ఆపరేషన్ సమయంలో అసాధారణ శబ్దాలు. | Worn components, low hydraulic fluid, misalignment. | Contact a qualified technician for inspection and repair. |
8. స్పెసిఫికేషన్లు
The following are key technical specifications for the Fadini Hindi 880 Evo hydraulic piston:
- తయారీదారు: మక్కనికా ఫాడిని
- మోడల్: Hindi 880 Evo (880P5L)
- స్ట్రోక్ పొడవు: 280 మి.మీ
- Max Gate Width: 2.8 మీటర్లు
- Approx. Opening Time: 17 seconds (for gates > 2m)
- కొలతలు (L x W x H): 88 x 30 x 23 సెం.మీ
- బరువు: 14 కిలోలు
- రంగు: బూడిద రంగు
- ధృవీకరణ: CE సర్టిఫికేట్
- బ్యాటరీలు అవసరం: నం
For detailed electrical specifications and performance curves, refer to the comprehensive technical documentation.
9. వారంటీ మరియు మద్దతు
The Fadini Hindi 880 Evo hydraulic piston is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.
For technical support, spare parts, or warranty inquiries, please contact your authorized Fadini dealer or the supplier from whom you purchased the product. You may also contact the seller directly for assistance:
MENFOR DI MENEGHELLI ANDREA
ఫోన్: +39 335 6615845
మద్దతును సంప్రదించేటప్పుడు దయచేసి మీ ఉత్పత్తి మోడల్ మరియు సీరియల్ నంబర్ను సిద్ధంగా ఉంచుకోండి.
