1. పరిచయం
This instruction manual provides essential information for the proper installation, operation, and maintenance of the Zurn Z7000-HW Temp-Gard Standard Hand/Wall Shower. Please read this manual thoroughly before installation and use to ensure safe and efficient operation. Retain this manual for future reference.
2. ఉత్పత్తి ముగిసిందిview
The Zurn Z7000-HW Temp-Gard Hand/Wall Shower system is designed for reliable performance in various applications. It features a chrome-plated handheld shower head, a flexible metal hose, and a slide bar for adjustable height.
- Consistent Flow: Delivers a consistent 2.5 gallons per minute (gpm) flow rate.
- ఫ్లెక్సిబుల్ గొట్టం: Includes a 60-inch flexible metal hose for extended reach and ease of use.
- Adjustable Shower Head: The shower head can be adjusted for desired height on the 24-inch slide bar and is removable for handheld application.
- మన్నికైన నిర్మాణం: Manufactured with long-lasting, durable materials suitable for commercial use.
- ఫీచర్లు: Easy to install, ADA compliant, pressure compensating flow rate, and adjustable spray pattern.
Figure 1: Complete Zurn Z7000-HW Temp-Gard Hand/Wall Shower System. This image shows the full shower unit, including the handheld shower head, flexible metal hose, supply elbow, and 24-inch slide bar, all in a chrome finish.
మూర్తి 2: ముందు view of the Zurn Z7000-HW shower head. This image highlights the adjustable spray pattern settings, including 'Massage' and 'Spray' options, on the chrome-plated handheld shower head.

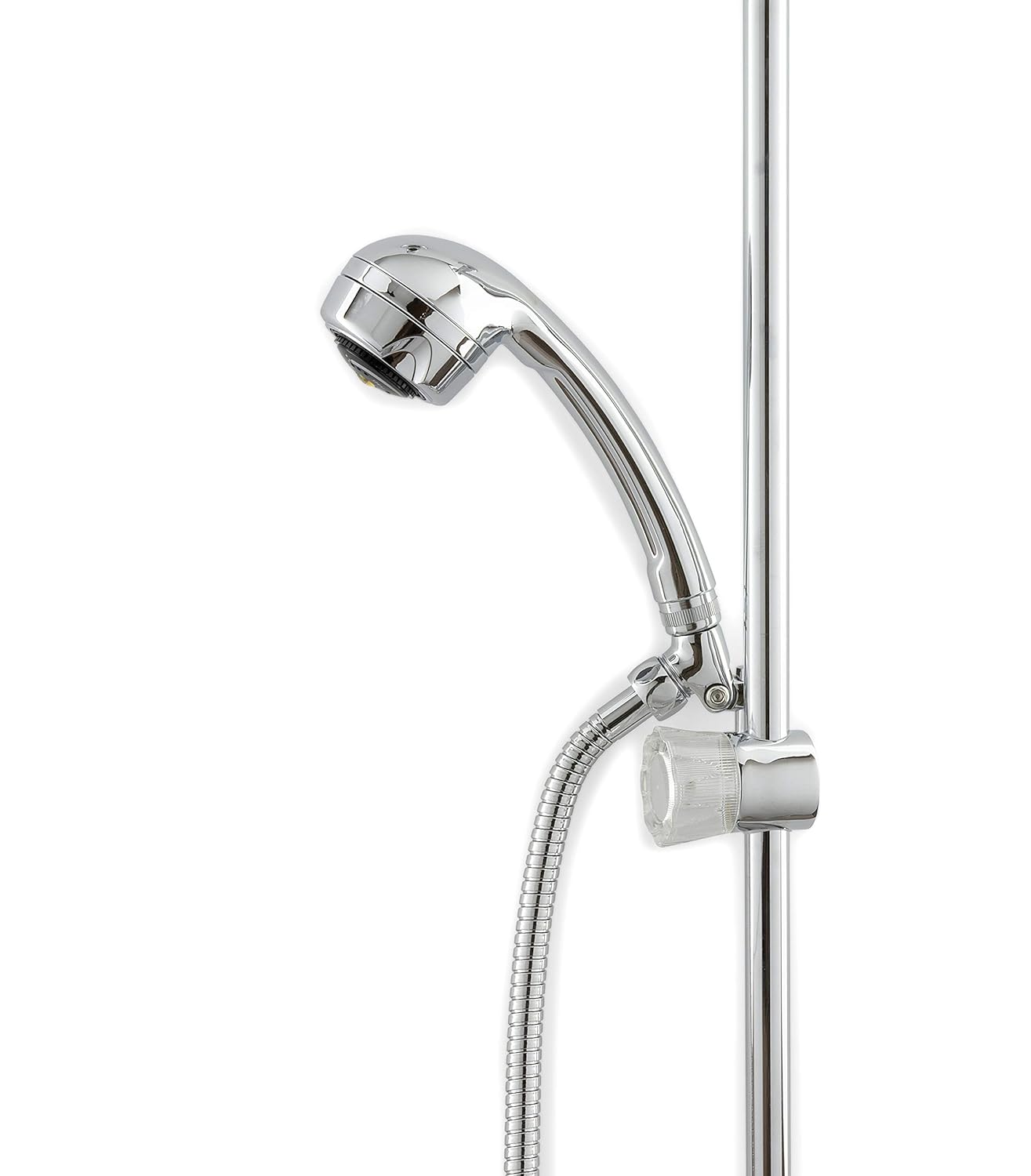

మూర్తి 3: వైపు view of the Zurn Z7000-HW shower head mounted on the slide bar. This image demonstrates how the shower head is held by the adjustable mount on the 24-inch slide bar, allowing for height customization.
Figure 4: Close-up of the Zurn Z7000-HW supply elbow with flange. This image shows the wall connection point for the flexible metal hose, featuring a chrome finish.
3. సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the Zurn Z7000-HW Hand/Wall Shower requires basic plumbing knowledge. It is recommended that installation be performed by a qualified professional to ensure proper function and compliance with local codes.
3.1 చేర్చబడిన భాగాలు
- Handheld Shower Head (Chrome-plated plastic)
- 60-inch Flexible Metal Hose
- 24-inch Mounting Bar (Slide Bar)
- Supply Elbow with Flange
- మౌంటు హార్డ్వేర్
3.2 General Installation Steps (Consult a professional for detailed instructions)
- తయారీ: Turn off the main water supply. Clear the installation area.
- Mount Supply Elbow: Install the supply elbow to the wall water outlet, ensuring a secure, leak-free connection.
- Mount Slide Bar: Secure the 24-inch slide bar to the wall using the provided mounting hardware. Ensure it is level and firmly attached.
- కనెక్ట్ గొట్టం: Attach one end of the 60-inch flexible metal hose to the supply elbow and the other end to the handheld shower head.
- Place Shower Head: Position the handheld shower head onto the adjustable mount on the slide bar.
- పరీక్ష: Turn on the water supply and check for leaks. Test the shower head's functionality and spray patterns.
ముఖ్యమైన: Ensure all connections are tightened appropriately to prevent leaks. Do not overtighten, as this may damage components.
4. ఆపరేటింగ్ సూచనలు
The Zurn Z7000-HW Hand/Wall Shower is designed for user convenience and flexibility.
4.1 Using the Handheld Shower Head
- యాక్టివేషన్: షవర్కు నీటి సరఫరాను ఆన్ చేయండి.
- Spray Pattern Adjustment: Rotate the face of the shower head to select your desired spray pattern (e.g., spray, massage).
- హ్యాండ్హెల్డ్ వినియోగం: The shower head can be easily removed from its holder on the slide bar for handheld operation.
- Wall-Mounted Use: When not held, the shower head rests securely in its holder on the slide bar.
4.2 Adjusting Shower Head Height
The 24-inch slide bar allows for easy height adjustment of the shower head.
- Adjusting Mount: Loosen the knob or lever on the shower head holder to allow it to slide freely along the bar.
- స్థానం: Move the holder up or down the slide bar to the desired height.
- భద్రపరచడం: Tighten the knob or lever to secure the shower head holder in place.
5. నిర్వహణ
Regular cleaning and maintenance will prolong the life and appearance of your Zurn Z7000-HW shower system.
- శుభ్రపరచడం: Clean chrome surfaces with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
- నాజిల్ క్లీనింగ్: If mineral deposits build up on the shower head nozzles, gently rub them with your finger or a soft brush to dislodge the deposits. For stubborn buildup, soak the shower head in a solution of white vinegar and water.
- గొట్టం తనిఖీ: Periodically inspect the flexible metal hose for any signs of wear, kinks, or damage. Replace if necessary.
6. ట్రబుల్షూటింగ్
కింది సాధారణ సమస్యలు మరియు వాటి సంభావ్య పరిష్కారాలను చూడండి:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| తక్కువ నీటి ప్రవాహం | Clogged shower head nozzles; partially closed shut-off valve; mineral buildup in hose. | Clean shower head nozzles. Ensure shut-off valves are fully open. Inspect and clean hose. |
| కనెక్షన్ల వద్ద లీక్లు | Loose connections; worn washers/gaskets. | Tighten connections (do not overtighten). Replace worn washers or gaskets. |
| Shower Head Not Holding Position on Slide Bar | Mounting knob/lever not tightened sufficiently; worn mount. | Ensure the knob/lever on the holder is fully tightened. If worn, contact Zurn support for replacement parts. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Zurn customer support.
7. స్పెసిఫికేషన్లు
- మోడల్ సంఖ్య: Z7000-HW
- ఫ్లో రేట్: 2.5 gpm (gallons per minute)
- గొట్టం పొడవు: 60 inches (flexible metal)
- స్లయిడ్ బార్ పొడవు: 24 అంగుళాలు
- మెటీరియల్: Chrome-plated plastic (handheld shower head), Metal (hose, slide bar)
- వర్తింపు: ADA కంప్లైంట్
- ప్యాకేజీ కొలతలు: సుమారు 27 x 6.75 x 3 అంగుళాలు
- వస్తువు బరువు: సుమారు 3.4 పౌండ్లు
- తయారీదారు: జుర్న్ ఇండస్ట్రీస్
8. వారంటీ మరియు మద్దతు
The Zurn Z7000-HW Temp-Gard Standard Hand/Wall Shower comes with a 3-సంవత్సరం పరిమిత వారంటీ కొనుగోలు చేసిన తేదీ నుండి. ఈ వారంటీ సాధారణ ఉపయోగం మరియు సేవ కింద మెటీరియల్ మరియు పనితనంలో లోపాలను కవర్ చేస్తుంది.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Zurn customer support through their official webసైట్ లేదా మీ కొనుగోలు డాక్యుమెంటేషన్తో అందించబడిన సంప్రదింపు సమాచారం.
తయారీదారు: జుర్న్ ఇండస్ట్రీస్
Webసైట్: www.zurn.com
