KOAMTAC KDC280CJPH 2D ఇమేజర్ డేటా కలెక్టర్ యూజర్ మాన్యువల్

1. పరిచయం

This manual provides instructions for the safe and efficient use of your KOAMTAC KDC280CJPH 2D Imager Data Collector. Please read this manual thoroughly before operating the device and keep it for future reference.

The KDC280CJPH is a compact and powerful 2D barcode scanner and data collector, designed for various applications requiring efficient data capture. It features Bluetooth v4.1 BLE connectivity, supporting both SPP and HID profiles, and is compatible with iOS devices.

2. భద్రతా సమాచారం

• పరికరాన్ని తీవ్రమైన ఉష్ణోగ్రతలు, ప్రత్యక్ష సూర్యకాంతి లేదా అధిక తేమకు గురిచేయవద్దు.
• Avoid dropping the device or subjecting it to severe impacts, although it is rated for 1.5m drops.
• పరికరాన్ని విడదీయడానికి లేదా సవరించడానికి ప్రయత్నించవద్దు. ఇది వారంటీని రద్దు చేస్తుంది.
• ఆమోదించబడిన ఛార్జింగ్ కేబుల్స్ మరియు అడాప్టర్లను మాత్రమే ఉపయోగించండి.
• Keep the device away from water and other liquids. The IP65 rating provides protection against dust and splashes, but not immersion.
• స్థానిక నిబంధనల ప్రకారం బ్యాటరీలు మరియు పరికరాన్ని పారవేయండి.

3. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

• KDC280CJPH 2D Imager Data Collector
• Communication Dongle (KBLED41)
• Single Charging Base
• మెడ పట్టీ
• Pairing Sheet
• ఛార్జింగ్ కేబుల్ (మైక్రో USB)
• Communication Cable (Micro USB)
• AC అడాప్టర్

Optional accessories (sold separately): 4-slot charging base, finger trigger glove, ring scanner, custom front panel colors/logo printing.

4. పరికరం ముగిసిందిview

The KDC280CJPH is designed for ergonomic handling and ease of use. Below are key components and their functions.

Figure 1: KDC280CJPH Device Front View. This image shows the front of the KDC280CJPH data collector, highlighting its display screen and control buttons. The screen displays menu options such as "KDC Mode", "Data Display", "Barcode Settings", and "Code Options". Below the screen, there are three circular buttons: a central selection button and two directional buttons. The device also features "KOAMTAC" branding and a "BLE" indicator.

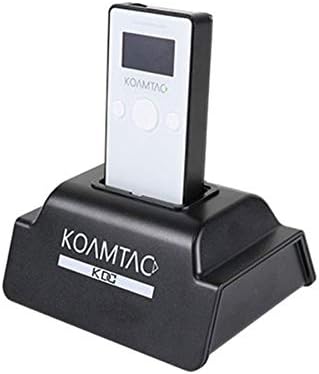

Figure 2: KDC280CJPH in Charging Base. This image displays the KDC280CJPH data collector securely docked in its black charging base. The device is white with a black screen, showing the "KOAMTAC" logo. The charging base also features the "KOAMTAC KDC" logo on its front.

ముఖ్య భాగాలు:

• డిస్ప్లే స్క్రీన్: Shows operational status, menu options, and scanned data.
• స్కాన్ బటన్: బార్‌కోడ్ స్కానింగ్‌ను ప్రారంభిస్తుంది.
• నావిగేషన్ బటన్లు: మెనూ నావిగేషన్ మరియు ఎంపిక కోసం ఉపయోగించబడుతుంది.
• మైక్రో USB పోర్ట్: For charging and wired data communication.
• Imager Window: The area through which barcodes are scanned.

5. సెటప్

5.1 పరికరాన్ని ఛార్జ్ చేస్తోంది

1. Connect the charging cable to the Micro USB port on the KDC280CJPH.
2. Connect the other end of the charging cable to the AC adapter, then plug the AC adapter into a power outlet. Alternatively, connect the charging cable to a computer's USB port.
3. The device will begin charging. A full charge typically takes approximately 3-4 hours.

For convenience, you can also place the KDC280CJPH into the single charging base (included) or the optional 4-slot charging base for charging.

5.2 ప్రారంభ పవర్ ఆన్

Press and hold the power button (usually located on the side or top) for a few seconds until the display screen illuminates.

5.3 Using the Communication Dongle

The KDC280CJPH can be used with the included communication dongle (KBLED41) for easy pairing with a host device.

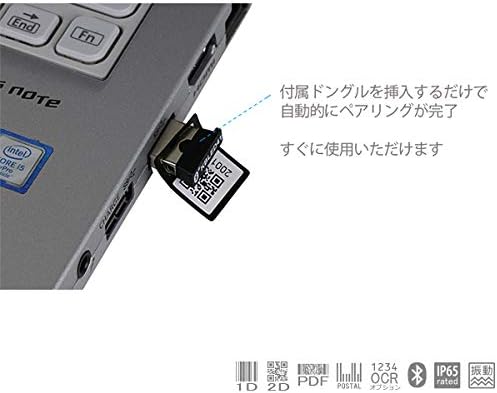

Figure 3: Communication Dongle in Use. This image illustrates the communication dongle (KBLED41) being inserted into a USB port of a laptop. The dongle has a QR code printed on it, indicating its pairing function. The accompanying text states that inserting the dongle automatically completes pairing, making the device ready for immediate use.

1. Insert the KBLED41 communication dongle into an available USB port on your computer or host device.
2. The KDC280CJPH will automatically detect and pair with the dongle, establishing a connection.
3. Once paired, the device is ready for data transmission.

6. ఆపరేషన్

6.1 బ్లూటూత్ జత చేయడం

The KDC280CJPH supports Bluetooth v4.1+EDR with SPP (Serial Port Profile) and HID (Human Interface Device) profiles, allowing connection to various devices including iOS.

1. Ensure Bluetooth is enabled on your host device (smartphone, tablet, computer).
2. On the KDC280CJPH, navigate to the Bluetooth pairing menu using the navigation buttons.
3. Select the desired Bluetooth profile (SPP or HID) if prompted.
4. On your host device, search for available Bluetooth devices and select "KDC280CJPH" from the list.
5. Follow any on-screen prompts to complete the pairing process. You may need to enter a PIN, which is usually "0000" or "1234".
6. Once paired, the KDC280CJPH will indicate a successful connection on its display.

Note: Your connecting device must be Bluetooth v4.1 BLE compatible to connect with the KDC280CJPH.

6.2 Barcode Scanning

The KDC280CJPH can read a wide array of 1D and 2D barcodes, OCR fonts, and postal codes.

• స్కాన్ చేయడానికి: Point the imager window at the barcode and press the scan button. A successful scan will typically be indicated by a beep and/or a green LED light.
• ఆప్టిమల్ స్కానింగ్ దూరం: The reading distance for Code39 is 4-246mm. Adjust the distance for other barcode types as needed.
• మద్దతు ఉన్న చిహ్నాలు:
  • 1 డి: EAN, UPC, Code 11, Code 39, Code 93, Code 128, Codabar/NW-7, Interleaved 2 of 5, GS1-128(EAN 128), GS1 DataBar(RSS), IATA, Industrial 2 of 5, ISBN-ISSN-ISMN, Matix 2 of 5, MSI/Plessy, S-Code, Telepen, Tri-Optic, UK/Plessy.
  • 2 డి: Aztec Code, Aztec Runes, Codablock F, Composite Codes, Data Matrix, Maxi Code, Chinese Sensible, Micro PDF, PDF417, QR Code, Micro QR Code.
  • OCR: OCR-A, OCR-B (ISBN codes).
  • పోస్టల్ కోడ్‌లు: Various international postal codes.

6.3 Data Collection and Storage

The device has 8MB of user data area, capable of storing over 400,000 UPC codes. Scanned data can be stored internally and then transferred to a host device.

• స్టోర్ మోడ్: Data is saved to the device's internal memory.
• బదిలీ మోడ్: Data is immediately transmitted to the connected host device.
• టైమ్‌స్టెస్ట్amping: The built-in Quartz RTC provides timestamps for collected data.

6.4 KTSync Software and SDK

KOAMTAC provides free software and SDKs to enhance the functionality of your KDC280CJPH.

• KTSync Software: Available for download, KTSync allows for KDC device settings configuration, data synchronization, and matching functions.
• SDKs: Software Development Kits are available for Android, iOS, and Windows platforms, enabling custom application development and integration with the KDC280CJPH.

7. నిర్వహణ

7.1 శుభ్రపరచడం

• పరికరాన్ని మృదువైన, డితో తుడవండిamp గుడ్డ. రాపిడి క్లీనర్లు లేదా ద్రావకాలు ఉపయోగించవద్దు.
• Ensure the imager window is clean and free of dust or smudges for optimal scanning performance.

7.2 బ్యాటరీ సంరక్షణ

• బ్యాటరీ జీవితకాలాన్ని పొడిగించడానికి, బ్యాటరీని తరచుగా పూర్తిగా డిశ్చార్జ్ చేయకుండా ఉండండి.
• If storing the device for an extended period, charge the battery to approximately 50% and store it in a cool, dry place.

7.3 నిల్వ పరిస్థితులు

Store the device within the specified temperature range of -20℃ to 60℃ and humidity of 5% to 95% (non-condensing).

8. ట్రబుల్షూటింగ్

9. స్పెసిఫికేషన్లు

10. వారంటీ & సపోర్ట్

10.1 వారంటీ సమాచారం

The KOAMTAC KDC280CJPH comes with a 1 సంవత్సరాల వారంటీ from the date of purchase. This warranty covers manufacturing defects but excludes damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Cables are not covered under this warranty.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.

10.2 సాంకేతిక మద్దతు

For technical assistance, troubleshooting, or inquiries regarding your KDC280CJPH, please refer to the official KOAMTAC webసైట్ లేదా వారి కస్టమర్ సపోర్ట్‌ని సంప్రదించండి.

Additional resources, including the KTSync software and SDKs for various platforms (Android, iOS, Windows), are available for download from the KOAMTAC support portal.
