1. పరిచయం
This manual provides comprehensive instructions for the installation and use of the Kufatec Halogen to Xenon Adapter. This adapter kit is designed to facilitate the conversion of halogen headlights to xenon headlights in compatible vehicles, specifically the VW Scirocco III models up to the year 2009. Manufactured in Germany, this product ensures a reliable and straightforward upgrade.
2. భద్రతా సమాచారం
- Always disconnect the vehicle's battery before beginning any electrical work to prevent short circuits or electrical shock.
- వాహనం ఆపివేయబడిందని మరియు ఇగ్నిషన్ కీ తీసివేయబడిందని నిర్ధారించుకోండి.
- ఏదైనా దశ గురించి మీకు ఖచ్చితంగా తెలియకపోతే, అర్హత కలిగిన ఆటోమోటివ్ టెక్నీషియన్ను సంప్రదించండి.
- చేతి తొడుగులు మరియు కంటి రక్షణ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.
- Handle electrical components with care to avoid damage.
3. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ను ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని ధృవీకరించండి:
- Kufatec Halogen to Xenon Adapter Kit (includes necessary wiring and connectors)
- Additional cable for Bi-Xenon headlight conversion (if applicable)

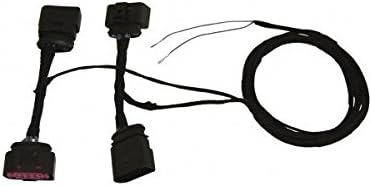

మూర్తి 1: పైగాview of the Kufatec Halogen to Xenon Adapter Kit. The image displays the two main adapter connectors and the additional wiring for Bi-Xenon headlight integration.
4. సెటప్ మరియు ఇన్స్టాలేషన్
This adapter kit is designed for straightforward installation. Follow these steps carefully:
- తయారీ: Ensure the vehicle's ignition is off and the battery is disconnected. Access the headlight assembly area in your VW Scirocco III (models up to 2009).
- Locate Existing Connectors: Identify the existing halogen headlight connectors on your vehicle's wiring harness.
- Connect Adapters: Simply insert the Kufatec adapters between the existing vehicle wiring harness connectors and the new xenon headlight connectors. The adapters are designed for a direct plug-and-play fit.
- Bi-Xenon Specific Wiring (if applicable): If you are installing Bi-Xenon headlights, an additional cable is provided with the kit. This cable must be routed and connected to the vehicle's onboard control unit (BCM - Body Control Module). Refer to your vehicle's service manual for the exact location and connection points of the onboard control unit.
- సురక్షిత కనెక్షన్లు: Ensure all connections are firm and secure to prevent accidental disconnections or electrical issues.
- పరీక్ష కార్యాచరణ: Reconnect the vehicle's battery. Turn on the ignition and test the functionality of the new xenon headlights, including high beams, low beams, and any other integrated functions.
Note: The product image is symbolic and the actual appearance may vary slightly depending on the specific vehicle model and production batch.
5. ఆపరేటింగ్ సూచనలు
Once correctly installed, the Kufatec adapter facilitates the proper electrical communication between your vehicle's system and the new xenon headlights. The operation of the headlights will then be controlled by your vehicle's standard headlight switch and systems, as if they were factory-installed xenon units.
- Turn on your vehicle's headlights as you normally would.
- Verify that both low beam and high beam functions operate correctly.
- Check for any dashboard warning lights related to lighting systems. If a warning light appears, refer to the Troubleshooting section.
6. నిర్వహణ
The Kufatec adapter is a passive electrical component and requires minimal maintenance.
- Periodically inspect the connections to ensure they remain secure and free from corrosion or damage.
- Keep the adapter and its wiring clean and free from excessive dirt or moisture.
- Avoid exposing the adapter to extreme temperatures or harsh chemicals.
7. ట్రబుల్షూటింగ్
ఇన్స్టాలేషన్ తర్వాత మీకు సమస్యలు ఎదురైతే, ఈ క్రింది వాటిని పరిగణించండి:
- Headlights Not Functioning:
- Check all electrical connections to ensure they are fully seated and secure.
- Verify that the vehicle's battery is properly reconnected and charged.
- Ensure the new xenon headlights themselves are functional and correctly installed.
- For Bi-Xenon setups, confirm the additional cable is correctly connected to the onboard control unit.
- Dashboard Warning Lights:
- Some vehicles may require coding or adaptation of the onboard control unit after headlight conversion to recognize the new xenon lights and prevent error messages. This adapter kit handles the electrical connection, but vehicle-specific coding may be necessary. Consult a qualified technician or vehicle diagnostic tool for coding procedures.
- Double-check all connections for loose wires or improper seating.
- అడపాదడపా ఆపరేషన్:
- Inspect for any damaged wiring or connectors.
- Ensure the adapter is not exposed to excessive vibration or heat.
- If problems persist, it is recommended to seek assistance from a professional automotive electrician or the product manufacturer.
8. స్పెసిఫికేషన్లు
| గుణం | విలువ |
|---|---|
| తయారీదారు | TFS (Kufatec) |
| మోడల్ సంఖ్య | 32189993 |
| ఉత్పత్తి రకం | Halogen to Xenon Headlight Adapter Kit |
| అనుకూల వాహనం | VW Scirocco III (up to 2009) |
| Light Source Type (Conversion To) | జినాన్ |
| తయారీ దేశం | జర్మనీ |
9. వారంటీ మరియు మద్దతు
This Kufatec product is manufactured in Germany, adhering to high quality standards. For specific warranty information, please refer to the terms and conditions provided by your retailer or the official Kufatec website. Always observe the information and instructions provided with the product. For technical support, it is recommended to contact the manufacturer or a certified automotive specialist.
