1. పరిచయం
The EZ-ACCESS TILT Toilet Incline Lift is designed to assist individuals with mobility challenges by providing a powered lift and lower function for toilet use. This device enhances independence and safety in the bathroom by mimicking natural body movement during transfers.
This manual provides essential information for the safe and effective installation, operation, and maintenance of your TILT Toilet Incline Lift.
2. భద్రతా సమాచారం
- బరువు సామర్థ్యం: గరిష్ట బరువు సామర్థ్యం 325 పౌండ్లు (147 కిలోలు) మించకూడదు.
- సరైన సంస్థాపన: Ensure the unit is securely installed according to the instructions to prevent instability.
- విద్యుత్ భద్రత: Keep the power cord and battery pack away from water sources. Do not operate with damaged cords or components.
- పర్యవేక్షణ: Individuals with cognitive impairments should be supervised during use.
- నిర్వహణ: Regularly inspect the unit for wear, damage, or loose components. Discontinue use and contact customer support if any issues are found.
3. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:
- TILT Toilet Incline Lift Unit (Elongated Seat)
- హ్యాండ్హెల్డ్ రిమోట్ కంట్రోల్
- పునర్వినియోగపరచదగిన బ్యాటరీ ప్యాక్
- Wall Mount Bracket for Battery Pack
- Power Cord (3 foot 4 inch)
- ఇన్స్టాలేషన్ హార్డ్వేర్
- వినియోగదారు మాన్యువల్ (ఈ పత్రం)
4. సెటప్ మరియు ఇన్స్టాలేషన్
The TILT Toilet Incline Lift is designed for quick installation, typically within 15 minutes. It attaches directly to your existing toilet bowl.
4.1 Determine Toilet Seat Type
Before installation, confirm if your toilet has an elongated or standard bowl. This unit is designed for elongated seats.
వివరణ: This image displays two toilet seat outlines side-by-side. The left outline is labeled 'ELONGATED' with a length measurement between 18"-19". The right outline is labeled 'STANDARD' with a length measurement between 16"-17". Arrows indicate the measurement points from the hinge holes to the front edge of the seat. This helps users determine the correct seat type for their toilet.
4.2 సంస్థాపనా దశలు
- Remove your existing toilet seat and lid.
- Position the TILT unit's mounting bracket over the toilet bowl's hinge holes.
- Secure the unit to the toilet bowl using the provided hardware. Ensure it is tight and stable.
- Mount the rechargeable battery pack to a nearby wall. A space of 5 inches by 16 inches is required for the battery pack.
- Connect the power cord from the battery pack to a standard electrical outlet.
- Ensure all connections are secure and the unit is stable. The TILT lift is compatible with toilet bowl heights ranging from 14 to 21 inches.
వివరణ: This image shows a close-up, top-down view of the rear of a white toilet bowl. A white, flat mounting bracket, part of the TILT lift system, is positioned over the toilet's hinge holes and secured with two silver bolts. The word "KOHLER" and "1.6 gallons / 6 liters per flush or less" are visible on the toilet tank.
వివరణ: ఈ చిత్రం క్లోజప్ను అందిస్తుంది view of the battery pack and control unit for the TILT toilet lift. The unit, which is white with a prominent blue vertical stripe, is mounted on a light-colored tiled bathroom wall. A coiled white cable extends from the control unit towards the toilet lift mechanism, which is partially visible on the left.

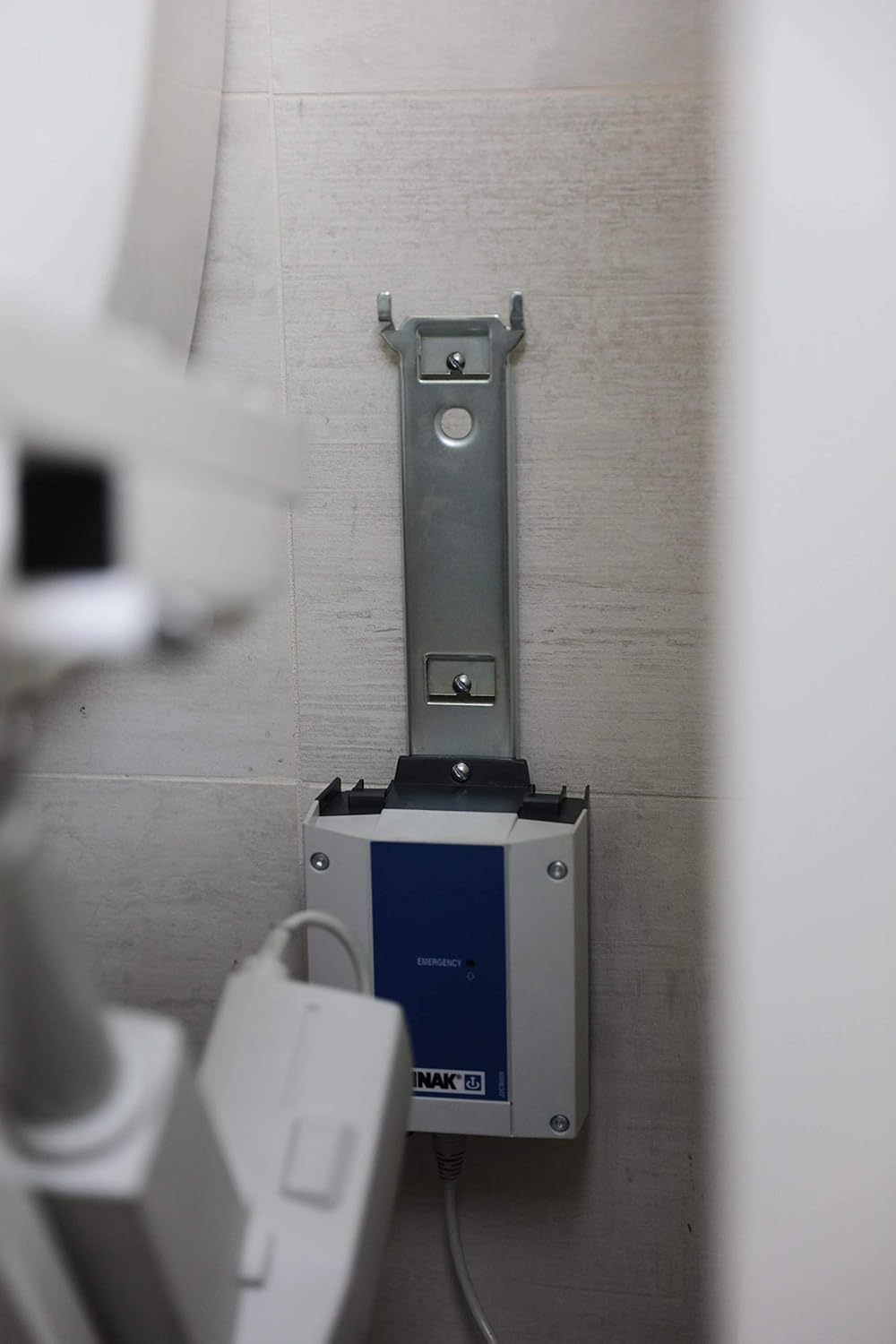

వివరణ: This image shows a close-up of the metal wall mount bracket, which is silver and has two screw holes at the top and a circular opening. Below the bracket, the top edge of the white and blue battery pack is visible, indicating how the pack slots into the mount.
వివరణ: This image displays the EZ-ACCESS TILT Toilet Incline Lift fully installed on a white toilet within a bathroom setting. The lift is in its lowered position, appearing as a standard toilet seat with integrated handles. A glass shower enclosure is visible on the left, and a white vanity with a sink is on the right. The battery pack is mounted on the wall between the toilet and the vanity.
5. ఆపరేటింగ్ సూచనలు
The TILT Toilet Incline Lift is operated using a simple handheld remote control.
5.1 Handheld Remote Control
వివరణ: This image shows a close-up of the gray handheld remote control. It has two large, distinct buttons: an upward-pointing arrow for lifting and a downward-pointing arrow for lowering. The remote is connected by a coiled cord, and its ergonomic design is visible.
5.2 Using the Lift
- దిగువకు: While standing in front of the toilet, press and hold the DOWN arrow button on the handheld remote. The seat will gently lower to the seated position. Release the button when you are comfortably seated.
- ఎత్తడానికి: While seated, press and hold the UP arrow button on the handheld remote. The seat will incline and lift you to a standing position. Release the button when you are at a comfortable height to stand independently.
The lift provides approximately 7.5 inches of forward movement during the lifting process, aiding in balance and positioning. The handles are designed with non-slip covers for a secure grip, and their angle is optimized to maximize user strength during transfers.
వివరణ: This image shows the EZ-ACCESS TILT Toilet Incline Lift installed on a white toilet, now in its raised and inclined position. The toilet seat is angled upwards and forwards, with the support arms extended. The battery pack is visible on the wall to the right, and a glass shower enclosure is on the left.
6 బ్యాటరీ ఛార్జింగ్ మరియు నిర్వహణ
The TILT Toilet Incline Lift is powered by a rechargeable Lithium Ion battery pack.
- The battery pack is designed to be wall-mounted and connected to a standard electrical outlet for continuous charging.
- Ensure the battery pack remains connected to power when not in use to maintain a full charge.
- If the battery charge is low, the lift may operate slower or stop functioning. Recharge immediately.
- Do not attempt to open or service the battery pack. Contact customer support for battery-related issues.
7. శుభ్రపరచడం మరియు నిర్వహణ
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your TILT Toilet Incline Lift.
- శుభ్రపరచడం: The plastic shield is easily removed for cleaning. Use mild soap and water with a soft cloth. Avoid abrasive cleaners or solvents.
- హ్యాండిల్స్: The non-slip covers on the handles can be wiped clean with a damp గుడ్డ.
- తనిఖీ: Periodically check all bolts and connections to ensure they remain tight. Inspect the power cord for any signs of damage.
- సరళత: Do not lubricate any moving parts unless specifically instructed by EZ-ACCESS customer support.
8. ట్రబుల్షూటింగ్
If you encounter issues with your TILT Toilet Incline Lift, refer to the following common problems and solutions:
- లిఫ్ట్ స్పందించడం లేదు:
- Ensure the battery pack is properly connected to the wall outlet and receiving power.
- Check if the power cord is securely plugged into both the battery pack and the wall outlet.
- Verify that the handheld remote control cable is securely connected to the lift unit.
- Lift Operating Slowly:
- This may indicate a low battery charge. Ensure the battery pack is fully charged.
- అసాధారణ శబ్దాలు:
- Discontinue use immediately. Inspect the unit for any loose parts or obstructions. Contact customer support if the noise persists.
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact EZ-ACCESS customer support.
9. స్పెసిఫికేషన్లు
| మోడల్ సంఖ్య | 19618 |
| ఉత్పత్తి కొలతలు (L x W x H) | 24 x 24 x 18 అంగుళాలు |
| ఉత్పత్తి బరువు | 37.5 పౌండ్లు |
| బరువు సామర్థ్యం | 325 పౌండ్లు |
| మోటార్ | 120 VDC |
| Lift/Lower Time | దాదాపు 15 నుండి 20 సెకన్లు |
| బ్యాటరీ రకం | 1 లిథియం అయాన్ బ్యాటరీ (చేర్చబడింది) |
| పవర్ కార్డ్ పొడవు | 3 foot 4 inches |
| Battery Pack Space Required | 5 అంగుళాలు x 16 అంగుళాలు |
| Compatible Bowl Heights | 14 నుండి 21 అంగుళాలు |
10. వారంటీ మరియు రిటర్న్లు
For specific warranty details, please refer to the documentation included with your product or visit the official EZ-ACCESS webసైట్.
రిటర్న్లపై గమనిక: Due to hygiene considerations, opened hygiene products are generally non-returnable. The TILT and Bathing Accessories must be in original packaging with no broken seal to be eligible for return. If you experience any issues with installation or require replacement parts, please contact EZ-ACCESS customer service directly.
11. కస్టమర్ మద్దతు
For technical assistance, parts, or any questions regarding your EZ-ACCESS TILT Toilet Incline Lift, please contact EZ-ACCESS customer support. Refer to the contact information provided on the product packaging or the official EZ-ACCESS webసైట్.
ఆన్లైన్ వనరులు:
- ఇన్స్టాలేషన్ మాన్యువల్ (PDF): ఇక్కడ డౌన్లోడ్ చేసుకోండి
- ఉపయోగం కోసం సూచనలు (IFU) (PDF): ఇక్కడ డౌన్లోడ్ చేసుకోండి
- యూజర్ మాన్యువల్ (PDF): ఇక్కడ డౌన్లోడ్ చేసుకోండి
