పరిచయం
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your eWheels EW46 4 Wheel Sporty Mobility Recreational Travel Scooter. Please read this manual thoroughly before using your scooter to ensure proper handling and to maximize its lifespan.

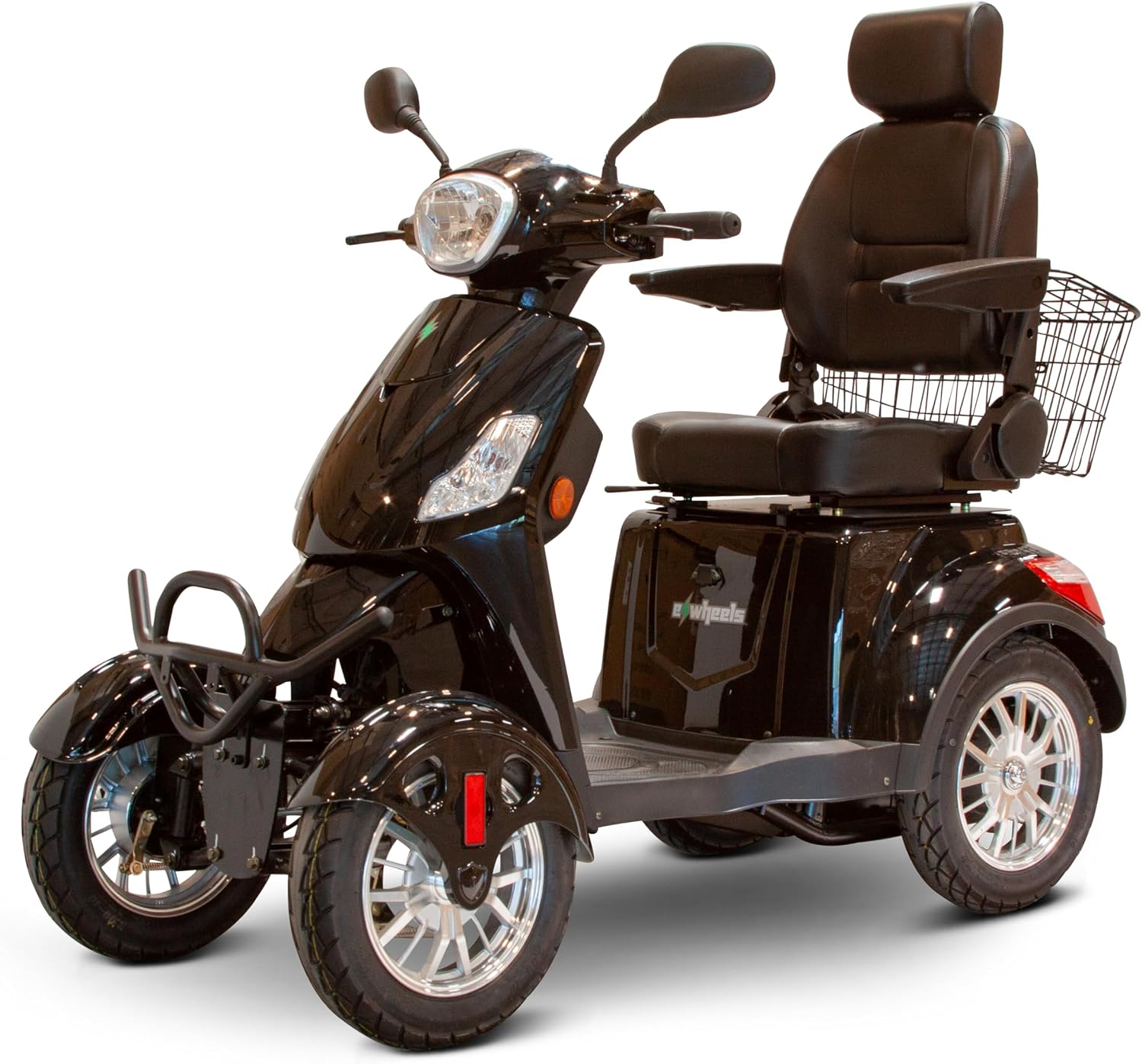

Image: The eWheels EW46 scooter, a four-wheel mobility device, shown from the front-right angle, highlighting its sporty design and black finish.
భద్రతా మార్గదర్శకాలు
Always prioritize safety when operating your mobility scooter. Adhere to all local traffic laws and regulations. Ensure you are familiar with all controls before riding. Avoid operating the scooter under the influence of alcohol or medication that impairs judgment.
- Perform a pre-ride inspection before each use.
- గరిష్ట బరువు సామర్థ్యం 400 పౌండ్లు మించకూడదు.
- Always use the electromagnetic hand-braking system for controlled stops.
- Be aware of your surroundings and pedestrian traffic.
- Ensure the battery is adequately charged before long trips.
సెటప్ మరియు అసెంబ్లీ
Your EW46 scooter comes largely pre-assembled. Follow these steps for initial setup:
- అన్ప్యాకింగ్: Carefully remove the EWheels EW-46 48V 500W Electric 4 Wheel Scooter from its packaging. Retain packaging for future transport or storage.
- ప్రారంభ ఛార్జ్: Connect the charger to the scooter's charging port and a standard electrical outlet. Charge the scooter fully before its first use. Refer to the charging indicator for status.
- సీట్ల సర్దుబాటు: Adjust the seat to your preferred height and position for optimal comfort and control. Ensure the seat is securely locked in place before riding.
చిత్రం: క్లోజప్ view of the adjustable captain's chair on the EW46 scooter, showing its comfortable padding and armrests, designed for user customization.
ఆపరేటింగ్ సూచనలు
Familiarize yourself with the controls before operating the scooter in an open area.
- పవర్ ఆన్: Insert the key into the ignition and turn it to the "ON" position to power on the scooter.
- త్వరణం: Use the twist throttle located on the right handlebar to gradually accelerate. Apply gentle pressure for smooth starts.
- బ్రేకింగ్: The scooter is equipped with an electromagnetic hand-braking system. Squeeze the brake levers on the handlebars to slow down or stop. Release the throttle when braking.
- నావిగేషన్: Utilize the LED console for speed and battery information. Adjust the rear-view mirrors for clear visibility behind you.
- స్పీడ్ మోడ్లు: The scooter features multiple speed settings (e.g., 4 mph, 8 mph, 15 mph). Select the appropriate speed mode for your environment and comfort level.
చిత్రం: వివరణాత్మక view of the EW46 scooter's easy-to-read LED display, showing speed, battery level, and other operational indicators.
Image: A close-up of the EW46 scooter's handlebars, illustrating the intuitive and easy-to-operate controls for lights, horn, and speed settings.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your EW46 scooter.
- బ్యాటరీ సంరక్షణ: Charge the battery after each use, especially if the battery indicator shows low charge. Avoid fully discharging the battery. Store the scooter with a charged battery if not in use for extended periods.
- టైర్ ఒత్తిడి: Periodically check tire pressure and inflate to the recommended PSI (refer to tire sidewall for specific values). Proper tire pressure improves ride quality and battery efficiency.
- శుభ్రపరచడం: ప్రకటనతో స్కూటర్ను క్రమం తప్పకుండా శుభ్రం చేయండిamp cloth. Avoid using harsh chemicals or direct water spray on electrical components.
- తనిఖీలు: Routinely check all nuts, bolts, and fasteners for tightness. Inspect brake cables and electrical connections for wear or damage.
ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your EW46 scooter.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| స్కూటర్ ఆన్ అవ్వడం లేదు. | Battery is discharged; Key is not fully inserted or turned; Circuit breaker tripped. | Charge the battery; Ensure key is fully turned to "ON"; Reset the circuit breaker (if applicable). |
| ఆపరేషన్ సమయంలో శక్తి కోల్పోవడం. | Low battery charge; Overload (exceeding weight capacity); Loose electrical connection. | Recharge battery; Reduce load; Check and secure all connections. |
| బ్రేక్లు బలహీనంగా లేదా అస్థిరంగా అనిపిస్తాయి. | Brake pads worn; Brake cable loose; System malfunction. | Inspect brake pads and replace if worn; Adjust brake cable tension; Contact customer support if issue persists. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact eWheels customer support.
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ | EW-46 |
| ఉత్పత్తి కొలతలు | 63"D x 28"W x 42"H (63 x 28 x 42 అంగుళాలు) |
| వస్తువు బరువు | 260 పౌండ్లు |
| రంగు | అర్ధరాత్రి నలుపు |
| మోటార్ | 500W Electric Motor (48V) |
| బరువు సామర్థ్యం | 400 lbs (as per image PT01) |
| గరిష్ట వేగం | Up to 15 MPH (as per image PT01 and review) |
| పరిధి | Up to 35 Miles (as per image PT01) |
Image: An image highlighting key specifications of the EW46 scooter, including its 35-mile range, 400 lb capacity, 13 MPH speed, and 500 Watts of power.
వారంటీ మరియు మద్దతు
For detailed warranty information, please refer to the warranty card included with your product or visit the official eWheels webసైట్. వారంటీ నిబంధనలు సాధారణంగా నిర్దిష్ట కాలానికి తయారీ లోపాలను కవర్ చేస్తాయి.
For technical assistance, parts, or service inquiries, please contact eWheels customer support directly. Have your model number (EW-46) and purchase date ready when contacting support.
చట్టపరమైన నిరాకరణ: Statements regarding this product have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is intended for recreational and mobility assistance use only.
