Scheppach TW1000 Workshop Trolley with 263-Piece Tool Set Instruction Manual

1. పరిచయం

This instruction manual provides essential information for the safe and efficient use of your Scheppach TW1000 Workshop Trolley. Please read this manual thoroughly before initial use and keep it for future reference. Proper use and maintenance will ensure the longevity and performance of your tool trolley.

The Scheppach TW1000 is a robust and mobile workshop trolley equipped with 7 drawers and a comprehensive 263-piece tool set, designed for organized and accessible tool storage.

2. ముఖ్యమైన భద్రతా సమాచారం

ఉత్పత్తికి గాయం మరియు నష్టాన్ని నివారించడానికి క్రింది భద్రతా మార్గదర్శకాలను ఎల్లప్పుడూ పాటించండి:

• వీల్ లాక్స్: Always engage the wheel locks when the trolley is stationary to prevent unintended movement.
• లోడ్ సామర్థ్యం: Do not exceed the maximum load capacity of 450 kg (992 lbs). Overloading can compromise stability and cause damage.
• అసెంబ్లీ: If any partial assembly is required, follow the manufacturer's instructions carefully to ensure all components are securely fastened.
• డ్రాయర్ భద్రత: Keep hands and fingers clear of drawers when opening and closing to avoid pinching or crushing injuries. Close drawers completely after use.
• సురక్షిత నిల్వ: Store the trolley in a secure location. Utilize the integrated lock to protect your tools from unauthorized access or theft.
• స్థిరత్వం: Avoid opening multiple drawers simultaneously, especially top-heavy ones, as this can cause the trolley to tip over.

3. ఉత్పత్తి ముగిసిందిview

The Scheppach TW1000 workshop trolley is designed for efficient tool organization and mobility. It features a sturdy metal construction, 7 smooth-running drawers, and a large top storage area.

Figure 3.1: Scheppach TW1000 Workshop Trolley in use, showing organized tools in drawers and on the top surface.

ముఖ్య లక్షణాలు:

• 7 smooth-running drawers for organized storage.
• Large top storage area with additional cut-outs for frequently used items.
• Four large, smooth-running wheels with locking function for mobility and stability.
• Soft-grip handles for comfortable transport.
• Integrated lock for tool security.
• Robust metal construction with a powder-coated finish.

చిత్రం 3.2: పైగాview of key features including load capacity, lockability, and tool set composition.

4. సెటప్ మరియు ప్రారంభ ఉపయోగం

The Scheppach TW1000 workshop trolley comes largely pre-assembled. Follow these steps for initial setup:

1. అన్‌ప్యాకింగ్: Carefully remove the trolley from its packaging. Inspect for any shipping damage. Report any damage to your retailer immediately.
2. Wheel Installation (if required): The wheels are typically pre-installed. If not, attach the four wheels to the designated mounting points at the bottom of the trolley. Ensure all bolts are tightened securely.
3. స్థానం: Move the trolley to your desired location. Use the soft-grip handles for easier maneuvering.
4. Engage Wheel Locks: Once positioned, press down on the levers of the locking wheels to secure the trolley in place. This prevents accidental movement during use.
5. సాధన సంస్థ: The 263-piece tool set is pre-organized within the drawers. Familiarize yourself with the layout of the tools.

5. ఆపరేటింగ్ సూచనలు

5.1 డ్రాయర్లను ఉపయోగించడం

The trolley features 7 smooth-running drawers. To open a drawer, gently pull the handle. To close, push the drawer firmly until it clicks into place. Ensure drawers are fully closed before moving the trolley.

ముఖ్యమైన: For stability, avoid opening more than one drawer at a time, especially the upper drawers when they are heavily loaded. This can shift the center of gravity and cause the trolley to tip.

5.2 Utilizing the Tool Set

The TW1000 comes with a comprehensive 263-piece tool set, organized in foam inserts within the drawers. Each tool has a designated spot for easy identification and retrieval.

చిత్రం 5.1: ఉదాamples of tools included in the set: hammers, combination wrenches, slotted screwdrivers, and circlip pliers.

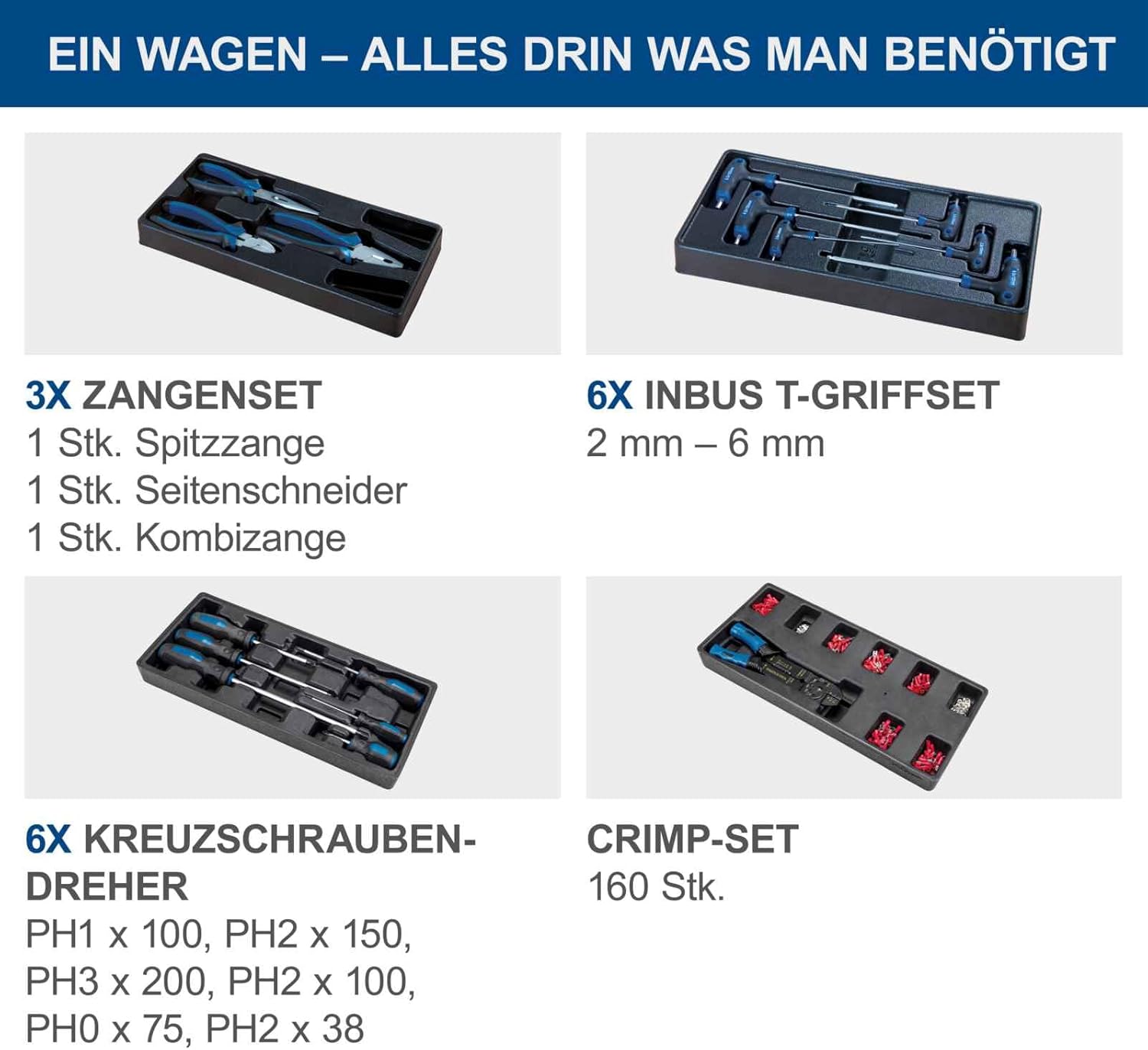

Figure 5.2: Additional tools: pliers set, hex T-handle set, Phillips screwdrivers, and a crimp set.

Figure 5.3: Socket and ratchet accessories: hex sockets, reversible ratchets, extensions, and sliding adapters.

5.3 Top Storage Area

The top surface of the trolley provides a large storage area with cut-outs. This is ideal for keeping frequently used tools, small parts, or work-in-progress items easily accessible without needing to open drawers.

5.4 Locking the Trolley

The trolley is equipped with a key lock to secure your tools. Insert the key into the lock mechanism, turn it to the locked position, and remove the key. Ensure all drawers are fully closed before locking.

6. నిర్వహణ మరియు సంరక్షణ

Regular maintenance ensures the longevity and optimal performance of your Scheppach TW1000 workshop trolley.

• శుభ్రపరచడం: ప్రకటనతో బాహ్య ఉపరితలాలను తుడవండిamp వస్త్రం. పౌడర్-కోటెడ్ ఫినిషింగ్‌ను దెబ్బతీసే రాపిడి క్లీనర్‌లు లేదా ద్రావకాలను నివారించండి.
• డ్రాయర్ స్లయిడ్‌లు: Periodically check the drawer slides for smooth operation. If they become stiff, apply a small amount of silicone spray lubricant.
• చక్రాలు: Inspect the wheels and their locking mechanisms regularly for wear or damage. Keep the wheel casters free of debris.
• సాధన సంరక్షణ: Keep all tools clean and dry. Return them to their designated spots after use to maintain organization and prevent loss.
• ఫాస్టెనర్లు: Periodically check all bolts and fasteners for tightness and re-tighten if necessary.

7. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your workshop trolley.

• Trolley does not move smoothly:
  • Check if wheel locks are engaged.
  • Inspect wheels for debris or damage. Clean or replace as necessary.
• డ్రాయర్లు గట్టిగా ఉంటాయి లేదా తెరవడానికి/మూయడానికి కష్టంగా ఉంటాయి:
  • డ్రాయర్లు ఓవర్‌లోడ్ కాకుండా చూసుకోండి.
  • డ్రాయర్ స్లయిడ్‌లలో అడ్డంకులు ఉన్నాయా అని తనిఖీ చేయండి.
  • Apply a silicone spray lubricant to the drawer slides.
• ట్రాలీ అస్థిరంగా అనిపిస్తుంది:
  • Ensure the trolley is on a level surface.
  • Verify that wheel locks are engaged.
  • Distribute weight evenly within the drawers. Avoid opening multiple drawers at once.

8. సాంకేతిక లక్షణాలు

9. వారంటీ మరియు మద్దతు

Scheppach provides a commitment to quality for its products. For the TW1000 Workshop Trolley, spare parts availability is guaranteed for 7 years within the EU.

For warranty claims, technical support, or spare parts inquiries, please contact your authorized Scheppach dealer or visit the official Scheppach webకస్టమర్ సర్వీస్ సంప్రదింపు సమాచారం కోసం సైట్.
