METRO Site Select METROseal 3 Steel Mobile Post Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

The METRO Site Select METROseal 3 Mobile Post with Microban is a durable steel post designed for use with casters to create mobile shelving units. It features a 1-inch diameter and a height of 73-7/8 inches, providing a robust foundation for various storage applications. The integrated Microban antimicrobial protection helps inhibit the growth of stain and odor-causing bacteria, mold, mildew, and fungi.

ఒక క్లోజప్ view of the dark green, cylindrical steel mobile post, showing its smooth, coated surface.

2. పెట్టెలో ఏముంది

Each package of METRO 74UPK3 Mobile Posts includes:

• 4 x METRO Site Select METROseal 3 Steel Mobile Posts

3 కీ ఫీచర్లు

• METROseal 3 with Microban: This advanced coating provides enhanced protection against corrosion, bacteria, mold, mildew, and fungi that can cause odors, stains, and product degradation.

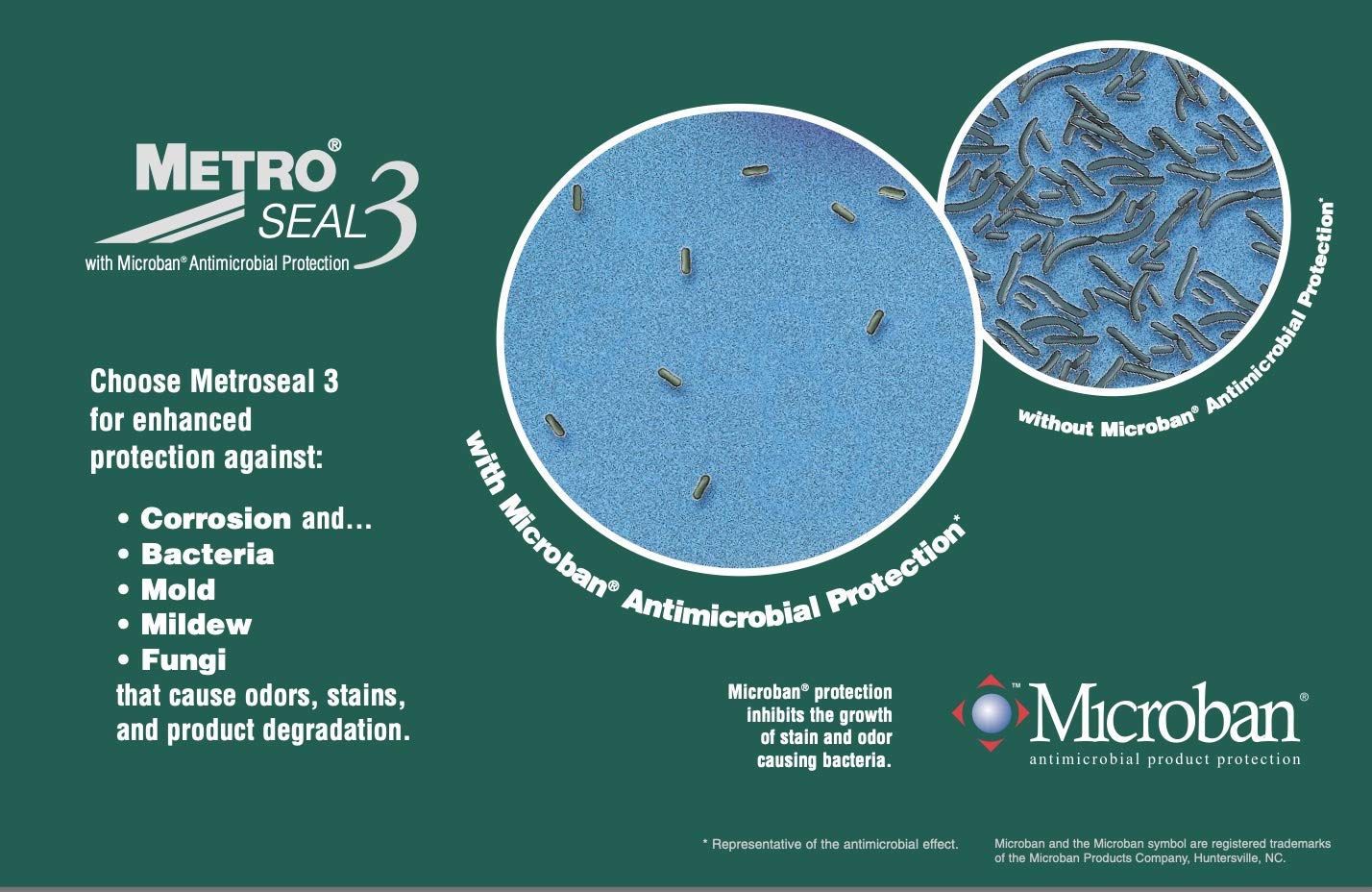

A diagram illustrating the METROseal 3 coating with Microban antimicrobial protection, showing how it inhibits the growth of bacteria, mold, mildew, and fungi compared to a surface without protection.
• మన్నికైన ఉక్కు నిర్మాణం: Built from high-quality steel for long-lasting performance and stability.
• మొబైల్ డిజైన్: Specifically designed for use with casters (sold separately) to create easily movable shelving units.
• Easy Alignment Grooves: Features an easy-to-identify double groove every 8 inches (203mm) along the post, providing a quick and accurate way to align shelves during assembly.

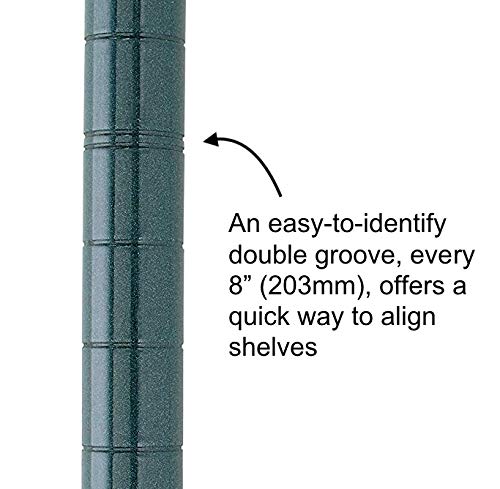

A section of the mobile post highlighting the easy-to-identify double groove, located every 8 inches (203mm), designed for quick and accurate shelf alignment during assembly.

• ప్రామాణిక కొలతలు: Each post measures 1-inch in diameter and 73-7/8 inches in height.

సమావేశమైన view showing the dark green mobile post securely connected to a wire shelving unit, demonstrating how the post integrates into a complete shelving system.

4. సెటప్ సూచనలు

1. భాగాలను సిద్ధం చేయండి: Ensure you have all four mobile posts, the desired shelving units, and appropriate casters (if not already attached to the posts).
2. Attach Casters (if applicable): If your posts do not have pre-installed casters, securely screw or insert the casters into the bottom of each mobile post. Ensure they are tightened to prevent wobbling.
3. పోస్టులు: Stand the four posts upright in the desired location for your shelving unit.
4. Install First Shelf: Determine the desired height for your bottom shelf. Slide the shelf collars onto each post at the chosen height, aligning them with the double grooves for even placement. Then, lower the shelf onto the collars, ensuring it locks securely into place.
5. Install Subsequent Shelves: Repeat the process for additional shelves, using the double grooves on the posts to maintain consistent spacing and alignment.
6. స్థిరత్వాన్ని ధృవీకరించండి: Once all shelves are installed, gently push on the unit to ensure it is stable and all components are securely fastened.

5. Operating Your Mobile Shelving Unit

Once assembled, your mobile shelving unit can be easily moved by pushing or pulling it to the desired location. Ensure the casters are unlocked for movement and locked when the unit needs to remain stationary. Avoid overloading shelves beyond their rated capacity to maintain stability and prevent damage.

6. నిర్వహణ

• శుభ్రపరచడం: Wipe down the posts regularly with a damp cloth and mild detergent. The METROseal 3 coating with Microban is designed to resist microbial growth, but regular cleaning helps maintain hygiene and appearance. Avoid abrasive cleaners or harsh chemicals that could damage the coating.
• తనిఖీ: Periodically check all connections, especially where shelves attach to the posts and where casters attach to the posts, to ensure they remain tight and secure.
• కాస్టర్ కేర్: If using casters, keep them free of debris and lubricate them periodically if they become difficult to roll.

7. ట్రబుల్షూటింగ్

• యూనిట్ చంచలంగా ఉంది:
  • Ensure all shelves are properly seated on their collars and that the collars are securely fastened to the posts.
  • Verify that casters (if used) are fully tightened and functioning correctly.
  • యూనిట్ సమతల ఉపరితలంపై ఉందో లేదో తనిఖీ చేయండి.
• తప్పిపోయిన భాగాలు:
  • If any parts, such as leveling feet or top caps, are expected but missing, please contact METRO customer support or your retailer immediately.
• Difficulty Moving Unit:
  • Ensure caster locks are disengaged.
  • Check casters for debris or damage. Clean or replace as necessary.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For specific warranty information, please refer to the documentation provided with your purchase or visit the official METRO website. For product support, technical assistance, or to inquire about replacement parts, please contact InterMetro Industries directly or visit the METRO Store on Amazon.
