హోమ్‌టైమ్ C1 ప్రో డిజిటల్ అలారం క్లాక్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Homtime C1 Pro Digital Alarm Clock. Please read this manual thoroughly before using the product to ensure proper functionality and longevity.

ప్యాకేజీ విషయాలు

• 1 x Homtime C1 Pro Main Unit
• 1 x పవర్ అడాప్టర్
• 1 x వినియోగదారు మాన్యువల్

కీ ఫీచర్లు

• Adjustable LED Brightness & 25° Tilt Design for Easy Time Checking
• Dual USB Charging Ports with Over-Current, Over-Voltage, and Short-Circuit Protection
• Integrated Bluetooth Speaker for Audio Playback
• TF Card Support for Custom Alarm Sounds
• Built-in Thermometer Function (Celsius/Fahrenheit Switchable)
• Battery Backup for Time and Alarm Settings
• Snooze Mode Functionality

సెటప్

1. పవర్ కనెక్షన్

Connect the provided power adapter to the DC 5V port on the back of the alarm clock and plug it into a wall outlet. The display will illuminate.

చిత్రం: వెనుక view of the Homtime C1 Pro, highlighting the DC 5V power input and the battery compartment for backup.

2. Battery Backup Installation (Optional)

For battery backup of time and thermometer settings during power outages, install three AAA batteries (not included) into the battery compartment on the bottom of the unit. This ensures settings are retained even if the main power is disconnected.

3. Setting Time and Alarm

Locate the 'LOCK/UNLOCK' switch on the back of the unit. Set it to 'UNLOCK'.

Gently rotate the large button on the top of the alarm clock to adjust the time. Press the alarm button (small button next to the large one) to set the alarm time. Rotate the large button again to set the desired alarm time.

Once set, switch the 'LOCK/UNLOCK' switch back to 'LOCK' to prevent accidental changes.

Video: Demonstrates how to set the time and alarm on the Homtime C1 Pro using the top rotary button and alarm set button.

4 ఉష్ణోగ్రత యూనిట్ ఎంపిక

On the bottom of the unit, locate a small hole labeled 'C/F'. Use a paper clip or a similar pointed object to press the button inside this hole to switch between Celsius (°C) and Fahrenheit (°F) temperature display.

ఆపరేటింగ్ సూచనలు

1. డిస్ప్లే ప్రకాశాన్ని సర్దుబాటు చేయడం

The Homtime C1 Pro features a large, easy-to-read LCD display with adjustable brightness. Simply tap the large rotary button on the top of the unit to cycle through three brightness levels (20%, 60%, 100%) and an 'off' setting. This allows you to customize the display visibility for day or night use without disturbing your sleep.

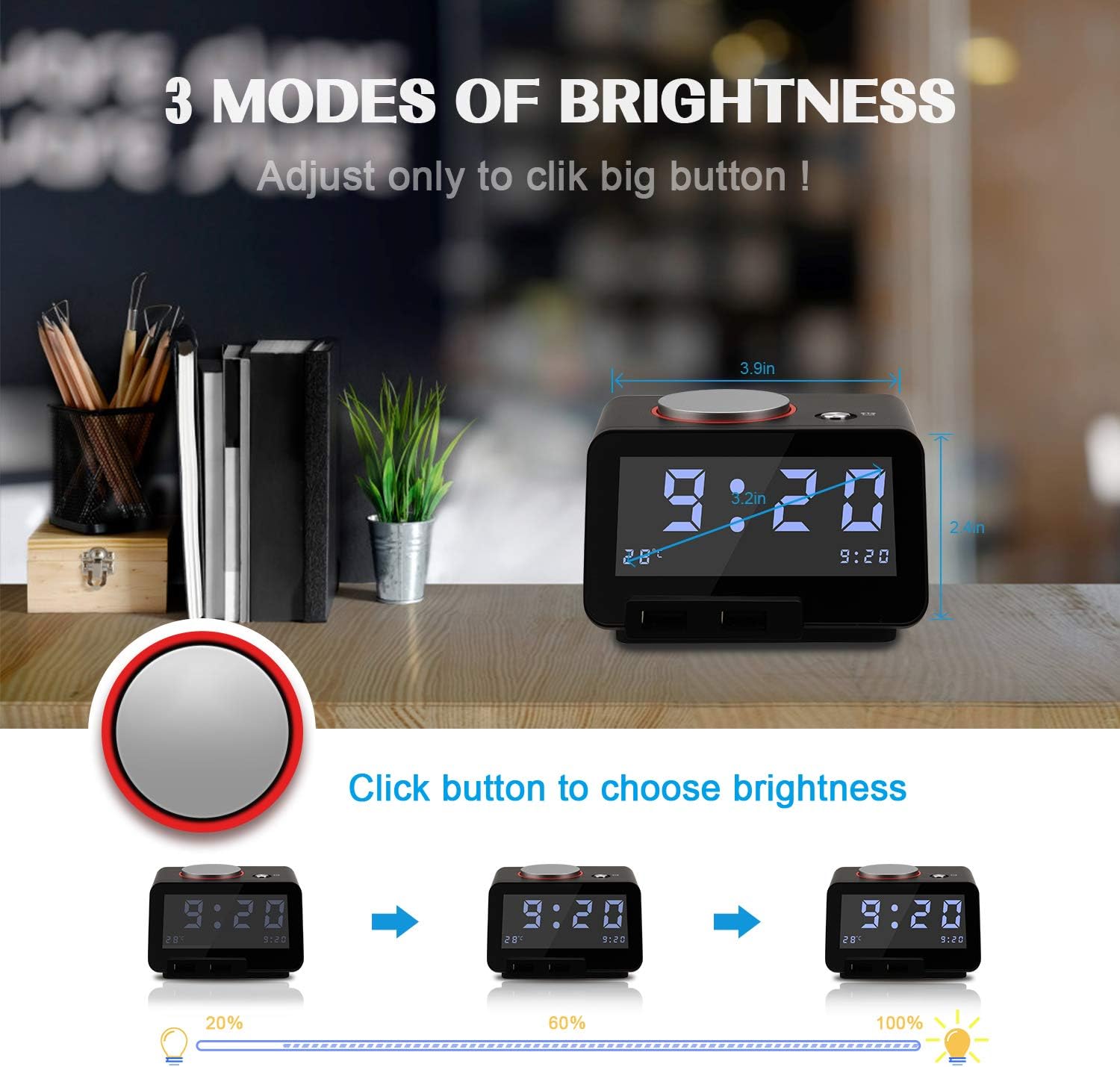

Image: Illustrates the three distinct brightness levels of the LCD display, adjustable by pressing the top button.

2. Alarm Function and Snooze

When the alarm sounds, tap the large rotary button on the top to activate the snooze function. The alarm will pause for 9 minutes and then reactivate. To completely silence the alarm, press and hold the large rotary button for 3 seconds.

The alarm features a gentle wake-up sound that starts softly and gradually increases in volume. You can adjust the maximum alarm volume by pressing and rotating the large button while the alarm is sounding.

3. బ్లూటూత్ స్పీకర్ ఫంక్షన్

The C1 Pro can function as a Bluetooth speaker. Enable Bluetooth on your mobile device and search for "C1pro" in the list of available devices. Select "C1pro" to pair. Once connected, you can play audio from your device through the alarm clock's speaker.

Image: A user connecting their smartphone to the Homtime C1 Pro via Bluetooth to play music.

4. TF కార్డ్ ప్లేబ్యాక్

Insert a Micro SD (TF) card loaded with your favorite MP3 audio files into the TF card slot on the back of the unit. The alarm clock can play these songs, allowing you to customize your wake-up sound or enjoy music directly from the card.

5. Dual USB Charging Ports

The alarm clock is equipped with two USB charging ports on the front, providing a total current output of 5V-3A. These ports feature over-current, over-voltage, and short-circuit protection. You can charge two USB-powered devices simultaneously, such as smartphones, tablets, or other gadgets.

చిత్రం: ముందు భాగం view of the Homtime C1 Pro, clearly showing the two convenient USB charging ports.

నిర్వహణ

క్లీనింగ్

To clean the unit, wipe it with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish. Ensure the unit is unplugged before cleaning.

నిల్వ

If storing the alarm clock for an extended period, remove the backup batteries to prevent leakage and damage. Store in a cool, dry place.

ట్రబుల్షూటింగ్

Display is blank or not lighting up:

• Ensure the power adapter is securely plugged into both the unit and a working wall outlet.
• Check if the brightness setting is set to 'off'. Tap the large rotary button to increase brightness.
• మరొక పరికరాన్ని ప్లగ్ చేయడం ద్వారా పవర్ అవుట్‌లెట్ పనిచేస్తుందని ధృవీకరించండి.

అలారం మోగడం లేదు:

• Ensure the alarm is set correctly and the alarm icon is visible on the display.
• Check the alarm volume level.

బ్లూటూత్ జత చేసే సమస్యలు:

• Ensure Bluetooth is enabled on your mobile device and the C1 Pro is within range.
• Forget "C1pro" from your device's Bluetooth settings and attempt to re-pair.
• Restart both the alarm clock (by unplugging and replugging) and your mobile device.

USB charging not working:

• Ensure the alarm clock is powered on.
• Check the USB cable for damage and ensure it is properly connected to both the alarm clock and your device.
• వేరే USB పోర్ట్ లేదా కేబుల్‌ని ప్రయత్నించండి.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Homtime webసైట్. ఏవైనా వారంటీ క్లెయిమ్‌లకు కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.
