AWOW మినీ స్మార్ట్ సాకెట్ వైఫై అవుట్‌లెట్ X5P యూజర్ మాన్యువల్

1. పరిచయం

Thank you for choosing the AWOW Mini Smart Socket WiFi Outlet. This device allows you to control your home electronics from anywhere using your smartphone or voice commands. This manual provides detailed instructions for setup, operation, and troubleshooting to ensure optimal performance and safety.

Image 1.1: Four AWOW Mini Smart Sockets, showcasing the compact design and standard US plug type.

2. భద్రతా సమాచారం

Please read and follow all safety instructions carefully before using the AWOW Mini Smart Socket.

• ఈ పరికరం ఇండోర్ ఉపయోగం కోసం మాత్రమే రూపొందించబడింది.
• Do not exceed the maximum load of 10A (120V AC). Overloading may cause damage to the device or connected appliances.
• Ensure the smart socket is securely plugged into a wall outlet.
• పరికరాన్ని విడదీయవద్దు లేదా సవరించవద్దు.
• Keep away from water, moisture, and high temperatures.
• The product is ETL and FCC certified and constructed with 5VA fire-retardant material, offering protection against overheating, overcurrent, and overvoltage.
• A secure 2.4 GHz Wi-Fi network is required for operation. This device does not support 5 GHz Wi-Fi networks.

3. ప్యాకేజీ విషయాలు

ప్యాకేజీ సాధారణంగా వీటిని కలిగి ఉంటుంది:

• 4 x AWOW Mini Smart Socket WiFi Outlet (Model X5P)
• 1 x యూజర్ మాన్యువల్ (ఈ పత్రం)

4. ఉత్పత్తి లక్షణాలు

The AWOW Mini Smart Socket offers a range of convenient features:

• రిమోట్ కంట్రోల్: Control connected devices from anywhere using the Smart Life app on your smartphone.
• వాయిస్ నియంత్రణ: హ్యాండ్స్-ఫ్రీ ఆపరేషన్ కోసం Amazon Alexa మరియు Google Assistantతో అనుకూలమైనది.
• షెడ్యూలింగ్ & టైమర్లు: Set custom schedules and countdown timers to automatically turn devices on or off.
• హబ్ అవసరం లేదు: Connects directly to your existing 2.4 GHz Wi-Fi network.
• కాంపాక్ట్ డిజైన్: Minimizes obstruction of adjacent outlets.
• పరికర భాగస్వామ్యం: Share control of your smart sockets with family members through the app.

Image 4.1: Diagram illustrating the smart plug's capabilities, including remote control, device sharing, and compatibility with voice assistants.

5. సెటప్ గైడ్

Follow these steps to set up your AWOW Mini Smart Socket:

5.1. స్మార్ట్ లైఫ్ యాప్‌ను డౌన్‌లోడ్ చేయండి

1. Scan the QR code provided in the product packaging or search for "Smart Life" in the Apple App Store (for iOS) or Google Play Store (for Android).
2. యాప్‌ను డౌన్‌లోడ్ చేసి, ఇన్‌స్టాల్ చేయండి.

5.2. Register and Log In

1. స్మార్ట్ లైఫ్ యాప్‌ను తెరవండి.
2. If you are a new user, tap "Register" and follow the on-screen instructions to create an account.
3. If you already have an account, log in with your credentials.

5.3. పరికరాన్ని జోడించండి

1. Plug the AWOW Mini Smart Socket into a wall outlet. The indicator light on the plug should blink rapidly. If it does not, press and hold the power button on the plug for 5-10 seconds until it blinks rapidly.
2. Open the Smart Life app, tap the "+" icon in the top right corner, and select "Electrical Outlet" or "Socket (Wi-Fi)" from the device list.
3. Confirm that the indicator light on the smart socket is blinking rapidly.
4. Enter your 2.4 GHz Wi-Fi network name and password. Ensure your smartphone is connected to the same 2.4 GHz Wi-Fi network.
5. Tap "Confirm" and wait for the app to connect to the device. This process may take a few moments.
6. Once connected, you can rename the device for easier identification (e.g., "Living Room Lamp").

Image 5.1: A smartphone displaying the Smart Life app's 'Connecting' screen, showing the device pairing process with a smart plug.

6. ఆపరేటింగ్ సూచనలు

6.1. Remote Control via Smart Life App

After successful setup, you can control your smart socket from anywhere:

• Open the Smart Life app and tap on the device name.
• Use the on/off toggle button to control the power to the connected appliance.

6.2. Voice Control with Amazon Alexa or Google Assistant

To enable voice control, you need to link your Smart Life account with your Amazon Alexa or Google Assistant account.

1. Amazon Alexa కోసం: Open the Alexa app, go to "Skills & Games," search for "Smart Life," enable the skill, and link your Smart Life account.
2. Google అసిస్టెంట్ కోసం: Open the Google Home app, go to "Set up device" > "Works with Google," search for "Smart Life," and link your Smart Life account.
3. లింక్ చేసిన తర్వాత, మీరు ఈ క్రింది వాయిస్ ఆదేశాలను ఉపయోగించవచ్చు:
   • "అలెక్సా, [పరికర పేరు] ఆన్ చేయండి"
   • "హే గూగుల్, [డివైస్ నేమ్] ఆఫ్ చేయి"
   • "Alexa, set [Device Name] to 50%" (if applicable for dimmable devices, though this plug is on/off only)

Image 6.1: AWOW smart plugs integrated with Google Home and Amazon Echo devices, demonstrating seamless voice control capabilities.

Image 6.2: A smart plug in a wall outlet, with a speech bubble indicating an Alexa voice command: "Alexa, start my day."

6.3. షెడ్యూలింగ్ మరియు టైమర్లు

The Smart Life app allows you to create schedules and set timers for your smart socket:

• షెడ్యూల్‌లు: In the device control interface, tap "Schedule" or "Timer" to set specific times for the smart socket to turn on or off daily or on selected days of the week.
• కౌంట్‌డౌన్ టైమర్: Set a countdown timer for the smart socket to turn off after a specified duration.

6.4. పరికర భాగస్వామ్యం

You can share control of your smart sockets with other Smart Life app users:

• In the device settings within the Smart Life app, look for the "Share Device" option.
• Enter the Smart Life account (email or phone number) of the person you wish to share with.

7. నిర్వహణ

To ensure the longevity and proper functioning of your AWOW Mini Smart Socket:

• శుభ్రపరిచే ముందు వాల్ అవుట్‌లెట్ నుండి పరికరాన్ని అన్‌ప్లగ్ చేయండి.
• Wipe the exterior with a dry, soft cloth.
• Do not use liquid cleaners or immerse the device in water.
• పరికరాన్ని ఎక్కువసేపు తీవ్రమైన ఉష్ణోగ్రతలకు లేదా ప్రత్యక్ష సూర్యకాంతికి గురిచేయకుండా ఉండండి.

8. ట్రబుల్షూటింగ్

If you encounter issues with your AWOW Mini Smart Socket, refer to the following common problems and solutions:

• Device cannot connect to Wi-Fi:
  • Ensure your Wi-Fi network is 2.4 GHz. The smart socket does not support 5 GHz networks.
  • ఖచ్చితత్వం కోసం మీ Wi-Fi పాస్‌వర్డ్‌ను తనిఖీ చేయండి.
  • Make sure the smart socket is within range of your Wi-Fi router.
  • Try resetting the smart socket by unplugging it for 10 seconds and plugging it back in, then attempt pairing again.
  • If the indicator light is not blinking rapidly, press and hold the power button on the plug for 5-10 seconds to enter pairing mode.
• Device is unresponsive in the app:
  • మీ ఇంటర్నెట్ కనెక్షన్‌ని తనిఖీ చేయండి.
  • Ensure the smart socket is powered on.
  • Try restarting the Smart Life app.
• Voice control is not working:
  • Verify that your Smart Life account is correctly linked to Amazon Alexa or Google Assistant.
  • Ensure the device name used in voice commands matches the name set in the Smart Life app.
  • Check if your voice assistant device (e.g., Echo, Google Home) is online and functioning correctly.

9. స్పెసిఫికేషన్లు

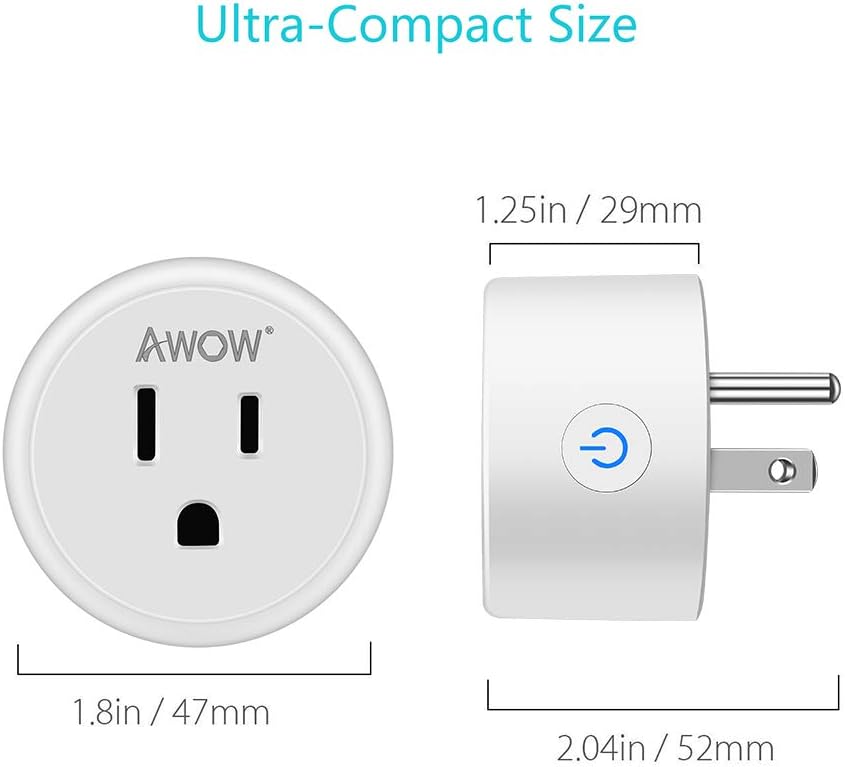

Image 9.1: Detailed dimensions of the AWOW Mini Smart Socket, highlighting its ultra-compact size.

10. వారంటీ మరియు మద్దతు

AWOW provides a 2-year buyer warranty for this product, covering manufacturing defects and malfunctions under normal use. Additionally, lifetime technical support is available to assist you with any product-related inquiries or issues.

For support, please refer to the contact information provided with your purchase or visit the official AWOW webసైట్.
