పరిచయం
This manual provides essential information for the proper installation, operation, and maintenance of your new Gladiator 12 Volt 45 Amp Alternator. Designed to meet or exceed OEM specifications, this alternator is a reliable replacement part for a range of Toyota vehicles, ensuring optimal performance of your vehicle's electrical system. Please read this manual thoroughly before installation to ensure safety and proper function.
భద్రతా సమాచారం
Always prioritize safety when working with automotive electrical components. Failure to follow these safety guidelines may result in personal injury or damage to the vehicle.
- Disconnect the vehicle's battery before beginning any work on the electrical system to prevent electrical shock or short circuits.
- భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు సహా తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.
- Ensure the vehicle is stable and properly supported if working underneath it.
- Avoid contact with hot engine components.
- ఏదైనా దశ గురించి మీకు ఖచ్చితంగా తెలియకపోతే, అర్హత కలిగిన ఆటోమోటివ్ టెక్నీషియన్ను సంప్రదించండి.
ఉత్పత్తి ముగిసిందిview
The Gladiator 12 Volt 45 Amp Alternator is a high-quality replacement unit engineered for durability and performance. It is 100% computer load tested to ensure reliability and is designed to provide consistent power to your vehicle's electrical system and recharge the battery.
మూర్తి 1: ముందు వైపు view of the Gladiator 12 Volt 45 Amp Alternator, showing the main housing and electrical connections.

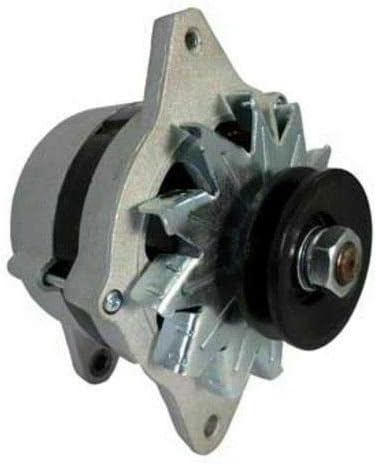

మూర్తి 2: Pulley-side view of the Gladiator 12 Volt 45 Amp Alternator, highlighting the cooling fan and pulley assembly.
స్పెసిఫికేషన్లు
| గుణం | విలువ |
|---|---|
| బ్రాండ్ | గ్లాడియేటర్ |
| మోడల్ సంఖ్యలు | 27020-24063, 27020-25010, 27020-26021 |
| వాల్యూమ్tage | 12 వోల్ట్లు |
| Ampఎరేజ్ | 45 Amps |
| వస్తువు బరువు | 10.25 పౌండ్లు |
| ఉత్పత్తి కొలతలు | 6.5 x 7 x 5.5 అంగుళాలు |
| అనుకూలత | Toyota Carina, Celica, Corolla, Corona, Pickup (L4 1.6L-2.0L, 1969-1974) |
సెటప్ మరియు ఇన్స్టాలేషన్
Installation of an alternator requires mechanical aptitude and basic tools. If you are not comfortable performing this procedure, it is recommended to seek professional assistance.
అవసరమైన సాధనాలు:
- సాకెట్/రెంచ్ సెట్
- బ్యాటరీ టెర్మినల్ రెంచ్
- Serpentine Belt Tool (if applicable)
- Wire Brush (for cleaning terminals)
ఇన్స్టాలేషన్ దశలు:
- బ్యాటరీని డిస్కనెక్ట్ చేయండి: Using a battery terminal wrench, disconnect the negative (-) battery cable first, followed by the positive (+) cable.
- Locate Alternator: Identify the old alternator in your vehicle's engine bay.
- Remove Belt: Loosen the tensioner pulley and remove the serpentine belt from the alternator pulley.
- వైరింగ్ను డిస్కనెక్ట్ చేయండి: Carefully disconnect all electrical connections from the old alternator. Note their positions for reinstallation.
- మౌంటు బోల్ట్లను తీసివేయండి: Unbolt the old alternator from its mounting brackets. It may be heavy, so support it to prevent dropping.
- Install New Alternator: Position the new Gladiator alternator into the mounting brackets and secure it with the bolts. Do not fully tighten yet.
- వైరింగ్ను తిరిగి కనెక్ట్ చేయండి: Reattach all electrical connections to the new alternator, ensuring they are secure and in their correct positions.
- బెల్ట్ను తిరిగి ఇన్స్టాల్ చేయండి: Route the serpentine belt correctly around all pulleys, including the alternator pulley. Use the tensioner tool to apply proper tension.
- బోల్ట్లను బిగించండి: Fully tighten all mounting bolts for the alternator.
- బ్యాటరీని మళ్లీ కనెక్ట్ చేయండి: Reconnect the positive (+) battery cable first, then the negative (-) cable.
- పరీక్షా వ్యవస్థ: Start the vehicle and check the dashboard warning lights. Ensure the battery light is off and the vehicle's electrical system is functioning correctly.
ఆపరేటింగ్ ప్రిన్సిపల్స్
The alternator is a key component of your vehicle's charging system. When the engine is running, the serpentine belt spins the alternator's pulley, which in turn rotates the rotor inside the alternator. This rotation generates an alternating current (AC) through electromagnetic induction. A rectifier within the alternator converts this AC into direct current (DC), which is then used to power the vehicle's electrical components (lights, radio, etc.) and recharge the 12-volt battery. The voltage regulator ensures a consistent output voltage, preventing overcharging or undercharging of the battery.
నిర్వహణ
While alternators are generally low-maintenance components, periodic checks can help ensure their longevity and proper function.
- బెల్ట్ తనిఖీ: Regularly check the serpentine belt for cracks, fraying, or excessive wear. Ensure it has proper tension. A loose or worn belt can lead to insufficient charging.
- వైరింగ్ కనెక్షన్లు: Periodically inspect all electrical connections to the alternator for corrosion or looseness. Clean any corroded terminals with a wire brush.
- బ్యాటరీ ఆరోగ్యం: A weak or failing battery can put undue strain on the alternator. Ensure your battery is in good condition and holds a charge properly.
- ఓవర్లోడింగ్ను నివారించండి: Minimize the use of excessive electrical accessories when the engine is off or at low RPMs to reduce strain on the charging system.
ట్రబుల్షూటింగ్
If you experience issues with your vehicle's charging system, consider the following common problems and solutions:
| లక్షణం | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| బ్యాటరీ హెచ్చరిక లైట్ ఆన్ చేయబడింది | Failing alternator, loose/worn belt, faulty wiring, dead battery | Check belt tension, inspect wiring, test battery and alternator output. Replace faulty component. |
| Dim Headlights/Interior Lights | Insufficient charging, weak battery | Test charging system output. Ensure alternator is producing adequate voltage. Check battery health. |
| బ్యాటరీ త్వరగా ఖాళీ అవుతుంది | Alternator not charging, parasitic drain, faulty battery | Verify alternator output. Check for electrical components drawing power when vehicle is off. Test battery. |
| Squealing Noise from Engine | Loose or worn serpentine belt, failing alternator bearing | Inspect and adjust belt tension or replace belt. If noise persists, alternator bearing may be failing. |
ట్రబుల్షూటింగ్ దశలు సమస్యను పరిష్కరించకపోతే, సర్టిఫైడ్ ఆటోమోటివ్ టెక్నీషియన్ను సంప్రదించమని సిఫార్సు చేయబడింది.
వారంటీ సమాచారం
This Gladiator Alternator comes with a ఒక సంవత్సరం వారంటీ from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications. Please retain your proof of purchase for warranty claims.
మద్దతు
For technical assistance, warranty claims, or further inquiries regarding your Gladiator Alternator, please contact Gladiator customer support through the retailer where the product was purchased or visit the official Gladiator webసంప్రదింపు సమాచారం కోసం సైట్.
For additional resources and general automotive repair information, you may find helpful guides and forums online. Always refer to your vehicle's specific service manual for detailed instructions relevant to your car model.
