కార్డివారి లిసా హైడ్రోనిక్ టవల్ వార్మర్ యూజర్ మాన్యువల్

1. ఉత్పత్తి ముగిసిందిview

The Cordivari Lisa 22 is a hydronic towel warmer designed to provide warmth and dry towels efficiently. Characterized by its fresh design and innovative heating elements, this radiator is suitable for use with US standard pipes and central heating systems. It is finished with ecological epoxy powders for durability and a clean aesthetic.

చిత్రం 1.1: ముందు view of the Cordivari Lisa 22 Hydronic Towel Warmer, showcasing its white, straight design with multiple horizontal bars.

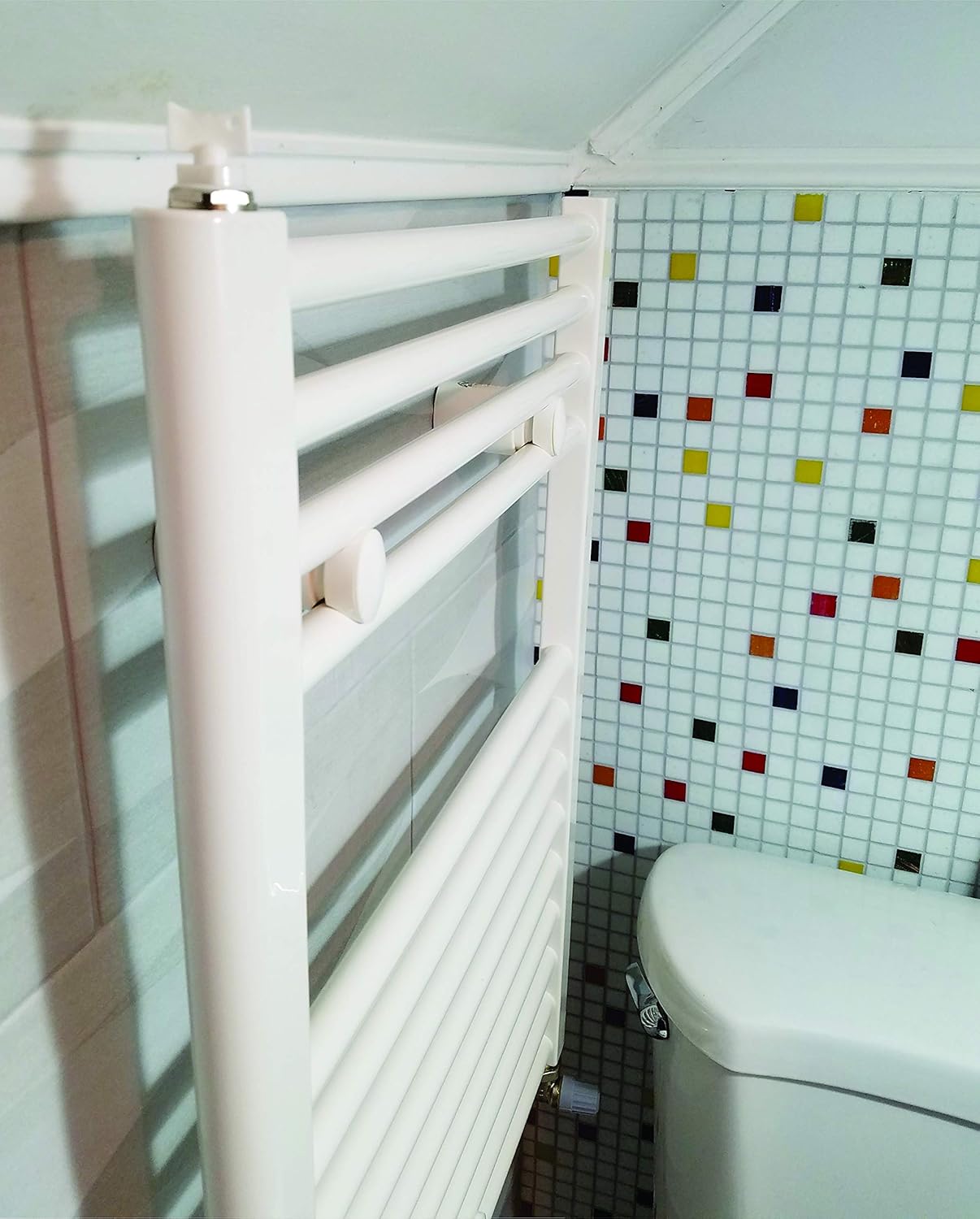

Image 1.2: The Cordivari Lisa 22 Towel Warmer installed in a bathroom, demonstrating its integration into a typical bathroom setting next to a toilet and tiled wall.

2. ముఖ్యమైన భద్రతా సమాచారం

Please read and understand all safety instructions before installing or operating the towel warmer. Failure to follow these instructions may result in property damage, injury, or death.

• వేడి ఉపరితలాలు: The surface of the towel warmer will become hot during operation. Avoid direct contact with the hot surfaces to prevent burns. Keep children and pets away from the unit.
• నీటి లీకేజీలు: Ensure all connections are properly sealed to prevent water leaks. Regularly inspect the unit for any signs of leakage.
• సంస్థాపన: Installation must be performed by a qualified professional in accordance with local building and plumbing codes.
• విద్యుత్ భద్రత: If the unit includes any electrical components (e.g., for a dual energy system), ensure all electrical connections are made by a licensed electrician and comply with local electrical codes. This model is hydronic and does not require electrical connection for heating.
• Pressure and Temperature: Do not exceed the maximum operating temperature of 230 °F (110 °C) or maximum pressure of 130 PSI (9 Bar).
• వెంటిలేషన్: Ensure adequate ventilation in the installation area.

3. ప్యాకేజీ విషయాలు

Carefully unpack the box and ensure all items are present and undamaged. If any items are missing or damaged, contact your supplier immediately.

• Cordivari Lisa 22 Hydronic Towel Warmer
• Thermostatic Valve Kit
• మౌంటు బ్రాకెట్లు
• గాలి మార్గము
• షడ్భుజ సాధనం
• Plugs and Screws for mounting (suitable for either compact or hollow brick walls)
• ఇన్‌స్టాలేషన్ సూచనల మాన్యువల్

Image 3.1: Components of the thermostatic valve kit, including the valve body, control knob, and connection fittings.

Image 3.2: Mounting brackets and various screws and plugs provided for secure installation of the towel warmer.

4. ఇన్స్టాలేషన్ గైడ్

The Cordivari Lisa 22 towel warmer is designed for easy connection to US standard pipes and central heating systems. Professional installation is recommended.

4.1 ప్రీ-ఇన్‌స్టాలేషన్ తనిఖీలు

• Verify that the wall where the radiator will be installed is structurally sound and can support the weight of the unit when filled with water.
• Ensure that the pipe centers match the radiator's specifications (20 inches / 500 mm).
• Confirm that all necessary tools and safety equipment are available.

4.2 రేడియేటర్‌ను అమర్చడం

1. మార్కింగ్: Using the provided template or measurements, mark the drilling points on the wall for the mounting brackets. Ensure the marks are level and correctly spaced.
2. డ్రిల్లింగ్: Drill holes at the marked points using an appropriate drill bit for your wall type. Insert the wall plugs.
3. Attaching Brackets: Secure the mounting brackets to the wall using the provided screws. Ensure they are firmly attached.
4. Positioning Radiator: Carefully lift the towel warmer and position it onto the mounted brackets. Ensure it is securely seated.

4.3 ప్లంబింగ్ కనెక్షన్లు

1. Connect Valves: Attach the thermostatic valve and return valve to the radiator's connections (n° 2 x 1/2” gas). Use appropriate sealant or PTFE tape to ensure watertight connections.
2. సిస్టమ్‌కి కనెక్ట్ చేయండి: Connect the radiator's valves to your central heating system's supply and return pipes.
3. ఎయిర్ వెంట్: Install the air vent (n° 1 x 1/2” gas) at the top of the radiator. This allows for bleeding air from the system.
4. లీక్ టెస్ట్: Once all connections are made, slowly fill the heating system and check for any leaks at all connection points. Tighten as necessary.

Image 4.1: Technical drawing illustrating the dimensions and connection points of the Cordivari Lisa 22 radiator, crucial for accurate installation.

5. ఆపరేటింగ్ సూచనలు

The Cordivari Lisa 22 Hydronic Towel Warmer operates as part of your central heating system. The thermostatic valve allows for control over the heat output.

• Thermostatic Valve: The thermostatic valve automatically regulates the flow of hot water through the radiator to maintain a desired room temperature. Turn the knob to adjust the setting. Higher numbers typically indicate higher heat output.
• Drying Towels: Hang towels evenly over the bars of the warmer. Do not overload the unit, as this can impede heat distribution and drying efficiency.
• Bleeding Air: If the radiator is not heating evenly (cold spots), it may have air trapped inside. Use the air vent key to slowly open the air vent until water begins to escape, then close it. Perform this operation when the heating system is cold.

6. నిర్వహణ

Regular maintenance will ensure the longevity and efficient operation of your Cordivari Lisa 22 towel warmer.

• శుభ్రపరచడం: Clean the surface of the radiator regularly with a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the ecological epoxy powder finish.
• తనిఖీలు: Periodically check all pipe connections for any signs of leaks or corrosion. Address any issues promptly.
• సిస్టమ్ ఒత్తిడి: Ensure your central heating system maintains the correct operating pressure as recommended by your heating system manufacturer.
• రక్తస్రావం: Bleed the radiator annually, or whenever cold spots are noticed, to remove trapped air and ensure optimal heating performance.

7. ట్రబుల్షూటింగ్

This section provides solutions to common issues you might encounter with your towel warmer.

• Radiator Not Heating:
  • Check if the central heating system is operational.
  • Ensure the thermostatic valve is open and set to a desired temperature.
  • Bleed the radiator to remove any trapped air.
  • Verify that the isolation valves (if present) on the pipes leading to the radiator are fully open.
• Cold Spots on Radiator:
  • This usually indicates trapped air. Bleed the radiator as described in the Operating Instructions.
• నీటి లీకేజీలు:
  • Immediately turn off the water supply to the radiator if possible.
  • Identify the source of the leak (e.g., pipe connection, valve).
  • Tighten connections or replace faulty components. If unsure, contact a qualified plumber.
• తక్కువ ఉష్ణ ఉత్పత్తి:
  • Ensure the thermostatic valve is set to a higher temperature.
  • Check the overall pressure of your central heating system.
  • Bleed the radiator for air.

8. సాంకేతిక లక్షణాలు

Image 8.1: Detailed technical specifications table for various Lisa 22 radiator configurations, including dimensions, water content, and thermal output.

9. వారంటీ మరియు మద్దతు

Cordivari products are manufactured to high standards and are backed by a manufacturer's warranty. Specific warranty terms and conditions may vary by region and purchase date. Please refer to the warranty card included with your product or visit the official Cordivari webవివరణాత్మక సమాచారం కోసం సైట్.

9.1 కస్టమర్ మద్దతు

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Cordivari customer support or your authorized dealer. Have your product model number and purchase date ready when contacting support.

మీరు సాధారణంగా తయారీదారు అధికారిక వెబ్‌సైట్‌లో సంప్రదింపు సమాచారాన్ని కనుగొనవచ్చు webసైట్: www.cordivari.it
