పరిచయం
The ChunHee Smart Dog Doorbell System CB09 is designed to facilitate effective communication between pets and their owners, particularly for potty training. This wireless system allows your dog to signal when they need to go outside or wish to come back in, reducing instances of scratching doors or barking. The system includes a plug-in receiver and multiple touch-sensitive transmitters.
Image: The ChunHee Dog Doorbell System, designed to improve communication between pets and owners.
ప్యాకేజీ విషయాలు
- 1 x Plug-in Receiver
- 3 x Touch-Sensitive Transmitters (Dog Buttons)
- Adhesive Pads (for mounting transmitters)
- Mini Screwdriver (for battery access)
- వినియోగదారు మాన్యువల్

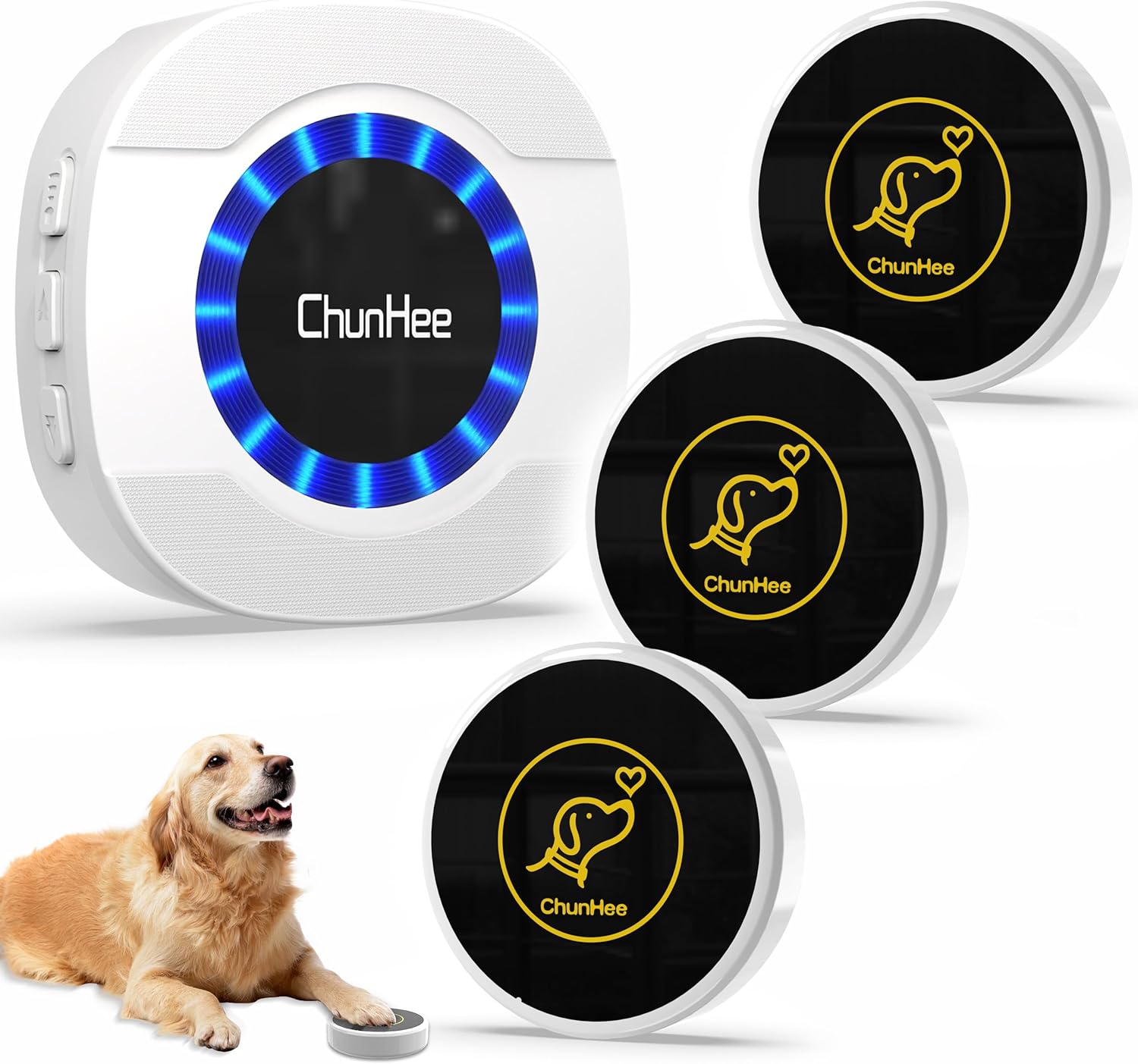

చిత్రం: పైగాview of the ChunHee Smart Dog Doorbell System components.
సెటప్ సూచనలు
- రిసీవర్ను ప్లగ్ ఇన్ చేయండి: Insert the plug-in receiver into a standard wall outlet in a central location where the sound can be easily heard throughout your home. The receiver will light up, indicating it is ready.
- Prepare Transmitters:
- Attach the provided adhesive pads to the back of each transmitter. Ensure the screw access points are not covered by the adhesive for future battery replacement.
- Decide on placement for each transmitter: one for "outside" (e.g., near the door leading to the yard) and another for "come back" (e.g., inside the door).
- Pairing Transmitters with Receiver:
Follow these steps to pair each transmitter:
Image: Visual guide for pairing the doorbell system.
- దశ 1: Plug the receiver into a socket.
- దశ 2: Press the "Forward" or "Backward" button on the receiver to select your desired melody.
- దశ 3: Press and hold the "Volume" button on the receiver for 3 seconds until it makes a "Ding" sound and the receiver indicator flashes.
- దశ 4: Touch the transmitter quickly within 8 seconds. The receiver will make a "Ding Ding" sound, and its indicator will flash, confirming successful pairing.
Image: The receiver unit plugged into a wall outlet, highlighting its features.
ఆపరేటింగ్ సూచనలు
The ChunHee Smart Dog Doorbell is designed for intuitive use by your pet. The large, sensitive touch area makes it easy for dogs of all sizes to activate the bell.
డాగ్ ట్రైనింగ్ గైడ్
A training guide is included to help your dog learn to use the doorbell quickly. Consistency is key for successful training.
Image: Training a dog to use the doorbell with the included guide.
- Introduce the Button: Place the transmitter near the door your dog uses to go outside.
- Associate Action with Reward: Each time you take your dog out, gently guide their paw to press the button. Immediately open the door and praise them.
- స్థిరత్వం: Repeat this process consistently. Your dog will soon associate pressing the button with going outside.
- Coming Back In: For the "come back" button, place it outside the door. When your dog wants to re-enter, they can press it to alert you.
Image: The doorbell facilitates easy potty training for dogs.
Image: A dog using the doorbell to signal it wants to go outside.
Image: The doorbell allows dogs to signal when they want to come back inside.
అనుకూలీకరణ
Ringtones and Voice Commands
The receiver offers 32 customized ringtones and voice commands, such as "outside," "potty," "come back," and "play." This feature helps prevent confusion for your dog and allows for different signals for various needs or multiple dogs.
Image: The doorbell offers various voice commands for clear communication.
వాల్యూమ్ స్థాయిలు
The receiver provides 5 adjustable volume levels, ranging from 0 to 110 decibels, ensuring the alert is audible in any room without being overwhelming. An LED indicator also blinks when activated.
Image: The doorbell's adjustable volume ensures it can be heard throughout the house.
నిర్వహణ
బ్యాటరీ భర్తీ
The transmitters are designed for long battery life (over 3 years). When replacement is needed, use the included mini screwdriver to access the battery compartment. Ensure the adhesive pads do not cover the screw access points.
Image: The ChunHee doorbell uses long-lasting batteries.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Transmitter not activating receiver. | Transmitter out of range, low battery, or not paired correctly. | Ensure transmitter is within range. Replace battery if needed. Re-pair the transmitter following the setup instructions. |
| Receiver not producing sound. | Volume set to mute or too low, receiver unplugged. | Check volume settings on the receiver. Ensure receiver is securely plugged into a working outlet. |
| Accidental activations. | Transmitter too sensitive or placed in a high-traffic area. | The touch area is designed to be sensitive. Consider relocating the transmitter to an area less prone to accidental contact. |
స్పెసిఫికేషన్లు
- మోడల్ సంఖ్య: CC15WH-CB09BL 3-2 US
- బ్రాండ్: చున్హీ
- వస్తువు బరువు: 0.3 కిలోగ్రాములు (10.6 ఔన్సులు)
- అంశం ప్యాకేజీ కొలతలు: 4.96 x 4.21 x 3.46 అంగుళాలు
- వాల్యూమ్ స్థాయిలు: 5 (0-110 dB)
- Ringtones/Voice Commands: 32 ఎంపికలు
- Transmitter Activation: Touch-sensitive (11 Newton press force)
- Battery Life (Transmitter): సుమారు 3 సంవత్సరాలు
- వాతావరణ నిరోధక రేటింగ్: IP55 (for outdoor transmitters)
- ఆపరేటింగ్ ఉష్ణోగ్రత: -4°F నుండి 140°F (-20°C నుండి 60°C)
Image: The ChunHee doorbell system with relevant product certifications.
Image: The outdoor transmitter is IP55 weatherproof and designed for durability.
అధికారిక ఉత్పత్తి వీడియో
వీడియో: ఒక అధికారిview of the ChunHee Smart Dog Doorbell, demonstrating its features and benefits for potty training.
వారంటీ మరియు మద్దతు
For warranty information, technical support, or any product-related inquiries, please refer to the contact details provided in your product packaging or visit the official ChunHee webసైట్. వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రసీదుని ఉంచండి.
