Fosmon 7-Day Digital Outdoor Timer (Model C-10736US)

1. పరిచయం

This manual provides detailed instructions for the operation and maintenance of your Fosmon 7-Day Digital Outdoor Timer. This device is designed to automate the power supply to outdoor electrical appliances, offering convenience, energy savings, and enhanced security.

The timer features three grounded outlets, a weatherproof design, and up to 16 programmable ON/OFF settings per day across a 7-day cycle. It also includes a countdown function, a random mode for security, and a built-in backup battery to retain settings during power outages.

Image 1.1: The Fosmon 7-Day Digital Outdoor Timer, showcasing its main unit with three grounded outlets and a flexible power cord.

2. భద్రతా సమాచారం

Please read all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ఎలక్ట్రికల్ రేటింగ్: Do not exceed the electrical rating of 1875W (15A) or 1/2 HP. Overloading the timer can cause damage or fire.
• గ్రౌండింగ్: Ensure the timer is plugged into a properly grounded 3-prong outlet.
• బాహ్య వినియోగం: This timer is designed for outdoor use and features weatherproof construction. However, avoid submerging it in water or exposing it to extreme weather conditions beyond its rating.
• పిల్లలు: పిల్లలకు దూరంగా ఉంచండి.
• నిర్వహణ: యూనిట్‌ను తెరవడానికి లేదా మరమ్మతు చేయడానికి ప్రయత్నించవద్దు. అన్ని సర్వీసింగ్‌లను అర్హత కలిగిన సిబ్బందికి సూచించండి.
• ETL జాబితా చేయబడింది: This product is ETL listed, ensuring it meets recognized safety standards.

3. ప్యాకేజీ విషయాలు

• Fosmon 7-Day Digital Outdoor Timer (Model C-10736US)
• ఇన్స్ట్రక్షన్ మాన్యువల్

4. ఉత్పత్తి ముగిసిందిview

Familiarize yourself with the timer's display and control buttons:

చిత్రం 4.1: క్లోజప్ view of the timer's digital display and control panel, highlighting the 7-day schedule screen, 12/24 hours mode, and 16 custom ON/OFF programs.

• డిస్ప్లే స్క్రీన్: Shows current time, day, program status (ON/OFF), and mode.
• PROG బటన్: Used to enter and exit program setting mode.
• సెట్ బటన్: Used to confirm settings and advance through options.
• ఆన్/ఆఫ్ బటన్: Manually turns the connected devices ON or OFF, or selects AUTO mode.
• మోడ్ బటన్: Cycles through different operating modes (Timer, Countdown, Random).
• + / - బటన్లు: Adjust time, program settings, and other values.
• RCL Button: Recalls or clears program settings.
• Reset Button (Recessed): Clears all settings and restores factory defaults. Use a pointed object to press.

5. సెటప్

Before initial use, follow these steps to prepare your timer:

1. ప్రారంభ ఛార్జ్: Plug the timer into a standard electrical outlet for at least 30 minutes to charge the internal backup battery. This ensures the display is visible and settings can be retained.
2. పరికరాన్ని రీసెట్ చేయండి: Using a small pointed object (like a pen tip), press the recessed రీసెట్ చేయండి button. This clears any previous settings and ensures a fresh start.
3. ప్రస్తుత సమయం మరియు రోజును సెట్ చేయండి:
   • నొక్కండి సెట్ button once. The hour will flash. Use the + or - buttons to adjust the hour (note AM/PM). Press సెట్ నిర్ధారించడానికి.
   • The minute will flash. Use the + or - నిమిషాలను సర్దుబాటు చేయడానికి బటన్లు. నొక్కండి సెట్ నిర్ధారించడానికి.
   • వారంలోని రోజు ఫ్లాష్ అవుతుంది. ఉపయోగించండి + or - buttons to select the current day. Press సెట్ నిర్ధారించడానికి.
4. 12/24 Hour Mode: To switch between 12-hour (AM/PM) and 24-hour (military) format, press the ఆన్/ఆఫ్ button while the time is displayed normally (not in setting mode).

Image 5.1: A hand pressing the ON/OFF button on the timer, demonstrating manual operation.

6. ఆపరేటింగ్ సూచనలు

6.1 Programming ON/OFF Cycles (Timer Mode)

The timer allows for up to 16 distinct ON/OFF programs. Each program can be set for specific days or groups of days.

1. నొక్కండి PROG button. The display will show "1 ON" and the hour will flash.
2. ఉపయోగించండి + or - to set the desired ON hour. Press సెట్.
3. ఉపయోగించండి + or - to set the desired ON minute. Press సెట్.
4. The day(s) of the week will flash. Use + or - to cycle through day options (e.g., every day, weekdays, weekends, specific days). Press సెట్.
5. The display will now show "1 OFF" and the hour will flash. Repeat steps 2-4 to set the desired OFF time and day(s) for Program 1.
6. After setting Program 1 OFF, the display will show "2 ON". Repeat the process for up to 16 programs.
7. ప్రోగ్రామింగ్ మోడ్ నుండి నిష్క్రమించడానికి, నొక్కండి PROG button. Ensure the timer is in ఆటో mode for programs to execute.

Image 6.1: The timer shown automating a sprinkler system, demonstrating its capability for up to 16 ON/OFF programs.

6.2 Countdown Function

The countdown function allows you to turn a device ON or OFF after a specified duration.

1. నొక్కండి మోడ్ button until "COUNTDOWN" appears on the display.
2. నొక్కండి సెట్. The hour will flash. Use + or - to set the desired countdown hours. Press సెట్.
3. The minute will flash. Use + or - to set the desired countdown minutes. Press సెట్.
4. The display will show "ON" or "OFF" flashing. Use + or - to select whether the device should turn ON or OFF at the end of the countdown. Press సెట్ కౌంట్ డౌన్ ప్రారంభించడానికి.
5. To cancel the countdown, press మోడ్ మరొక మోడ్‌కి మారడానికి.

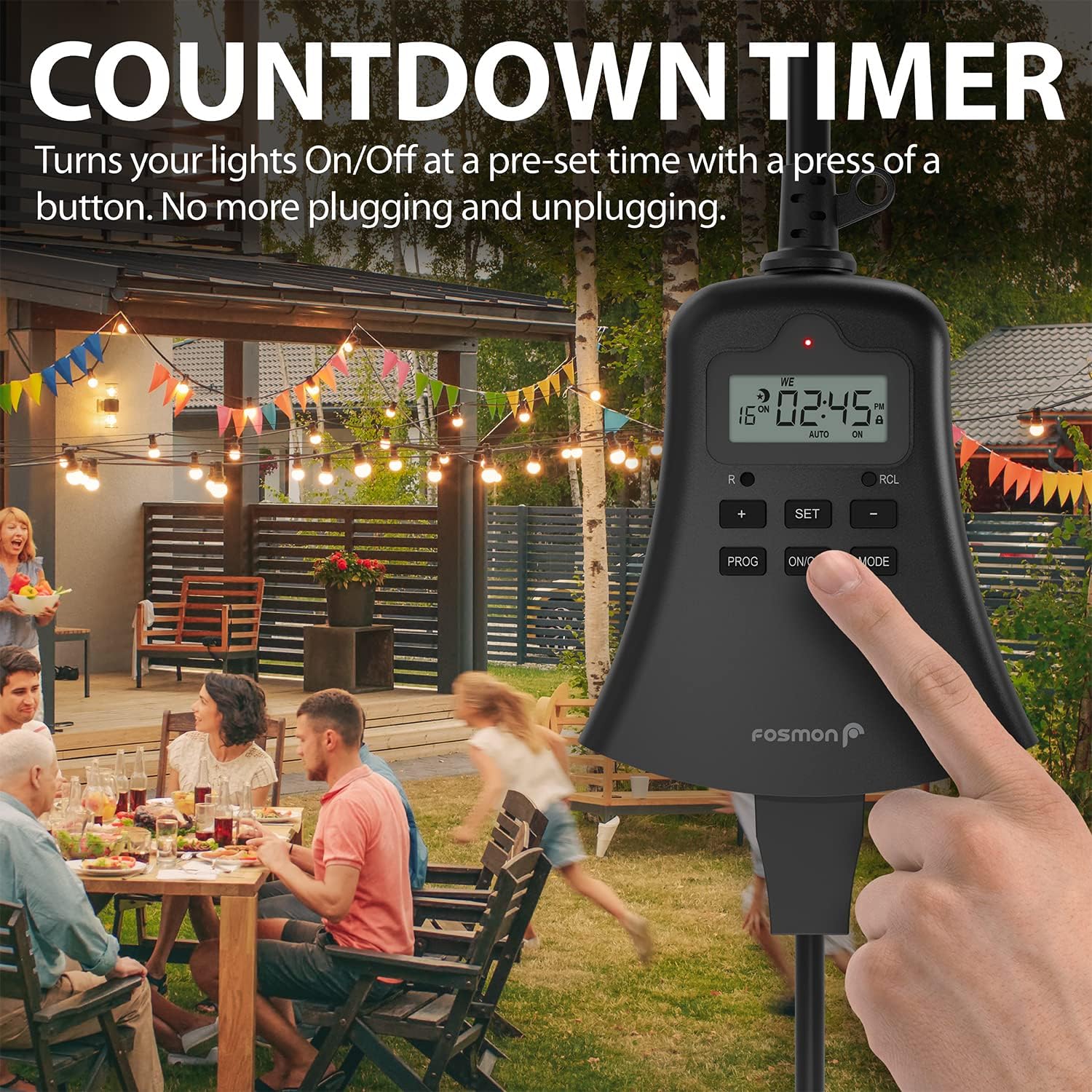

Image 6.2: The timer in an outdoor party setting, illustrating the convenience of the countdown timer for temporary lighting or appliances.

6.3 Random Function

The random function can enhance home security by turning connected lights or devices ON and OFF at irregular intervals within a programmed window, simulating occupancy.

1. నొక్కండి మోడ్ button until "RANDOM" appears on the display.
2. The timer will now activate connected devices randomly within a 30-minute window around your set ON/OFF programs.
3. నిష్క్రియం చేయడానికి, నొక్కండి మోడ్ మరొక మోడ్‌కి మారడానికి.

Image 6.3: The timer positioned near a family leaving their home, illustrating how the random function can enhance security by simulating occupancy.

6.4 మాన్యువల్ ఆన్/ఆఫ్ కంట్రోల్

You can manually override programmed settings at any time:

• నొక్కండి ఆన్/ఆఫ్ button to cycle through ON (always on), ఆఫ్ (always off), and ఆటో (follows programs) modes.
• ఎప్పుడు లోపలికి ON or ఆఫ్ mode, the timer will ignore all programmed settings.

6.5 మోడ్ ఎంపిక

ది మోడ్ button allows you to switch between the primary operating modes:

• Timer Mode (AUTO): Executes programmed ON/OFF cycles.
• కౌంట్‌డౌన్ మోడ్: Activates a single ON/OFF event after a set duration.
• యాదృచ్ఛిక మోడ్: Randomizes programmed ON/OFF times for security.

7. నిర్వహణ

To ensure the longevity and proper functioning of your timer:

• శుభ్రపరచడం: Disconnect the timer from the power outlet before cleaning. Wipe the exterior with a soft, damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించవద్దు.
• నిల్వ: When not in use for extended periods, store the timer in a cool, dry place away from direct sunlight.
• బ్యాకప్ బ్యాటరీ: The timer has a built-in rechargeable battery that maintains settings during power outages. If the display becomes dim or settings are lost frequently, ensure the timer is plugged in for several hours to fully recharge the internal battery.

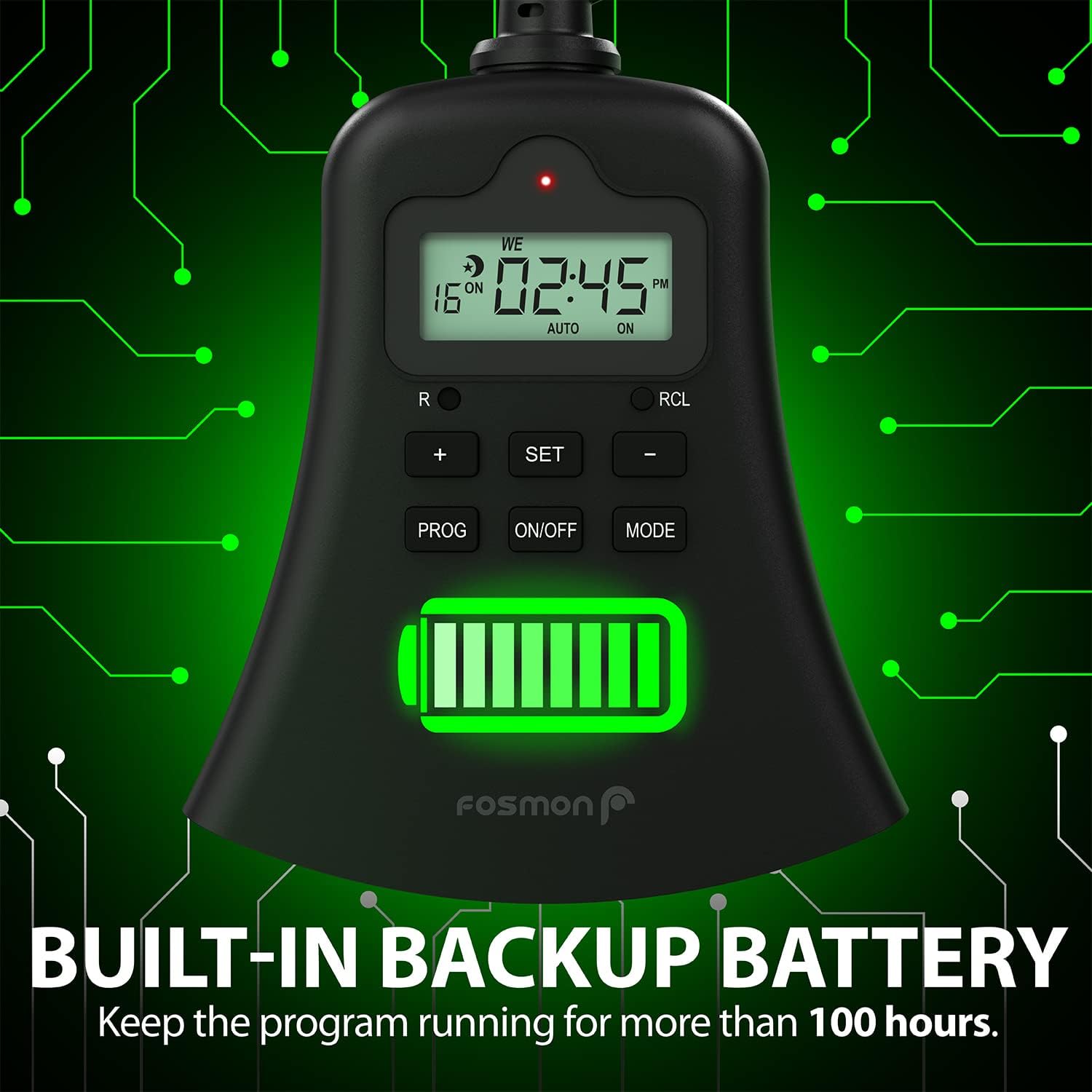

Image 7.1: The timer displaying a full battery icon, signifying its built-in backup battery feature that retains settings during power interruptions.

8. ట్రబుల్షూటింగ్

If you encounter issues with your Fosmon Digital Outdoor Timer, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact Fosmon customer support.

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

Fosmon products are backed by a Limited Lifetime Warranty. This warranty covers defects in materials and workmanship under normal use. For warranty claims or technical assistance, please contact Fosmon customer service.

For further support, please visit the official Fosmon website or contact their customer service department directly. Contact information can typically be found on the product packaging or the manufacturer's webసైట్.
