Kufatec Central Electrical Cable for VW Passat 3C B6 PDC Parking Aid System - Instruction Manual

1. ఉత్పత్తి ముగిసిందిview

This document provides instructions for the Kufatec central electrical cable, designed to facilitate the installation of a Parking Distance Control (PDC) system in the Volkswagen Passat 3C (B6) model. This specific cable set connects the PDC control unit to the warning signal and the central electrical system of the vehicle.

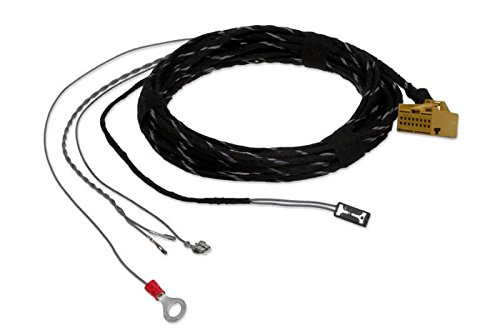

చిత్రం 1.1: Kufatec Central Electrical Cable. This image displays the complete wiring harness, including the main wrapped cable, various smaller wires, a ring terminal connector (red), and a multi-pin connector (yellow/beige).

2. భద్రతా సమాచారం

• Always disconnect the vehicle's battery before beginning any electrical work to prevent short circuits and electrical shock.
• Ensure all connections are secure and properly insulated to avoid electrical faults.
• ఇన్‌స్టాలేషన్ చేయడంలో మీకు నమ్మకం లేకపోతే, అర్హత కలిగిన ఆటోమోటివ్ టెక్నీషియన్ నుండి సహాయం తీసుకోండి.
• Refer to your vehicle's service manual for specific instructions regarding component removal and access.
• Do not modify the cable harness. Use it as supplied.

3. ప్యాకేజీ విషయాలు

ప్యాకేజీ కింది భాగాలను కలిగి ఉంటుంది:

• 1x Kufatec Central Electrical Cable Set

4. అనుకూలత

This cable set is specifically designed for and compatible with:

• వాహన నమూనా: Volkswagen Passat 3C (B6)

Ensure your vehicle matches this specification before proceeding with installation.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

This cable set is intended for retrofitting a Parking Distance Control (PDC) system. The installation process involves connecting the PDC control unit to the vehicle's warning signal and central electrical system. Professional installation is recommended.

సాధారణ ఇన్‌స్టాలేషన్ దశలు:

1. తయారీ: Park the vehicle on a level surface, engage the parking brake, and turn off the ignition. Disconnect the negative terminal of the vehicle's battery.
2. Access Vehicle Components: Depending on the specific PDC system being installed, you may need to remove interior trim panels, the radio unit, or other components to access the central electrical system and the location for the PDC control unit. Refer to your vehicle's service manual for detailed instructions on component removal.
3. Connect to PDC Control Unit: Connect the appropriate end of the Kufatec cable set to the PDC control unit. Ensure the connector is fully seated and locked.
4. Connect to Warning Signal: Route the cable to the vehicle's warning signal input. This connection typically provides the audible alerts for the PDC system. Consult the wiring diagram of your PDC system and vehicle for the exact connection point.
5. Connect to Central Electrical System: Connect the power and ground wires of the Kufatec cable set to the vehicle's central electrical system. This usually involves connecting to a fused power source and a chassis ground point. The ring terminal connector (often red, as seen in Image 1.1) is typically for a ground connection. The multi-pin connector (yellow/beige, as seen in Image 1.1) will connect to the vehicle's central electrical system or a specific module.
6. సురక్షిత వైరింగ్: Route the cable harness neatly and securely, away from moving parts, sharp edges, and heat sources. Use cable ties to prevent rattling or damage.
7. మళ్లీ కలపండి: Once all connections are made and secured, reassemble any removed vehicle components.
8. బ్యాటరీని మళ్లీ కనెక్ట్ చేయండి: వాహనం యొక్క బ్యాటరీ యొక్క నెగటివ్ టెర్మినల్‌ను తిరిగి కనెక్ట్ చేయండి.
9. పరీక్షా వ్యవస్థ: Turn on the ignition and test the newly installed PDC system according to its specific operating instructions.

గమనిక: This cable set is a component for a PDC retrofit. The complete PDC system, including sensors and control unit, must be purchased separately and installed according to its own instructions.

6. ఆపరేటింగ్ సూచనలు

This Kufatec cable set is a passive component that facilitates the electrical connections for a Parking Distance Control (PDC) system. It does not have operational controls itself. Once correctly installed, the cable enables the PDC system to function as designed by its manufacturer. Refer to the instruction manual of your specific PDC control unit and sensors for operating procedures.

7. నిర్వహణ

The Kufatec central electrical cable requires minimal maintenance. Periodically inspect the visible parts of the cable for any signs of wear, fraying, or damage. Ensure all connections remain secure. If any damage is observed, replace the cable set immediately to prevent electrical issues.

8. ట్రబుల్షూటింగ్

If the PDC system does not function correctly after installation, consider the following troubleshooting steps:

• కనెక్షన్‌లను తనిఖీ చేయండి: Verify that all connectors of the Kufatec cable set are securely attached to the PDC control unit, warning signal, and central electrical system.
• విద్యుత్ సరఫరా: Ensure the cable is receiving proper power from the vehicle's electrical system. Check relevant fuses.
• PDC Control Unit: Confirm that the PDC control unit itself is functioning correctly and is properly configured (if applicable).
• Vehicle Diagnostics: Use a diagnostic tool to check for any error codes related to the PDC system or vehicle electrical system.
• వృత్తిపరమైన సహాయం: If issues persist, consult a qualified automotive electrician or the manufacturer of the PDC system for further diagnosis.

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

Specific warranty information for this Kufatec cable set is not provided in this manual. For details regarding warranty coverage, return policies, or technical support, please contact the retailer or the manufacturer, Tuning Fanatics, directly. Always retain your proof of purchase.
