OONO Screw Mount 30A/300V 2x12 Position Terminal Block Distribution Module

పరిచయం

This manual provides instructions for the OONO Screw Mount 30A/300V 2x12 Position Terminal Block Distribution Module, model MD-D1339P-1. This module is designed for distributing electrical connections, supporting multiple module extension connections.

The module features two main terminal blocks (A and B) and two sets of 12 position terminal blocks (A1-A12 and B1-B12). It is constructed with a fireproof nylon mount carrier and includes M3 x 10mm wood screws for easy mounting on a wooden board.

స్పెసిఫికేషన్లు

Refer to the dimension diagram for detailed measurements.

చిత్రం: ఎగువ మరియు వైపు view diagrams illustrating the dimensions of the OONO terminal block, including length (82mm), width (48mm), and height (37.1mm).

సెటప్

The OONO terminal block is designed for screw mounting. Follow these steps for installation:

1. మౌంటు స్థానాన్ని ఎంచుకోండి: Choose a stable surface, such as a wooden board, for mounting the terminal block.
2. Position the Module: Place the terminal block in the desired location and mark the positions for the mounting screws.
3. మాడ్యూల్‌ను భద్రపరచండి: Use the two included M3 x 10mm wood screws to securely fasten the terminal block to the mounting surface. Ensure the module is stable and does not wobble.

చిత్రం: The OONO terminal block shown alongside two M3 x 10mm wood screws, indicating the included hardware for mounting.

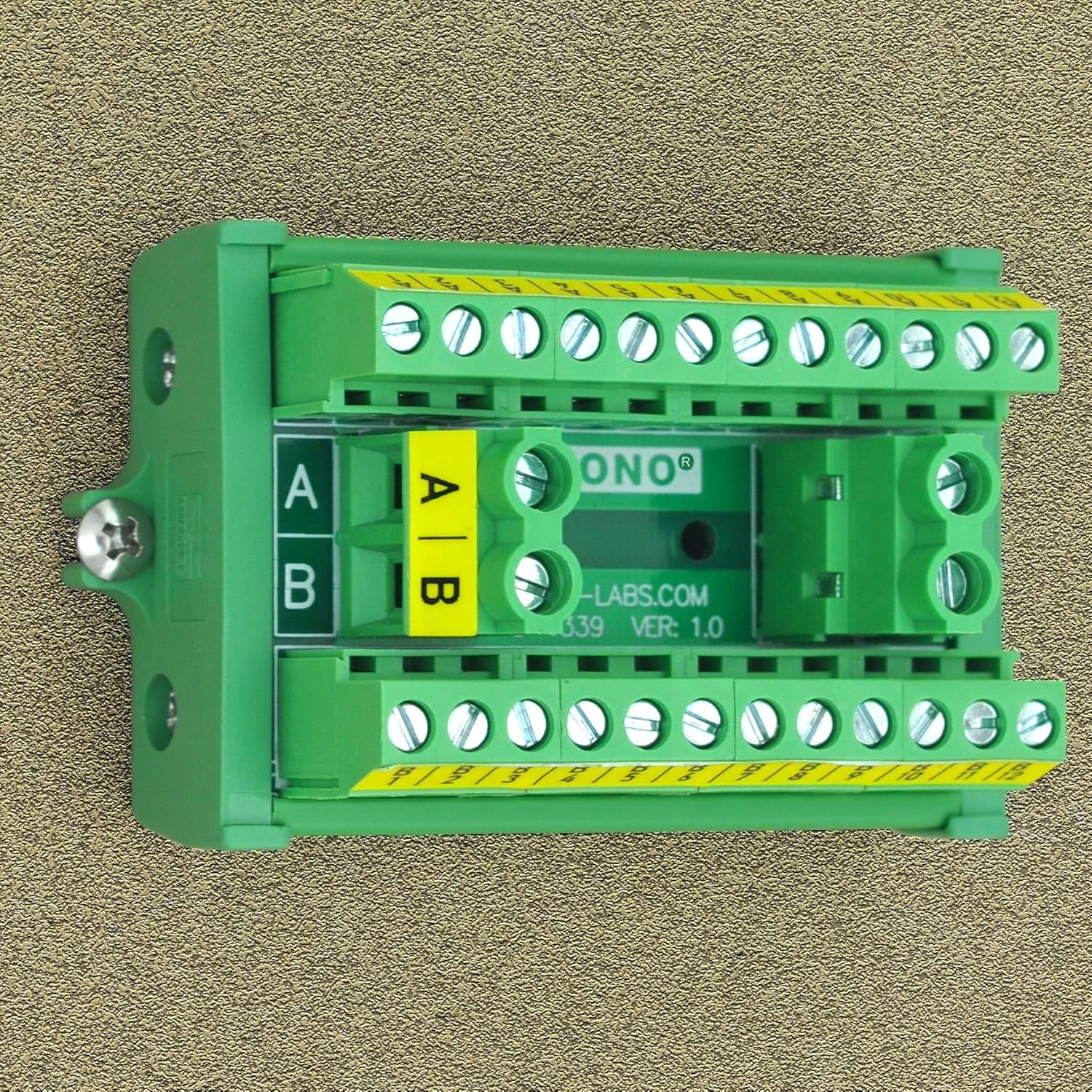

చిత్రం: An OONO terminal block securely mounted to a surface, demonstrating a typical installation.

ఆపరేటింగ్ సూచనలు

This terminal block facilitates organized electrical distribution. Understand the connection points and their specifications before wiring.

Terminal Layout and Capacity:

• A / B Terminal Blocks: These are the main input/output terminals. Each A or B position can handle a maximum current of 30 Amp. The wire range for these terminals is 26AWG to 10AWG (4.0mm²), with a strip length of 8mm.
• A1~A12 / B1~B12 Terminal Blocks: These are the distribution terminals. Each individual A1-A12 or B1-B12 position can handle a maximum current of 20 Amp. The total maximum current for all A1-A12 positions combined is 30 Amp, and similarly for B1-B12 positions. The maximum voltage for all terminals is 300V. The wire range for these terminals is 26AWG to 12AWG (2.5mm²), with a strip length of 7mm.

వైరింగ్ విధానం:

1. వైర్లను సిద్ధం చేయండి: Strip the insulation from the ends of your wires according to the specified strip lengths (8mm for A/B terminals, 7mm for A1-A12/B1-B12 terminals). Ensure the wire gauge is within the specified range.
2. స్క్రూలను విప్పు: Use a suitable screwdriver to loosen the M3 screws on the desired terminal points.
3. వైర్లను చొప్పించండి: Insert the stripped wire end fully into the terminal opening. Ensure no stray strands are exposed.
4. స్క్రూలను బిగించండి: Tighten the screw firmly to secure the wire. Perform a gentle pull test on each wire to confirm a secure connection.
5. కనెక్షన్‌లను ధృవీకరించండి: Double-check all connections for correct polarity and secure fastening before applying power.

చిత్రం: ఒక ఫ్రంట్ view of the OONO terminal block, showing the main A and B terminals and the 12-position distribution terminals (A1-A12, B1-B12) clearly labeled.

చిత్రం: కోణీయ view of the OONO terminal block, highlighting the screw terminals and the overall robust construction.

చిత్రం: A schematic diagram illustrating the internal wiring of the OONO terminal block, showing how the main A and B lines connect to the A1-A12 and B1-B12 distribution points respectively.

చిత్రం: A visual representation of a typical connection method, demonstrating how multiple OONO terminal blocks can be interconnected for extended distribution, with input and output wiring indicated by arrows.

నిర్వహణ

Regular maintenance helps ensure the longevity and safe operation of your terminal block.

• ఆవర్తన తనిఖీ: Periodically inspect all wire connections to ensure they remain tight. Vibrations or temperature changes can sometimes loosen screw terminals over time.
• పరిశుభ్రత: Keep the terminal block free from dust, dirt, and moisture. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• పర్యావరణ పరిస్థితులు: Ensure the operating environment remains within suitable temperature and humidity ranges to prevent material degradation.

ట్రబుల్షూటింగ్

If you encounter issues with your OONO terminal block, consider the following common troubleshooting steps:

• No Power/Intermittent Connection:
  • Check all screw terminals to ensure wires are securely fastened. Loose connections are a common cause of power loss or intermittent operation.
  • Verify that the wire insulation is stripped to the correct length and that the bare wire is fully inserted into the terminal.
  • Confirm that the wire gauge is appropriate for the terminal and that it is not too thin or too thick.
• వేడెక్కడం:
  • Ensure that the current flowing through any individual terminal or group of terminals does not exceed the specified maximum ratings (30A for A/B, 20A for A1-A12/B1-B12 individual, 30A total for A1-A12 or B1-B12).
  • Check for short circuits in the connected wiring.
• Difficulty Inserting Wires:
  • Ensure the screw is sufficiently loosened.
  • Verify the wire gauge is within the acceptable range for the specific terminal.

If problems persist after performing these checks, consult a qualified electrician or contact OONO customer support.

వారంటీ మరియు మద్దతు

For information regarding warranty coverage or technical support, please refer to the product packaging or contact your retailer. You may also visit the official OONO brand store for additional resources and contact information:

OONO Brand Store
