1. పరిచయం
This manual provides detailed instructions for the proper installation, operation, and maintenance of the Mopar Sport Utility Bars designed for 2019-2020 Ram 1500 DT models with pickup box utility rails. Please read this manual thoroughly before installation and use to ensure safety and optimal performance.
2. భద్రతా సమాచారం
WARNING: Failure to follow these safety instructions may result in personal injury or property damage.
- The utility bars have a maximum load capacity of 150 పౌండ్లు (68 కిలోలు)ఈ పరిమితిని మించకూడదు.
- Always adhere to the vehicle manufacturer's overall load limits.
- After driving a short distance (approximately 50 miles or 80 km), recheck all fasteners to ensure they are securely tightened.
- Regularly inspect the bars and mounting points for any signs of wear, damage, or loose connections.
- Ensure the load is properly secured and distributed evenly across the bars.
- Be aware of how the load may affect the vehicle's behavior, especially during turns, braking, and strong winds.
- Do not install or use these bars if the vehicle's registration has not been obtained.
For additional safety guidelines, refer to the official Mopar webసైట్: www.mopar.com.
3. ప్యాకేజీ విషయాలు
Carefully unpack all components and verify that all parts are present before beginning installation. Refer to the image below for a visual representation of the included parts.
Image 3.1: Complete Mopar Sport Utility Bars kit components, including two main bars, various mounting brackets, rubber seals, and fasteners.
కిట్ వీటిని కలిగి ఉంటుంది:
- Two (2) main utility bars (aluminum)
- Mounting brackets and hardware (various sizes and types)
- Rubber seals and trim pieces
- Fasteners and tools (e.g., Allen wrench)

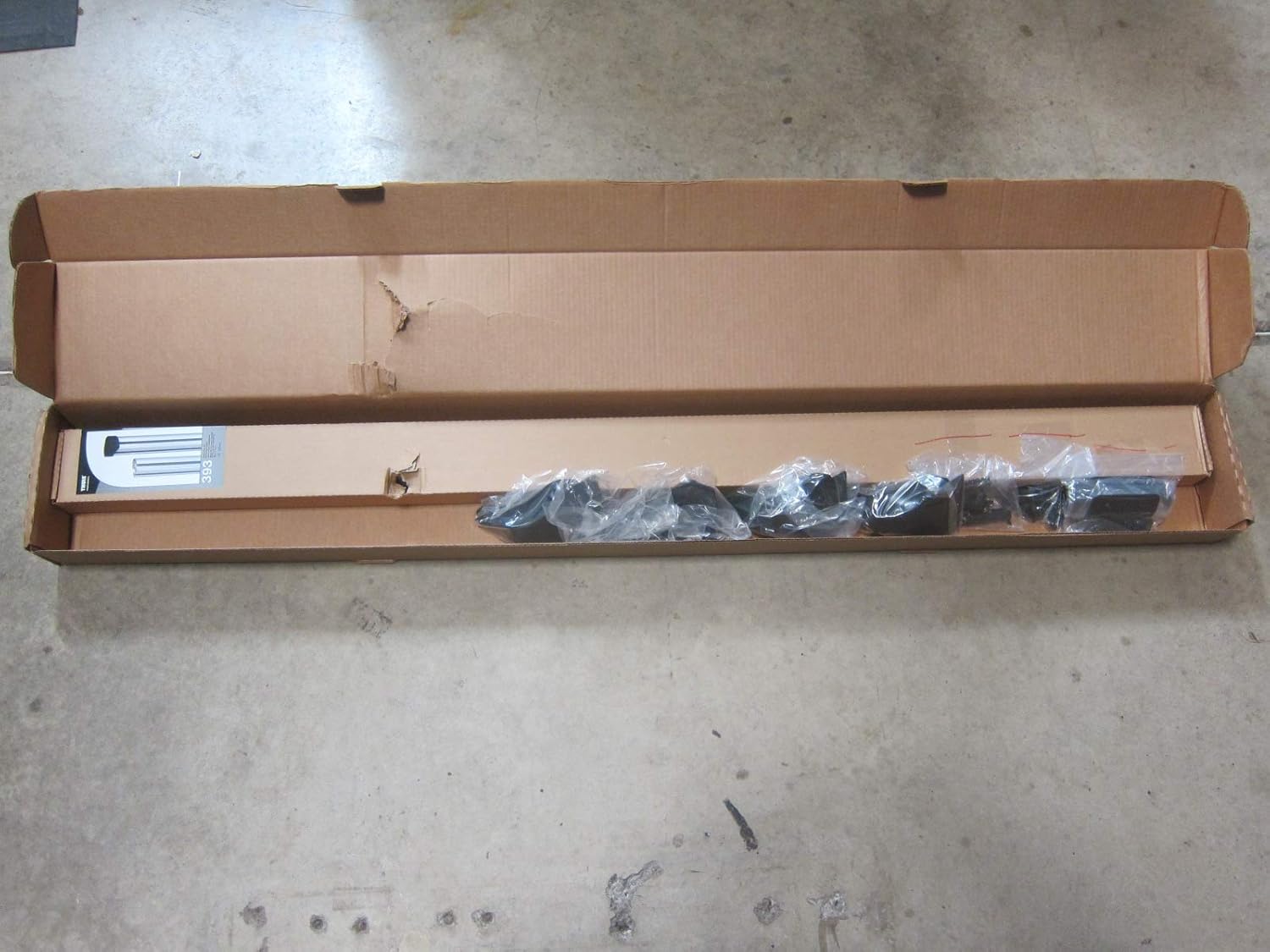

Image 3.2: Packaging for the utility bars, showing a Thule branded box, indicating the manufacturer of the bar components.
Image 3.3: Mopar Genuine Parts & Accessories label confirming the part number 82215789.
4. ఇన్స్టాలేషన్ (సెటప్)
The Mopar Sport Utility Bars are designed to attach to the existing pickup box utility rails of your 2019-2020 Ram 1500 DT. Follow these steps carefully for proper installation.
Image 4.1: Detailed installation diagram illustrating the various components and their quantities for assembly.
Refer to Image 4.1 for component identification:
- A x4
- B x2
- C x4
- D x8
- E x4
- F x4
- G x28
- H x8
- I x8
- J x8
- K x4
- L x4
- M x4
- N x8
- O x8
- P x8
- వాహనాన్ని సిద్ధం చేయండి: Ensure the truck bed utility rails are clean and free of debris.
- బ్రాకెట్లను సమీకరించండి: Attach the necessary mounting brackets (e.g., parts A, B, C, D, E, F, L, M) to the utility bars as indicated in the diagram. Use the provided fasteners (e.g., G, H, I, J, K, N, O, P) and tighten them finger-tight initially.
- Position Bars: Carefully place the assembled utility bars onto the truck bed utility rails. Adjust their position to ensure even spacing and proper alignment.
- పట్టాలకు సురక్షితం: Attach the brackets to the truck's utility rails using the remaining fasteners. Ensure all connections are snug.
- తుది బిగింపు: Once all bars are in position, progressively tighten all fasteners using the appropriate tools. Refer to the diagram for specific torque specifications if provided in the physical manual.
- ఇన్స్టాలేషన్ తర్వాత తనిఖీ: Gently shake the bars to confirm they are securely mounted and do not wobble. Recheck all fasteners after a short drive.
Image 4.2: Mopar Sport Utility Bars correctly installed on a Ram 1500 DT pickup truck bed, demonstrating their intended use.
5. ఆపరేషన్
The Mopar Sport Utility Bars provide versatile cargo management options for your Ram 1500 DT. They are designed to support various accessories and help secure items within the truck bed.
- Cargo Securing: Use appropriate tie-downs, straps, or nets to secure cargo to the utility bars. Ensure the cargo is stable and will not shift during transit.
- లోడ్ పంపిణీ: Distribute the weight of your cargo as evenly as possible across the bars and within the truck bed to maintain vehicle stability.
- అనుబంధ మౌంటు: The bars can be used to mount compatible accessories such as bike racks, kayak carriers, or other specialized equipment, provided they do not exceed the weight capacity and are securely attached.
Always ensure that any attached cargo or accessories do not obstruct your view or interfere with the safe operation of your vehicle.
6. నిర్వహణ
Regular maintenance will prolong the life and ensure the safe operation of your utility bars.
- శుభ్రపరచడం: Clean the utility bars and mounting hardware regularly with mild soap and water. Avoid abrasive cleaners that could damage the finish.
- తనిఖీ: Periodically inspect all components for signs of wear, corrosion, or damage. Pay close attention to the mounting points and fasteners.
- ఫాస్టెనర్ తనిఖీ: Re-tighten all mounting fasteners at least once a month, or more frequently if the bars are used often or carry heavy loads.
- రబ్బరు సీల్స్: Check rubber seals and trim for cracks or deterioration and replace if necessary to prevent water ingress or rattling.
7. ట్రబుల్షూటింగ్
If you encounter any issues with your Mopar Sport Utility Bars, consider the following common solutions:
- Bars are Loose/Wobbling: Recheck and tighten all mounting fasteners. Ensure the bars are correctly seated in the utility rails.
- Unusual Noise (Rattling/Whistling): Inspect all components for loose parts. Ensure rubber seals are properly seated. Adjust the position of the bars if necessary to minimize wind noise.
- Difficulty Attaching Accessories: Verify that your accessories are compatible with the utility bar profile. Ensure all accessory mounting hardware is correctly aligned and tightened.
If problems persist, contact Mopar customer support or a certified Mopar service center.
8. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| బ్రాండ్ | మోపర్ |
| మోడల్ సంఖ్య | 82215789 .9 |
| మెటీరియల్ | అల్యూమినియం |
| గరిష్ట లోడ్ సామర్థ్యం | 150 పౌండ్లు (68 కిలోలు) |
| అనుకూలత | 2019-2020 Ram 1500 DT with Pickup Box Utility Rails |
9. వారంటీ సమాచారం
Mopar products typically come with a limited warranty. For specific warranty terms and conditions applicable to your Sport Utility Bars, please refer to the documentation included with your purchase or visit the official Mopar webవారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రుజువును ఉంచండి.
10. మద్దతు
For further assistance, technical support, or to inquire about replacement parts, please contact Mopar customer service or visit their official webసైట్:
You may also visit an authorized Mopar dealership for professional assistance.
