CHORTAU EC-10 Power Extension Cable User Manual

పరిచయం

The CHORTAU EC-10 Power Extension Cable is designed to extend the reach of your 12V DC power adapter for compatible devices, such as CHORTAU security cameras. This 33-foot (10-meter) cable features a 2.1mm x 5.5mm DC connector, ensuring a reliable power connection for your outdoor or indoor surveillance equipment.

ఉత్పత్తి ముగిసిందిview

The EC-10 extension cable provides additional length for your power supply, offering flexibility in device placement. It is specifically designed for 12V DC applications and features standard 2.1mm inner diameter and 5.5mm outer diameter connectors.

• పొడవు: 33 అడుగులు (10 మీటర్లు)
• Connector Specification: 2.1mm x 5.5mm DC
• వాల్యూమ్tagఇ అనుకూలత: 12V DC
• కనెక్టర్ లింగం: మగ-ఆడ
• అనుకూలత: Suitable for CHORTAU SE2000 security cameras (ASINs: B07KP73NMS and B086WC1J6C) and other devices requiring a 12V DC power supply with 2.1mm x 5.5mm connectors.

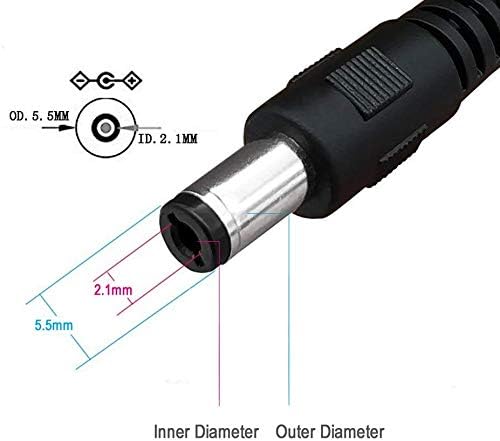

చిత్రం: వివరణాత్మకం view of the DC connector dimensions, illustrating the 2.1mm inner diameter and 5.5mm outer diameter for proper compatibility.

సెటప్ సూచనలు

1. అనుకూలతను ధృవీకరించండి: Ensure your device and its power adapter require a 12V DC power supply and have 2.1mm x 5.5mm DC connectors. Incompatible connectors or voltage can damage your equipment.
2. పవర్ డిస్‌కనెక్ట్ చేయండి: Before connecting the extension cable, ensure the power adapter is unplugged from the wall outlet to prevent electrical hazards.
3. ఎక్స్‌టెన్షన్ కేబుల్‌ను కనెక్ట్ చేయండి: Plug the male end of the CHORTAU EC-10 extension cable into the female port of your device's power input. Then, plug the female end of the extension cable into the male plug of your 12V DC power adapter.
4. సురక్షిత కనెక్షన్లు: Ensure all connections are firm and fully seated to prevent intermittent power supply.
5. శక్తిని పునరుద్ధరించండి: Plug the power adapter back into the wall outlet. Your device should now receive power through the extended cable.

చిత్రం: ఒక మాజీample setup showing the CHORTAU power extension cable connecting a security camera to its power adapter, illustrating the connection points.

ఆపరేటింగ్ సూచనలు

Once properly connected, the CHORTAU EC-10 Power Extension Cable operates passively to deliver power to your device. No user interaction is required for its operation. Ensure the cable is routed safely to avoid tripping hazards or damage.

నిర్వహణ

• సాధారణ తనిఖీ: Periodically inspect the cable for any signs of wear, cuts, kinks, or damage to the insulation.
• పర్యావరణ పరిరక్షణ: If used outdoors, ensure connectors are protected from direct exposure to wet weather conditions to prevent corrosion and short circuits. While the cable itself is robust, the connection points are vulnerable to moisture.
• శుభ్రపరచడం: Keep the cable and connectors clean and free from dust and debris. Use a dry, soft cloth for cleaning.
• నిల్వ: When not in use, coil the cable neatly without sharp bends and store it in a dry place.

ట్రబుల్షూటింగ్

No Power to Device

• కనెక్షన్‌లను తనిఖీ చేయండి: Ensure both ends of the extension cable are securely plugged into the power adapter and the device.
• పవర్ అడాప్టర్‌ను ధృవీకరించండి: Confirm that the original power adapter is functioning correctly by testing it directly with the device (without the extension cable) if possible.
• పవర్ అవుట్‌లెట్‌ని తనిఖీ చేయండి: Ensure the wall outlet is supplying power. Test with another appliance.
• కేబుల్ దెబ్బతింటుందో లేదో తనిఖీ చేయండి: Look for any visible damage to the extension cable. A damaged cable may prevent power transmission.
• అనుకూలత తనిఖీ: సంపుటిని ఒకటికి రెండుసార్లు తనిఖీ చేయండిtage (12V DC) and connector dimensions (2.1mm x 5.5mm) are correct for your device.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

CHORTAU offers a 30-రోజుల మనీ-బ్యాక్ గ్యారెంటీ మరియు ఎ 3 సంవత్సరాల వారంటీ for this product. If you encounter any issues or have questions regarding the CHORTAU EC-10 Power Extension Cable, please contact CHORTAU customer support for assistance. Refer to your purchase documentation for specific contact details.
