1. పరిచయం
Thank you for choosing the KTC BE3-5P 9.5sq. Joint Luxury 5 Piece Set. This manual provides essential information for the safe and effective use of your new tool set. Please read these instructions carefully before use and retain them for future reference.
This set includes three KTC Extension Bars, one Universal Joint (BJ3), and one Quick Spinner (BE3-Q), designed to enhance the versatility and efficiency of your 9.5sq. (3/8 inch square drive) socket wrench system.
2. ఉత్పత్తి భాగాలు
The KTC BE3-5P set consists of the following five high-quality components:
- BE3-050 Extension Bar: Total length 50 mm (2.0 inches)
- BE3-075 Extension Bar: Total length 75 mm (3.0 inches)
- BE3-150 Extension Bar: Total length 150 mm (5.9 inches)
- BJ3 Universal Joint: Total length 45 mm (1.8 inches)
- BE3-Q Quick Spinner: Grip part width 36 mm (1.4 inches), Grip thickness 10 mm (0.4 inches), Total length 31 mm (1.2 inches)

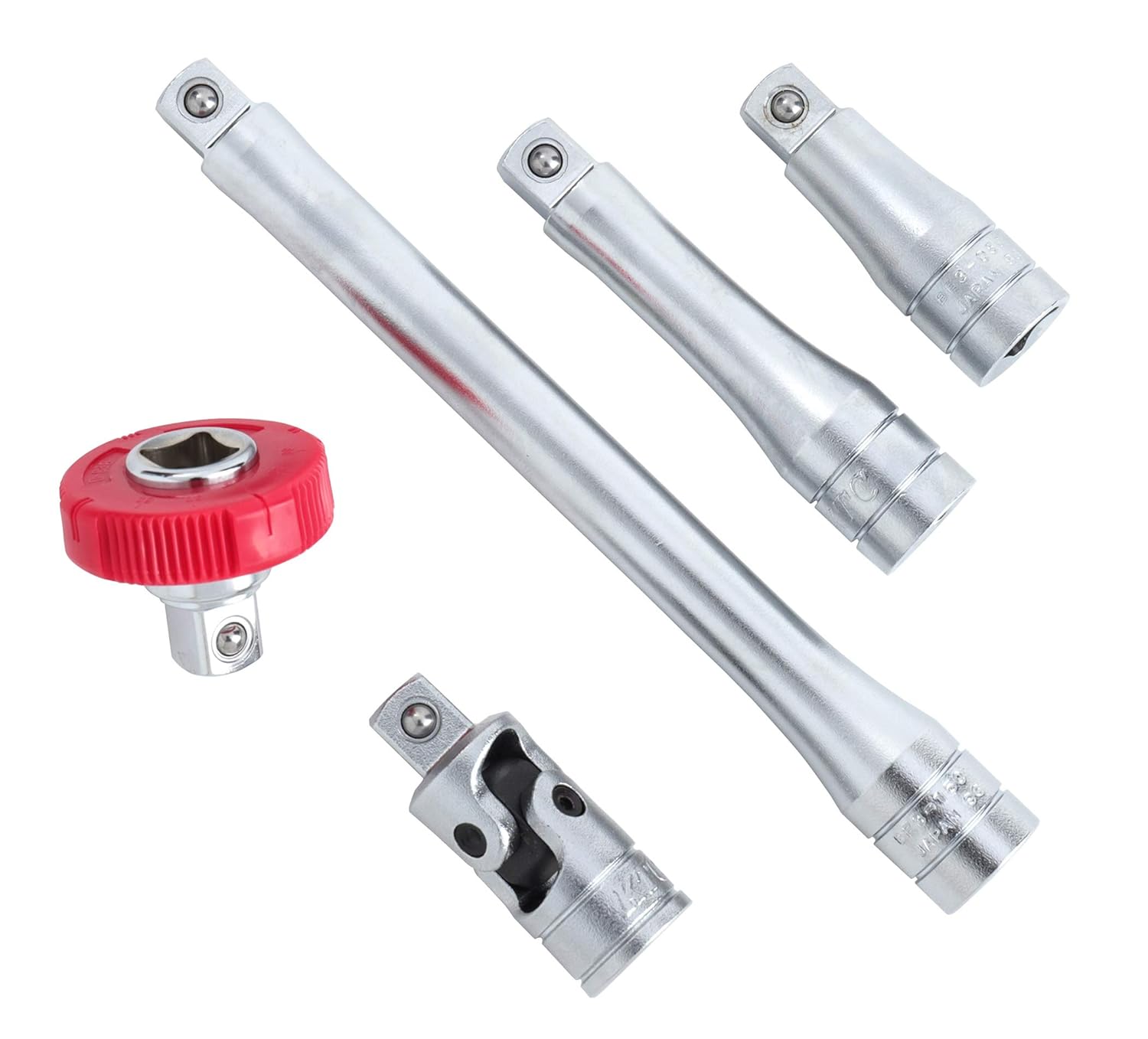

This image displays all five components included in the KTC BE3-5P 9.5sq. Joint Luxury 5 Piece Set: three extension bars of varying lengths, one universal joint, and one quick spinner.
3. Setup and Usage Instructions
Proper setup and use are crucial for safety and optimal performance. Always ensure components are securely connected before applying force.
3.1. Extension Bars (BE3-050, BE3-075, BE3-150)
Extension bars are used to extend the reach of your socket wrench, allowing access to fasteners in deep or obstructed areas.
- కనెక్షన్: Insert the square drive end of the extension bar completely into the socket or ratchet. Ensure a firm connection.
- హెచ్చరిక: Do not connect and use more than two extension bars simultaneously. Using more than two can lead to excessive leverage, potential bending, or breakage of the tools.
3.2. Universal Joint (BJ3)
The universal joint provides flexibility, allowing you to turn fasteners at an angle when direct access is not possible.
- కనెక్షన్: Connect the universal joint between your ratchet/extension bar and the socket. Ensure the square drives are fully inserted into the base of the joint.
- ఆపరేషన్: The joint allows for approximately 90 degrees of angular movement.
- హెచ్చరిక: The joint part is vulnerable to impact and twisting. Be careful not to apply excessive force, especially when working at extreme angles, as this can cause damage to the joint.
This image shows a hand using a ratchet wrench with a KTC extension bar and universal joint, demonstrating a typical application for reaching fasteners in confined or awkward spaces.
3.3. Quick Spinner (BE3-Q)
The quick spinner is a dedicated tool for rapid turning of fasteners under light load, significantly speeding up assembly and disassembly tasks.
- కనెక్షన్: Use the quick spinner in combination with a ratchet handle or extension bar for enhanced effectiveness. Connect the square drive fully.
- గ్రిప్ డిజైన్: The grip features a tactile shape and grooves that indicate a 90° rotation angle, making it easy to understand the rotation. The surface also has angle markings every 30°. The grip is lightweight and made of resin.
- హెచ్చరిక: Do not connect and use more than two quick spinners or extension bars in series with the quick spinner.
ఒక క్లోజప్ view demonstrating the KTC BE3-Q Quick Spinner in use, with the BJ3 Universal Joint connected, illustrating how the quick spinner facilitates rapid turning of fasteners.
4. General Operation Guidelines
- Always select the correct size socket for the fastener to prevent rounding or damage.
- Ensure all connections between tools (ratchet, extension, joint, socket) are secure before applying torque.
- Avoid using excessive force that could damage the tool or fastener.
- చేతి పనిముట్లను ఉపయోగిస్తున్నప్పుడు భద్రతా గ్లాసెస్ వంటి తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి.
- Keep tools clean and free from grease or oil to maintain a secure grip.
5. నిర్వహణ
Regular maintenance will prolong the life of your KTC tools:
- శుభ్రపరచడం: After each use, wipe down tools with a clean cloth to remove dirt, grease, and debris.
- సరళత: Periodically apply a light coat of machine oil to moving parts, such as the universal joint, to ensure smooth operation and prevent corrosion.
- నిల్వ: Store tools in a dry environment to prevent rust. Keep them organized in a toolbox or tray to prevent damage and loss.
- తనిఖీ: Before each use, inspect tools for any signs of wear, cracks, or damage. Do not use damaged tools; replace them if necessary.
6. ట్రబుల్షూటింగ్
Most issues with hand tools can be resolved by following proper usage guidelines:
- Tool Slipping: Ensure the socket is correctly seated on the fastener and that the square drive connections are fully engaged. Avoid using worn-out sockets or fasteners.
- తిరగడంలో ఇబ్బంది: If a fastener is stuck, apply penetrating oil and allow it to soak. Ensure you are using the correct tool for the required torque. Do not over-extend tools beyond their intended use.
- Damage to Tools: Damage often occurs from using tools improperly, such as applying excessive force, using them as pry bars, or connecting too many extensions. Always use tools for their intended purpose.
7. స్పెసిఫికేషన్లు
Detailed dimensions and weights for the components are provided below. All dimensions are in millimeters (mm) and weights are in grams (g).
A detailed technical diagram providing specific dimensions for the KTC BE3-050, BE3-075, BE3-150 extension bars, BJ3 universal joint, and BE3-Q quick spinner. It also includes important usage warnings regarding connecting multiple extension bars and fully inserting square drives.
7.1. Extension Bar Specifications
| మోడల్ నం. | D1 (mm) | D2 (mm) | L (మిమీ) | బరువు (గ్రా) |
|---|---|---|---|---|
| BE3-050 | 13 | 17 | 50 | 50 |
| BE3-075 | 12 | 17 | 75 | 75 |
| BE3-150 | 12 | 17 | 150 | 140 |
7.2. Universal Joint (BJ3) Specifications
| మోడల్ నం. | D (mm) | L (మిమీ) | బరువు (గ్రా) |
|---|---|---|---|
| BJ3 | 18 | 45 | 50 |
7.3. Quick Spinner (BE3-Q) Specifications
| మోడల్ నం. | D (mm) | d (మిమీ) | L (మిమీ) | ℓ (mm) | బరువు (గ్రా) |
|---|---|---|---|---|---|
| BE3-Q ద్వారా మరిన్ని | 36 | 17 | 31 | 10 | 40 |
సాధారణ ఉత్పత్తి లక్షణాలు:
- ప్యాకేజీ కొలతలు: 7.09 x 3.54 x 1.18 అంగుళాలు
- ప్యాకేజీ బరువు: 13.4 ఔన్సులు
- తయారీదారు: కెటిసి
- ASIN: B084QB4S41
8. వారంటీ మరియు మద్దతు
Specific warranty information for the KTC BE3-5P 9.5sq. Joint Luxury 5 Piece Set is not provided in the product details. For warranty claims, technical support, or inquiries regarding your KTC tools, please refer to the official KTC website or contact your authorized KTC dealer or retailer where the product was purchased.
