Cerwin Vega SPMT8SCFW Marine Tower Speaker User Manual

పరిచయం

The Cerwin Vega SPMT8SCFW is an 8-inch, 3-way marine tower speaker designed for high-performance audio in marine environments. Featuring a durable white carbon fiber finish and integrated LED lighting, this speaker delivers powerful sound with a peak handling of 200W and RMS of 100W per speaker. It is built to withstand harsh outdoor conditions while providing clear, robust audio.

Two Cerwin Vega SPMT8SCFW marine tower speakers, white carbon fiber finish, shown at an angle.

ఫీచర్లు

• Maximum 200 watts, 100 watts RMS each.
• 1-inch titanium dome tweeter.
• Composite paper cone.
• Passive radiator improves low-frequency performance.
• White carbon fiber finish.
• ఇంటిగ్రేటెడ్ LED లైటింగ్.

ముందు view of a single Cerwin Vega SPMT8SCFW marine tower speaker, highlighting the white carbon fiber cone and red central tweeter.

సెటప్ మరియు ఇన్‌స్టాలేషన్

మౌంటు

The SPMT8SCFW speakers are designed for handlebar mounting. Ensure the mounting surface is secure and capable of supporting the speaker's weight. Use the provided clamp to securely attach the speaker to the tower or bar. Adjust the clamp for a snug fit, ensuring the speaker is stable and oriented correctly for optimal sound dispersion.

Close-up of the robust handlebar mounting clamp for the Cerwin Vega SPMT8SCFW speaker, showing its adjustable bolts.

వైరింగ్

Connect the speaker wires to your marine audio amplifier. Pay close attention to positive and negative terminals to ensure correct phasing. The speaker also features integrated RGB LED lighting. Connect the RGB wires to a compatible LED controller, such as the Cerwin-Vega RPM-RGBLC remote control (sold separately), to manage lighting effects.

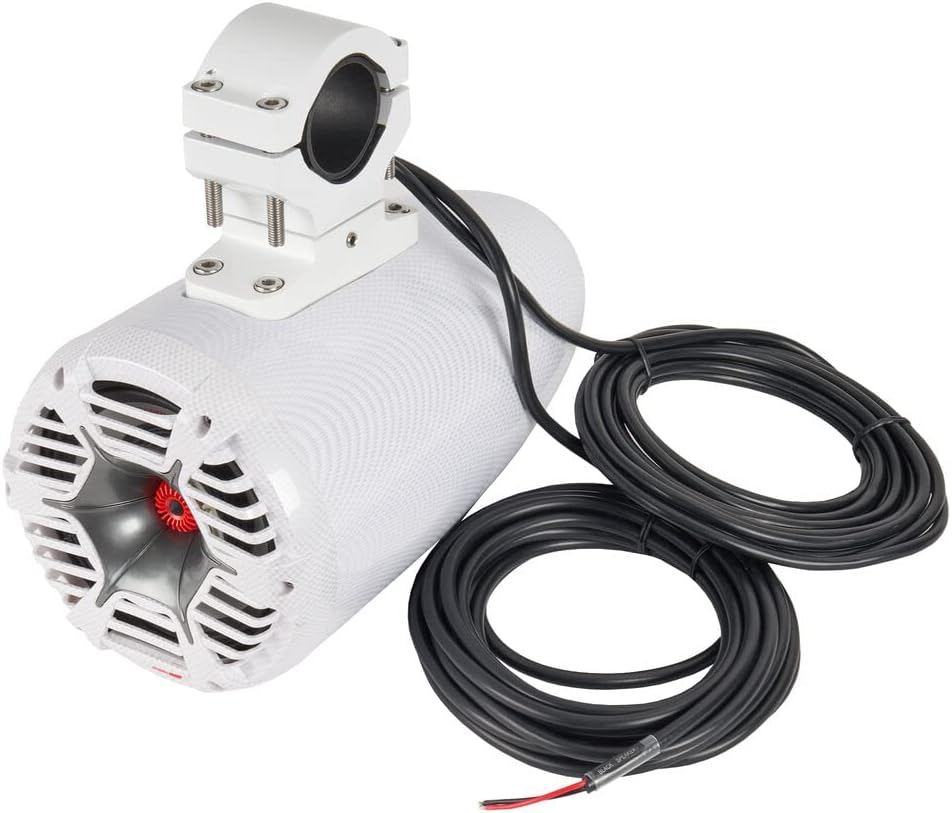

Cerwin Vega SPMT8SCFW marine tower speaker with its attached wiring harness, including power and audio cables.

ఆపరేటింగ్ సూచనలు

ఆడియో ప్లేబ్యాక్

Once installed and wired, power on your marine audio system. Adjust the volume and audio settings on your head unit or amplifier to achieve desired sound levels. Ensure the amplifier's output matches the speaker's RMS rating for optimal performance and longevity.

LED నియంత్రణ

If connected to an RGB LED controller, use the controller to select desired colors, brightness, and lighting modes. The integrated LEDs can be set to a fixed color or cycle through various patterns.

నిర్వహణ

క్లీనింగ్

Regularly clean the speaker's exterior with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the carbon fiber finish or speaker components. For marine use, rinse with fresh water after exposure to saltwater to prevent corrosion.

UV రక్షణ

The speaker features UV coating for protection against sun exposure. However, prolonged direct sunlight can still affect the finish over time. Consider using protective covers when the boat is not in use to extend the speaker's lifespan and maintain its appearance.

తనిఖీ

Periodically inspect all wiring connections and mounting hardware to ensure they remain secure and free from corrosion.

ట్రబుల్షూటింగ్

సౌండ్ లేదు

• Check all audio connections from the ampస్పీకర్‌కు జీవితకాలం.
• ధృవీకరించండి ampలైఫైయర్ ఆన్ చేయబడింది మరియు సరిగ్గా పని చేస్తుంది.
• Ensure the source unit is playing audio and its volume is up.

వక్రీకరించిన ధ్వని

• వాల్యూమ్ స్థాయిని తగ్గించండి.
• సరైనది కోసం తనిఖీ చేయండి amplifier లాభం సెట్టింగులు.
• స్పీకర్ వైర్లు చిరిగిపోకుండా లేదా షార్ట్ అవ్వకుండా చూసుకోండి.
• Verify the speaker is not overdriven beyond its power handling capabilities.

LED లు పనిచేయడం లేదు

• Confirm the RGB LED wires are correctly connected to the controller and power source.
• Check the LED controller for power and proper operation.
• Ensure the controller is compatible with the speaker's LED system.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For warranty information and technical support, please refer to the official Cerwin-Vega Mobile webసైట్‌లో లేదా వారి కస్టమర్ సర్వీస్‌ను నేరుగా సంప్రదించండి. ఏవైనా వారంటీ క్లెయిమ్‌లకు కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.
