1. పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of your ORACLE Lighting ColorSHIFT BC1 Bluetooth Controller. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The ORACLE Lighting ColorSHIFT BC1 Bluetooth Controller is designed to manage RGB LED ColorSHIFT lights, offering customizable lighting effects via a Bluetooth-enabled application.
2. ఉత్పత్తి ముగిసిందిview
2.1 ప్యాకేజీ విషయాలు
- (1) BC1 Bluetooth ColorSHIFT RGB LED Controller
- (4) Accessory Plugs with Waterproof Connections
- (3) Waterproof End Caps for Unused Plugs
2.2 ముఖ్య లక్షణాలు
- Bluetooth connectivity for app control
- 4 outputs with waterproof connections
- ColorSHIFT technology for customizable RGB LED lighting
- Adjustable brightness and strobing effects
- Music synchronization capability
- Universal fitment for various vehicles
- Waterproof design (IP67 rating)

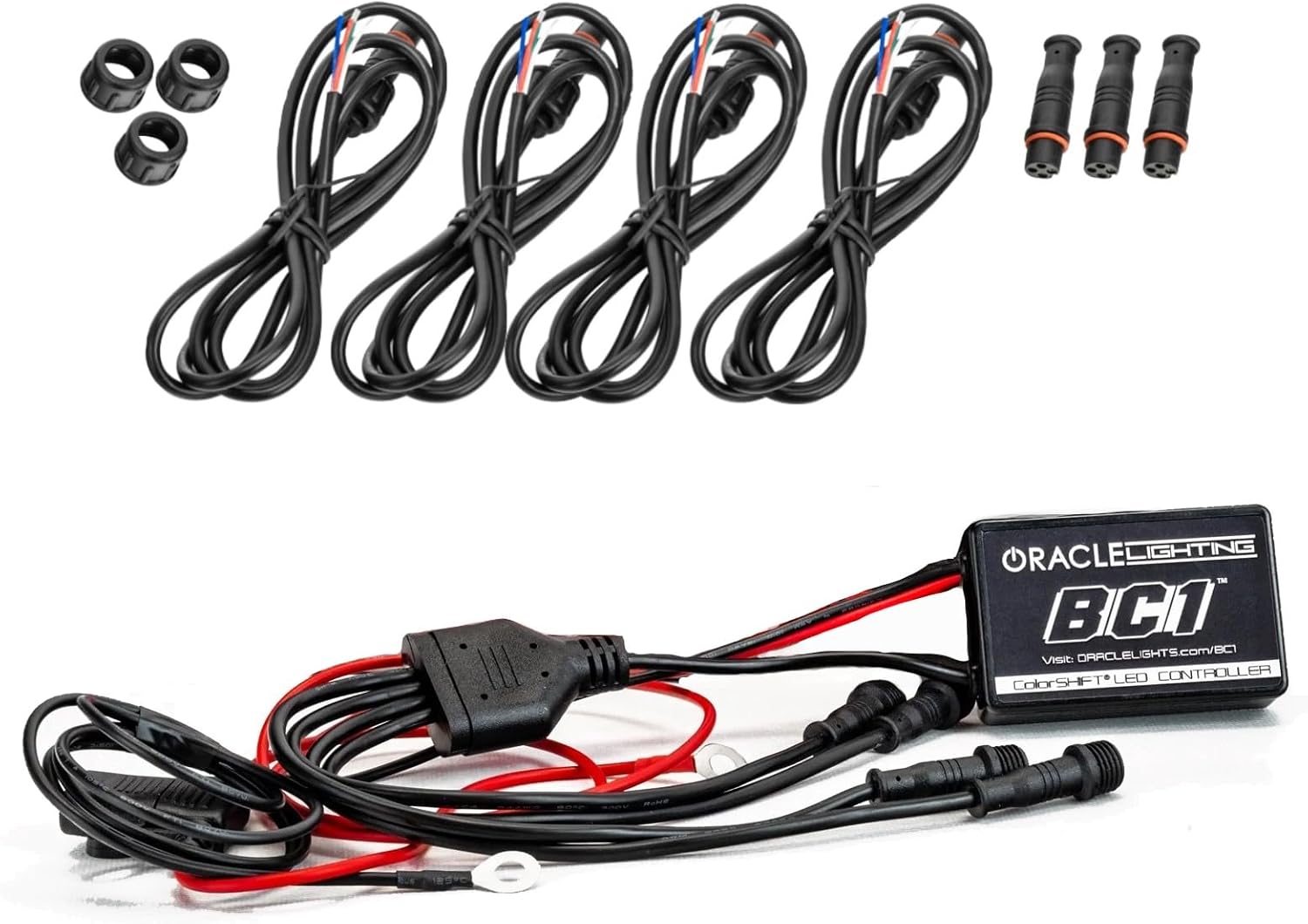

Figure 1: ORACLE Lighting BC1 Bluetooth Controller and included accessories, including the main controller unit, four accessory plugs with waterproof connections, and three waterproof end caps.
3. భద్రతా సమాచారం
Always disconnect the vehicle's battery before performing any electrical work. Ensure all connections are secure and properly insulated to prevent short circuits. This product is designed for 12VDC automotive systems. Do not exceed the maximum current output of 10A per channel.
ప్రతిపాదన 65 హెచ్చరిక: ఈ ఉత్పత్తిలో క్యాన్సర్ మరియు పుట్టుకతో వచ్చే లోపాలు లేదా ఇతర పునరుత్పత్తి హాని కలిగించే రసాయనాలు కాలిఫోర్నియా రాష్ట్రానికి తెలిసిన ఉండవచ్చు. మరిన్ని వివరాల కోసం, సందర్శించండి www.P65Warnings.ca.gov.
4. సంస్థాపన
4.1 ప్రీ-ఇన్స్టాలేషన్ చెక్లిస్ట్
- వాహనం యొక్క బ్యాటరీ డిస్కనెక్ట్ చేయబడిందని నిర్ధారించుకోండి.
- Gather necessary tools: wire strippers, crimpers, electrical tape, zip ties, multimeter.
- Identify the mounting location for the controller. It can be mounted inside or outside the vehicle cabin.
- Plan the wiring path to avoid moving parts, heat sources, and sharp edges.
4.2 వైరింగ్ సూచనలు
- పవర్ కనెక్షన్: Connect the positive (+) wire (typically red) from the BC1 controller to a constant 12V power source. It is recommended to use an inline 10A fuse within 12 inches of this connection.
- గ్రౌండ్ కనెక్షన్: Connect the negative (-) wire (typically black) from the BC1 controller to a reliable chassis ground point on the vehicle.
- LED Light Connections: Connect your RGB LED ColorSHIFT lights to the four output ports on the BC1 controller. Each output port is waterproof. Ensure the connections are secure.
- Unused Ports: If not all four output ports are used, install the provided waterproof end caps on the unused ports to protect them from moisture and debris.
Figure 2: The ORACLE Lighting BC1 Bluetooth Controller showing its main unit and the four output wires with waterproof connections, ready for installation.
4.3 కంట్రోలర్ను మౌంట్ చేయడం
Secure the BC1 controller in a location that is protected from extreme heat and direct physical damage. Use zip ties or mounting screws (not included) to firmly attach the controller. Ensure the location allows for proper cable routing and access if needed.
5. ఆపరేషన్
5.1 అనువర్తన సంస్థాపన
The ORACLE Lighting ColorSHIFT BC1 Controller is operated via a dedicated mobile application. Download the "ColorSHIFT" app from your device's app store (available for iOS and Android).
5.2 కంట్రోలర్కు కనెక్ట్ చేస్తోంది
- Ensure your vehicle's battery is reconnected and the controller is powered.
- మీ మొబైల్ పరికరంలో బ్లూటూత్ని ప్రారంభించండి.
- Open the ColorSHIFT app. The app will automatically scan for and connect to nearby BC1 controllers.
- Once connected, the app interface will display controls for your lights.
5.3 ప్రాథమిక విధులు
- రంగు ఎంపిక: Use the color wheel or preset options within the app to choose your desired light color.
- ప్రకాశం సర్దుబాటు: Adjust the intensity of the lights using the brightness slider.
- స్ట్రోబ్ ఎఫెక్ట్స్: Activate and customize strobing patterns.
- సంగీతం సమకాలీకరణ: Synchronize your lights with music playing on your device or through the app's microphone input.
- Custom Themes: Create and save personalized lighting themes for quick access.
చిత్రం 3: ఉదాample of ColorSHIFT LED lighting installed in a vehicle interior, demonstrating customizable color options.
6. నిర్వహణ
The ORACLE Lighting BC1 Bluetooth Controller requires minimal maintenance. Periodically inspect all wiring connections for corrosion or damage. Ensure the controller unit is free from excessive dirt or moisture buildup. Clean the unit with a soft, dry cloth if necessary.
Due to its waterproof design (IP67), the controller is protected against dust ingress and temporary immersion in water. However, prolonged submersion or high-pressure water jets should be avoided.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| లైట్లు వెలగడం లేదు. | No power to controller; loose wiring; blown fuse; faulty LED lights. | Check power and ground connections. Verify fuse. Test LED lights independently. |
| బ్లూటూత్ ద్వారా కనెక్ట్ చేయడం సాధ్యం కాలేదు. | Bluetooth disabled on device; app not open; controller out of range; interference. | Ensure Bluetooth is on. Open the ColorSHIFT app. Move closer to the controller. Restart app/device. |
| Lights do not respond to app commands. | Poor Bluetooth connection; app malfunction; controller malfunction. | Verify strong Bluetooth connection. Restart the app. If issues persist, contact support. |
| Lights reset to default color upon vehicle startup. | Controller wired to switched power instead of constant power for memory retention. | The BC1 controller does not retain settings if power is cut. For memory retention, the controller's positive wire needs constant 12V power. A relay can be used to switch the LED power while keeping the controller powered (refer to advanced wiring diagrams or professional installation). |
8. స్పెసిఫికేషన్లు
- మోడల్: 1720-504
- ఇన్పుట్ వాల్యూమ్tage: 12VDC
- Max Current Output: 10A
- ఆపరేషన్: Ground-Switched RGB
- వాతావరణ నిరోధక రేటింగ్: IP67
- కొలతలు (నియంత్రిక): సుమారు 4 x 9 x 9 అంగుళాలు (L x W x H)
- మెటీరియల్: ప్లాస్టిక్
- అమరిక: యూనివర్సల్
Figure 4: Visual representation of the ORACLE Lighting BC1 Bluetooth Controller and its key specifications, including input voltage, current output, operation type, and weatherproof rating.
9. వారంటీ మరియు మద్దతు
9.1 వారంటీ సమాచారం
ORACLE Lighting products are manufactured to high standards. For specific warranty details, please refer to the warranty information provided with your purchase or visit the official ORACLE Lighting webసైట్.
9.2 కస్టమర్ మద్దతు
If you encounter any issues or have questions regarding your ORACLE Lighting ColorSHIFT BC1 Bluetooth Controller, please contact ORACLE Lighting customer support through their official webసైట్ లేదా మీ ఉత్పత్తి ప్యాకేజింగ్లో అందించిన సంప్రదింపు సమాచారం.
ORACLE Lighting Webసైట్: www.oraclelights.com
