1. పరిచయం
Thank you for choosing the WORKPRO 6-in-1 Manual Staple Gun. This versatile tool is designed for various fastening tasks, including upholstery, decoration, carpentry, and general repairs. It is compatible with six different types of staples and nails, offering flexibility for a wide range of projects. Please read this manual thoroughly before operation to ensure safe and efficient use.
Image 1: WORKPRO 6-in-1 Manual Staple Gun and included fasteners.
The WORKPRO 6-in-1 Manual Staple Gun is a robust tool designed for various fastening applications. It comes with an assortment of 4,000 staples and nails, including T50, JT21, T25, and 18 Gauge Brad Nails, providing a comprehensive solution for your projects.
2. భద్రతా సమాచారం
- Always wear appropriate personal protective equipment, such as safety glasses, when operating the staple gun.
- Keep hands and body parts clear of the staple exit area.
- Never point the staple gun at yourself or others.
- Ensure the work surface is stable and secure before fastening.
- సాధనాన్ని పిల్లలకు దూరంగా ఉంచండి.
- Remove all staples/nails from the magazine before storing the tool.
3. ఉత్పత్తి లక్షణాలు మరియు భాగాలు
Image 2: Key components of the WORKPRO 6-in-1 Manual Staple Gun.
This diagram highlights the main parts of the staple gun, including the handle, high/low power switch, staple reload window, magazine release latch, staple exit area, front wire guide, rear wire guide, and belt clip.
ముఖ్య లక్షణాలు:
- 6-ఇన్-1 ఫంక్షనాలిటీ: Compatible with six types of fasteners: T50, JT21, T20, T25, 18 Gauge Brad Nails, and PIN. This eliminates the need for multiple tools.
- Dual Power Lever: Features High/Low settings to adjust fastening power for different material densities, from soft fabrics to harder woods.
- ఎర్గోనామిక్ డిజైన్: The rubberized grip and ergonomic hand slot are designed to minimize hand fatigue during prolonged use.
- Jamming Prevention: Patented mechanism designed to prevent staple jams, ensuring smooth operation.
- Quick-Release Magazine: Allows for fast and easy reloading of staples/nails.
- Retractable Handle Lock: Saves space during storage and enhances safety.
- బెల్ట్ క్లిప్: Conveniently carry the tool on your belt for easy access during projects.

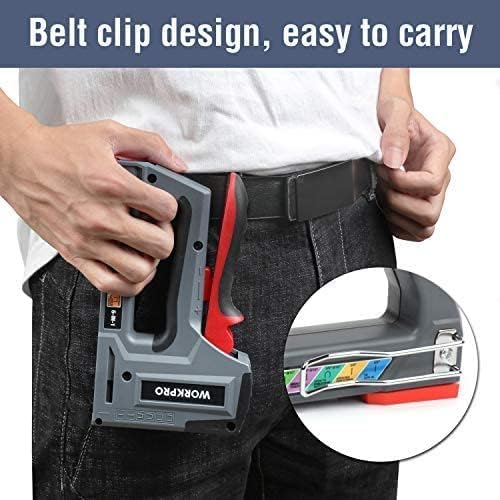

Image 3: The integrated belt clip allows for easy portability.
The belt clip design provides a practical way to keep the staple gun accessible while working, improving efficiency and convenience.
4. ఆపరేషన్
4.1 Loading Staples/Nails
- Locate the magazine release latch at the rear bottom of the staple gun.
- Press the latch and pull out the magazine tray.
- Insert the desired staples or nails into the tray, ensuring they are oriented correctly (points facing forward).
- Slide the magazine tray back into the staple gun until it clicks securely into place.
Image 4: Step-by-step guide to loading fasteners.
The quick-release bottom magazine simplifies the reloading process, allowing for efficient work without frequent adjustments for different fastener types.
4.2 Adjusting Power (High/Low)
The staple gun features a dual power lever (High/Low switch) located near the handle. Select the 'High' setting for harder materials like wood, and the 'Low' setting for softer materials such as fabric or insulation. Adjusting this lever optimizes the driving force for different applications.
4.3 Firing the Staple Gun
- Ensure the staple gun is loaded with the correct fasteners.
- Select the appropriate power setting (High or Low) based on your material.
- Place the front of the staple gun firmly against the material where you wish to fasten.
- Squeeze the handle firmly and completely to drive the staple or nail.
- Release the handle to prepare for the next fastening.
Image 5: Demonstrating the staple gun in use for carpentry.
The staple gun is suitable for various projects, from securing insulation to fastening materials in carpentry.

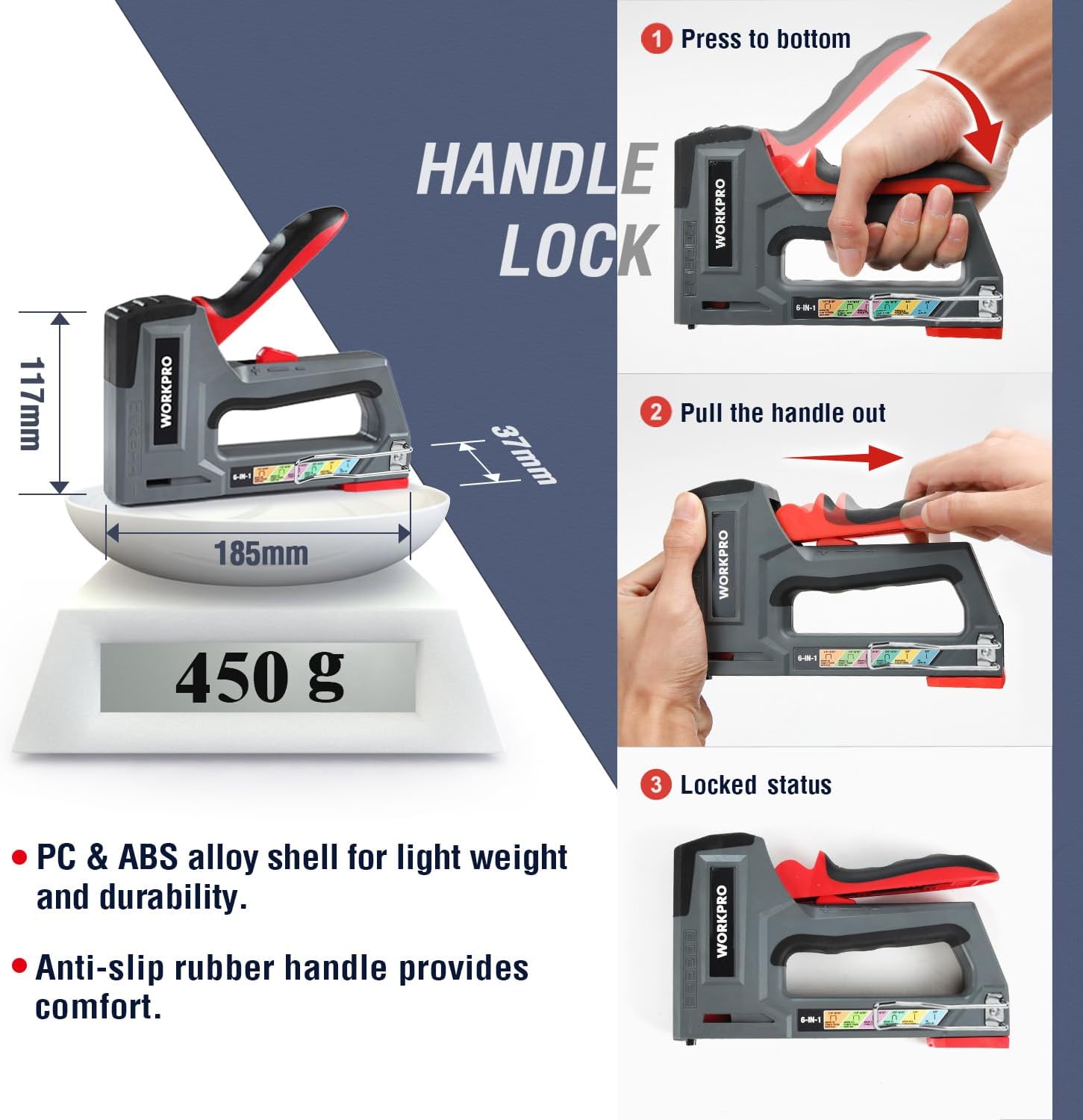

4.4 Handle Lock Mechanism
The retractable handle-lock design allows for compact storage. To engage the lock:
- Ensure all staples/nails are removed from the magazine for safety.
- Press the handle down to its lowest point.
- While holding the handle down, pull it outward to engage the locking mechanism.
Image 6: Instructions for locking the handle for storage.
The handle lock feature ensures safe and space-saving storage of the tool when not in use.
5. Compatible Fasteners
The WORKPRO 6-in-1 Manual Staple Gun is designed for compatibility with the following fastener types:
- T50 Staples: 1/4" - 9/16" (6mm - 14mm)
- JT21 స్టేపుల్స్: 1/4" - 9/16" (6mm - 14mm)
- T20 Staples: 1/4" - 9/16" (6mm - 14mm)
- T25 Staples: 3/8" - 9/16" (10mm - 14mm)
- 18 గేజ్ బ్రాడ్ నెయిల్స్: Up to 5/8" (15mm)
- PIN Nails: Up to 5/8" (15mm)
చిత్రం 7: ముగిసిందిview of compatible fastener types.
This image illustrates the various staple and nail types that can be used with the WORKPRO 6-in-1 staple gun, highlighting its versatility.
6. నిర్వహణ మరియు నిల్వ
- Keep the staple gun clean and free from dust and debris. Wipe down the exterior with a dry cloth after each use.
- Periodically check the magazine for any obstructions or bent fasteners that could cause jamming.
- Store the staple gun in a dry place, away from moisture and extreme temperatures.
- Always engage the handle lock and remove all fasteners from the magazine before storing to prevent accidental discharge.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Staple gun not firing / no fastener ejected. | Magazine empty; incorrect fastener type; jammed fastener; insufficient pressure applied to handle. | Check and reload magazine; ensure correct fastener type is used; clear any jams (refer to loading section); apply firm, complete pressure to the handle. |
| Fasteners not fully driven into material. | Low power setting; material too hard; insufficient pressure. | Switch to 'High' power setting; ensure tool is suitable for material; apply firm, consistent pressure. |
| Handle is difficult to squeeze. | High power setting; inherent tool design (manual operation requires force). | Consider using the 'Low' power setting for easier operation on softer materials. This is a manual tool and requires physical effort. |
| Magazine difficult to open/close. | Debris in track; misaligned fasteners. | Clear any debris from the magazine track; ensure fasteners are correctly aligned. |
8. స్పెసిఫికేషన్లు
| స్పెసిఫికేషన్ | వివరాలు |
|---|---|
| మోడల్ సంఖ్య | W023035 |
| పార్ట్ నంబర్ | W023035A |
| వస్తువు బరువు | 15.9 ఔన్సులు |
| ఉత్పత్తి కొలతలు | 11.02 x 4.92 x 0.04 అంగుళాలు (సాధనం మాత్రమే) |
| రంగు | బూడిద రంగు |
| శైలి | Staple Gun + 4000pcs Staples |
| మెటీరియల్ | ప్లాస్టిక్, మిశ్రమం |
| అంశం ప్యాకేజీ పరిమాణం | 1 |
| సామర్థ్యం వివరణ | పూర్తి స్ట్రిప్ |
| బ్యాటరీలు అవసరమా? | నం |
| తయారీదారు | HANZGHOU గ్రేట్స్టార్ ఇండస్ట్రియల్ CO. LTD |
| మొదటి తేదీ అందుబాటులో ఉంది | మే 19, 2020 |
9. వారంటీ మరియు మద్దతు
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official WORKPRO website. You can also visit the WORKPRO Store on Amazon for additional product information and support resources:
For any issues not covered in this manual, please contact WORKPRO customer service directly.
