MoesGo BHT-002-GBLWB-MG Wi-Fi Smart Thermostat User Manual

1. పరిచయం

Thank you for choosing the MoesGo BHT-002-GBLWB-MG Wi-Fi Smart Thermostat. This manual provides detailed instructions for the installation, operation, and maintenance of your new thermostat. Please read this manual thoroughly before installation and use to ensure proper function and safety. This thermostat is designed for 16A electric underfloor heating systems.

The MoesGo Wi-Fi Smart Thermostat features a clear LCD display and touch controls, with remote management capabilities via a smartphone application.

2. ఉత్పత్తి లక్షణాలు

• ఫ్లెక్సిబుల్ కంట్రోల్: Offers fully automated or manual settings. Control your device manually or connect to Wi-Fi and adjust heating schedules and temperature via a smartphone application.
• Electric Underfloor Heating: Specifically designed for smart electric underfloor heating systems, providing maximum comfort and convenience. Current load capacity is 16A.
• Advanced Memory & Control: Equipped with power-off memory to retain settings such as dates, languages, address, and time zones. Features voice control and device sharing for centralized or multi-channel control. Supports adding multiple rooms for a connected smart home experience.
• ప్రోగ్రామబుల్ షెడ్యూల్‌లు: Includes six programmable periods (5+1+1 days) allowing you to adjust heating based on your weekly schedule (weekdays, Saturday, Sunday). This ensures optimal comfort and energy savings when you are away.
• Precise & User-Friendly: Provides highly precise temperature control with 0.5 °C accuracy. The programming range is 5 °C to 35 °C. Features an LCD screen with touch buttons, easy to read even in low light conditions.

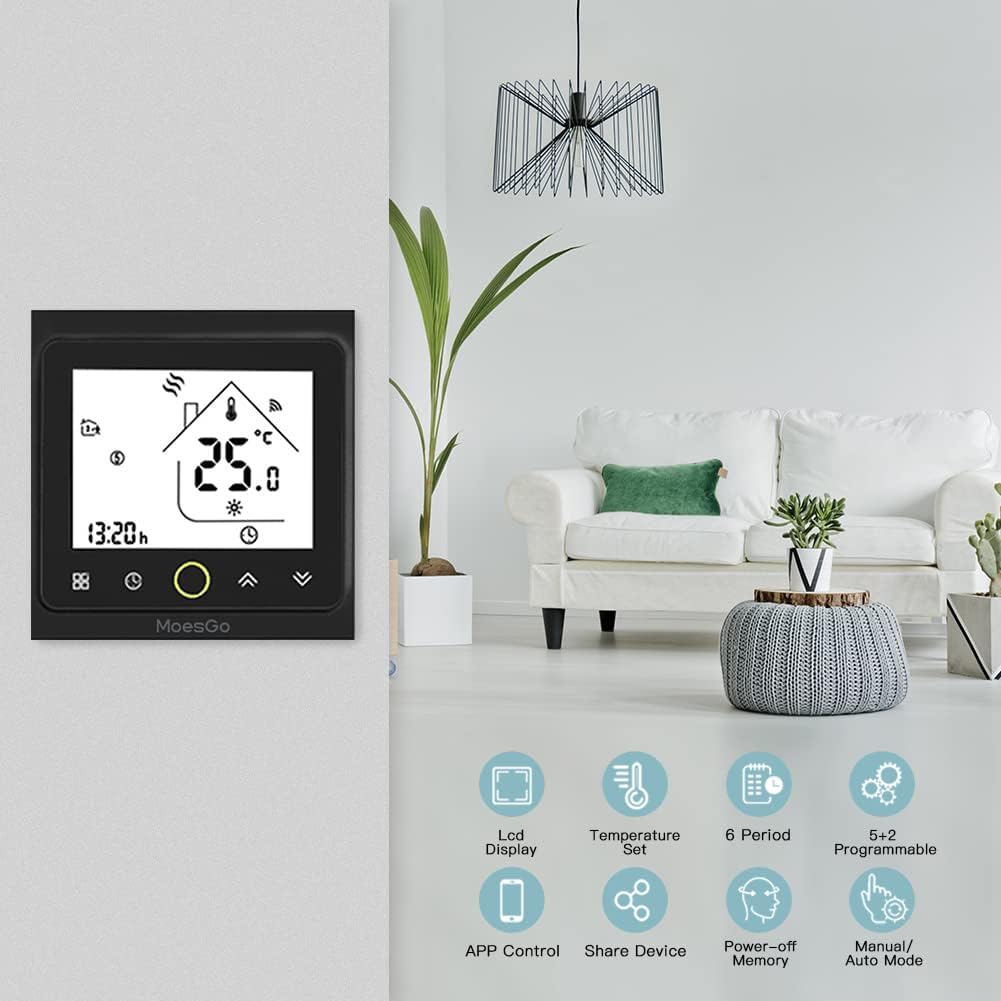

This image illustrates the MoesGo Smart Thermostat seamlessly integrated into a home environment, showcasing its primary functions such as programmable schedules, app control, and power-off memory.

3. స్పెసిఫికేషన్లు

Detailed product dimensions are provided for installation planning, showing the thermostat's compact size.

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

ముఖ్యమైన: Installation should be performed by a qualified electrician to ensure safety and compliance with local electrical codes. Always turn off power at the main circuit breaker before beginning any electrical work.

4.1 System Type Verification

Ensure your heating system is compatible with the 'GB' type thermostat, which is designed for electric underfloor heating.

The MoesGo BHT-002-GBLWB-MG thermostat is specifically designed for 'GB' type electric underfloor heating systems, as shown in this diagram.

4.2 వైరింగ్ సూచనలు

Follow the wiring diagram carefully. Connect the Live (L) and Neutral (N) wires from your power supply to the corresponding terminals on the thermostat. Connect the heating load wires to the 'LOAD' terminals. If an external NTC floor sensor is used, connect it to terminals 5 and 6.

This wiring diagram provides instructions for connecting the MoesGo GB type thermostat to an electric underfloor heating system, including power supply, load, and NTC sensor connections. Professional installation is recommended.

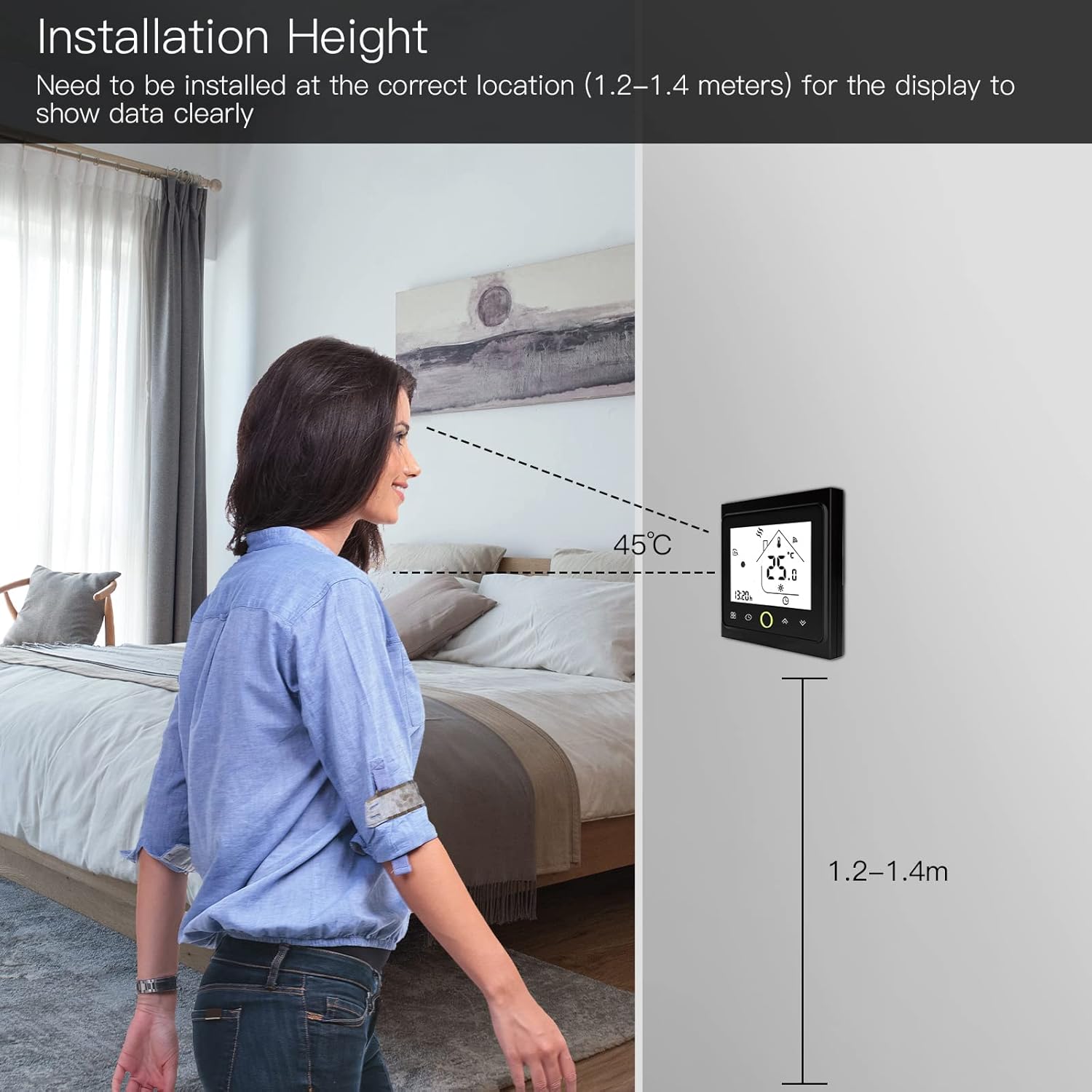

4.3 సంస్థాపన ఎత్తు

For optimal performance and clear data display, the thermostat should be installed at a height of 1.2 to 1.4 meters (approximately 4 to 4.6 feet) from the floor.

For optimal performance and clear data display, the thermostat should be installed at a height of 1.2 to 1.4 meters from the floor.

5. ఆపరేటింగ్ సూచనలు

5.1 ప్రాథమిక ఆపరేషన్

The thermostat features a touch-sensitive LCD display. To power on/off, press the power button. Adjust the temperature using the up and down arrows. The display shows the current temperature and time.

5.2 మోడ్ ఎంపిక

Switch between manual and automatic (programmable) modes by pressing the mode button. In manual mode, the thermostat maintains the set temperature. In automatic mode, it follows the programmed schedule.

6. Connectivity and Smart Features

6.1 Wi-Fi Connection and App Control

To enable remote control, connect your thermostat to your home Wi-Fi network. Download the 'Smart Life' or 'Tuya Smart' application on your smartphone. Follow the in-app instructions to add your device and configure settings. This allows you to adjust temperature, set schedules, and monitor your heating from anywhere.

Remote control via the Smart Life/Tuya Smart app enables temperature adjustments from anywhere, ensuring comfort upon arrival.

6.2 వాయిస్ నియంత్రణ

The MoesGo thermostat is compatible with Amazon Alexa and Google Home. Once connected to the app, link your Smart Life/Tuya Smart account to your voice assistant. You can then use voice commands to control your thermostat, for example, "Alexa, set room temperature to 22 degrees."

The thermostat supports voice control through Amazon Alexa and Google Home, allowing users to adjust settings with simple voice commands.

7. Programming Modes

The thermostat offers flexible programming options to optimize energy usage and comfort. You can set up to six distinct time periods and temperatures for different days of the week:

• 5+1+1 Day Mode: Program separate schedules for weekdays (Monday-Friday), Saturday, and Sunday.
• 7-రోజుల మోడ్: Program individual schedules for each day of the week.
• 6+1 Day Mode: Program separate schedules for Monday-Saturday and Sunday.

Refer to the app or the thermostat's advanced settings menu for detailed instructions on setting up your preferred programming mode.

The thermostat offers flexible programming modes (5+2, 6+1, or 7 days) allowing users to set specific heating schedules for different times of the day and week.

8. నిర్వహణ

To ensure the longevity and optimal performance of your MoesGo Smart Thermostat, follow these simple maintenance guidelines:

• శుభ్రపరచడం: స్క్రీన్‌ను సున్నితంగా తుడిచి, సిasing with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the surface or internal components.
• అడ్డంకులను నివారించండి: Ensure that the thermostat's vents (if any) are not blocked by furniture, curtains, or other objects, as this can affect temperature readings.
• పర్యావరణ పరిస్థితులు: Keep the thermostat away from direct sunlight, drafts, or heat sources that could interfere with its temperature sensing accuracy.

9. ట్రబుల్షూటింగ్

If you encounter issues with your MoesGo Smart Thermostat, please refer to the following common problems and solutions:

• థర్మోస్టాట్ ఆన్ కావడం లేదు:
  • Check the main circuit breaker to ensure power is supplied to the thermostat.
  • Verify all wiring connections are secure according to the installation diagram.
• Incorrect Time Display / Time Drifting:
  • If the time on the thermostat is incorrect or drifts significantly, carefully remove the display unit from its base.
  • Check the connector on the back of the display unit and ensure it is fully seated and clicked into place. A loose connection can cause timekeeping issues. Re-seat the connector firmly.
  • After re-seating, reset the time if necessary.
• Wi-Fi కనెక్టివిటీ సమస్యలు:
  • Ensure your Wi-Fi network is 2.4GHz, as the thermostat may not support 5GHz networks.
  • Check that the thermostat is within range of your Wi-Fi router.
  • Restart your Wi-Fi router and the thermostat.
  • Follow the pairing instructions in the Smart Life/Tuya Smart app carefully.
• సరికాని ఉష్ణోగ్రత రీడింగ్:
  • Ensure the thermostat is not exposed to direct sunlight, drafts, or other heat sources that could affect its internal sensor.
  • If an external floor sensor is used, verify its connection and ensure it is properly installed in the floor.
• తాపన సక్రియం కావడం లేదు:
  • Check the set temperature; it must be higher than the current room temperature for heating to activate.
  • Verify the thermostat is in the correct operating mode (e.g., not in 'off' or 'manual' mode with a low setpoint).
  • Inspect the heating system's circuit breaker.

10. వారంటీ మరియు మద్దతు

For warranty information and technical support, please contact your retailer or the manufacturer, WENZHOU NOVA NEW ENERGY CO.,LTD. Keep your purchase receipt as proof of purchase. Please refer to the product packaging or the seller's webనిర్దిష్ట వారంటీ నిబంధనలు మరియు సంప్రదింపు వివరాల కోసం సైట్.
