1. పరిచయం
Thank you for choosing the Powertech PT-600 Uninterruptible Power Supply (UPS). This device is designed to provide reliable battery backup and surge protection for your electronic equipment, safeguarding against power outages, voltage fluctuations, and electrical surges. The PT-600 ensures continuous operation and protection for critical devices such as PCs, wireless routers, modems, TVs, and home entertainment systems.
ముఖ్య లక్షణాలు:
- 6 NEMA 5-15R అవుట్లెట్లు: All outlets provide both battery backup and surge protection.
- Self-Starting Functionality: The UPS is designed to auto-restart after an AC power failure once power is restored.
- ఆటోమేటిక్ వాల్యూమ్tagఇ నియంత్రణ (AVR): Microprocessor-controlled AVR corrects minor power fluctuations without switching to battery, extending battery life.
- Touch Screen LCD Display: Provides real-time information on the UPS status, including battery load, voltage, మరియు బ్యాటరీ స్థాయి.
- సమగ్ర రక్షణ: Guards against discharges, voltage surges, overloads, short circuits, and transients from modems/telephone lines.
2. ఉత్పత్తి ముగిసిందిview
Familiarize yourself with the components of your Powertech PT-600 UPS.
చిత్రం 2.1: ముందు మరియు వైపు view of the Powertech PT-600 UPS, showing the main unit with ventilation grilles and the Powertech logo.

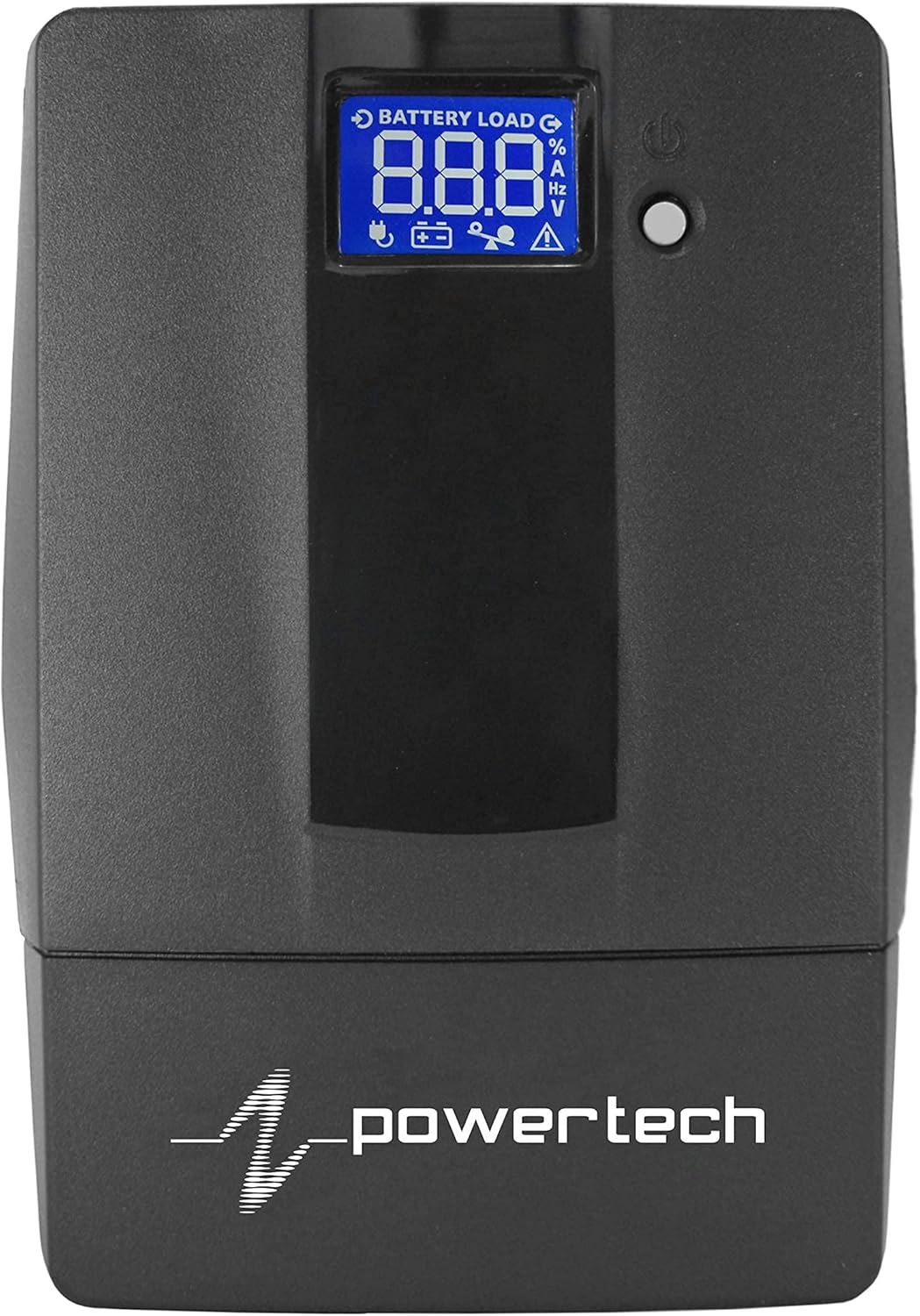

Figure 2.2: Close-up of the touch screen LCD display on the Powertech PT-600 UPS, showing battery load, voltage, and other status indicators.
Figure 2.3: Rear panel of the Powertech PT-600 UPS, displaying six NEMA 5-15R outlets, a USB port, and RJ11/RJ45 ports for modem/telephone line protection.
భాగాలు:
- ముందు ప్యానెల్: Features the touch screen LCD display for status monitoring and a power button.
- వెనుక ప్యానెల్: Includes six NEMA 5-15R outlets (all battery backup and surge protected), a USB communication port, and RJ11/RJ45 ports for surge protection of telephone/modem lines.
- పవర్ కార్డ్: Integrated power cord for connecting to a wall outlet.
3. సెటప్
Follow these steps for the initial setup of your Powertech PT-600 UPS.
- అన్ప్యాకింగ్: Carefully remove the UPS from its packaging. Inspect for any shipping damage.
- ప్లేస్మెంట్: Place the UPS in a cool, dry, and well-ventilated area, away from direct sunlight, heat sources, and excessive moisture. Ensure adequate space around the unit for proper airflow.
- ప్రారంభ బ్యాటరీ ఛార్జ్: Connect the UPS power cord to a standard wall outlet. Allow the unit to charge for at least 8 hours before connecting any devices to ensure optimal battery performance. The LCD display will indicate charging status.
- కనెక్ట్ చేసే పరికరాలు: Once the battery is sufficiently charged, connect your electronic devices (e.g., computer, monitor, router) to the NEMA 5-15R outlets on the rear panel. Ensure the total load does not exceed the UPS's capacity (600VA / 360W).
- Connecting Data Lines (Optional): For surge protection of telephone or modem lines, connect your incoming line to the "IN" port and your device to the "OUT" port on the rear panel.
- పవర్ ఆన్: Press and hold the power button on the front panel for a few seconds until the UPS powers on and the LCD display illuminates.
ముఖ్యమైన: Do not connect laser printers or shredders to the UPS battery backup outlets, as their high power draw can overload the unit.
4. ఆపరేటింగ్ సూచనలు
4.1 పవర్ చేయడం ఆన్/ఆఫ్
- పవర్ ఆన్ చేయడానికి: With the UPS connected to AC power, press and hold the power button for approximately 2-3 seconds until you hear a beep and the LCD display lights up.
- పవర్ ఆఫ్ చేయడానికి: Press and hold the power button for approximately 2-3 seconds until the LCD display turns off. If the UPS is running on battery power, it will shut down immediately. If connected to AC power, it will enter standby mode.
4.2 LCD డిస్ప్లేను అర్థం చేసుకోవడం
The touch screen LCD display provides real-time operational status. Tap the screen to cycle through different information displays.
| Icon/Indicator | వివరణ |
|---|---|
| Battery Load % | శాతాన్ని సూచిస్తుందిtage of the UPS's capacity currently being used by connected devices. |
| బ్యాటరీ స్థాయి | Shows the current charge level of the internal battery. |
| ఇన్పుట్ వాల్యూమ్tagఇ (వి) | Displays the incoming AC voltage from the wall outlet. |
| అవుట్పుట్ వాల్యూమ్tagఇ (వి) | వాల్యూమ్ని ప్రదర్శిస్తుందిtage being supplied by the UPS to connected devices. |
| ఫ్రీక్వెన్సీ (Hz) | Shows the operating frequency of the power supply. |
| ఓవర్లోడ్ సూచిక | Flashes or illuminates if the connected load exceeds the UPS's capacity. Disconnect non-essential devices immediately. |
| తప్పు సూచిక | Indicates an internal fault with the UPS. Refer to troubleshooting. |
4.3 ఆటోమేటిక్ వాల్యూమ్tagఇ నియంత్రణ (AVR)
The PT-600 features Automatic Voltage Regulation (AVR) to stabilize incoming utility power. When the input voltage fluctuates (either too high or too low) but remains within a safe range, the UPS will automatically adjust the output voltage without switching to battery power. This protects your devices from minor power disturbances and prolongs the life of the UPS battery.
4.4 Battery Backup Operation
ఒక పవర్ సందర్భంలో outage, the UPS will automatically switch to battery power, providing continuous power to connected devices. The UPS will emit an audible alarm (beeping) to indicate it is operating on battery. The LCD display will show the remaining battery level. When utility power is restored, the UPS will automatically switch back to AC power and begin recharging its battery.
గమనిక: The runtime on battery power depends on the load connected. Disconnect non-essential devices during an outage to maximize runtime for critical equipment.
5. నిర్వహణ
Proper maintenance ensures the longevity and optimal performance of your Powertech PT-600 UPS.
- బ్యాటరీ సంరక్షణ:
- Keep the UPS connected to AC power to ensure the battery remains fully charged.
- Avoid frequent deep discharges.
- If storing the UPS for an extended period, fully charge it, then disconnect from AC power. Recharge every 3 months to prevent battery degradation.
- The internal battery is a sealed lead-acid type. Its lifespan is typically 3-5 years under normal operating conditions. Battery replacement should be performed by qualified personnel.
- శుభ్రపరచడం:
- శుభ్రపరిచే ముందు UPSని AC పవర్ నుండి మరియు కనెక్ట్ చేయబడిన అన్ని పరికరాల నుండి డిస్కనెక్ట్ చేయండి.
- యూనిట్ వెలుపలి భాగాన్ని తుడవడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి.
- లిక్విడ్ క్లీనర్లు లేదా ఏరోసోల్ స్ప్రేలను ఉపయోగించవద్దు.
- వెంటిలేషన్ ఓపెనింగ్స్ దుమ్ము మరియు శిధిలాలు లేకుండా చూసుకోండి.
- పర్యావరణ పరిస్థితులు:
- Operate the UPS within its specified temperature and humidity ranges (refer to Specifications section).
- Avoid placing the UPS near water or in excessively humid environments.
6. ట్రబుల్షూటింగ్
If you encounter issues with your Powertech PT-600 UPS, refer to the following common problems and solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| UPS ఆన్ అవ్వడం లేదు. | No AC power; Battery discharged; Power button not held long enough. | Ensure UPS is plugged into a live wall outlet. Allow battery to charge for 8 hours. Press and hold power button for 2-3 seconds. |
| UPS beeps continuously or shows overload. | Overload condition; Too many devices connected. | Disconnect non-essential devices. Ensure total load is within 600VA/360W capacity. |
| UPS runs on battery frequently. | ఇన్పుట్ వాల్యూమ్tage fluctuations; AVR working. | This may be normal if power quality is poor. If excessive, check wall outlet or consult an electrician. |
| బ్యాటరీ రన్టైమ్ ఊహించిన దాని కంటే తక్కువగా ఉంది. | Battery not fully charged; Battery nearing end of life; Excessive load. | Allow battery to fully charge. Reduce connected load. Consider battery replacement if unit is old. |
| LCD డిస్ప్లే ఖాళీగా ఉంది. | UPS is off; Display sleep mode. | Press the power button briefly to wake the display. Ensure UPS is powered on. |
If the problem persists after trying these solutions, please contact Powertech customer support.
7. స్పెసిఫికేషన్లు
Technical specifications for the Powertech PT-600 UPS.
| గుణం | వివరాలు |
|---|---|
| బ్రాండ్ | పవర్టెక్ |
| మోడల్ | PT-600 (PT 600) |
| కెపాసిటీ | 600VA / 360W |
| ఇన్పుట్ వాల్యూమ్tage | 120 వోల్ట్లు |
| అవుట్పుట్ వేవ్ఫార్మ్ | స్టెప్డ్ సైన్ వేవ్ |
| అవుట్లెట్లు | 6 x NEMA 5-15R (Battery Backup & Surge Protected) |
| బ్యాటరీ రకం | Sealed Lead Acid (1 x 12V battery required for operation) |
| ఫారమ్ ఫ్యాక్టర్ | Rack (Note: Product images suggest a tower form factor, but specification lists "Rack". User should verify.) |
| ఉత్పత్తి కొలతలు | 30 x 9.98 x 14 సెం.మీ; 4.35 కిలోలు |
| మొదట అందుబాటులో ఉన్న తేదీ | ఏప్రిల్ 14, 2021 |
| రంగు | నలుపు |
| Ampఎరేజ్ | 3 Amps |
8. వారంటీ మరియు మద్దతు
For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Powertech webసైట్.
If you require technical assistance, troubleshooting beyond this manual, or have questions regarding your Powertech PT-600 UPS, please contact Powertech customer support.
- Powertech Official Webసైట్: www.powertech.com (ఉదాample link, please refer to actual manufacturer webసైట్)
- కస్టమర్ మద్దతు: Refer to contact information provided on the product packaging or official webసైట్.
