MSD Digital 6AL Ignition Control Box User Manual

1. పరిచయం

The MSD Digital 6AL Ignition Control Box is designed to provide superior ignition performance for 4, 6, or 8-cylinder engines. This unit delivers a powerful spark, ensuring optimal combustion and engine efficiency. Its digital design offers precise control and features like an adjustable rev limiter and an integrated LED for system diagnostics. The compact and robust construction, along with a sealed connector system, ensures reliable operation and a clean installation.

Figure 1.1: The MSD Digital 6AL Ignition Control Box, showcasing its red casing, silver fins, and prominent MSD logo. This unit is designed for enhanced engine performance.

2. భద్రతా సమాచారం

Always read and understand all instructions before installing or operating this product. Failure to do so may result in personal injury or damage to the product or vehicle.

• బ్యాటరీని డిస్‌కనెక్ట్ చేయండి: ప్రమాదవశాత్తు షార్ట్ సర్క్యూట్లు లేదా విద్యుత్ షాక్‌లను నివారించడానికి ఏదైనా విద్యుత్ పని చేసే ముందు వాహనం యొక్క బ్యాటరీని ఎల్లప్పుడూ డిస్‌కనెక్ట్ చేయండి.
• సరైన వైరింగ్: Ensure all wiring connections are secure and insulated to prevent shorts and ensure proper operation. Refer to the wiring diagram for correct connections.
• వెంటిలేషన్: Install the unit in a well-ventilated area, away from excessive heat or moisture.
• వృత్తిపరమైన సంస్థాపన: If you are unsure about any part of the installation process, seek assistance from a qualified automotive technician.
• ప్రతిపాదన 65 హెచ్చరిక: ఈ ఉత్పత్తిలో క్యాన్సర్ మరియు జనన లోపాలు లేదా ఇతర పునరుత్పత్తి హాని కలిగించే కాలిఫోర్నియా రాష్ట్రానికి తెలిసిన రసాయనాలు ఉండవచ్చు.

మూర్తి 2.1: వైపు view of the MSD Digital 6AL Ignition Control Box, showing a warning label that advises against using the device with solid core spark plug wires.

3. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• MSD Digital 6AL Ignition Control Box
• Main Wiring Harness with Sealed Connector
• Accessory Wiring Harness (for RPM input, etc.)
• Mounting Hardware (screws, rubber mounts)
• Various Electrical Connectors and Terminals
• జిప్ టైస్
• Diode (for specific wiring configurations)

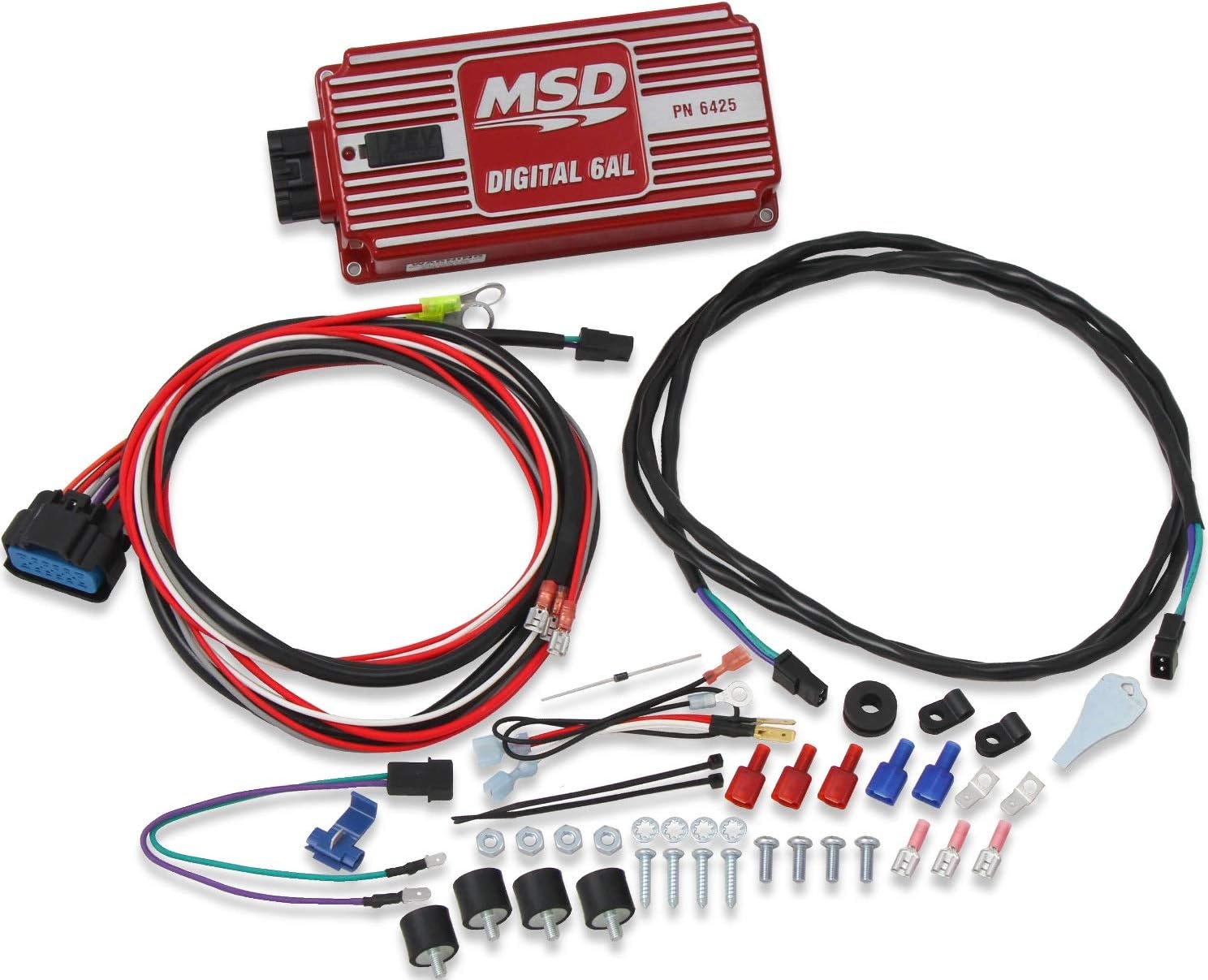

చిత్రం 3.1: పైగాview of the MSD Digital 6AL Ignition Control Box along with its comprehensive set of wiring harnesses and various installation accessories, including connectors and mounting hardware.

చిత్రం 3.2: వివరణాత్మక view of the accessory kit, showing various electrical connectors, screws, rubber mounts, and zip ties provided for a complete installation.

4. సెటప్ & ఇన్‌స్టాలేషన్

Proper installation is critical for the performance and longevity of your Digital 6AL. Follow these steps carefully:

4.1 యూనిట్ మౌంట్

1. Choose a location that is away from direct engine heat, exhaust manifolds, and excessive vibration. The unit should be mounted securely.
2. Use the provided rubber mounts and screws to secure the Digital 6AL. The rubber mounts help absorb vibration.

4.2 వైరింగ్ కనెక్షన్లు

The Digital 6AL features a sealed connector for all wiring, ensuring a clean and secure connection. Refer to the detailed wiring diagram in the full manual for specific vehicle applications.

• పవర్ వైర్లు: Connect the heavy red wire to a constant 12-volt source (battery positive) and the heavy black wire to a good chassis ground.
• Ignition Switch Wire: Connect the thin red wire to a switched 12-volt source that is active when the ignition is ON and during cranking.
• Tachometer Output: The gray wire provides a 12-volt square wave signal for your tachometer.
• Magnetic Pickup/Crank Trigger: Connect the green and violet wires to your magnetic pickup or crank trigger sensor. Ensure correct polarity.
• కాయిల్ కనెక్షన్లు: Connect the orange wire to the positive (+) terminal of the ignition coil and the black wire to the negative (-) terminal of the ignition coil.

మూర్తి 4.1: వైపు view of the MSD Digital 6AL Ignition Control Box, highlighting the multi-pin sealed connector where all wiring harnesses connect for a secure and organized installation.

చిత్రం 4.2: క్లోజప్ view of the sealed multi-pin connector, demonstrating its robust design for reliable electrical connections.

మూర్తి 4.3: వివరంగా view of various wire terminals and connectors, illustrating the quality and variety of components used for secure electrical connections.

5. ఆపరేటింగ్ సూచనలు

The Digital 6AL is designed for straightforward operation once installed.

5.1 Adjustable Rev Limiter

The unit features two rotary dials for setting the RPM limit in 100 RPM increments. These dials are typically located on the side or top of the unit, accessible for adjustment.

1. Locate the two rotary dials on the Digital 6AL unit.
2. The left dial typically controls thousands of RPM (e.g., '5' for 5000 RPM).
3. The right dial typically controls hundreds of RPM (e.g., '0' for 000, '5' for 500).
4. Combine the settings to achieve your desired RPM limit. For example, setting the left dial to '6' and the right dial to '5' will set the limit to 6500 RPM.

5.2 LED సూచిక

A built-in LED indicator provides system status. Consult the full manual for specific LED flash codes and their meanings, which can assist in diagnostics.

6. నిర్వహణ

The MSD Digital 6AL Ignition Control Box is designed for minimal maintenance. However, periodic checks can ensure optimal performance:

• వైరింగ్ తనిఖీ: Periodically inspect all wiring connections for signs of wear, fraying, or corrosion. Ensure all connections remain tight and secure.
• పరిశుభ్రత: Keep the unit clean and free of dirt, dust, and moisture. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or solvents.
• మౌంటు భద్రత: Verify that the unit remains securely mounted and that the rubber isolators are in good condition.

7. ట్రబుల్షూటింగ్

If you encounter issues with your Digital 6AL, refer to the following common problems and solutions:

For more detailed troubleshooting, refer to the complete MSD Digital 6AL instruction manual or contact MSD technical support.

8. స్పెసిఫికేషన్లు

Figure 8.1: Dimensional diagram of the MSD Digital 6AL Ignition Control Box, indicating its length (8 inches), width (4 inches), and height (1.82 inches).

9. వారంటీ & సపోర్ట్

For warranty information, product registration, or technical assistance, please visit the official MSD webసైట్‌లో లేదా వారి కస్టమర్ సపోర్ట్‌ను నేరుగా సంప్రదించండి. కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.
