1. పరిచయం
This manual provides instructions for the installation, operation, and maintenance of the 10L0L Golf Cart Run Tow Switch Kit. This switch is designed to prevent potential damage to the golf cart's motor and controller when the vehicle is being towed or serviced. It also facilitates free movement of the vehicle in the towing position.
సరైన పనితీరు మరియు భద్రతను నిర్ధారించడానికి దయచేసి సంస్థాపనకు ముందు ఈ మాన్యువల్ను పూర్తిగా చదవండి మరియు ఉపయోగించండి.
2. భద్రతా జాగ్రత్తలు
- Always disconnect the main battery pack before performing any electrical work on your golf cart. Failure to do so can result in serious injury or damage to the vehicle.
- Ensure the golf cart is on a level surface and the parking brake is engaged before beginning installation.
- భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు సహా తగిన వ్యక్తిగత రక్షణ పరికరాలను ధరించండి.
- If you are unsure about any step of the installation process, consult a qualified golf cart technician.
- Do not operate the golf cart with a damaged or improperly installed run/tow switch.
3. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:
- 1 x Run-Tow Switch with pre-attached wiring
- 1 x Rubber Boot (for switch protection)
- 2 x Waterproof Butt Splice Connectors
చిత్రం 1: ముగిసిందిview of the 10L0L Golf Cart Run Tow Switch Kit, including the switch, wiring, butt splices, and packaging.
4. అనుకూలత
This Run Tow Switch Kit is compatible with the following golf cart models:
- EZGO RXV Electric (2008-up)
- EZGO 2Five Electric (2010-up)
This kit replaces EZGO part number: 608900.
5. ఇన్స్టాలేషన్ సూచనలు
Follow these steps carefully to install the Run Tow Switch Kit:
- గోల్ఫ్ కార్ట్ సిద్ధం చేయండి: Ensure the golf cart is turned off and the main battery pack is disconnected. Engage the parking brake.
- ఇన్స్టాలేషన్ ప్రాంతాన్ని గుర్తించండి: The run/tow switch is typically located near the controller or battery compartment. Refer to your golf cart's service manual for the exact location if needed.
- Remove Existing Switch (if applicable): If replacing an existing switch, carefully disconnect its wiring and remove the old switch from its mounting location.
- Mount the New Switch: Insert the new run/tow switch into the designated panel opening. Secure it with the provided nut and washer. Place the rubber boot over the switch handle for protection.
- స్విచ్ వైర్ చేయండి: Connect the wires from the new run/tow switch to the golf cart's wiring harness using the waterproof butt splice connectors. Ensure a secure and tight connection for each wire. Match the wire colors or follow the wiring diagram specific to your golf cart model.
- కనెక్షన్లను ధృవీకరించండి: Double-check all wiring connections to ensure they are correct and secure.
- బ్యాటరీని మళ్లీ కనెక్ట్ చేయండి: Once installation is complete and verified, reconnect the main battery pack.
- పరీక్ష కార్యాచరణ: Test the switch by toggling between 'Run' and 'Tow' positions. Ensure the golf cart operates correctly in 'Run' mode and can be freely moved in 'Tow' mode (with power off).
Image 2: An illustrative diagram indicating the typical location and connection point for the run/tow switch within a golf cart's electrical system.
Image 3: The run/tow switch and the included waterproof butt splice connectors, ready for wiring.
6. ఆపరేటింగ్ సూచనలు
The Run Tow Switch has two primary positions:
- పరుగు స్థానం: In this position, the golf cart's electrical system is active, allowing for normal operation. The motor and controller are engaged.
- TOW Position: In this position, the golf cart's electrical system, including the motor and controller, is disengaged. This prevents damage when the cart is being towed or when performing maintenance that requires the wheels to turn freely without power.
ముఖ్యమైన: Always switch to the 'TOW' position before towing the golf cart or performing any maintenance that involves rotating the wheels or working on the electrical system. Switch back to 'RUN' for normal driving.

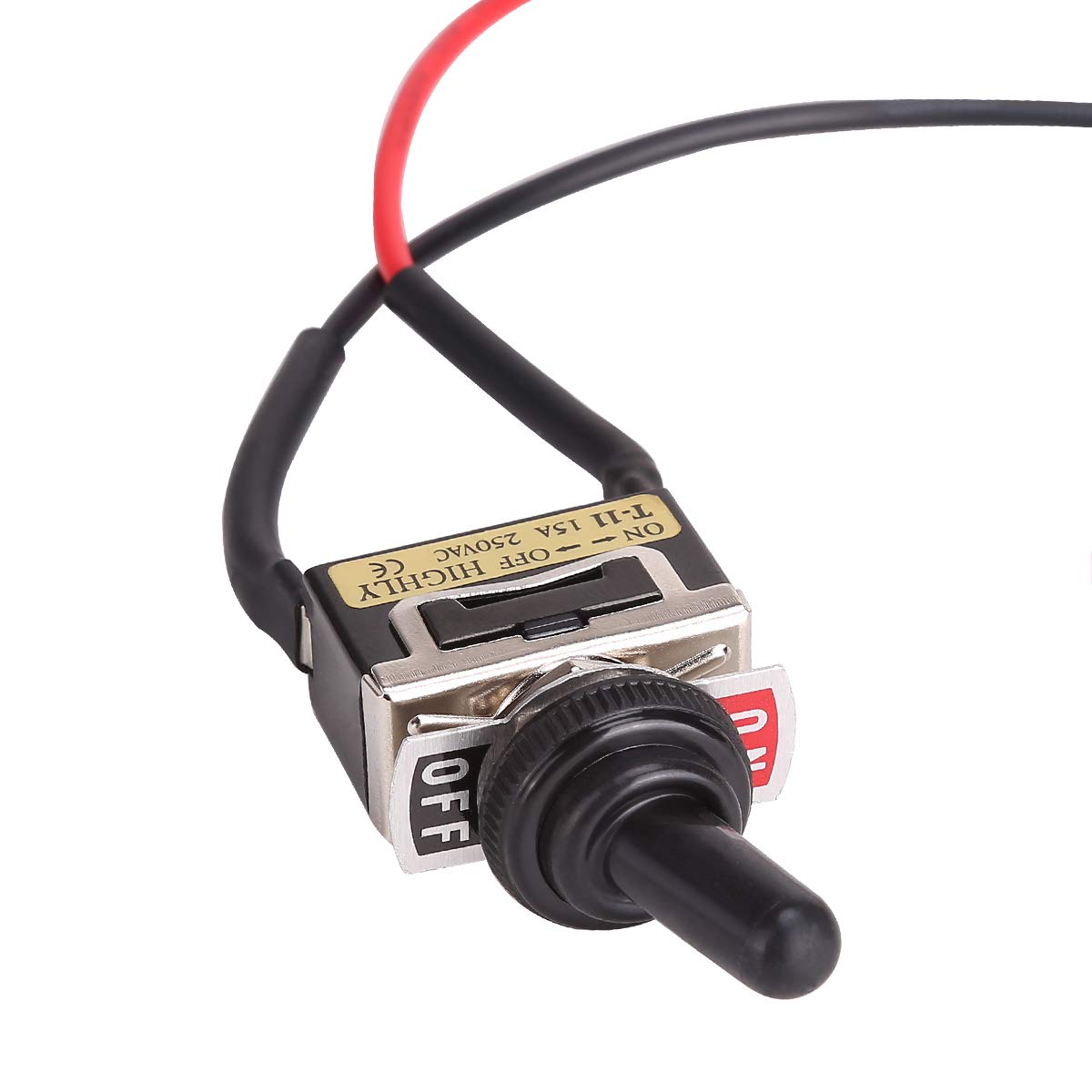

చిత్రం 4: వివరణాత్మకమైనది view of the switch lever and its 'ON' (Run) and 'OFF' (Tow) markings.
7. నిర్వహణ
The 10L0L Run Tow Switch Kit is designed for durability and requires minimal maintenance. However, periodic checks are recommended:
- వైరింగ్ తనిఖీ: Periodically check the wiring and connections for any signs of wear, corrosion, or looseness. Ensure the butt splices remain sealed.
- క్లీన్ స్విచ్: Keep the switch and rubber boot free from dirt, debris, and moisture. Use a clean, dry cloth for cleaning.
- కార్యాచరణ తనిఖీ: Test the switch's operation regularly to ensure it toggles smoothly between 'Run' and 'Tow' positions and performs its intended function.
8. ట్రబుల్షూటింగ్
If you encounter issues with your run/tow switch, consider the following:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Golf cart does not power on in 'RUN' position. | Loose or corroded wiring connections. Switch malfunction. Main battery disconnected or low charge. | Check all wiring connections. Ensure battery is connected and charged. Test switch continuity with a multimeter. Replace switch if faulty. |
| Golf cart still has power in 'TOW' position. | Switch malfunction. Incorrect wiring. | Verify wiring connections against the golf cart's diagram. Test switch continuity. Replace switch if faulty. |
| Switch lever is stiff or difficult to move. | Dirt or debris accumulation. Damaged switch mechanism. | Clean the switch thoroughly. If stiffness persists, the internal mechanism may be damaged, requiring replacement. |
9. స్పెసిఫికేషన్లు
- బ్రాండ్: 10L0L
- మోడల్: ఓఈఎం# 608900
- అనుకూలత: EZGO RXV 2008-up Electric, EZGO 2Five 2010-up Electric
- ఆపరేషన్ మోడ్: ON-OFF (Run-Tow)
- సంప్రదింపు పదార్థం: ఇత్తడి
- మెటీరియల్: Rubber (boot)
- మౌంటు రకం: ప్యానెల్ మౌంట్
- ప్యాకేజీ కొలతలు: 2.52 x 2.52 x 2.48 అంగుళాలు
- బరువు: 2.08 ఔన్సులు
10. వారంటీ మరియు మద్దతు
For warranty information or technical support, please refer to the product packaging or contact 10L0L customer service through their official channels. Keep your purchase receipt for warranty claims.
