1. పరిచయం
This manual provides comprehensive instructions for the safe and effective use of the Apex Medical Domus 3 Alternating Pressure Mattress System. This system is designed to assist in the prevention and treatment of pressure injuries, ulcers, and bedsores for individuals requiring extended bed rest. Please read this manual thoroughly before setup and operation.
మూర్తి 1.1: The Apex Medical Domus 3 Alternating Pressure Mattress System. This image displays the complete system, including the mattress installed on a hospital bed frame and the external pump unit. The mattress features individual air cells, and the pump is shown connected to the mattress.
2. భద్రతా సమాచారం
Adherence to the following safety guidelines is crucial for patient well-being and proper system function.
- Always ensure the mattress is properly inflated before placing a patient on it.
- Do not use the system near open flames or sources of ignition.
- పంప్ యూనిట్ను నీరు లేదా అధిక తేమ నుండి దూరంగా ఉంచండి.
- Regularly check for any signs of damage to the mattress or pump. Discontinue use and contact support if damage is found.
- వ్యవస్థలో a అల్ప పీడన అలారం to alert caregivers to potential issues with mattress inflation. Respond promptly to any alarm.
- In case of emergency requiring rapid deflation, pull the CPR strap located on the mattress.
- Ensure the power cord is routed safely to prevent tripping hazards or damage.
- This device is intended for medical use and should be operated under the guidance of a healthcare professional.
3. భాగాలు
The Apex Medical Domus 3 system typically includes the following components:
- Domus 3 Alternating Pressure Mattress (8-inch height)
- Variable Pressure Pump System
- Nylon/PU Cover (pre-installed on mattress)
- పవర్ కార్డ్
4. సెటప్ సూచనలు
- బెడ్ ఫ్రేమ్ సిద్ధం చేయండి: Place the mattress system directly onto a standard hospital or home bed frame. Ensure the bed frame is clean and free of sharp objects that could damage the mattress.
- పరుపును అమర్చండి: Unroll the Domus 3 mattress on the bed frame with the air hose connection end positioned towards the foot of the bed where the pump will be placed. Ensure the CPR strap is accessible.
- పంపును కనెక్ట్ చేయండి: Attach the air hoses from the mattress to the corresponding connectors on the variable pressure pump unit. Ensure connections are secure.
- Mount the Pump: Hang the pump unit securely at the foot of the bed using its integrated hangers.
- పవర్ కనెక్ట్ చేయండి: Plug the pump's power cord into a grounded electrical outlet.
- ప్రారంభ ద్రవ్యోల్బణం: Turn on the pump. The mattress will begin to inflate. Allow approximately 20-30 minutes for the mattress to fully inflate and stabilize before placing a patient on it.
మూర్తి 4.1: Mattress Cover Features. An image showcasing two features of the mattress cover: a close-up of the zipper-all-around design for easy removal and replacement, and a magnified view of the Nylon/PU cover material demonstrating its water-resistant properties with water droplets on the surface.
5. ఆపరేటింగ్ సూచనలు
5.1 పవర్ ఆన్/ఆఫ్
- To power on the system, press the green power switch on the pump unit.
- పవర్ ఆఫ్ చేయడానికి, పవర్ స్విచ్ను మళ్లీ నొక్కండి.
5.2 Therapy Modes
The Domus 3 offers two therapy modes:
- ప్రత్యామ్నాయ మోడ్: This mode cyclically inflates and deflates individual air cells to redistribute pressure points, aiding in pressure injury prevention and treatment. This is the primary therapeutic mode.
- స్టాటిక్ మోడ్: This mode maintains a constant, stable surface pressure across the entire mattress. It is suitable for general use when alternating pressure is not required or desired.
Refer to the pump unit's controls to select the desired therapy mode.
మూర్తి 5.1: Alternating Pressure Cycle. This diagram shows a human figure lying on the mattress, with an illustration of the alternating pressure cycle. Blue blocks represent inflated air cells, and arrows indicate the cyclical inflation and deflation pattern designed to redistribute pressure and prevent injury.
5.3 Pressure Adjustment (Firmness)
The pump unit features a variable pressure setting with a weight indicator.
- Adjust the pressure knob on the pump unit according to the patient's weight and comfort preference.
- Higher weight settings will result in firmer mattress inflation.
- Always ensure the patient is comfortable and adequately supported.
5.4 Low Air Loss Function
Air cells 3 through 11 are designed with a low air loss feature. This function continuously ventilates air to wick moisture and heat away from the mattress surface, contributing to patient comfort and skin integrity. This operates automatically when the system is powered on.

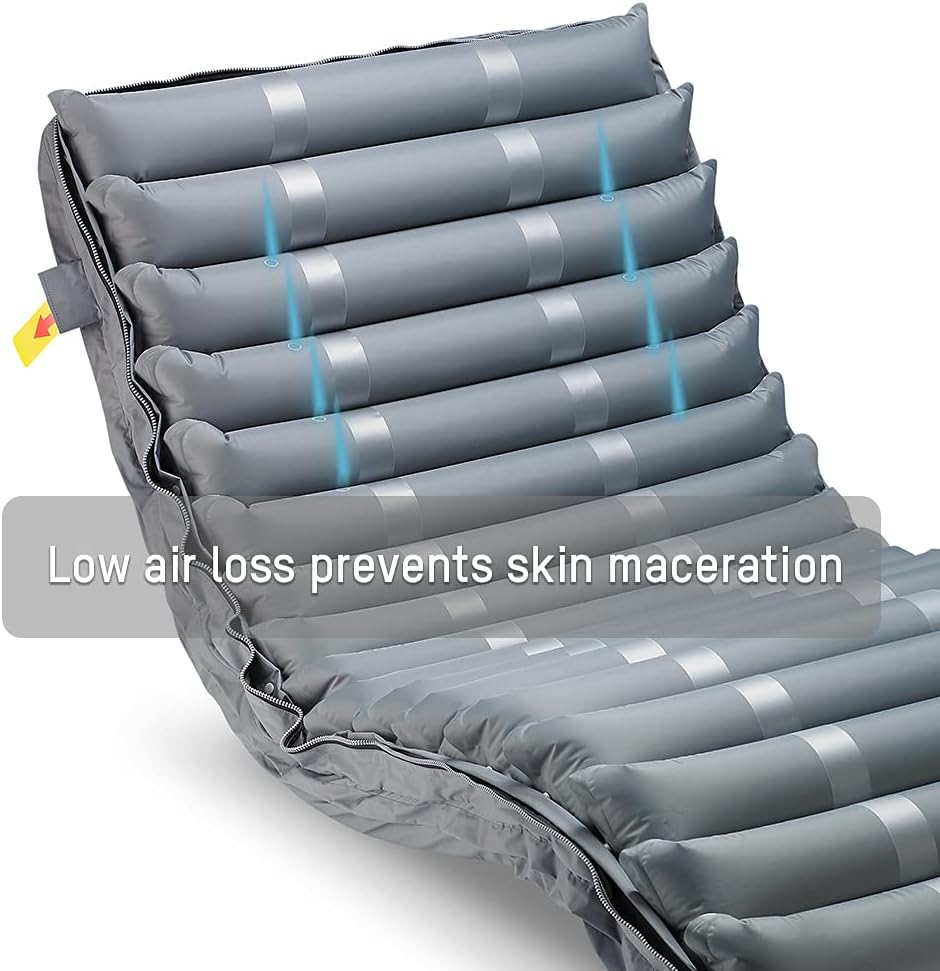

మూర్తి 5.2: Low Air Loss Feature. A detailed view of the mattress surface, highlighting the low air loss feature. Blue arrows indicate airflow through the air cells, designed to reduce moisture and heat for patient comfort and prevent skin maceration.
6. నిర్వహణ మరియు సంరక్షణ
6.1 Cleaning the Mattress and Cover
- The Nylon/PU cover is water-resistant and vapor permeable. It can be wiped clean with a mild disinfectant solution.
- Ensure the cover is completely dry before re-use.
- Do not immerse the pump unit in water. Wipe the exterior with a damp అవసరమైతే వస్త్రం.
6.2 Air Cell Replacement
Each of the 20 individual 8-inch air cells can be removed and replaced if damaged.
- Turn off the pump and disconnect it from the mattress.
- Unzip the mattress cover.
- Carefully detach the damaged air cell from its connections within the mattress structure.
- Install a new, compatible air cell, ensuring it is securely connected.
- Zip the mattress cover back into place and re-connect the pump for inflation.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Mattress not inflating or losing pressure |
|
|
| Low pressure alarm sounds |
|
|
| Pump is unusually loud |
|
|
8. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| మోడల్ | డోమస్ 3 |
| Mattress Dimensions (L x W x H) | 78.7 x 35.4 x 8 అంగుళాలు |
| సిస్టమ్ బరువు | సుమారు 22.3 పౌండ్లు |
| బరువు సామర్థ్యం | 440 పౌండ్లు |
| ఫాబ్రిక్ రకం | Nylon, Polyurethane (Cover) |
| ప్రత్యేక లక్షణాలు | Low Air Loss, Alternating Pressure, Water Resistant Cover, CPR Strap, Low Pressure Alarm |
| పంప్ శబ్ద స్థాయి | D 30 డిబి (ఎ) |
| తయారీదారు | అపెక్స్ మెడికల్ |
మూర్తి 8.1: System Dimensions. A visual representation of the dimensions for both the Apex Medical Domus 3 mattress and its accompanying pump unit. Key measurements for length, width, and height are indicated for both components.
మూర్తి 8.2: Mattress Height Options. This image illustrates the two available height options for the Domus mattress: a 5-inch version and an 8-inch version. The current product is the 8-inch model, providing enhanced support.
9. వారంటీ మరియు మద్దతు
9.1 వారంటీ సమాచారం
The Apex Medical Domus 3 Alternating Pressure Mattress System comes with a 1 సంవత్సరాల హామీ on both the mattress and the pump unit. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
9.2 కస్టమర్ మద్దతు
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Apex Medical customer support. Refer to the product packaging or the official Apex Medical webప్రస్తుత సంప్రదింపు సమాచారం కోసం సైట్.
