DEERC 9206E RC కార్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your DEERC 9206E 1:10 Scale Large RC Car. Please read this manual thoroughly before operating the vehicle to ensure optimal performance and longevity.

Image: The DEERC 9206E RC Car, showcasing its main components including the remote control, two rechargeable batteries, spare oil-filled shock absorbers, and a transparent DIY car shell.

పెట్టెలో ఏముంది

• DEERC 9206E 1:10 Scale Large RC Car (1)
• రిమోట్ కంట్రోల్ (1)
• 7.4V/1500mAh Rechargeable Batteries (2)
• USB ఛార్జింగ్ కేబుల్ (1)
• Spare DIY Transparent Car Shell (1)
• Small Screwdriver (1)
• వినియోగదారు మాన్యువల్ (1)

Image: A visual representation of the DEERC 9206E RC car's package contents, including the car, remote, two batteries, charging cable, and an extra transparent shell, alongside a user manual.

సెటప్

1. బ్యాటరీ సంస్థాపన మరియు ఛార్జింగ్

The DEERC 9206E comes with two 7.4V/1500mAh rechargeable Lithium Ion batteries. Ensure both batteries are fully charged before first use.

• Connect the battery to the provided USB charging cable.
• Plug the USB cable into a compatible USB power source (e.g., computer USB port, USB wall adapter).
• The charging indicator light will show the charging status (refer to charger instructions for specific light patterns).
• పూర్తిగా ఛార్జ్ అయిన తర్వాత, ఛార్జర్ నుండి బ్యాటరీని డిస్‌కనెక్ట్ చేయండి.
• Install one charged battery into the battery compartment of the RC car. Ensure it is securely connected.

Image: The DEERC 9206E RC car with its two high-capacity 1500mAh batteries, illustrating the power source for extended play time.

2. రిమోట్ కంట్రోల్ సెటప్

Insert 3 AA batteries (not included) into the remote control. Power on the remote control, then power on the RC car. The remote and car should automatically pair.

3. DIY Car Shell Customization

The DEERC 9206E includes an extra transparent car shell, allowing for personalized customization. You can paint or decorate this shell to create a unique design for your RC car.

చిత్రం: పేలినది view of the DEERC 9206E RC car's internal components, highlighting the powerful motor, oil-filled shock absorbers, alloy differential, and the transparent DIY car shell for customization.

ఆపరేటింగ్ సూచనలు

1. ప్రాథమిక నియంత్రణలు

• థొరెటల్ ట్రిగ్గర్: ముందుకు వేగవంతం చేయడానికి ట్రిగ్గర్‌ను లాగండి. బ్రేక్ చేయడానికి లేదా రివర్స్ చేయడానికి ట్రిగ్గర్‌ను నొక్కండి.
• స్టీరింగ్ వీల్: Turn the wheel left or right to steer the vehicle.

2. Proportional Control and Adjustment

The 2.4GHz full-scale synchronous remote control system allows for proportional control of throttle and steering.

• వేగం సర్దుబాటు: Adjust the speed switch clockwise to increase driving speed, and counter-clockwise to decrease it. This feature is useful for beginners or for navigating tight spaces.
• స్టీరింగ్ ట్రిమ్: Use the steering trim dial on the remote to fine-tune the driving direction of the wheels, ensuring the car drives straight when the steering wheel is centered.

3. All-Terrain Capability

Equipped with 4WD and metal oil-filled shock absorbers, the DEERC 9206E is designed for various terrains including beach, sand, rock, and concrete roads. The robust design protects internal electronic components.

Image: The DEERC 9206E RC car demonstrating its all-terrain capabilities, shown driving on dirt, grass, and rocky surfaces.

4. Usage Warnings and Best Practices

ముఖ్యమైన భద్రతా సమాచారం:

• Avoid continuous high-speed operation for over 20 minutes to prevent motor or ESC overheating, smoke, or failure.
• If the car feels hot, stop use immediately and allow it to cool down before continuing operation.
• Do not run the car in hot, humid, or dusty environments for extended periods.
• If you notice loss of power, strange smells, or unusual heat, power off the vehicle immediately to prevent damage.
• Allow the car to cool down for at least 10 minutes between uses to ensure optimal performance and extend lifespan.
• Always follow the user guide and safety tips for best performance and longer product lifespan.

నిర్వహణ

1. Oil-Filled Shock Absorbers

The four wheels are equipped with metal oil-filled shock absorbers. These require oil to function correctly. You will need to fill the oil yourself upon initial setup or as part of regular maintenance. Refer to the detailed assembly instructions for filling the shocks.

చిత్రం: వివరణాత్మక view of the oil-filled shock absorbers integrated into the chassis of the DEERC RC car, highlighting their role in suspension and impact absorption.

2. సాధారణ సంరక్షణ

• Keep the RC car clean from dirt, dust, and moisture after each use.
• Store the car and batteries in a cool, dry place away from direct sunlight and extreme temperatures.
• Regularly inspect all moving parts for wear and tear. Replace damaged components as needed.
• Ensure all screws and fasteners are tight before operation.

ట్రబుల్షూటింగ్

If you encounter issues with your DEERC 9206E RC car, please review కింది సాధారణ పరిష్కారాలు:

• కారు స్పందించడం లేదు: Ensure both the car and remote control are powered on and batteries are fully charged. Re-pair the remote and car if necessary.
• Reduced performance/short run time: Batteries may not be fully charged or are nearing the end of their lifespan. Ensure proper cool-down periods between uses.
• Car not driving straight: రిమోట్ కంట్రోల్‌లో స్టీరింగ్ ట్రిమ్ డయల్‌ను సర్దుబాటు చేయండి.
• అసాధారణ శబ్దాలు లేదా కంపనాలు: Power off immediately. Inspect for loose parts, debris, or damaged components.

For persistent issues or complex repairs, please contact DEERC customer support.

స్పెసిఫికేషన్లు

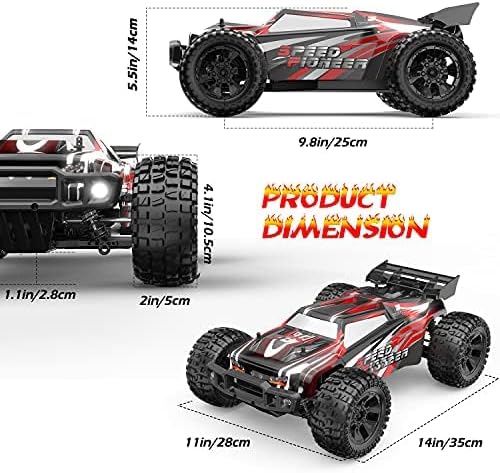

Image: A diagram illustrating the key dimensions of the DEERC 9206E RC car, including length, width, and height, for accurate measurement and understanding of its size.

వారంటీ మరియు మద్దతు

For any questions, concerns, or support needs regarding your DEERC 9206E RC car, please contact DEERC customer service. Refer to the product packaging or the official DEERC webసంప్రదింపు సమాచారం కోసం సైట్.

వారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
