Newgoal 2-Channel WiFi Smart Switch Relay Module (Model: DC2-Tuya) - User Manual

1. పరిచయం

This manual provides detailed instructions for the installation, configuration, and operation of your Newgoal 2-Channel WiFi Smart Switch Relay Module, model DC2-Tuya. This device allows for remote control of electrical appliances via the TUYA/Smart Life App, and integrates with voice assistants like Alexa and Google Assistant. It supports various working modes including momentary and self-locking, offering flexibility for diverse smart home applications.

Image 1.1: The Newgoal 2-Channel WiFi Smart Switch Relay Module alongside a smartphone displaying the control application.

2. ఉత్పత్తి ముగిసిందిview

The Newgoal DC2-Tuya module is a versatile smart relay designed for integration into existing electrical systems. It features two independent channels, enabling control of two separate devices. Key components and their functions are outlined below:

Image 2.1: Detailed diagram illustrating the components of the Newgoal DC2-Tuya module, including the 2.4GHz WiFi chip, WiFi antenna, manual switches, LEDs, and input/output terminals.

• 2.4GHz WiFi Chip: Enables wireless connectivity to your home network.
• వైఫై యాంటెన్నా: For stable wireless communication.
• Manual Switches (Key1, Key2): Physical buttons for local control and pairing.
• LED సూచికలు: Provide status feedback for WiFi connection and relay operation (CH1 ON-OFF LED, CH2 ON-OFF LED, Work Mode LED, WiFi LED).
• ఇన్పుట్ టెర్మినల్స్: Micro USB 5V/500mA or AC/DC 7-32V/500mA for power supply.
• Relay Load Terminals: NC (Normally Closed), COM (Common), NO (Normally Open) for connecting electrical devices.
• Work Modes Toggle Button: Used to switch between momentary, self-locking, and interlock modes.

3. స్పెసిఫికేషన్లు

4. సెటప్ మరియు ఇన్‌స్టాలేషన్

4.1 భద్రతా జాగ్రత్తలు

• Ensure power is disconnected before any wiring.
• Installation should be performed by qualified personnel if you are unfamiliar with electrical wiring.
• Do not exceed the specified maximum load for the relays.
• Only connect to a 2.4GHz WiFi network. 5GHz networks and Mesh WiFi systems are not supported.

4.2 యాప్ ఇన్‌స్టాలేషన్ మరియు ఖాతా నమోదు

1. డౌన్‌లోడ్ చేయండి తుయా స్మార్ట్ or స్మార్ట్ లైఫ్ application from your smartphone's app store (available for Android and iOS).
2. Open the app and register for a new account if you do not already have one.
3. మీ ఖాతాకు లాగిన్ చేయండి.

4.3 వైరింగ్ రేఖాచిత్రాలు

The module supports various wiring configurations depending on the application and desired working mode. Always ensure correct polarity and voltage.

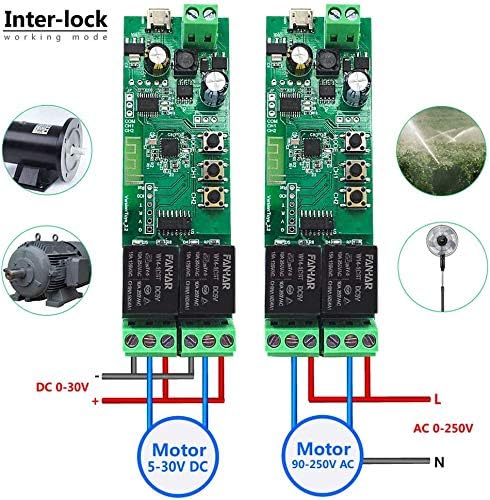

Image 4.1: Wiring for Interlock mode, demonstrating connections for both DC (5-30V) and AC (90-250V) motors or appliances. This mode ensures only one relay is active at a time.

Image 4.2: Wiring for Momentary mode, suitable for applications like garage door openers or momentary button presses. Input power is typically 5V via Micro USB.

Image 4.3: Wiring for Self-locking mode, ideal for controlling lights or other devices that require a sustained ON/OFF state. Input power can be AC/DC 7-32V.

Refer to the specific application's voltage requirements and connect the load to the appropriate COM and NO (Normally Open) or NC (Normally Closed) terminals on the relay. The module can be powered via a Micro USB 5V input or directly through the AC/DC 7-32V terminals.

4.4 Device Pairing with App

1. Power on the Newgoal DC2-Tuya module using either the Micro USB 5V or AC/DC 7-32V input.
2. Open the TUYA Smart or Smart Life App.
3. Press and hold the "Work Modes Toggle Button" (often labeled Key1 or Key2, or a dedicated pairing button) on the module for approximately 6 seconds until the WiFi LED indicator starts blinking rapidly. This indicates the module is in pairing mode.
4. In the app, tap the "Add Device" (+) icon, usually located in the top right corner.
5. Select the device type (e.g., "Switch" or "Electrical Switch"). The app may automatically discover the device.
6. Follow the on-screen instructions to connect the module to your 2.4GHz WiFi network. You will need to enter your WiFi network password.
7. Once successfully paired, the WiFi LED on the module will stop blinking and remain solid. You can then rename the device and individual channels within the app for easier identification.

5. ఆపరేటింగ్ సూచనలు

5.1 వర్కింగ్ మోడ్‌లు

The module supports three primary working modes, configurable via the app or the physical "Work Modes Toggle Button" (long press for 6 seconds to enter setting mode, then short press to cycle through modes: 1 time for Momentary, 2 times for Self-locking, 3 times for Interlock). The Work Mode LED will indicate the selected mode.

• Momentary Mode (Inching Mode): When activated, the relay turns on for a set duration (adjustable from 0.5 to 60 seconds) and then automatically turns off. This is suitable for applications requiring a brief pulse, such as garage door openers or electric strikes.
• స్వీయ-లాకింగ్ మోడ్: Each relay acts as a standard ON/OFF switch. Pressing the button (in app or physical) toggles the relay state (ON or OFF). This is ideal for controlling lights or other devices that need to remain in a continuous state.
• ఇంటర్‌లాక్ మోడ్: In this mode, only one relay can be active at a time. If one relay is turned ON, any other active relay will automatically turn OFF. This is useful for controlling devices where simultaneous operation is undesirable, such as motor direction control.

Image 5.1: App interface showing the adjustable momentary time setting, allowing users to configure the duration from 0.5 to 60 seconds.

5.2 యాప్ ద్వారా రిమోట్ కంట్రోల్

Once paired, you can control the module from anywhere using the TUYA Smart or Smart Life App.

• Open the app and select your Newgoal DC2-Tuya device.
• You will see individual controls for each channel (Switch 1, Switch 2). Tap to toggle the state of each relay.
• The app also provides features such as:
  • నిజ-సమయ స్థితి: View the current ON/OFF state of each relay.
  • టైమర్ సెట్టింగ్: Schedule relays to turn ON/OFF at specific times.
  • కౌంట్‌డౌన్: Set a countdown timer for a relay to change state.
  • భాగస్వామ్య నియంత్రణ: Share device control with other family members.
  • Automation/Scenes: Create custom automation rules based on conditions (e.g., time of day, other smart devices).

Image 5.2: The Smart Life app interface, demonstrating individual control for each channel and access to advanced features.

5.3 Voice Control (Alexa/Google Assistant)

The Newgoal DC2-Tuya module is compatible with Amazon Alexa and Google Assistant for convenient voice control.

1. Ensure your module is successfully paired with the TUYA Smart or Smart Life App.
2. Open the Alexa or Google Home app on your smartphone.
3. Navigate to the "Skills & Games" (Alexa) or "Works with Google" (Google Home) section.
4. కోసం వెతకండి and enable the "TUYA Smart" or "Smart Life" skill/service.
5. Link your TUYA/Smart Life account with your Alexa/Google account.
6. Discover devices. Your Newgoal DC2-Tuya module and its channels should appear.
7. ఇప్పుడు మీరు ఇలాంటి వాయిస్ కమాండ్‌లను ఉపయోగించవచ్చు:
   • "Alexa, turn on [Device Name] Switch 1."
   • "Hey Google, turn off [Device Name] Switch 2."
   • "Alexa, set [Device Name] Switch 1 to momentary mode." (Functionality may vary by voice assistant and app version).

6. నిర్వహణ

• శుభ్రపరచడం: Disconnect power before cleaning. Use a dry, soft cloth to wipe the module. Do not use liquid cleaners or solvents.
• ఫర్మ్‌వేర్ నవీకరణలు: Periodically check the TUYA Smart or Smart Life App for available firmware updates for your device. Updates can improve performance and add new features.
• కనెక్షన్ తనిఖీ: అన్ని వైరింగ్ కనెక్షన్లు సురక్షితంగా మరియు తుప్పు పట్టకుండా ఉండేలా చూసుకోండి.
• పర్యావరణం: Operate the module within its specified temperature and humidity ranges to ensure longevity. Avoid exposure to extreme conditions.

7. ట్రబుల్షూటింగ్

8. వారంటీ మరియు మద్దతు

8.1 వారంటీ సమాచారం

Newgoal products are designed for reliability and performance. For specific warranty details, please refer to the product packaging or contact Newgoal customer service. Keep your purchase receipt as proof of purchase for warranty claims.

8.2 కస్టమర్ మద్దతు

If you encounter any issues or have questions regarding your Newgoal 2-Channel WiFi Smart Switch Relay Module, please contact our customer support team. For the most up-to-date contact information, visit the official Newgoal website or refer to your product documentation.

ఆన్‌లైన్ వనరులు: For additional guides, FAQs, and community support, visit the Tuya Smart official webసైట్ లేదా ది Smart Life support pages.
