Bingfu Handheld Marine VHF Radio Antenna (136-174MHz) Instruction Manual

1. పరిచయం

This manual provides essential information for the proper setup, operation, and maintenance of your Bingfu Handheld Marine VHF Radio Antenna. Please read these instructions carefully before use to ensure optimal performance and longevity of your product. This antenna is designed for use with handheld marine VHF two-way radios operating within the 136-174MHz frequency range.

2. ఉత్పత్తి ముగిసిందిview

The Bingfu Handheld Marine VHF Radio Antenna is a durable and flexible "rubber duck" style antenna featuring an SMA Male connector. It is designed for omni-directional signal reception and transmission, enhancing the communication capabilities of compatible marine VHF radios.

మూర్తి 2.1: The antenna's flexible design allows for durability and resistance to bending.

3. స్పెసిఫికేషన్లు

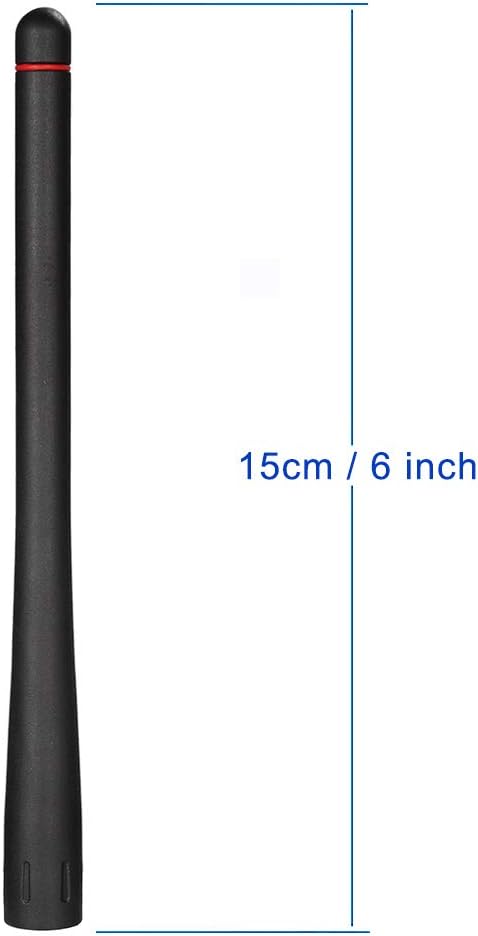

మూర్తి 3.1: The antenna measures approximately 15 cm (6 inches) in length.

4. సెటప్ సూచనలు

Follow these steps to properly attach the antenna to your compatible handheld marine VHF radio:

1. Identify Connector Types: Ensure your radio has an SMA Female connector and the antenna has an SMA Male connector.
2. Align Connectors: Carefully align the SMA Male connector of the antenna with the SMA Female connector on your radio.
3. Screw On Antenna: Gently screw the antenna onto the radio's connector in a clockwise direction. Do not overtighten, as this can damage both the antenna and the radio's connector. Tighten until snug.
4. Check for Secure Fit: Verify that the antenna is securely attached and there is no wobble.
5. Optional Gasket: If provided, ensure any rubber gasket or O-ring is properly seated to maintain water resistance, especially for marine radios.

మూర్తి 4.1: Proper connection of the SMA Male antenna to an SMA Female radio port.

5. ఆపరేటింగ్ సూచనలు

Once the antenna is securely attached, your radio is ready for operation. The antenna is omni-directional, meaning it receives and transmits signals from all directions. For optimal performance, ensure the antenna is positioned vertically and unobstructed.

• రేడియో పవర్: Turn on your handheld marine VHF radio.
• ఛానెల్ ఎంపిక: Select the desired VHF channel according to marine communication regulations.
• ఒకరి నుండి ఒకరికి వ్యాధి ప్రబలడం: When transmitting, hold the radio with the antenna as vertical as possible. Avoid touching the antenna during transmission to prevent signal degradation.
• రిసెప్షన్: The antenna will receive signals from all directions. For best reception, maintain a clear line of sight if possible.

6. నిర్వహణ

Proper maintenance ensures the longevity and performance of your antenna:

• శుభ్రపరచడం: Clean the antenna periodically with a soft, damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను నివారించండి.
• తనిఖీ: Regularly inspect the antenna for any signs of damage, such as cracks in the rubber or corrosion on the connector.
• కనెక్టర్ కేర్: Keep the SMA Male connector clean and dry. If used in marine environments, consider applying a small amount of dielectric grease to the threads to prevent corrosion.
• నిల్వ: When not in use for extended periods, store the antenna in a cool, dry place away from direct sunlight and extreme temperatures.

7. ట్రబుల్షూటింగ్

If you experience issues with your antenna, consider the following common solutions:

• Poor Signal Reception/Transmission:
  • Ensure the antenna is securely attached to the radio.
  • Verify the antenna is compatible with your radio's frequency band (VHF 136-174MHz).
  • Check for any physical damage to the antenna or its connector.
  • Ensure there are no obstructions blocking the antenna's signal path.
  • Test the radio with a known working antenna to isolate the issue.
• Antenna Not Fitting Securely:
  • Confirm that your radio has an SMA Female connector. This antenna is SMA Male.
  • Inspect the threads on both the antenna and the radio for damage or debris.

8. వారంటీ మరియు మద్దతు

వారంటీ సమాచారం లేదా సాంకేతిక మద్దతు కోసం, దయచేసి తయారీదారు అధికారిని చూడండి. webసైట్‌లో లేదా వారి కస్టమర్ సర్వీస్‌ను నేరుగా సంప్రదించండి. కొనుగోలు రుజువుగా మీ కొనుగోలు రసీదును ఉంచండి.

Manufacturer: BINGFU

మోడల్: BFN00506
