అబ్సిమా 12011 DIY కార్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

Welcome to the instruction manual for your new Absima 12011 DIY Car. This 1:10 scale 4WD RC Crawler is designed for enthusiasts aged 14 and above, offering a robust and engaging remote-controlled driving experience. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your vehicle.

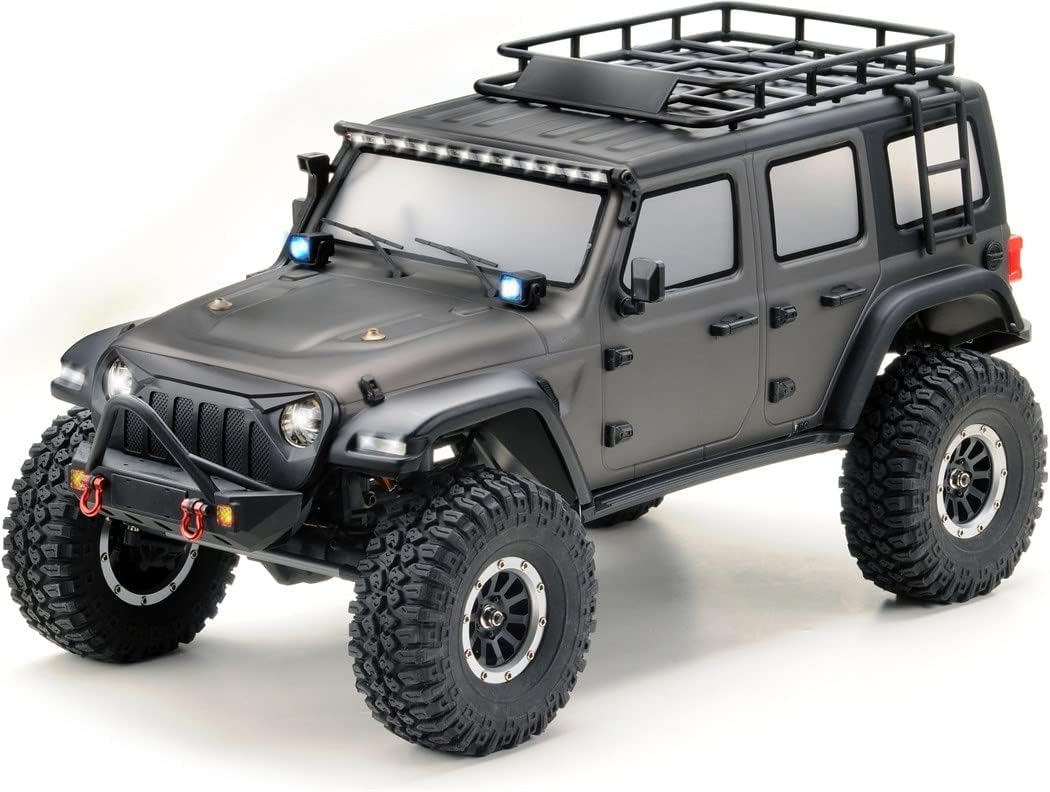

Figure 1: The Absima 12011 DIY Car, a 1:10 scale 4WD RC Crawler, featuring a durable black acrylonitrile butadiene styrene (ABS) body, large off-road tires, a front bumper with red tow hooks, and a roof-mounted cargo rack. The vehicle is equipped with front headlights and a light bar on the roof.

భద్రతా సూచనలు

Please read and understand all safety instructions before operating your vehicle. Failure to do so may result in injury or damage to the product.

• ఈ ఉత్పత్తి పెద్దల పర్యవేక్షణ లేకుండా 14 సంవత్సరాల కంటే తక్కువ వయస్సు ఉన్న పిల్లలకు తగినది కాదు.
• వాహనాన్ని ఎల్లప్పుడూ వ్యక్తులు, పెంపుడు జంతువులు మరియు అడ్డంకులకు దూరంగా సురక్షితమైన, బహిరంగ ప్రదేశంలో నడపండి.
• Do not operate the vehicle in wet conditions or near water to prevent electrical damage.
• Never touch moving parts of the vehicle during operation.
• Ensure batteries are charged correctly and handled safely. Do not short-circuit or overcharge batteries.
• Do not modify the vehicle or its components, as this may void the warranty and create safety hazards.
• Turn off the vehicle and transmitter when not in use.

ప్యాకేజీ విషయాలు

Please verify that all components are present in your package before beginning assembly. If any parts are missing or damaged, contact Absima support.

• Absima 12011 DIY Car Kit (unassembled components)
• 2.4 GHz రిమోట్ కంట్రోల్ ట్రాన్స్‌మిటర్
• ఇన్స్ట్రక్షన్ మాన్యువల్
• Required assembly tools (e.g., small wrenches, screwdrivers - may vary by kit)

సెటప్ మరియు అసెంబ్లీ

This section guides you through the assembly process of your Absima 12011 DIY Car. Follow the steps carefully for proper construction.

Vehicle Assembly

1. చట్రం నిర్మాణం: Assemble the main chassis frame according to the detailed diagrams provided in the kit's separate assembly guide. Ensure all screws are tightened securely.
2. Axle and Suspension Installation: Attach the front and rear axles, along with the suspension components (shocks, links), to the chassis. Verify smooth movement of suspension.
3. Motor and Transmission Setup: Install the electric motor and transmission system. Ensure gears mesh correctly and are lubricated if necessary.
4. ఎలక్ట్రానిక్స్ ఇన్‌స్టాలేషన్: Mount the Electronic Speed Controller (ESC), receiver, and steering servo. Connect all wires as per the wiring diagram.
5. Wheel and Tire Mounting: Attach the tires to the wheels and then secure the wheels to the axles.
6. Body Shell Preparation: Trim and paint the body shell if required. Mount the body shell onto the chassis using the provided body clips or mounts.

Battery Installation (Vehicle)

Note: Vehicle batteries are not included with this kit.

• వాహనం యొక్క పవర్ స్విచ్ ఆఫ్ స్థానంలో ఉందని నిర్ధారించుకోండి.
• బ్యాటరీ కంపార్ట్మెంట్ తెరవండి.
• Insert a fully charged compatible battery pack (e.g., NiMH or LiPo, as recommended by the ESC specifications) into the compartment, ensuring correct polarity.
• బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను భద్రపరచండి.

ట్రాన్స్మిటర్ సెటప్

• Install the required batteries (e.g., AA batteries) into the transmitter, observing correct polarity.
• ట్రాన్స్మిటర్ ఆన్ చేయండి.
• Turn on the vehicle. The transmitter and receiver should automatically bind. If not, refer to the specific binding instructions for your transmitter/receiver model.

మీ వాహనాన్ని నడపడం

ప్రాథమిక నియంత్రణలు

• థొరెటల్ ట్రిగ్గర్: ముందుకు కదలడానికి లాగండి, బ్రేక్/రివర్స్ చేయడానికి నెట్టండి.
• స్టీరింగ్ వీల్: వాహనాన్ని నడపడానికి ఎడమ లేదా కుడి వైపుకు తిరగండి.
• Trim Dials: Adjust steering and throttle trim to ensure the vehicle drives straight and stops when the trigger is neutral.

డ్రైవింగ్ చిట్కాలు

• Start by driving in an open, flat area to get accustomed to the controls.
• For crawling, use slow and precise throttle inputs. The 4WD system provides excellent traction for navigating challenging terrain.
• రోల్‌ఓవర్‌లను నివారించడానికి అధిక వేగంతో ఆకస్మిక స్టాప్‌లు లేదా మలుపులను నివారించండి.
• Monitor battery levels and stop driving when performance decreases to avoid over-discharging.

నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your Absima 12011 DIY Car.

• శుభ్రపరచడం: After each use, especially in dirty or dusty conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronics.
• తనిఖీ: Regularly check all screws for tightness. Inspect suspension components, drive shafts, and gears for wear or damage.
• సరళత: Apply appropriate RC-specific grease or oil to moving parts like gears and bearings as needed to reduce friction and wear.
• బ్యాటరీ సంరక్షణ: Store batteries in a cool, dry place. Follow manufacturer guidelines for charging and discharging LiPo batteries.
• టైర్ తనిఖీ: Check tires for wear and tear. Ensure they are securely mounted to the wheels.

ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your Absima 12011 DIY Car.

సాంకేతిక లక్షణాలు

వారంటీ మరియు మద్దతు

Absima products are designed for durability and performance. For technical support, spare parts, or warranty inquiries, please refer to the contact information provided with your product packaging or visit the official Absima webసైట్.

Spare parts availability for this model is typically supported for 1 year from the date of purchase. Please retain your proof of purchase for any warranty claims.
