Center RF Wireless 7-Day Programmable Thermostat

1. ఉత్పత్తి ముగిసిందిview

The Center RF Wireless 7-Day Programmable Thermostat offers efficient and automatic control for home heating systems. This thermostat combines a multitude of features with intuitive heating time and temperature control, making it suitable for various domestic applications. It incorporates adaptive control technology to precisely maintain the internal temperature by adjusting the heating system's output to current demand, enhancing efficiency and ensuring Boiler Plus compliance. Additionally, its optimal start/stop technology learns your heating system's response times to activate and deactivate heating at the most appropriate moments, significantly improving efficiency and comfort. Designed with user-friendliness in mind, it features only 5 large, soft-touch buttons and a clear, easy-to-understand display.

Image 1: The Center RF Wireless 7-Day Programmable Thermostat (left) and its accompanying RF receiver unit (right).

2 కీ ఫీచర్లు

• మినిమలిస్ట్ మరియు మోడరన్ డిజైన్: Blends discreetly into any home environment.
• Boiler Plus Compliant: Meets modern efficiency standards.
• Adaptive Control Function: Helps to precisely and efficiently maintain the required temperature setting.
• Optimal Start/Stop Technology: Significantly increases the efficiency of your heating system by learning optimal heating and cooling times.
• Factory Pre-linked to RF Receiver: Ensures simple and hassle-free installation.
• ఫ్లెక్సిబుల్ ఇన్‌స్టాలేషన్: Includes a wall backplate and a table stand.
• Large Backlit LCD Screen: Displays time and temperature for easy reading.
• సాధారణ వినియోగదారు ఇంటర్‌ఫేస్: Features only 5 buttons for easy operation and program setup.
• 7-Day and 5/2-Day Heating Program: Allows customization to match your lifestyle and maximize energy savings.
• Multiple Temperature Periods: Choice of up to 4 independent temperature periods per day with a copy function.
• బ్యాటరీ ఆధారితం: With a low power indicator for convenience.
• 'Active'/'In Use' Confirmation: Easily identifies if heating is on or off.
• Clock Format Options: 24-hour and 12-hour display formats available.
• అంతర్నిర్మిత మెమరీ: Retains user program indefinitely.
• ErP Class IV (+2%): Energy efficiency rating according to (EU) 811/2013.

3. ప్యాకేజీ విషయాలు

దయచేసి ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• Center RF Wireless 7-Day Programmable Thermostat Unit
• RF Receiver Unit
• వాల్ మౌంటు ప్లేట్
• టేబుల్ స్టాండ్
• AA Batteries (2x)
• ఇన్స్ట్రక్షన్ మాన్యువల్

4. భద్రతా సమాచారం

ముఖ్యమైనది: Read these instructions fully prior to use to ensure correct and safe operation of your wireless thermostat. Failure to do so may result in damage or injury.

• వృత్తిపరమైన సంస్థాపన: This product must be installed by a competent person.
• పవర్ డిస్‌కనెక్ట్: To ensure your safety, make sure the mains power is switched OFF at the consumer unit before accessing any wiring.
• వైరింగ్ జాగ్రత్తలు: To prevent a short circuit from loose wires:
  • For multi-core cables, only remove enough outer insulation to allow secure fixing of the cores into the terminal block.
  • For single core cables, secure them together with a cable tie as close as possible to the terminal block.
• బ్యాటరీ భద్రత: Ensure correct battery polarity when inserting. Do not mix old and new batteries, or different types of batteries. Dispose of used batteries responsibly.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

The thermostat and receiver unit within this package are pre-bound at the factory, simplifying the initial setup process.

5.1. స్థానాన్ని ఎంచుకోవడం

Select a location for the thermostat that is representative of the room temperature, away from direct sunlight, drafts, or heat sources (e.g., radiators, lamps). The RF receiver should be installed near your boiler or heating system.

5.2 మౌంటు ఐచ్ఛికాలు

The thermostat offers ultimate installation flexibility with both a wall mounting plate and a table stand included. The receiver unit is typically wall-mounted near the boiler.

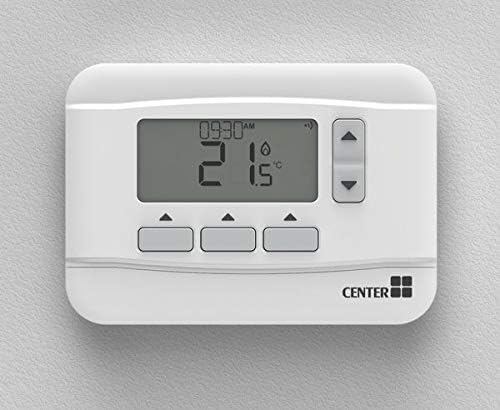

Image 2: The Center RF Wireless Thermostat can be conveniently mounted on a wall.

5.3. Powering the Thermostat

The thermostat is battery-powered. Insert the two AA batteries (included) into the battery compartment, ensuring correct polarity. A low power indicator will appear on the display when batteries need replacing.

5.4. Receiver Wiring (Professional Installation Required)

The RF receiver unit requires wiring to your heating system. This procedure must be carried out by a qualified and competent person. Refer to the wiring diagram provided in the full installation guide for detailed instructions. Ensure mains power is disconnected before commencing any wiring work.

6. ఆపరేటింగ్ సూచనలు

The thermostat features a large, backlit LCD screen and a simple interface with only 5 buttons for easy navigation and control.

చిత్రం 3: క్లోజప్ view of the thermostat's clear LCD display, showing current time and temperature.

6.1. సమాచారాన్ని ప్రదర్శించు

The LCD screen displays the current time, current room temperature, and the set target temperature. An 'Active' or 'In Use' confirmation icon indicates when the heating system is currently operating.

6.2. బటన్ విధులు

The 5 soft-touch buttons allow you to:

• Adjust temperature settings (Up/Down arrows).
• మెనూల ద్వారా నావిగేట్ చేయండి మరియు ఎంపికలను నిర్ధారించండి.
• Access programming modes.

6.3. సమయం మరియు తేదీని సెట్ చేయడం

Follow the on-screen prompts to set the current time and date. The thermostat supports both 24-hour and 12-hour clock formats. It also features an automatic summer time change function.

6.4. Manual Temperature Override

You can temporarily override the programmed schedule by manually adjusting the temperature using the Up/Down arrows. The thermostat will revert to the program at the next scheduled change.

7. Programming Your Thermostat

The Center thermostat offers flexible programming options to suit your lifestyle and maximize energy savings.

7.1. Choosing a Program Mode

You can select between a 7-day heating program (individual settings for each day of the week) or a 5/2-day program (weekdays share one program, weekend days share another).

7.2. Setting Temperature Periods

For each day (or weekday/weekend block), you can set up to 4 independent temperature periods. Each period consists of a start time and a target temperature. For exampలే:

• Period 1: 06:00 - 21°C (Wake up)
• Period 2: 09:00 - 18°C (Leave for work/school)
• Period 3: 17:00 - 20°C (Return home)
• Period 4: 22:00 - 16°C (Sleep)

7.3. Copy Function

To simplify programming, a copy function allows you to duplicate settings from one day to another, or from one period to another.

7.4. Saving Your Program

Once you have set your desired program, ensure you save the settings. The built-in memory will retain your program indefinitely, even during power outages or battery changes.

8. నిర్వహణ

8.1. బ్యాటరీ భర్తీ

When the low power indicator appears on the display, it's time to replace the batteries. Open the battery compartment, remove the old batteries, and insert new AA batteries, ensuring correct polarity. The thermostat's memory will retain your program during this process.

8.2. శుభ్రపరచడం

Clean the thermostat's exterior with a soft, dry cloth. Do not use abrasive cleaners, solvents, or spray directly onto the unit, as this may damage the display or internal components.

9. ట్రబుల్షూటింగ్

If you encounter issues with your Center RF Wireless Thermostat, please refer to the following common problems and solutions:

The thermostat also includes a ఫ్రాస్ట్ రక్షణ feature, which will automatically activate the heating if the temperature drops to a critical level to prevent pipes from freezing.

For complex issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Center customer support.

10. స్పెసిఫికేషన్లు

11. వారంటీ మరియు మద్దతు

The Center RF Wireless Thermostat is designed for reliability and features built-in memory to ensure your programmed settings are retained indefinitely. For any technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your product packaging or visit the official Center brand webమద్దతు వనరుల కోసం సైట్.
