Geberit iCon Slim Toilet Seat User Manual

1. పరిచయం

Thank you for choosing the Geberit iCon Slim Toilet Seat. This manual provides essential information for the correct installation, operation, and maintenance of your new toilet seat. Please read these instructions carefully before installation and retain them for future reference.

The Geberit iCon Slim Toilet Seat is designed for comfort and hygiene, featuring a soft-close mechanism for quiet operation and quick-release hinges for easy cleaning. It is compatible with specific Geberit iCon wall-mounted and floor-standing WC models.

Figure 1: Geberit iCon Slim Toilet Seat (top view)

This image displays the Geberit iCon Slim Toilet Seat from a top-down perspective, highlighting its sleek, white, and slender design. The seat is closed, showing its smooth, contoured surface.

2. సెటప్ మరియు ఇన్‌స్టాలేషన్

The Geberit iCon Slim Toilet Seat is designed for mounting from above, simplifying the installation process. Ensure you have the necessary tools before beginning.

2.1 ప్యాకేజీ విషయాలు

• Geberit iCon Slim Toilet Seat with cover
• Quick Release Hinges (brass)
• మౌంటు హార్డ్‌వేర్

2.2 అవసరమైన సాధనాలు (చేర్చబడలేదు)

• స్క్రూడ్రైవర్ (స్క్రూలను బిగించడానికి తగిన రకం)
• కొలిచే టేప్

2.3 సంస్థాపనా దశలు

1. Prepare the WC: Ensure the toilet bowl is clean and dry where the seat will be installed.
2. Position Hinges: Place the quick-release hinges into the mounting holes on the toilet bowl. The hinges are designed for mounting from above.
3. Secure Hinges: Insert the mounting hardware through the hinges and tighten them from above. Do not overtighten, as this may damage the ceramic.
4. సీటును అటాచ్ చేయండి: Align the toilet seat with the secured hinges and press down firmly until it clicks into place. The quick-release mechanism allows for easy attachment and detachment.
5. పరీక్ష కార్యాచరణ: Gently close the seat and lid to confirm the soft-close mechanism operates smoothly. Ensure the seat is stable and does not wobble.

2.4 Dimensional Information

Refer to the following diagrams for detailed dimensions to ensure compatibility with your WC.

మూర్తి 2: వైపు View కొలతలు

This diagram shows the side profile of the toilet seat with key dimensions: total length approximately 465 mm and seat height approximately 20 mm.

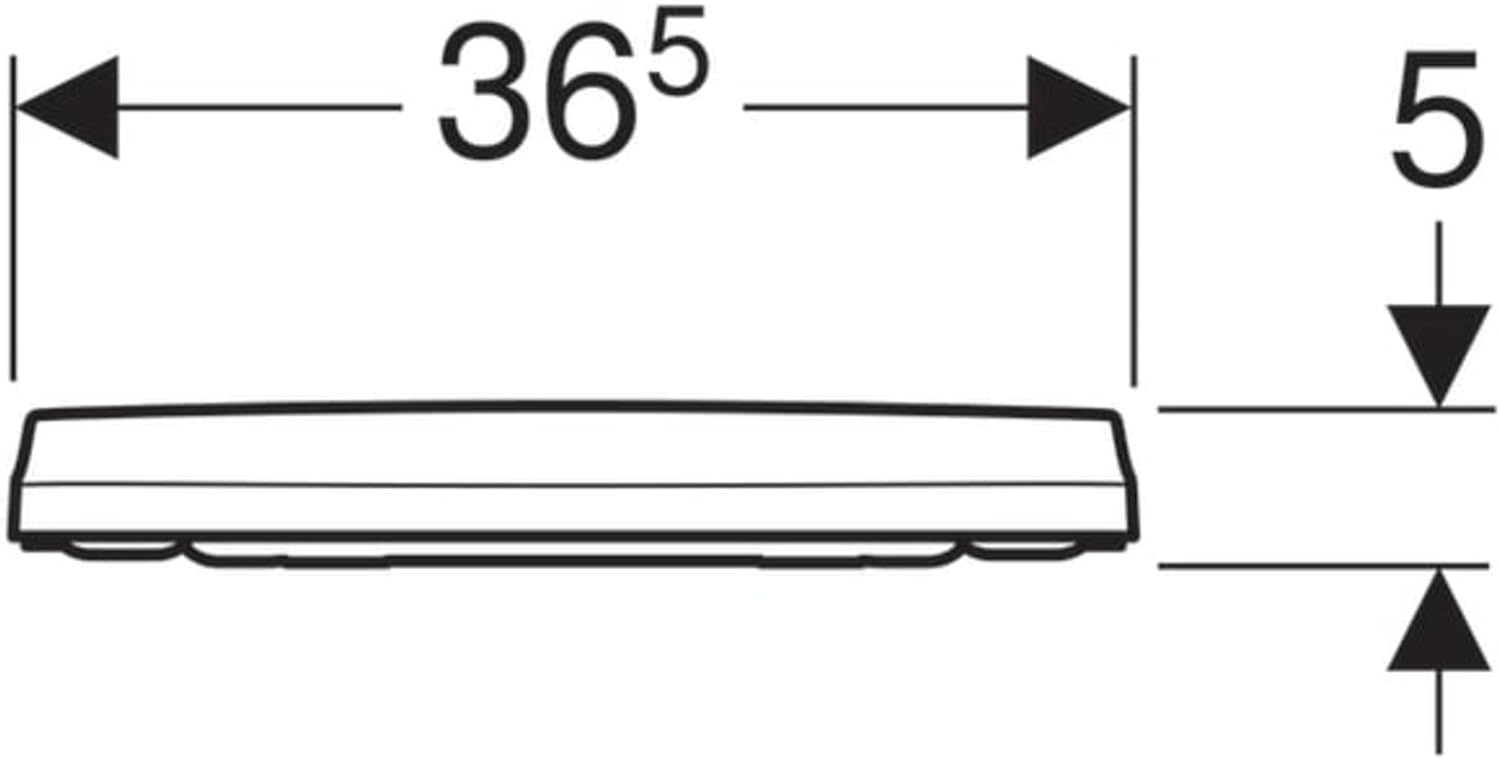

మూర్తి 3: ముందు View కొలతలు

This diagram illustrates the front view of the toilet seat, indicating a total width of approximately 365 mm and a lid thickness of approximately 5 mm.

మూర్తి 4: టాప్ View మౌంటు కొలతలు

This diagram provides a top-down view with critical mounting dimensions: total width approximately 450 mm, bolt spacing approximately 285 mm, distance from back edge to bolt holes approximately 155 mm, and distance from front edge to bolt holes approximately 230 mm.

3. ఆపరేటింగ్ సూచనలు

3.1 Soft-Close Mechanism

The toilet seat and lid are equipped with an automatic lowering mechanism. To close, simply push the seat or lid down gently. The soft-close function will engage, allowing it to lower slowly and quietly without slamming.

3.2 త్వరిత విడుదల ఫంక్షన్

For thorough cleaning, the toilet seat can be easily removed from its hinges. Locate the quick-release buttons or levers near the hinges (specific design may vary slightly). Press or lift these mechanisms to disengage the seat from the mounting posts. To reattach, align the seat with the posts and press down until it clicks securely into place.

4. నిర్వహణ మరియు శుభ్రపరచడం

Regular cleaning will help maintain the appearance and hygiene of your Geberit iCon Slim Toilet Seat. The seat material is antibacterial for enhanced cleanliness.

4.1 శుభ్రపరిచే సూచనలు

• Use mild soap and water with a soft cloth or sponge.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals (e.g., bleach, strong acids/alkalis), as these can damage the surface and the antibacterial properties.
• For thorough cleaning, utilize the quick-release function to remove the seat and clean the hinges and surrounding areas of the WC.
• Dry the seat and hinges thoroughly after cleaning.

4.2 Hinge Care

The brass hinges are durable, but occasional inspection for tightness is recommended. If the seat feels loose, gently tighten the mounting screws from above. Do not overtighten.

5. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your toilet seat.

6. స్పెసిఫికేషన్లు

Technical details for the Geberit iCon Slim Toilet Seat.

7. వారంటీ మరియు మద్దతు

For information regarding warranty coverage or technical support, please refer to the documentation provided with your purchase or visit the official Geberit website. Contact details for customer service can typically be found there.
