ఆదర్శ ప్రామాణిక సెరాథెర్మ్ T50 షవర్ కాంబినేషన్ A7218AA యూజర్ మాన్యువల్

1. పరిచయం

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ideal Standard Ceratherm T50 Shower Combination A7218AA. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of the product. Keep this manual for future reference.

Figure 1: Ideal Standard Ceratherm T50 Shower Combination A7218AA, showing the thermostatic mixer, shower bar, and hand shower.

2. భద్రతా సమాచారం

ఉత్పత్తికి గాయం లేదా నష్టాన్ని నివారించడానికి దయచేసి క్రింది భద్రతా మార్గదర్శకాలను గమనించండి:

• స్థానిక ప్లంబింగ్ మరియు బిల్డింగ్ కోడ్‌లకు అనుగుణంగా అర్హత కలిగిన ప్రొఫెషనల్ ద్వారా ఇన్‌స్టాలేషన్ నిర్వహించబడాలి.
• Ensure water supply is turned off before commencing any installation or maintenance work.
• The Ceratherm T50 features a Cool Body function, which keeps the tap body from becoming warmer than the set water temperature, reducing the risk of scalding.
• A temperature lock at 40 degrees Celsius is integrated to prevent accidental setting of excessively hot water. This can be overridden by pressing a button, but caution is advised.
• Regularly check for leaks and signs of wear. Address any issues promptly.
• Do not use abrasive cleaners or harsh chemicals, as these can damage the chrome finish and internal components.

3. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• Ceratherm T50 Thermostatic Shower Mixer
• Shower Bar (900 mm length)
• 3-Function Hand Shower
• Idealflex Shower Hose (1750 mm length)
• Adjustable Shower Holder with Push Button
• S-connectors and Fixings for Wall Mounting
• 2 Metal Rosettes (round, 70 mm diameter)

4. స్పెసిఫికేషన్లు

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

This shower combination is designed for wall, surface-mounted installation. It is recommended that installation be carried out by a qualified plumber.

5.1 ప్రీ-ఇన్‌స్టాలేషన్ తనిఖీలు

• Ensure the water supply lines are clean and free of debris.
• Verify that the hot and cold water supplies are correctly positioned (typically hot on the left, cold on the right).
• Confirm adequate water pressure (minimum 0.5 bar, recommended 1-5 bar).

5.2 సంస్థాపనా దశలు

1. నీటి సరఫరాను ఆపివేయండి: Locate the main water shut-off valve and turn off the water supply to the installation area.
2. Prepare Wall Connections: Ensure the wall connections are spaced correctly for the S-connectors. Refer to Figure 2 for detailed dimensions.
3. Install S-Connectors: Apply thread sealant to the S-connectors and screw them into the wall connections. Adjust them to ensure the correct spacing and level for the mixer.
4. Attach Rosettes: Place the metal rosettes over the S-connectors, ensuring they sit flush against the wall.
5. Mount Mixer: Connect the thermostatic mixer to the S-connectors. Tighten the nuts securely, but do not overtighten.
6. Install Shower Bar: Position the shower bar vertically above the mixer. Mark the drilling points for the wall brackets. Drill holes, insert wall plugs, and secure the brackets. The attachment points are height-adjustable.
7. షవర్ గొట్టాన్ని కనెక్ట్ చేయండి: Attach the Idealflex shower hose to the mixer's outlet (1/2 inch connection) and to the hand shower.
8. Place Hand Shower: Insert the hand shower into the adjustable shower holder.
9. పరీక్షా వ్యవస్థ: Slowly turn on the main water supply and check for any leaks. Test the mixer's temperature and flow functions.

Figure 2: Technical drawing illustrating the dimensions and connections for the shower bar and thermostatic mixer. Note the G 1/2 connections and 70mm rosette diameter.

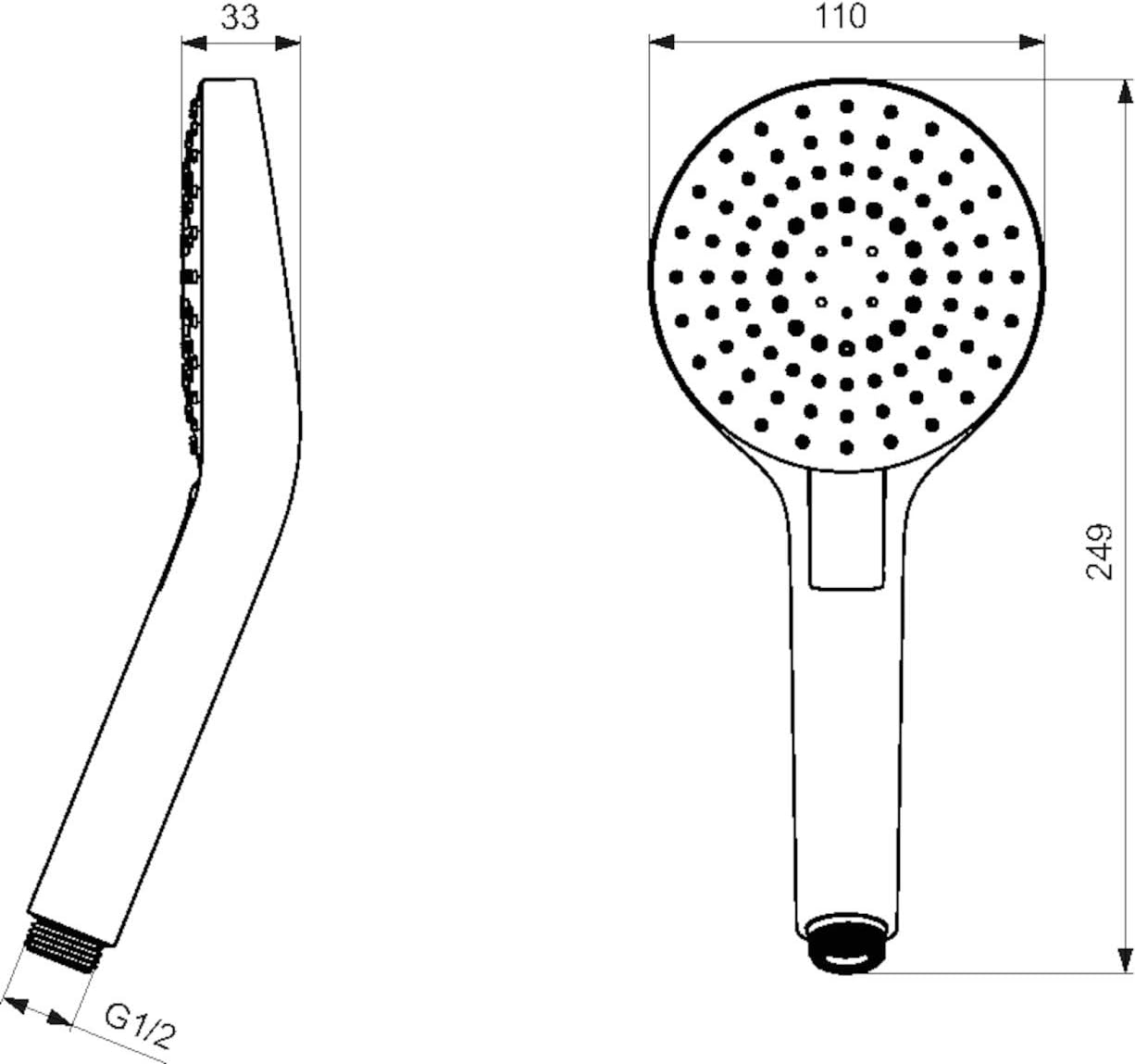

Figure 3: Technical drawing illustrating the dimensions of the hand shower, including its 110mm diameter and G 1/2 connection.

6. ఆపరేటింగ్ సూచనలు

The Ceratherm T50 features a double-handle design for precise control of water flow and temperature.

6.1 నీటి ప్రవాహ నియంత్రణ

The right handle controls the water flow. Rotate it to increase or decrease the flow. The ECO ఫంక్షన్ allows for a water-saving position, reducing water consumption without significant loss of comfort. To achieve maximum flow, you may need to push a button or overcome a slight resistance on the handle.

6.2 ఉష్ణోగ్రత నియంత్రణ

The left handle controls the water temperature. Rotate it to adjust the temperature. A temperature lock at 40 degrees Celsius is provided for safety. To select temperatures above 40°C, press and hold the safety button on the handle while rotating it further. The thermostatic cartridge ensures a constant mixing temperature, even with fluctuations in water pressure or hot water supply.

మూర్తి 4: క్లోజ్-అప్ view of the Ceratherm T50 thermostatic mixer, showing the temperature control handle with the 40°C safety stop and the flow control handle.

6.3 హ్యాండ్ షవర్ విధులు

The 3-function hand shower offers various spray patterns. Use the navigo switch (a button or lever on the hand shower) to cycle through the available spray types:

• వర్షం: A classic, full-coverage spray for a gentle shower experience.
• మసాజ్: A more focused, invigorating spray for muscle relaxation.
• Gentle Rain: A softer, aerated spray for a delicate feel.

Figure 5: Close-up of the 3-function hand shower, highlighting the spray plate and the navigo switch for changing spray patterns.

Figure 6: The hand shower delivering a wide, even 'Rain' spray pattern.

Figure 7: The hand shower delivering a focused, powerful 'Massage' spray pattern.

Figure 8: The hand shower delivering a soft, aerated 'Gentle Rain' spray pattern.

6.4 Adjustable Shower Holder

The hand shower holder can be adjusted vertically along the shower bar. Press the push button on the holder to slide it up or down to your desired height. The holder is also swivelled, allowing you to adjust the angle of the hand shower.

7. నిర్వహణ

Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower combination.

• క్రోమ్ ఫినిష్‌ను శుభ్రపరచడం: Clean the chrome surfaces regularly with a soft cloth and a mild, non-abrasive cleaner. Rinse thoroughly with water and dry with a soft cloth to prevent water spots. Avoid cleaners containing acids, chlorine, or abrasive particles.
• Anti-Limescale Function: The hand shower is equipped with an anti-limescale function. Periodically rub the silicone nozzles on the hand shower spray plate to dislodge any limescale buildup.
• కార్ట్రిడ్జ్ నిర్వహణ: The FirmaFlow cartridge and ceramic top are designed for long-term reliability. If you experience issues with temperature or flow control, it may indicate a need for professional inspection or cartridge replacement.
• Grease Reservoir: The mixer includes a food-safe grease reservoir for smooth operation of the handles. This typically does not require user maintenance.

8. ట్రబుల్షూటింగ్

If you encounter issues with your shower combination, refer to the following common problems and solutions:

• తక్కువ నీటి ప్రవాహం:
  • ప్రధాన నీటి సరఫరా పూర్తిగా తెరిచి ఉందో లేదో తనిఖీ చేయండి.
  • Inspect the hand shower nozzles for limescale buildup and clean them.
  • Ensure the flow control handle is fully open and not in the ECO position if maximum flow is desired.
  • Check for kinks in the shower hose.
• అస్థిరమైన నీటి ఉష్ణోగ్రత:
  • Verify that the hot and cold water supplies are functioning correctly.
  • Ensure the thermostatic cartridge is not obstructed by debris.
  • If the issue persists, professional inspection of the thermostatic cartridge may be required.
• లీక్‌లు:
  • అన్ని కనెక్షన్ల బిగుతును తనిఖీ చేయండి. అతిగా బిగించవద్దు.
  • Inspect the shower hose for damage.
  • If leaks persist from the mixer body, contact a qualified plumber.

For problems not listed here or if solutions do not resolve the issue, please contact Ideal Standard customer support or a qualified plumber.

9. వారంటీ మరియు మద్దతు

For information regarding the warranty period and terms for your Ideal Standard Ceratherm T50 Shower Combination A7218AA, please refer to the warranty card included with your product or visit the official Ideal Standard website. For technical support, spare parts, or service inquiries, please contact your local Ideal Standard dealer or customer service department.

సంప్రదింపు సమాచారం: Please refer to the Ideal Standard official website or product packaging for the most up-to-date contact details for your region.
