పరిచయం
This instruction manual provides detailed guidance for assembling and operating your Discovery #MINDBLOWN Action Circuitry Electronic Experiment Complete STEM Set. This kit is designed to introduce users to the fundamental principles of electricity, circuitry, and engineering through engaging, hands-on experiments. It encourages exploration of science, technology, engineering, and mathematics (STEM) concepts.
భద్రతా సమాచారం
- Always read the entire instruction manual before beginning assembly or operation.
- This kit contains small parts and is not suitable for children under 3 years of age. Recommended for ages 8+.
- Ensure all wiring connections are secure and correct before inserting batteries.
- Only connect wires of the same color as indicated in the instructions to prevent damage.
- Requires 2 AA batteries (not included). Ensure batteries are inserted with correct polarity (+/-).
- Do not short-circuit the battery compartment.
పెట్టెలో ఏముంది
Your Discovery #MINDBLOWN Action Circuitry Electronic Experiment Complete STEM Set includes:
- 3 x Plastic Breadboard
- 3 x బ్యాటరీ కంపార్ట్మెంట్
- 9 x స్ప్రింగ్ కనెక్టర్
- 1 x Plastic Rocket
- 1 x లాంచ్ బటన్
- 2 x ఆన్/ఆఫ్ స్విచ్
- 1 x Plastic Robot
- 1 x Plastic Blower
- 1 x Foam Ball
- ఇన్స్ట్రక్షన్ మాన్యువల్
చిత్రం: పైగాview of the kit components, showing plastic breadboards, battery compartments, spring connectors, a plastic rocket, a launch button, on/off switches, a plastic robot, a plastic blower, and a foam ball.
సెటప్ మరియు అసెంబ్లీ
Follow these steps to set up your experiment circuits. Refer to the wiring diagrams in the included manual for specific connections.
- బ్యాటరీ ఇన్స్టాలేషన్: Insert 2 AA batteries (not included) into each battery compartment, ensuring correct polarity (+/-).
- కనెక్టింగ్ వైర్లు: Connect the bare metal ends of the wires to the spring connectors.
- Breadboard Placement: Insert the spring connectors with attached wires onto the plastic breadboard.
- Forming Gaps: Gently bend the spring connectors to create a small gap between the springs.
- వైర్ చొప్పించడం: Insert the bare metal wire between the gap of the spring connectors. Ensure the bare metal wire is in contact with the metal springs, not the plastic caps.
- రంగు సరిపోలిక: Always connect wires of the same color (e.g., orange to orange, blue to blue) as per the experiment diagrams to ensure proper circuit function.
చిత్రం: వివరణాత్మకం view of connecting wires and components on the breadboard, highlighting the hands-on assembly process.
ఆపరేటింగ్ సూచనలు: ప్రయోగాలు
This kit allows you to build and explore various electronic circuits. Here are some of the key experiments you can perform:
1. Rocket Launch Experiment
Assemble the circuit for the rocket launch module according to the provided diagrams. Once connected, press the launch button to activate the rocket.
Image: The rocket launch module in action, with a child's hand pressing the launch button.
2. స్పిన్నింగ్ రోబోట్ ప్రయోగం
Construct the circuit for the spinning robot. Flip the designated switch to power the robot and observe its motion.

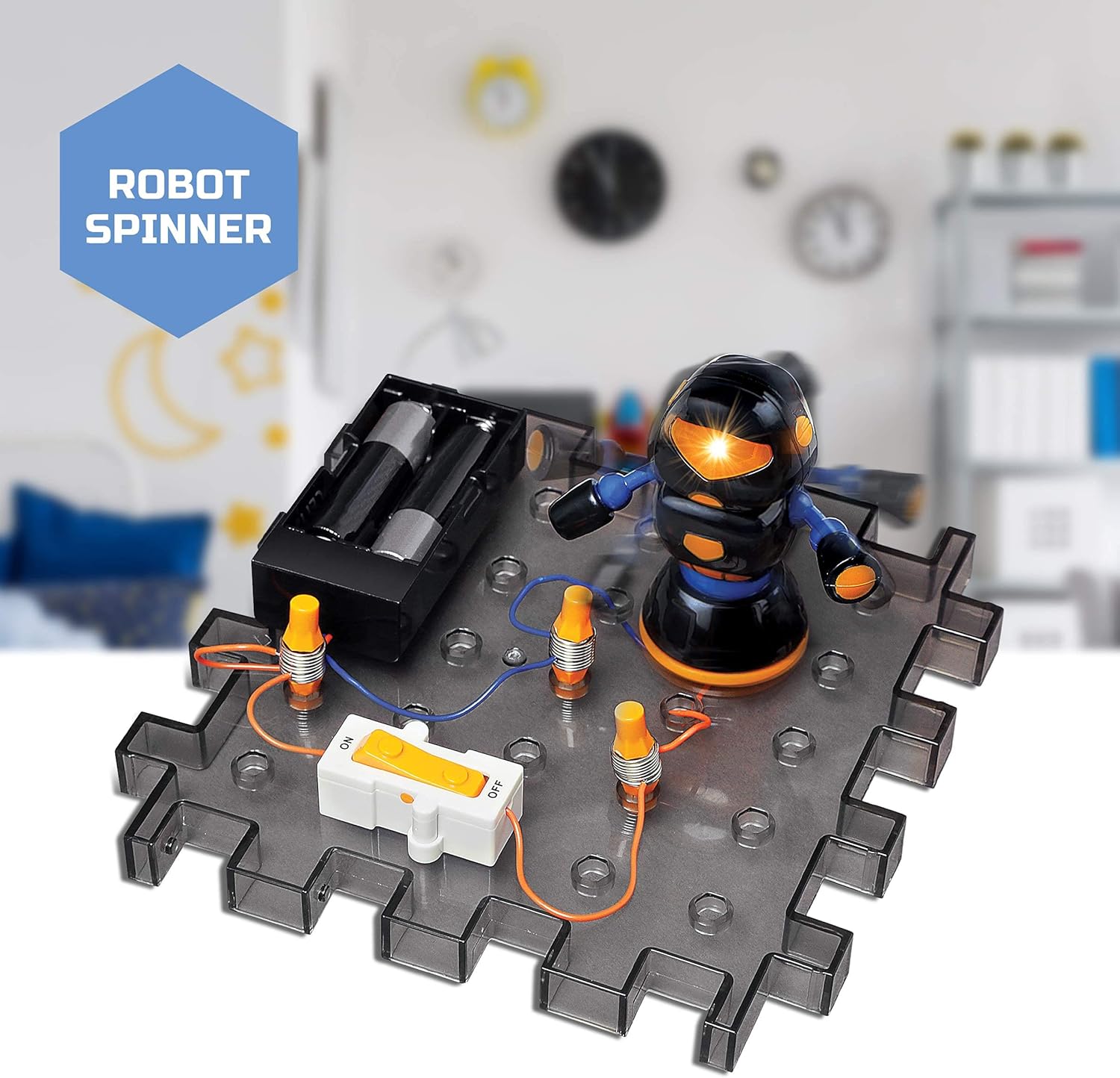

Image: The spinning robot module, demonstrating its operational state with glowing eyes.
3. తేలియాడే బంతి ప్రయోగం
Build the circuit for the floating ball module. Turn on the power to activate the blower, which will cause the foam ball to levitate above it.
Image: The floating ball experiment in progress, showing the foam ball suspended by the air current from the blower.
4. వైర్ ట్రాప్ ప్రయోగం
This experiment challenges your precision. Connect the wire trap component to a circuit that includes a siren. The objective is to guide a metal hook along a shaped wire without making contact. If the hook touches the wire, the siren will sound, indicating a connection has been made.
Video: Demonstration of the Wire Trap Experiment, showing a child carefully guiding a metal hook along a shaped wire. If the hook touches the wire, a siren sounds.
Combining Circuits
The breadboards are designed to connect, allowing you to combine multiple experiments into one large, complex circuit. Experiment with different configurations to observe new interactions and learn advanced circuitry concepts.
Image: A fully assembled Action Circuitry set, showcasing multiple experiment modules interconnected on the breadboards.
నిబంధనల పదకోశం
Familiarize yourself with these key terms related to electricity and circuitry:
- కండక్టర్: A material that allows electric current to flow through it easily. Metals like copper and silver are excellent conductors.
- ప్రస్తుత: The flow of electric charge.
- ఎలక్ట్రాన్: A negatively charged subatomic particle that orbits the nucleus of an atom. The movement of electrons creates electric current.
- ఇన్సులేటర్: A material that resists the flow of electric current.
- LED (కాంతి ఉద్గార డయోడ్): A semiconductor light source that emits light when current flows through it.
- మోటార్: A device that converts electrical energy into mechanical energy (motion).
- సర్క్యూట్: A closed loop through which electric current can flow.
- బ్రెడ్బోర్డ్: A construction base used for prototyping electronics without soldering.
- మారండి: A component that can make or break an electrical circuit, controlling the flow of current.
ట్రబుల్షూటింగ్
- ప్రయోగం పనిచేయడం లేదు:
- Check all wire connections to ensure they are secure and match the diagrams in the manual.
- Verify that the bare metal wires are in contact with the metal springs and not the plastic caps.
- Ensure batteries are inserted correctly with the proper polarity (+/-).
- Confirm that the on/off switch is in the "ON" position.
- Replace old batteries with new ones if necessary.
- Siren Not Sounding (Wire Trap):
- Make sure the metal hook is making direct contact with the shaped wire.
- Check all connections in the siren circuit.
స్పెసిఫికేషన్లు
- ఉత్పత్తి కొలతలు: 3.35 x 9.53 x 12.56 అంగుళాలు
- వస్తువు బరువు: 1.61 పౌండ్లు
- మోడల్ సంఖ్య: 1012583
- సిఫార్సు చేసిన వయస్సు: 8+ సంవత్సరాలు
- బ్యాటరీలు అవసరం: 2 AA బ్యాటరీలు (చేర్చబడలేదు)
- తయారీదారు: మెర్చ్సోర్స్
- విడుదల తేదీ: సెప్టెంబర్ 12, 2020
వారంటీ మరియు మద్దతు
For warranty information or technical support regarding your Discovery #MINDBLOWN Action Circuitry Electronic Experiment Complete STEM Set, please refer to the contact details provided on the product packaging or visit the official Discovery #MINDBLOWN webసైట్.
