AC Infinity CLOUDLAB 632 Advance Grow Tent: User Manual

పరిచయం

The AC Infinity CLOUDLAB 632 is an advanced grow tent designed for indoor plant cultivation. It combines durable materials and innovative features to create an optimized environment for plant growth. This manual provides essential information for setting up, operating, and maintaining your grow tent.

Figure 1: Fully assembled AC Infinity CLOUDLAB 632 Grow Tent.

ఉత్పత్తి లక్షణాలు

• దృఢమైన నిర్మాణం: Features 1-inch thick steel poles for superior strength and stability, capable of supporting heavy equipment.
• High-Density Canvas: Constructed with thick 2000D Mylar canvas, engineered to block all light leaks and provide excellent durability.
• Optimal Reflectivity: Reengineered Mylar interior is lab-tested to ensure the highest light reflectivity, maximizing light efficiency for plant growth.
• మెరుగుపరచబడింది Viewing: Taller windows offer a comprehensive view అంతర్గత వాతావరణానికి భంగం కలిగించకుండా మీ మొక్కలను పెంచండి.
• Smooth Zippers: Equipped with high-quality SBS zippers for smooth, jam-free operation, ensuring a perfect light-proof seal.
• ఇంటిగ్రేటెడ్ కంట్రోలర్ మౌంట్: An innovative controller mounting plate with a lightproof cable passthrough allows for secure and convenient placement of environmental controllers.
• Multiple Duct Ports: Includes four 4-inch and three 6-inch double-cinched duct ports for connecting humidifiers, heaters, air conditioners, and ventilation systems without light leakage.
• Light Leak Protection: Front zipper flaps provide an additional layer of protection against light leaks, maintaining optimal darkness during dark cycles.
• హెవీ-డ్యూటీ క్యాచ్ ట్రే: A white, stain-resistant, waterproof catch tray is included to manage spills and maintain cleanliness.
• అదనపు హ్యాంగింగ్ బార్లు: Comes with two main hanging bars and one extra bar, enhancing stability and support for various grow devices.
• రీన్ఫోర్స్డ్ కార్నర్స్: Multi-layered reinforced tent corners ensure maximum durability and extended lifespan.
• Tool Bag: A convenient tool bag with a release buckle is included for organizing and storing gardening tools.

Figure 2: Key structural and convenience features of the grow tent.

సెటప్ మరియు అసెంబ్లీ

The CLOUDLAB 632 grow tent is designed for straightforward assembly. Follow these general steps for setup:

1. భాగాలను అన్‌ప్యాక్ చేయండి: Carefully unbox all components, including steel poles, connectors, tent canvas, and accessories.
2. ఫ్రేమ్‌ని సమీకరించండి: Connect the steel poles using the provided connectors to build the base frame, then attach the vertical poles and top frame. Ensure all connections are secure.
3. Install Canvas: Drape the grow tent canvas over the assembled frame. Ensure the canvas is properly aligned and all corners are fitted.
4. సురక్షిత జిప్పర్లు: Zip up all main zippers, ensuring the inner flaps are correctly positioned to prevent light leaks.
5. Insert Catch Tray: Place the heavy-duty catch tray at the bottom of the tent.
6. హ్యాంగింగ్ బార్‌లను ఇన్‌స్టాల్ చేయండి: Attach the hanging bars to the top frame for supporting lights, fans, and other equipment.
7. Mount Controller (Optional): Utilize the dedicated mounting plate for your environmental controller, routing cables through the lightproof passthrough.
8. Configure Duct Ports: Open or close the double-cinched duct ports as needed for your ventilation and accessory setup.

Figure 3: Details of the controller mounting plate, duct ports, and catch tray.

Operating the Grow Tent

Once assembled, the CLOUDLAB 632 provides a controlled environment for your plants. Proper operation involves managing lighting, ventilation, temperature, and humidity.

• పర్యావరణ నియంత్రణ: Use compatible environmental controllers (mounted on the dedicated plate) to automate lighting schedules, fan speeds, and humidity levels.
• వెంటిలేషన్: Ensure adequate airflow by connecting inline fans to the duct ports. Adjust fan speed to maintain desired temperature and humidity, and to provide fresh air exchange.
• లైటింగ్: Position your grow lights at the appropriate height above your plants using the hanging bars. Adjust height as plants grow to maintain optimal light intensity.
• పర్యవేక్షణ: Regularly check temperature and humidity levels inside the tent. The taller windows allow for easy visual inspection without opening the tent and disrupting the climate.

చిత్రం 4: ఒక మాజీample setup of the grow tent with integrated environmental controls.

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ గ్రో టెంట్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.

• Cleaning the Catch Tray: The stain-resistant catch tray can be easily removed and cleaned to prevent water accumulation and maintain hygiene.
• Wiping Interior: మైలార్ లోపలి భాగాన్ని ప్రకటనతో కాలానుగుణంగా తుడవండి.amp cloth to remove dust or debris and maintain maximum reflectivity.
• జిప్పర్ సంరక్షణ: Keep zippers clean and free of debris to ensure smooth operation and prevent wear. Avoid forcing stuck zippers.
• నష్టం కోసం తనిఖీ చేయండి: Regularly inspect the canvas, poles, and connectors for any signs of wear or damage. Address any issues promptly to maintain the tent's integrity.

స్పెసిఫికేషన్లు

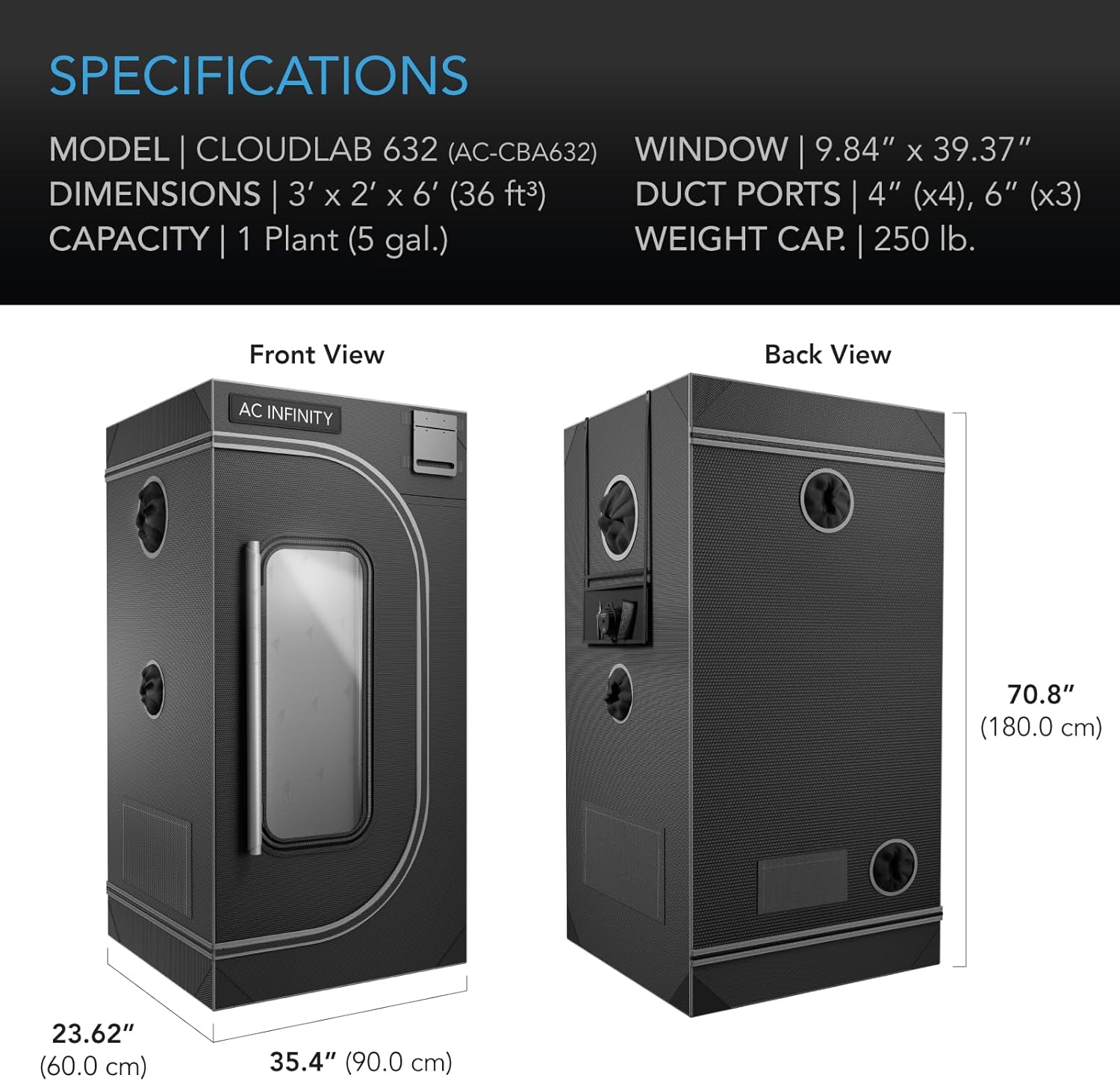

Figure 5: Visual representation of the CLOUDLAB 632 specifications.

వారంటీ మరియు మద్దతు

AC Infinity stands behind the quality of its products. The CLOUDLAB series grow tents typically come with a 3-year manufacturer's warranty, covering defects in materials and workmanship. For warranty claims, technical support, or any inquiries, please refer to the official AC Infinity webసైట్ లేదా వారి కస్టమర్ సేవను నేరుగా సంప్రదించండి.

సందర్శించండి AC Infinity Store మరిన్ని వివరాలు మరియు ఉత్పత్తి ఉపకరణాల కోసం.
