విక్ట్రాన్ ఎనర్జీ బ్లూ స్మార్ట్ IP22 24V 16A బ్యాటరీ ఛార్జర్ ఇన్‌స్ట్రక్షన్ మాన్యువల్

పరిచయం

This manual provides essential information for the safe and efficient operation of your Victron Energy Blue Smart IP22 24V 16A Battery Charger. This professional battery charger is designed for a wide range of vehicles and devices, including cars, motorcycles, ATVs, RVs, boats, and yachts, and is compatible with various battery types, including Lithium and Deep Cycle batteries. It features advanced adaptive battery management and Bluetooth connectivity for monitoring and control via the VictronConnect app.

ముఖ్యమైన భద్రతా సమాచారం

Read all instructions carefully before using the charger.

• Always disconnect the AC supply before making or breaking connections to the battery.
• Ensure adequate ventilation during charging to prevent accumulation of explosive gases.
• Keep flames and sparks away from the battery.
• The battery terminal not connected to the chassis must be connected first. The other connection must be made to the chassis, away from the battery and fuel line.
• Lithium-ion batteries should only be charged at least 18 inches above the floor.
• This charger is designed for indoor use.
• వర్షం లేదా అధిక తేమ ఛార్జర్‌ను బహిర్గతం చేయవద్దు.
• ఛార్జర్‌కు బలమైన దెబ్బ తగిలినా, పడిపోయినా లేదా ఇతరత్రా దెబ్బతిన్నా దాన్ని ఆపరేట్ చేయవద్దు.
• Do not disassemble the charger. Refer servicing to qualified personnel.

ఉత్పత్తి ముగిసిందిview

The Victron Energy Blue Smart IP22 Charger is a professional battery charger with built-in Bluetooth, allowing for wireless monitoring and control. It features a microprocessor-controlled adaptive battery management system for optimized charging.

కీ ఫీచర్లు

• అనుకూల బ్యాటరీ నిర్వహణ: Automatically optimizes the charging process based on battery usage.
• అధిక సామర్థ్యం: Up to 94% efficiency, generating less heat compared to industry standards.
• వేడెక్కడం రక్షణ: Output current reduces as temperature increases up to 50°C.
• Li-ion Battery Charging: Charges Li-ion batteries with a simple bulk - absorption - float algorithm.
• బ్లూటూత్ కనెక్టివిటీ: Monitor voltage, current, and change settings via the VictronConnect app.
• Fully Discharged Battery Recovery: Function for lead-acid and lithium batteries.
• కాంపాక్ట్ పరిమాణం: Designed for easy installation in various environments.

భాగాలు

The charger unit includes the main charging device, AC input cable, and DC output cables with various connection options.

Figure 1: Victron Energy Blue Smart IP22 Charger with AC cable.

Figure 2: Charger highlighting overheating protection, showing output current reduction at 50°C.

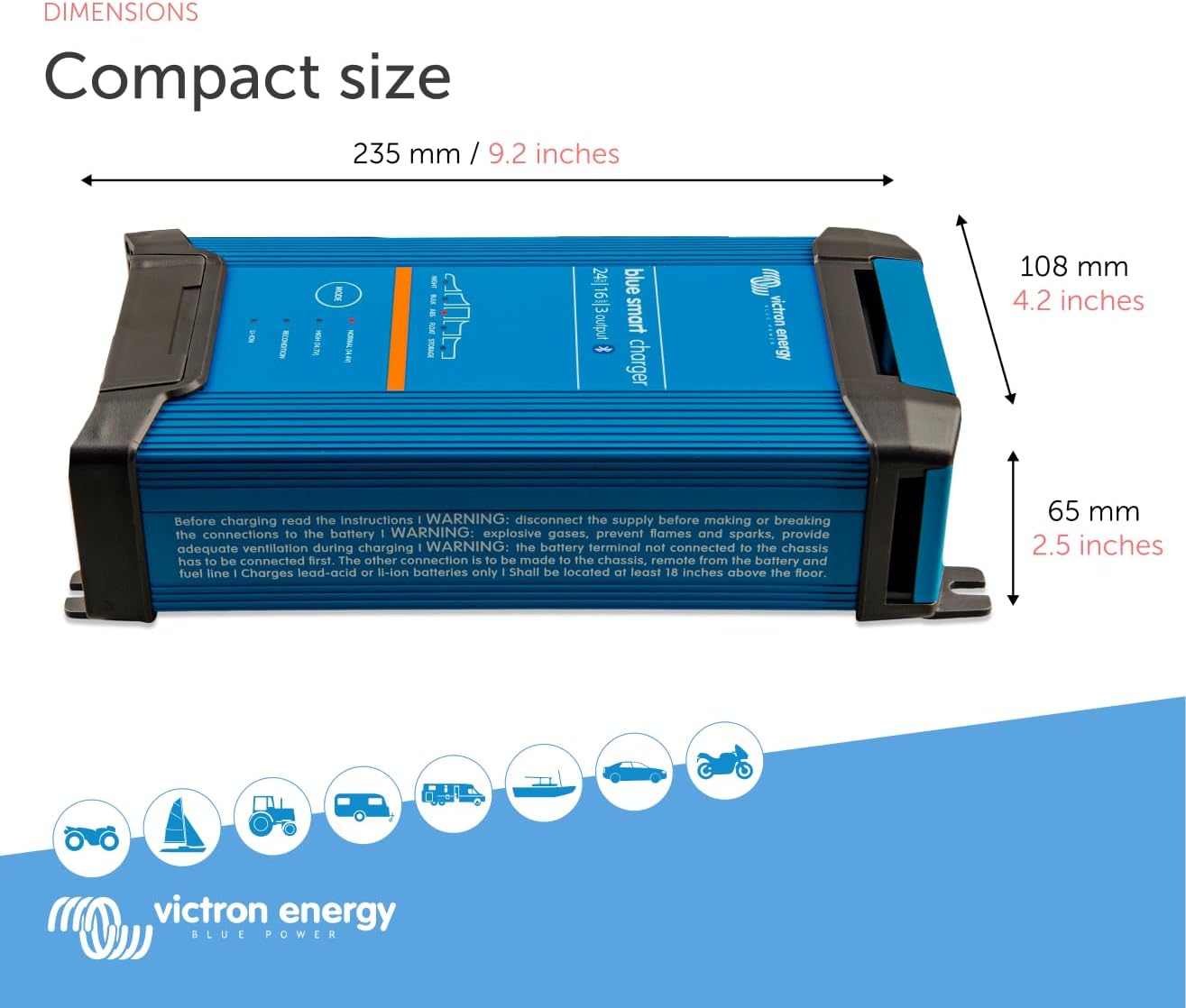

Figure 3: Dimensions of the Blue Smart IP22 Charger (235mm / 9.2 inches length, 108mm / 4.2 inches width, 65mm / 2.5 inches height).

సెటప్

Before connecting the charger, ensure the battery type and voltage match the charger's capabilities. The charger comes with both alligator clips and dedicated ring terminal connectors for flexible installation.

బ్యాటరీకి కనెక్ట్ చేస్తోంది

1. Ensure the charger is disconnected from the AC power supply.
2. Connect the positive (+) charger cable (red) to the positive (+) battery terminal.
3. Connect the negative (-) charger cable (black) to the negative (-) battery terminal.
4. For permanent installations, use the provided ring terminal connectors. For temporary connections, use the alligator clips.
5. Once connected, plug the AC power cord into a suitable wall outlet.

ఛార్జర్‌ని ఆపరేట్ చేస్తోంది

The Blue Smart IP22 charger offers various charging modes and can be controlled directly via the mode button on the unit or through the VictronConnect app.

ఛార్జింగ్ మోడ్‌లు

The charger utilizes a multi-step charging algorithm to optimize battery health and lifespan.

చిత్రం 4: పైగాview of Blue Smart IP22 features and charging modes.

• సాధారణ (28.8V): Recommended for most lead-acid batteries.
• అధిక (29.4V): Recommended only for specific flooded lead batteries. Use with care.
• రీకండీషన్: Helps repair under-charged or sulfated lead-acid batteries.
• లి-అయాన్: Charges 25.6V LiFePO4 batteries, can even recharge from 0V in case of BMS low voltagఇ రక్షణ.
• బల్క్: Battery charging with maximum current until absorption voltagఇ చేరుకుంది.
• శోషణం: Battery charging with a set voltagఇ/టైమర్, ఛార్జ్ మోడ్ ఆధారంగా.
• ఫ్లోట్: Charging with lowered voltage, keeping batteries full while passing through power to DC loads.
• నిల్వ: Keeps charged batteries healthy by reducing the charge voltagటెయిల్ కరెంట్, తుప్పు మరియు వాయువు ఏర్పడటాన్ని పరిమితం చేయడానికి.
• రాత్రి మోడ్: Output current drops to 50% max, making the charger silent.
• విద్యుత్ సరఫరా మోడ్: Powers DC loads without a battery.

Using the VictronConnect App

The VictronConnect app allows you to configure, monitor, and update your charger via Bluetooth.

Figure 5: VictronConnect app interface showing bulk charge status.

1. Download the VictronConnect app from your device's app store.
2. Open the app and connect to your Blue Smart IP22 charger via Bluetooth.
3. The app displays real-time status, voltagఇ, మరియు ప్రస్తుత.
4. Navigate through the "Status," "Graph," and "History" tabs to view detailed charging data and past cycles.
5. Access "Settings" to customize charge presets, current limits, and advanced battery settings (e.g., absorption voltagఇ, ఫ్లోట్ వాల్యూమ్tage, low temperature cut-off).

నిర్వహణ

The Victron Energy Blue Smart IP22 charger is designed for minimal maintenance.

• ఛార్జర్‌ను శుభ్రంగా మరియు దుమ్ము మరియు చెత్త లేకుండా ఉంచండి.
• Regularly inspect cables and connections for any signs of wear or damage.
• ఆపరేషన్ సమయంలో ఛార్జర్ చుట్టూ సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.
• For optimal battery health, ensure the correct charging profile is selected for your battery type.

ట్రబుల్షూటింగ్

If you encounter issues with your charger, refer to the following common troubleshooting steps:

• ఛార్జర్ ఆన్ కావడం లేదు: Check the AC power connection and ensure the outlet is functional. Verify the charger's internal fuse (if accessible and user-serviceable).
• బ్యాటరీ ఛార్జ్ కావడం లేదు: Ensure the DC connections to the battery are secure and correctly polarized (+ to +,- to -). Confirm the battery is not deeply discharged beyond recovery limits for the selected mode.
• యాప్ కనెక్టివిటీ సమస్యలు: Ensure Bluetooth is enabled on your mobile device and the charger is within range. Restart the app or your device if necessary.
• వేడెక్కడం: Ensure the charger has adequate ventilation and is not covered. The charger will automatically reduce output current if it gets too hot.

For persistent issues, consult the full product manual available on the Victron Energy webసైట్ లేదా కస్టమర్ సపోర్ట్‌ని సంప్రదించండి.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

The Victron Energy Blue Smart IP22 charger comes with a manufacturer's warranty. For detailed warranty information, please refer to the documentation included with your product or visit the official Victron Energy webసైట్.

For technical support, troubleshooting assistance, or service inquiries, please contact Victron Energy customer support directly.

మీరు అదనపు వనరులు మరియు తరచుగా అడిగే ప్రశ్నలను కూడా ఇక్కడ కనుగొనవచ్చు Victron Energy Store on Amazon.
