1. పరిచయం
The ANYSECU HB880 is a hands-free Bluetooth headset designed for motorcycle helmets, enabling communication with two-way radios and mobile phones. It features Push-to-Talk (PTT) functionality, allowing seamless switching between radio and phone calls, enhancing safety and convenience during rides. This manual provides detailed instructions for installation, operation, and maintenance of your HB880 headset.
2. ప్యాకేజీ విషయాలు
Before installation, please verify that all items listed below are present in your package:
- HB880 Bluetooth Main Unit
- Helmet Speakers (2)
- బూమ్ మైక్రోఫోన్
- Wireless PTT Controller
- 2-Pin Radio Adapter Cable
- USB ఛార్జింగ్ కేబుల్
- Helmet Mounting Bracket (Pinch Cock and Sticker options)
- Microphone Windshield Foam
మూర్తి 2.1: పైగాview of the ANYSECU HB880 Bluetooth Helmet PTT Headset components, including the main unit, speakers, microphone, wireless PTT controller, and radio adapter.
3. ఉత్పత్తి ముగిసిందిview
The HB880 main unit features intuitive controls for power, volume, and Push-to-Talk (PTT) functions. The wireless PTT controller provides convenient remote activation of the PTT feature.
మూర్తి 3.1: Diagram illustrating the HB880 main unit's connections to a mobile phone, wireless PTT controller, and two-way radio.
మూర్తి 3.2: The HB880 main unit connected to its helmet speakers and boom microphone.
4. సెటప్ మరియు ఇన్స్టాలేషన్
4.1 పరికరాన్ని ఛార్జ్ చేస్తోంది
Before first use, fully charge the HB880 main unit. Connect the USB charging cable to the charging port on the unit and to a standard USB power source. Charging typically takes less than 3 hours. The indicator light will change to show charging status.
4.2 హెల్మెట్ ఇన్స్టాలేషన్
Follow these steps to properly install the HB880 headset into your motorcycle helmet:
- Choose Affixing Method: Select either the pinch cock clip for thin-shelled helmets or the adhesive sticker for thick-shelled helmets. The pinch cock is easier to remove, while the sticker provides a more permanent fit.
- పీఠాన్ని ఉంచండి: Attach the chosen mounting pedestal to the right side of your helmet. Ensure it is in a position that allows the main unit to be easily accessible and does not obstruct your vision or helmet functionality.
- Install Earphones and Microphone: Carefully install the earphones inside the helmet, aligning them with your ears. Route the microphone boom towards your mouth, ensuring it is close for clear voice transmission. Hide excess cable within the helmet lining.
- ప్రధాన యూనిట్ను అటాచ్ చేయండి: Slide the HB880 main unit onto the installed pedestal until it locks securely.

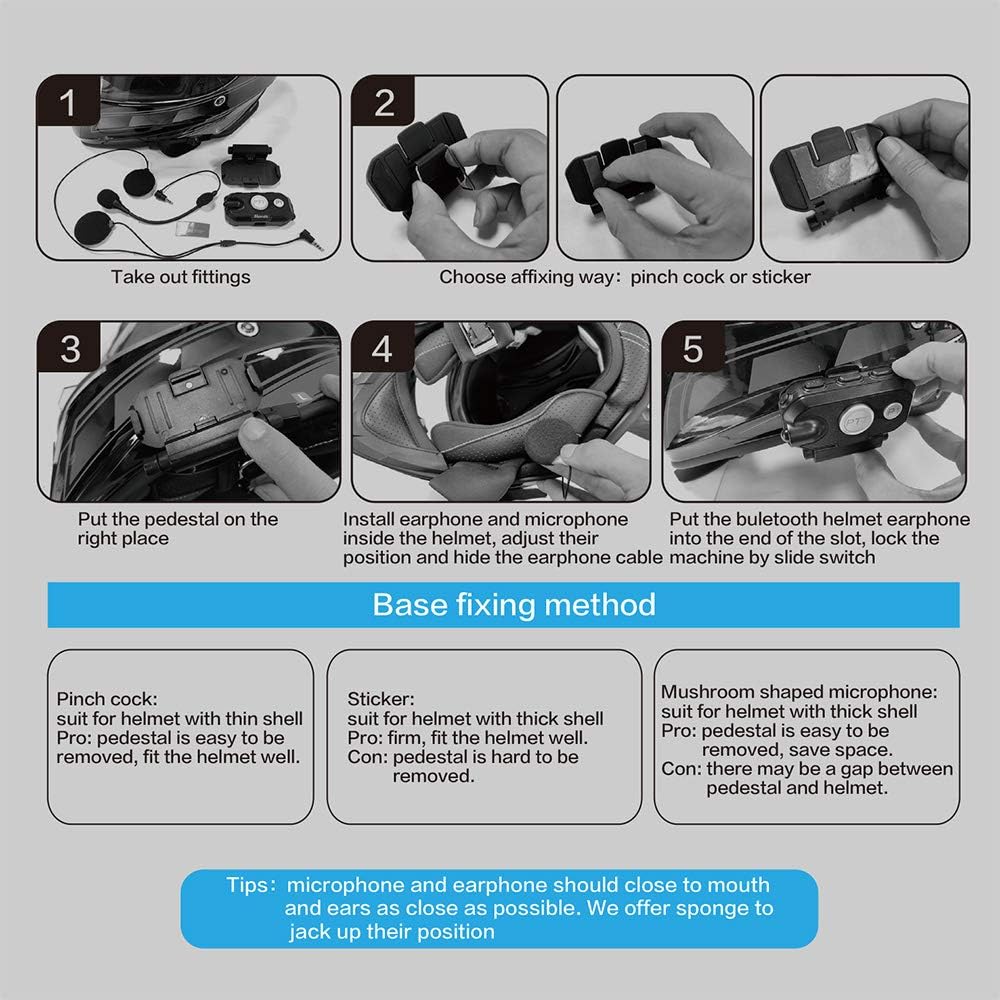

మూర్తి 4.1: Step-by-step guide for installing the HB880 Bluetooth headset components into a motorcycle helmet.
మూర్తి 4.2: Visual representation of the HB880 headset installed on a helmet, connected to a two-way radio via adapter, and paired with a wireless PTT controller.
4.3 Connecting to a Two-Way Radio
Use the provided 2-pin adapter cable to connect your HB880 main unit to a compatible two-way radio. Ensure the connection is secure.
4.4 బ్లూటూత్ జత చేయడం
The HB880 supports pairing with both mobile phones and the wireless PTT controller.
- మొబైల్ ఫోన్తో జత చేయడం:
- Ensure the HB880 is powered off.
- జత చేసే మోడ్ను సూచిస్తూ, సూచిక కాంతి వేగంగా మెరిసే వరకు పవర్ బటన్ను నొక్కి పట్టుకోండి.
- On your mobile phone, go to Bluetooth settings and search for "HB880" or a similar device name.
- Select the HB880 to pair. Once connected, the indicator light will change.
- Pairing with Wireless PTT Controller:
- Ensure the HB880 is in pairing mode (refer to mobile phone pairing steps).
- Activate pairing mode on the wireless PTT controller (refer to its specific instructions, usually a long press of the PTT button).
- పరికరాలు స్వయంచాలకంగా కనెక్ట్ అవుతాయి.
Note: The HB880 can connect to a phone, an adapter, a wireless PTT controller, and a radio simultaneously.
5. ఆపరేషన్
5.1 పవర్ ఆన్/ఆఫ్
- పవర్ ఆన్: Press and hold the power button until you hear an audible prompt.
- పవర్ ఆఫ్: Press and hold the power button until you hear an audible prompt.
5.2 వాల్యూమ్ నియంత్రణ
Use the volume buttons on the HB880 main unit to adjust the audio level. Press the '+' button to increase volume and the '-' button to decrease volume.
5.3 Push-to-Talk (PTT) Function
The PTT button on the main unit or the wireless PTT controller activates transmission on your connected two-way radio. Press and hold to transmit, release to listen.

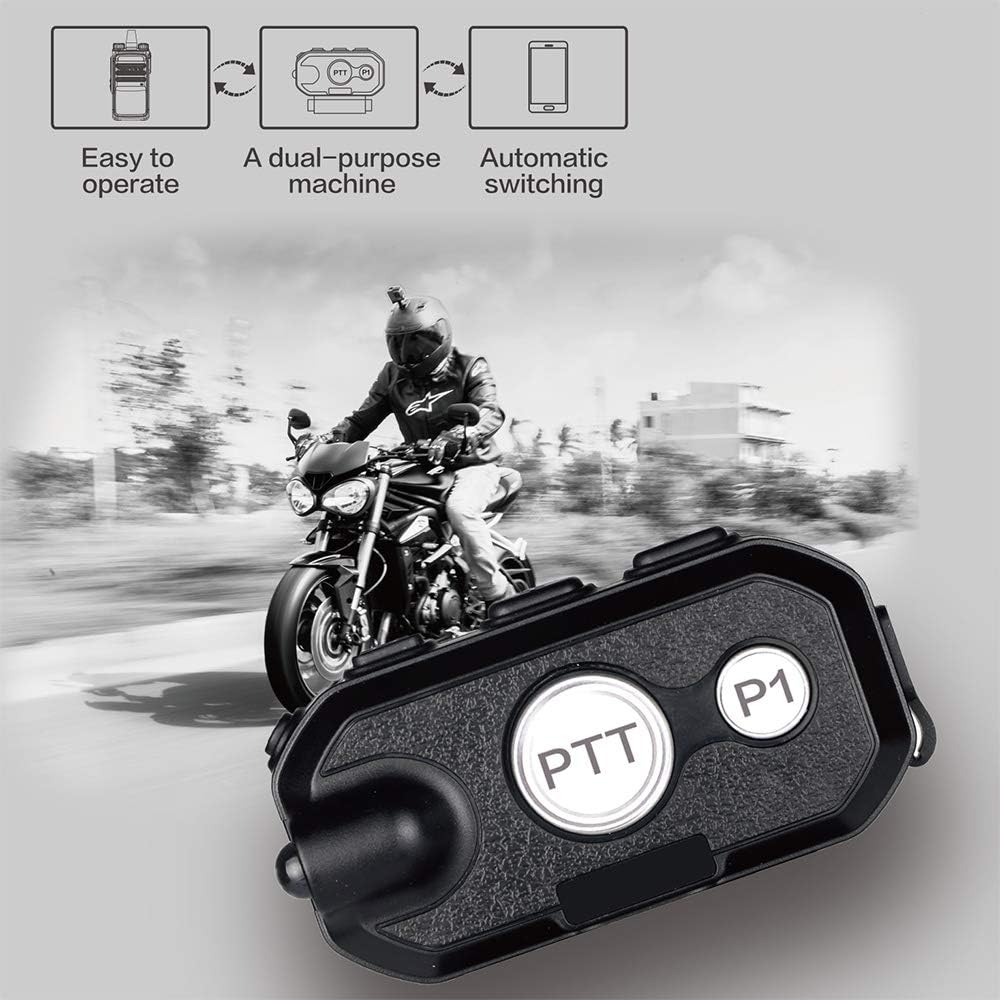

మూర్తి 5.1: The HB880 main unit highlighting the PTT button, shown in a motorcycle riding context.
5.4 కమ్యూనికేషన్ మోడ్లు
The HB880 supports multiple communication modes:
- ఫోన్ కాల్ మోడ్: When a phone call is received, the headset will automatically switch to phone call mode.
- Radio Priority Mode: Two-way radio signals take priority over other audio sources.
- మిక్స్డ్ మోడ్: Allows listening to navigation audio from a phone while maintaining radio communication.
The device features automatic switching between connected devices based on activity.
6. నిర్వహణ
- శుభ్రపరచడం: Wipe the main unit and other components with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
- నిల్వ: ఉపయోగంలో లేనప్పుడు పరికరాన్ని చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
- బ్యాటరీ సంరక్షణ: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, especially if stored for extended periods.
- Microphone Windshield: Ensure the microphone windshield foam is securely attached to prevent it from falling off during use.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| పవర్ లేదు / పరికరం ఆన్ కావడం లేదు | తక్కువ బ్యాటరీ | పరికరాన్ని పూర్తిగా ఛార్జ్ చేయండి. |
| Cannot pair with phone/PTT controller | Device not in pairing mode; previously paired device interfering | Ensure HB880 is in pairing mode. Disconnect or "forget" previous pairings on your phone/controller and try again. |
| తక్కువ ఆడియో వాల్యూమ్ | Volume set too low; poor speaker placement | Increase volume using the '+' button. Ensure speakers are positioned directly over your ears inside the helmet. |
| Intermittent audio / Poor connection | Loose cable connections; interference | Check all cable connections (speakers, microphone, radio adapter). Ensure devices are within Bluetooth range. |
| బటన్లు స్పందించడం లేదు | Button stuck or malfunction | Gently check if the button is physically stuck. If the issue persists, contact customer support. |
| Microphone foam falls off | వదులుగా సరిపోయే | Secure the foam windshield more firmly, possibly using a small rubber band if necessary. |
8. స్పెసిఫికేషన్లు
- మోడల్: HB880-K
- బ్లూటూత్ వెర్షన్: V4.1 Class2
- ఆపరేషన్ పరిధి: 10 మీటర్లు (33 అడుగులు)
- బ్లూటూత్ ప్రోfiles: HFP, HSP, PTT
- మాట్లాడే సమయం: సుమారు 50 గంటలు
- స్టాండ్బై సమయం: సుమారు 300 గంటలు
- ఛార్జింగ్ సమయం: 3 గంటల కంటే తక్కువ
- కొలతలు (ప్రధాన యూనిట్): సుమారు 5.91 x 3.15 x 3.94 అంగుళాలు
- తయారీదారు: Anysecu
- UPC: 049500289744
మూర్తి 8.1: Summary of key features and specifications for the HB880 headset.
9. వారంటీ మరియు మద్దతు
For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
