గ్రీన్ సెల్ పవర్‌బూస్ట్ CJSGC01 కార్ జంప్ స్టార్టర్ పవర్ బ్యాంక్ యూజర్ మాన్యువల్

1. పరిచయం

The Green Cell PowerBoost CJSGC01 is a versatile device designed to provide emergency jump-starting for vehicles, act as a portable power bank for electronic devices, and function as a charger for 12V batteries. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your PowerBoost device.

చిత్ర వివరణ: The Green Cell PowerBoost CJSGC01 device, a black rectangular unit with green accents, is shown with its red and black jumper cables. Below it, the device is displayed inside its protective carrying case, which also holds the cables.

2. ముఖ్యమైన భద్రతా సమాచారం

Read all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• పరికరాన్ని పిల్లలకు దూరంగా ఉంచండి.
• వర్షం లేదా తడి పరిస్థితులకు పరికరాన్ని బహిర్గతం చేయవద్దు.
• Do not operate the device if it has been damaged or modified.
• Ensure proper polarity when connecting to a vehicle battery (red clamp సానుకూలంగా, నలుపు clamp to negative). Reverse connection can cause damage.
• Avoid short-circuiting the jumper clamps.
• స్తంభించిన బ్యాటరీని జంప్-స్టార్ట్ చేయడానికి ప్రయత్నించవద్దు.
• బాగా వెంటిలేషన్ ఉన్న ప్రదేశంలో పరికరాన్ని ఉపయోగించండి.
• If the device becomes excessively hot during use, disconnect it immediately and allow it to cool down.
• The device is designed to be dust-proof and water-resistant (IP64 standard) when ports are covered. However, avoid submerging it in water.

చిత్ర వివరణ: A close-up shows hands connecting the red jumper cable to a car battery terminal. The Green Cell PowerBoost device is in the foreground, displaying icons for spark-proof, protection against reverse connection, and temperature control, emphasizing its safety features.

3. ప్యాకేజీ విషయాలు

ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని నిర్ధారించుకోండి:

• Green Cell PowerBoost 16000 mAh Jump Starter
• Jumper clampEC5 కనెక్టర్‌తో s
• USB-C to USB-C cable (120 cm long)
• వినియోగదారు మాన్యువల్
• రక్షణ వాహక కేసు

4. ఉత్పత్తి ముగిసిందిview

The Green Cell PowerBoost features a robust design with multiple functionalities.

ముఖ్య లక్షణాలు:

• హై పీక్ కరెంట్: 2000A for quick starting of large engines (up to 8L petrol, 6L diesel).
• బ్యాటరీ కెపాసిటీ: 16000 mAh, capable of up to 30 jump starts on a single charge.
• ఛార్జింగ్ పోర్ట్‌లు:
  • 1x USB-C (60W Power Delivery) for fast charging the PowerBoost and other devices.
  • 2x USB-A (18W) for charging smartphones, tablets, and other USB-powered devices.
• OLED డిస్ప్లే: Provides clear instructions and status messages.
• ఇంటిగ్రేటెడ్ ఫ్లాష్‌లైట్: Features 4 lighting modes (SOS, 10%, 50%, 100%).
• మన్నిక: Dust-proof and splash-proof (IP64 standard) when ports are covered.

చిత్ర వివరణ: ఒక క్లోజప్ view of the Green Cell PowerBoost CJSGC01 device, highlighting its top panel with the OLED display showing "12.4 V READY" and the power button.

5. Charging the PowerBoost

Before first use, fully charge the PowerBoost. It is recommended to keep the device charged above 50% for optimal performance and battery longevity.

1. Locate the USB-C input port on the PowerBoost.
2. Connect the provided USB-C to USB-C cable to the PowerBoost's USB-C input port.
3. Connect the other end of the USB-C cable to a compatible USB-C Power Delivery (PD) charger (e.g., a 60W USB-C charger, not included).
4. The OLED display will indicate the charging status and battery level.
5. A full charge from 0% to 100% typically takes approximately 80 minutes with a 60W PD charger.

గమనిక: The PowerBoost can also be used to charge a 12V vehicle battery overnight using its charging mode, provided you have a suitable 60W power supply.

6. వాహనాన్ని ప్రారంభించడం

Follow these steps carefully to safely jump-start your vehicle. Ensure the PowerBoost is sufficiently charged.

1. వాహనాన్ని సిద్ధం చేయండి: Turn off the vehicle's ignition and all accessories (lights, radio, air conditioning). Engage the parking brake.
2. జంపర్ కేబుల్‌లను కనెక్ట్ చేయండి:
   • కనెక్ట్ చేయండి ఎరుపు అనుకూల (+) clamp వాహనం బ్యాటరీ యొక్క పాజిటివ్ (+) టెర్మినల్‌కు.
   • కనెక్ట్ చేయండి నలుపు ప్రతికూల (-) clamp వాహనం యొక్క బ్యాటరీ యొక్క ప్రతికూల (-) టెర్మినల్‌కు.
   • సురక్షిత కనెక్షన్‌ని నిర్ధారించుకోండి.
3. Connect to PowerBoost: Insert the EC5 connector of the jumper cables into the jump-start port on the PowerBoost. The device will automatically detect the battery and display "READY" if the voltage is sufficient (above 5V).
4. వాహనాన్ని ప్రారంభించండి: Once "READY" is displayed, start your vehicle's engine. If the engine does not start immediately, wait at least 30 seconds before attempting again. Do not crank for more than 3 seconds per attempt.
5. డిస్‌కనెక్ట్: Once the vehicle starts, immediately disconnect the jumper cables from the PowerBoost, then disconnect the black negative (-) clamp from the vehicle battery, followed by the red positive (+) clamp.

Manual Override (Boost Function for Deeply Discharged Batteries):

If the vehicle battery is deeply discharged (below 5V), the PowerBoost may display a warning and not enter "READY" mode automatically. In such cases, a manual override function can be used at your own risk.

1. Connect the jumper cables to the vehicle battery as described above.
2. Connect the EC5 connector to the PowerBoost.
3. నొక్కండి మరియు పట్టుకోండి పవర్ బటన్ మరియు ది ఫ్లాష్‌లైట్ బటన్ simultaneously for 3 seconds. The display will show "MANUAL MODE" or "AWARE MODE".
4. Immediately attempt to start the vehicle within 30 seconds. The PowerBoost will discharge rapidly and heat up in this mode.
5. If an overheating warning (visual and audible) occurs, immediately disconnect the clamps. Allow the device to cool for at least 15 minutes before any further attempts.
6. Disconnect the cables as soon as the vehicle starts.

చిత్ర వివరణ: The Green Cell PowerBoost CJSGC01 is shown connected to a car engine, ready for jump-starting. Accompanying text highlights its capabilities: starting up to 6L Diesel/8L Petrol engines, providing 30 jump starts per charge, offering a 12V battery charging mode, and featuring an OLED display for control.

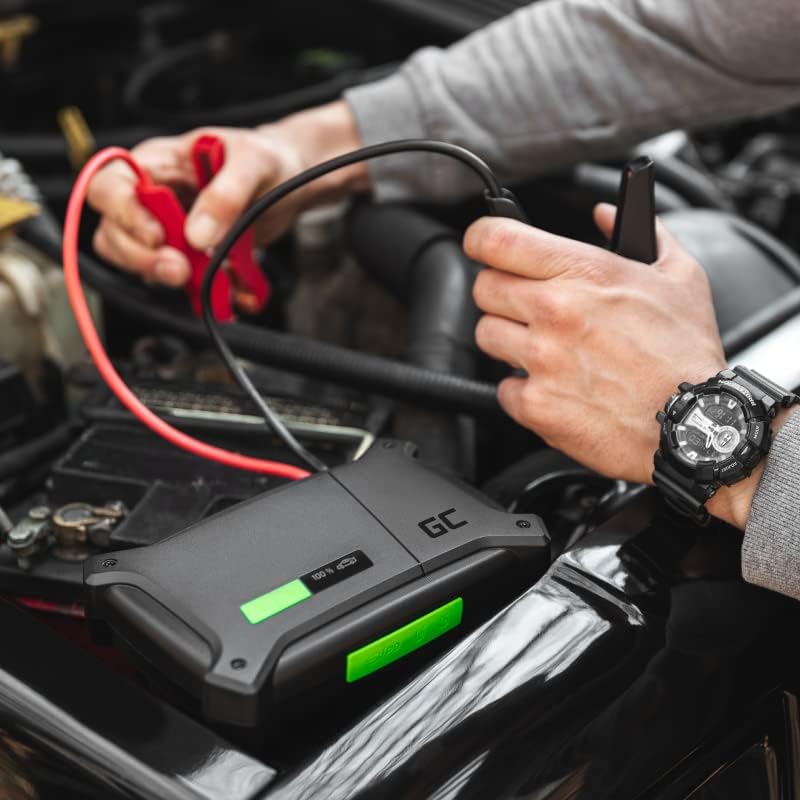

చిత్ర వివరణ: A person is shown carefully connecting the red and black jumper cables from the Green Cell PowerBoost CJSGC01 device to the terminals of a car battery located in the engine bay.

7. పవర్ బ్యాంక్‌గా ఉపయోగించడం

The PowerBoost can charge various electronic devices using its USB-C and USB-A ports.

1. Connect your device's charging cable to one of the PowerBoost's output ports (USB-C or USB-A).
2. The PowerBoost will automatically begin charging your device.
3. The OLED display will show the remaining battery level of the PowerBoost.

Example కెపాసిటీ: The 16000 mAh capacity can charge a MacBook Air once or an iPhone 13 four times.

చిత్ర వివరణ: A person is seated outdoors, using the Green Cell PowerBoost CJSGC01 to charge both a tablet and a laptop, demonstrating its portable power bank functionality.

8. ఫ్లాష్‌లైట్‌ని ఉపయోగించడం

The integrated LED flashlight provides illumination in various modes.

1. Press the Flashlight button once to turn on the light at 100% brightness.
2. Press the Flashlight button repeatedly to cycle through the modes: 100% -> 50% -> 10% -> SOS -> Off.
3. Hold the Flashlight button for 2 seconds to turn it off directly from any mode.

చిత్ర వివరణ: An illustration demonstrating the ultra-bright LED flashlight feature of the Green Cell PowerBoost CJSGC01, showing its four distinct lighting modes: SOS, 10% brightness, 50% brightness, and 100% brightness.

9. నిర్వహణ మరియు నిల్వ

• శుభ్రపరచడం: పరికరాన్ని పొడి, మృదువైన గుడ్డతో తుడవండి. కఠినమైన రసాయనాలు లేదా రాపిడి పదార్థాలను ఉపయోగించవద్దు.
• నిల్వ: Store the PowerBoost in a cool, dry place, away from direct sunlight and extreme temperatures.
• బ్యాటరీ సంరక్షణ: For optimal battery life, recharge the device every 3-6 months, even if not in use, to maintain a charge level above 50%.
• నీటి నిరోధకత: The device is IP64 rated for dust and splash resistance when all ports are securely covered. Do not immerse in water.

చిత్ర వివరణ: The Green Cell PowerBoost CJSGC01 device is shown lying on wet, muddy ground, with water droplets visible on its surface, illustrating its dust-proof and water-resistant capabilities according to the IP64 standard.

10. ట్రబుల్షూటింగ్

11. స్పెసిఫికేషన్లు

12. వారంటీ మరియు మద్దతు

The Green Cell PowerBoost CJSGC01 comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact Green Cell customer support.

For technical support or service inquiries, please visit the official Green Cell webసైట్ లేదా వారి కస్టమర్ సేవా విభాగాన్ని సంప్రదించండి.
