1. పరిచయం
Thank you for choosing the HOFTRONIC Spikey LED Garden Spike Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new outdoor lighting product. Please read these instructions carefully before use and retain them for future reference.
2. భద్రతా సమాచారం
- Always disconnect the power supply before installation, maintenance, or bulb replacement.
- Ensure that the product is installed by a qualified electrician if you are unsure about electrical connections.
- This product is designed for outdoor use and has an IP65 rating, meaning it is protected against dust and low-pressure water jets. However, avoid submerging the product in water.
- Do not touch the light source immediately after use, as it may be hot.
- Use only GU10 LED bulbs with the specified wattage (max 5W) to prevent damage.
3. బాక్స్ విషయాలు
ప్యాకేజింగ్లో అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:
- 1x Spikey LED Garden Spike Light
- 1x అలెన్ కీ
- 1x GU10 4000K LED Bulb
Figure 1: Contents of the HOFTRONIC Spikey LED Garden Spike Light package.
4. సెటప్ మరియు ఇన్స్టాలేషన్
The HOFTRONIC Spikey LED Garden Spike Light offers versatile installation options:
4.1. Ground Spike Installation
- Select a suitable location in your garden or outdoor area where the light can be securely placed.
- Gently push the ground spike into soft soil. Ensure the spike is firmly embedded to prevent the light from falling over.
- Connect the light directly to a 230 Volt power supply. The included 30cm installation cable can be extended using a waterproof cable connector (not included) if needed.
4.2. Screw Mounting (Optional)
The spike can be removed, and the fixture can be mounted using two screws (not included) to a solid surface if desired.
4.3. Bulb Installation/Replacement
- Unscrew the front cover of the light fixture.
- Insert the GU10 LED bulb into the fitting by aligning the pins and twisting clockwise until secure.
- Replace the front cover, ensuring it is tightly sealed to maintain the IP65 rating.
Figure 2: HOFTRONIC Spikey LED Garden Spike Light.
Figure 3: GU10 fitting for easy bulb replacement.
Figure 4: Product dimensions and cable length.
4.4. ఇన్స్టాలేషన్ వీడియో గైడ్
Video 1: This video demonstrates the installation and adjustment of a garden spike light, similar to the HOFTRONIC Spikey LED Garden Spike Light. It shows how to insert the spike into the ground and adjust the light's direction.
5. ఆపరేటింగ్ సూచనలు
Once installed and connected to the power supply, the HOFTRONIC Spikey LED Garden Spike Light operates by simply switching on the connected power source. The light is designed for continuous outdoor use.
5.1. Adjusting Light Direction
The light fixture is fully tiltable, allowing you to direct the light beam precisely where needed. Loosen the adjustment screws on the side of the fixture, position the light, and then tighten the screws to secure it.
Figure 5: The light fixture is fully tiltable for adjustable illumination.
చిత్రం 6: ఉదాample of the spike light illuminating a garden path.

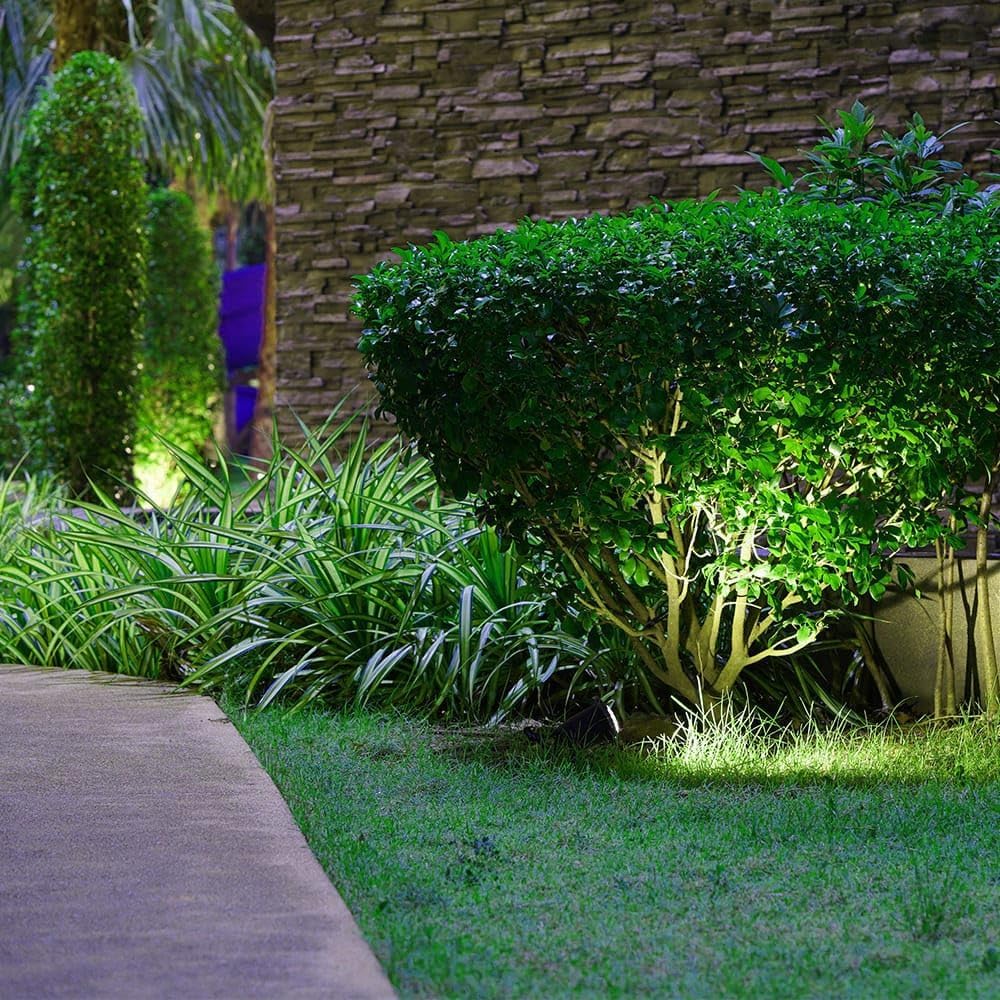

చిత్రం 7: ఉదాample of the spike light highlighting garden plants.
6. నిర్వహణ
The HOFTRONIC Spikey LED Garden Spike Light is designed for low maintenance. Regular cleaning and occasional bulb replacement are the primary maintenance tasks.
6.1. శుభ్రపరచడం
To clean the fixture, ensure the power is off. Wipe the exterior with a soft, damp రాపిడి క్లీనర్లు లేదా ద్రావకాలను ఉపయోగించవద్దు, ఎందుకంటే ఇవి ముగింపును దెబ్బతీస్తాయి.
6.2. బల్బ్ ప్రత్యామ్నాయం
As the light source is replaceable, you can easily change the GU10 bulb if it fails or if you wish to change the light color or intensity. Refer to section 4.3 for bulb replacement steps. Always ensure the replacement bulb is a GU10 type and does not exceed 5W.
Figure 8: The durable aluminum construction is designed to withstand various weather conditions.
7. ట్రబుల్షూటింగ్
If you encounter issues with your HOFTRONIC Spikey LED Garden Spike Light, refer to the following common problems and solutions:
- లైట్ ఆన్ అవ్వదు:
- విద్యుత్ సరఫరా కనెక్షన్ను తనిఖీ చేయండి.
- Ensure the GU10 bulb is correctly installed and not faulty. Replace if necessary.
- Verify that the circuit breaker or fuse for the power line is not tripped.
- కాంతి మసకగా లేదా మినుకుమినుకుమంటుంది:
- The bulb may be nearing the end of its lifespan. Replace the GU10 bulb.
- వదులైన విద్యుత్ కనెక్షన్ల కోసం తనిఖీ చేయండి.
- Water inside the fixture:
- Ensure the front cover is tightly screwed on and the rubber seals are properly seated.
- If water ingress persists, contact customer support.
For issues not listed here, please contact HOFTRONIC customer support.
8. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| బ్రాండ్ | హోఫ్ట్రోనిక్ |
| మోడల్ సంఖ్య | 5432460 |
| ఉత్పత్తి కొలతలు | 10 x 6 x 24.5 సెం.మీ |
| బరువు | 5 కిలోలు |
| ప్రవేశ రక్షణ (IP) రేటింగ్ | IP65 |
| శైలి | ఆధునిక |
| రంగు | Anthracite (4000K light color) |
| లైట్ల సంఖ్య | 1 |
| వాల్యూమ్tage | 230 వోల్ట్ |
| ప్రత్యేక లక్షణాలు | Energy-efficient 5W and 400 lumens, Supplied with replaceable GU10 LED light source, Made of maintenance-free aluminum, Long lifespan of 15,000 hours, IP65 waterproof, Multiple mounting options (wall or floor) |
| షేడ్ మెటీరియల్ | అల్యూమినియం |
| కాంతి దిశ | సర్దుబాటు |
| శక్తి మూలం | విద్యుత్ |
| బల్బ్ రకం | LED (GU10) |
| ప్రకాశించే ఫ్లక్స్ | 345 ల్యూమెన్స్ |
| వాట్tage | 4 Watt (product title states 5W, using 4W from specs) |
| రంగు ఉష్ణోగ్రత | 4000 కెల్విన్ |
| శక్తి సామర్థ్య రేటింగ్ | F |
8.1. శక్తి లేబుల్
Figure 9: EU Energy Label. For more details, visit the EPREL డేటాబేస్.
9. వారంటీ మరియు మద్దతు
The HOFTRONIC Spikey LED Garden Spike Light comes with a రెండు సంవత్సరాల వారంటీ against manufacturing defects. During this period, any defects will be replaced free of charge.
For warranty claims, technical support, or any questions regarding your product, please contact HOFTRONIC customer service through your retailer or the official HOFTRONIC webసైట్.
