Swagelok M-12M0-6 Union: 12mm OD Compression Fitting Instruction Manual

1. పరిచయం

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the Swagelok M-12M0-6 Union. This compression fitting is designed for connecting two sections of 12mm outside diameter (OD) tubing in various industrial applications. Constructed from Monel/Alloy 400/R-405, it offers excellent corrosion resistance and strength, making it suitable for demanding environments.

Please read this manual thoroughly before attempting any installation or operation to ensure proper usage and to prevent potential hazards or damage to the fitting and associated systems.

2. భద్రతా సమాచారం

Always adhere to standard safety practices when working with industrial fittings and pressurized systems. Failure to follow these guidelines may result in serious injury or equipment damage.

• సంస్థాపన లేదా నిర్వహణకు ముందు వ్యవస్థ ఒత్తిడి తగ్గించబడి, నీరు ఖాళీ చేయబడిందని నిర్ధారించుకోండి.
• భద్రతా గ్లాసెస్ మరియు చేతి తొడుగులు సహా తగిన వ్యక్తిగత రక్షణ పరికరాలు (PPE) ధరించండి.
• Use only genuine Swagelok components and tools for installation.
• Do not overtighten or undertighten fittings; follow recommended torque specifications.
• Verify compatibility of materials with the fluid or gas being conveyed.
• అసెంబ్లీకి ముందు అన్ని భాగాలకు నష్టం జరిగిందని తనిఖీ చేయండి.

3. ఉత్పత్తి ముగిసిందిview

The Swagelok M-12M0-6 Union is a straight compression fitting designed to connect two 12mm OD tubes. It consists of a body, two nuts, two front ferrules, and two back ferrules. The Monel/Alloy 400/R-405 construction provides high resistance to corrosion in various aggressive media.

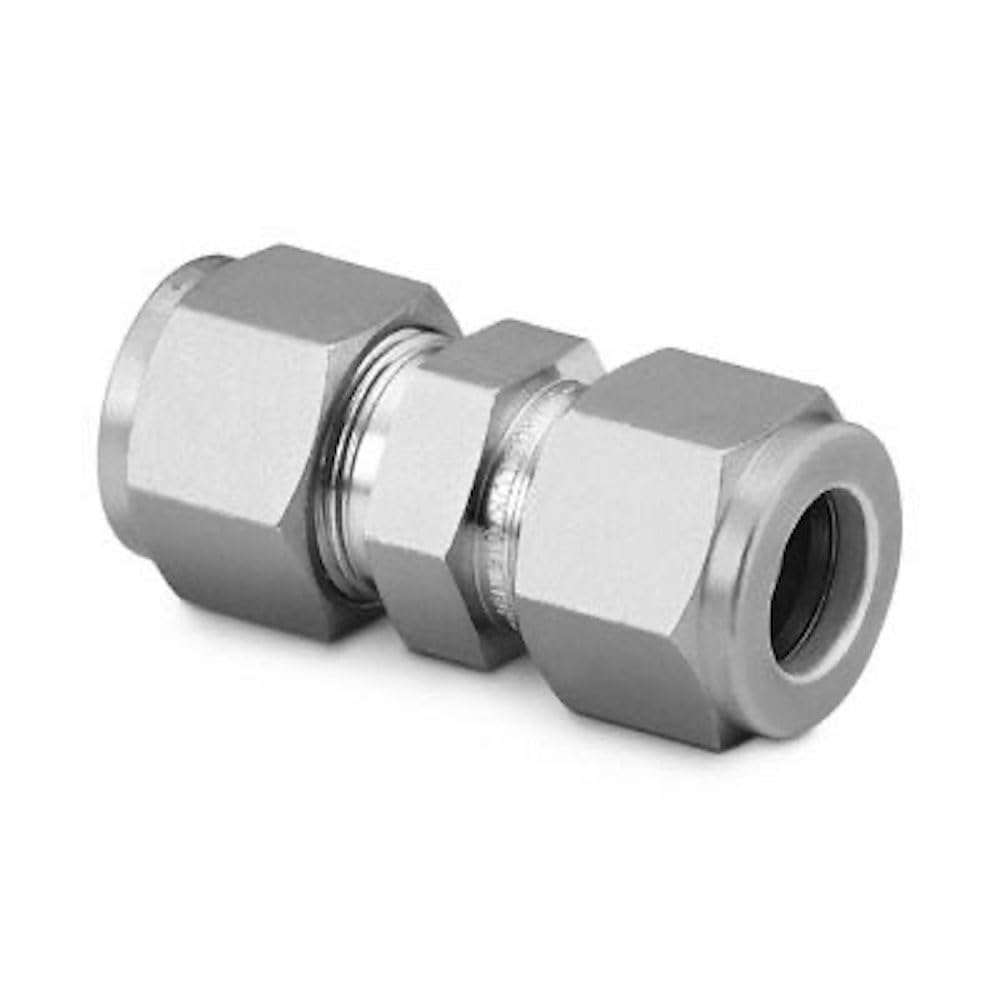

మూర్తి 1: Swagelok M-12M0-6 Union. This image displays the complete union fitting, showing the central body, two compression nuts, and the internal ferrules (though not clearly visible, they are implied by the design). The fitting is made of a metallic alloy, appearing silver-grey, and has hexagonal sections for wrench application.

4. స్పెసిఫికేషన్లు

Key technical specifications for the Swagelok M-12M0-6 Union:

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

Proper installation is critical for leak-free performance. Follow these steps carefully:

1. ట్యూబింగ్ సిద్ధం చేయండి:
   • Cut the tubing squarely, removing any burrs from the inside and outside edges.
   • Ensure the tubing is clean and free of scratches or damage on the outside diameter.
2. Assemble the Fitting:
   • Insert the tube into the Swagelok fitting until it bottoms out against the shoulder of the fitting body.
   • While holding the tube firmly in place, finger-tighten the nut.
3. Mark the Nut:

   Using a marker, draw a line on the nut from one of its flats to the fitting body. This mark will serve as a reference for tightening.

4. గింజను బిగించండి:

   Using a wrench, tighten the nut 1-1/4 turns past finger-tight for 12mm Monel tubing. For other materials or sizes, consult the official Swagelok Tube Fitting Installation Manual for specific turn requirements. The mark on the nut should align with the body after tightening.
5. కనెక్షన్‌ని తనిఖీ చేయండి:

   Visually inspect the connection to ensure the nut is properly tightened and the tube is securely seated. Perform a leak test according to system procedures before full operation.

గమనిక: For critical applications or if unsure, always refer to the latest official Swagelok installation guidelines and training resources.

6. ఆపరేటింగ్ సూత్రాలు

Once properly installed, the Swagelok M-12M0-6 Union creates a secure, leak-tight connection between two tubes. The two-ferrule design ensures a strong mechanical grip and a reliable seal. The front ferrule creates a seal on the tube and the fitting body, while the back ferrule provides a strong grip on the tube, preventing tube pull-out.

The fitting is designed to operate within the pressure and temperature ratings specified for the tubing material and the fitting material (Monel/Alloy 400/R-405). Exceeding these ratings can compromise the integrity of the connection and lead to system failure.

7. నిర్వహణ

Regular inspection and maintenance are essential to ensure the long-term reliability of your Swagelok connections.

• దృశ్య తనిఖీ: Periodically inspect all connections for signs of leakage, corrosion, or physical damage. Look for discoloration, residue, or deformation around the fitting.
• లీక్ డిటెక్షన్: Use an approved leak detection fluid or electronic leak detector to check for leaks, especially after system startup or pressure changes.
• Re-tightening: Swagelok fittings generally do not require re-tightening after initial proper installation. If a leak is detected, do not simply re-tighten. Depressurize the system, disassemble the fitting, inspect components for damage, replace any damaged parts (especially ferrules), and reassemble according to installation instructions.
• శుభ్రపరచడం: Keep the exterior of the fittings clean to prevent accumulation of corrosive substances.

8. ట్రబుల్షూటింగ్

Most issues with Swagelok fittings are related to improper installation. Here are common problems and their solutions:

If troubleshooting steps do not resolve the issue, contact Swagelok technical support or your authorized distributor.

9. వారంటీ సమాచారం

Swagelok products are backed by a limited lifetime warranty. This warranty covers defects in material and workmanship for the life of the product. It does not cover damage resulting from improper installation, misuse, abuse, or normal wear and tear. For full details on the Swagelok warranty policy, please refer to the official Swagelok website or contact your local authorized Swagelok sales and service center.

10. మద్దతు

For technical assistance, product inquiries, or to locate an authorized distributor, please visit the official Swagelok website or contact their customer service department. Ensure you have the model number (M-12M0-6) and any relevant system details available when seeking support.

Official Swagelok Webసైట్: www.swagelok.com
