LB-లింక్ BL-WN150AH లాంగ్-రేంజ్ USB అడాప్టర్ యూజర్ మాన్యువల్

1. పరిచయం

Thank you for choosing the LB-Link BL-WN150AH Long-Range USB Adapter. This device is designed to provide your desktop computer with high-speed wireless connectivity, extending your Wi-Fi range and improving signal stability. This manual will guide you through the installation, operation, and maintenance of your new adapter.

2. ప్యాకేజీ విషయాలు

Please check the package carefully to ensure all items are present. If any item is missing or damaged, please contact your retailer.

• LB-Link BL-WN150AH Long-Range USB Adapter
• Detachable High-Gain Antenna (5dBi)
• Resource CD (Drivers and User Manual)
• త్వరిత సంస్థాపన గైడ్

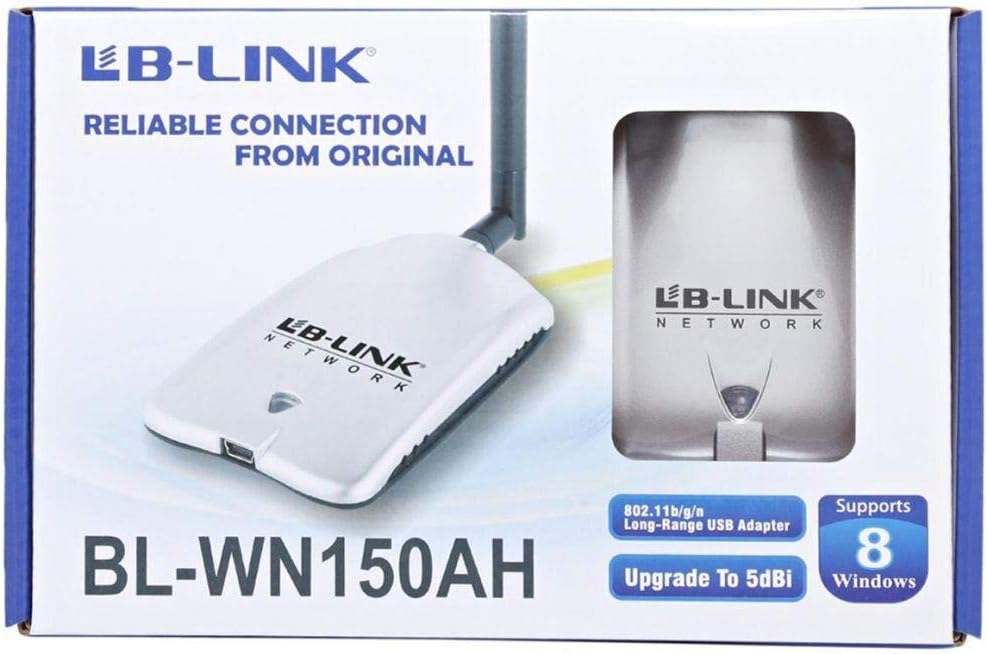

Figure 2.1: Product packaging showing the adapter and its features.

3. ఉత్పత్తి ముగిసిందిview

The BL-WN150AH is a compact USB adapter with an external antenna for enhanced signal reception. Familiarize yourself with its components:

• USB కనెక్టర్: Used to connect the adapter to your computer's USB port.
• యాంటెన్నా కనెక్టర్: For attaching the detachable high-gain antenna.
• LED సూచిక: Lights up when the adapter is powered on and blinks during data transmission.

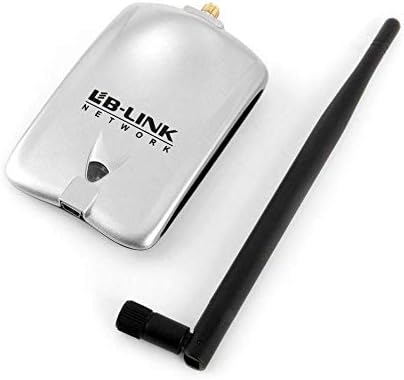

Figure 3.1: The BL-WN150AH adapter and its detachable antenna.

4. సెటప్

4.1 డ్రైవర్ ఇన్‌స్టాలేషన్

Before connecting the adapter, install the necessary drivers from the provided Resource CD or download the latest drivers from the official LB-Link webసైట్.

1. Insert the Resource CD into your computer's CD/DVD drive.
2. Follow the on-screen instructions to run the setup wizard.
3. Select the appropriate driver for your operating system (Windows XP/Vista/7/8, Mac OSX, Linux).
4. Complete the installation process. You may be prompted to restart your computer.

Figure 4.1: Supported operating systems including Windows XP, Vista, 7, 8, Mac OSX, and Linux.

4.2 హార్డ్‌వేర్ కనెక్షన్

1. Attach the detachable antenna to the antenna connector on the adapter by screwing it clockwise until secure.
2. Plug the LB-Link BL-WN150AH USB Adapter into an available USB port on your desktop computer.
3. The LED indicator on the adapter should light up, indicating it is powered on.

4.3 Wi-Fi నెట్‌వర్క్‌కి కనెక్ట్ చేస్తోంది

1. Once the drivers are installed and the adapter is connected, your computer should detect the new wireless adapter.
2. Open your computer's wireless network settings (e.g., Wi-Fi icon in the system tray for Windows).
3. అందుబాటులో ఉన్న నెట్‌వర్క్‌ల జాబితా నుండి మీకు కావలసిన Wi-Fi నెట్‌వర్క్‌ను ఎంచుకోండి.
4. ప్రాంప్ట్ చేయబడితే నెట్‌వర్క్ సెక్యూరిటీ కీ (పాస్‌వర్డ్) నమోదు చేయండి.
5. Click 'Connect'. The adapter's LED will blink rapidly during data transmission.

5. ఆపరేటింగ్ సూచనలు

After successful connection, the adapter will automatically maintain the wireless link. You can monitor the connection status through your operating system's network utility.

• సిగ్నల్ బలం: The network utility will display the current signal strength, which is influenced by distance from the router and obstacles.
• నెట్‌వర్క్ వేగం: The adapter supports up to 150Mbps wireless N speeds. Actual speeds may vary based on network conditions.

6. నిర్వహణ

To ensure optimal performance and longevity of your LB-Link BL-WN150AH USB Adapter, follow these maintenance guidelines:

• శుభ్రపరచడం: Use a soft, dry cloth to clean the adapter. Do not use liquid or aerosol cleaners.
• నిల్వ: అడాప్టర్‌ను ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
• నిర్వహణ: అడాప్టర్‌ను పడవేయడం లేదా బలమైన ప్రభావాలకు గురిచేయడం మానుకోండి.
• యాంటెన్నా సంరక్షణ: Ensure the antenna is securely attached but do not overtighten. Avoid bending or forcing the antenna.

7. ట్రబుల్షూటింగ్

If you encounter issues with your LB-Link BL-WN150AH USB Adapter, refer to the following common problems and solutions:

• Wi-Fi నెట్‌వర్క్‌లు ఏవీ గుర్తించబడలేదు:
  పరిష్కారం: Ensure the adapter is properly plugged into a USB port. Verify that the drivers are correctly installed. Check if your router is powered on and broadcasting a Wi-Fi signal.
• Cannot Connect to a Network:
  పరిష్కారం: Double-check the Wi-Fi password. Ensure your router's security settings (WPA/WPA2) are compatible. Try restarting your computer and router.
• నెమ్మది కనెక్షన్ వేగం:
  పరిష్కారం: Move closer to your wireless router. Ensure there are no major obstructions (e.g., thick walls, metal objects) between the adapter and the router. Update the adapter's drivers to the latest version.
• Adapter Not Recognized by Computer:
  పరిష్కారం: Try plugging the adapter into a different USB port. Reinstall the drivers. Check Device Manager (Windows) to see if the adapter is listed without errors.

8. స్పెసిఫికేషన్లు

Detailed technical specifications for the LB-Link BL-WN150AH Long-Range USB Adapter:

Figure 8.1: Product specifications listed on the side of the packaging.

9. వారంటీ మరియు మద్దతు

LB-Link products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions.

For technical support, driver updates, or further assistance, please visit the official LB-Link webసైట్ లేదా వారి కస్టమర్ సర్వీస్‌ను సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.

UPC: 7966241501344
